atpde

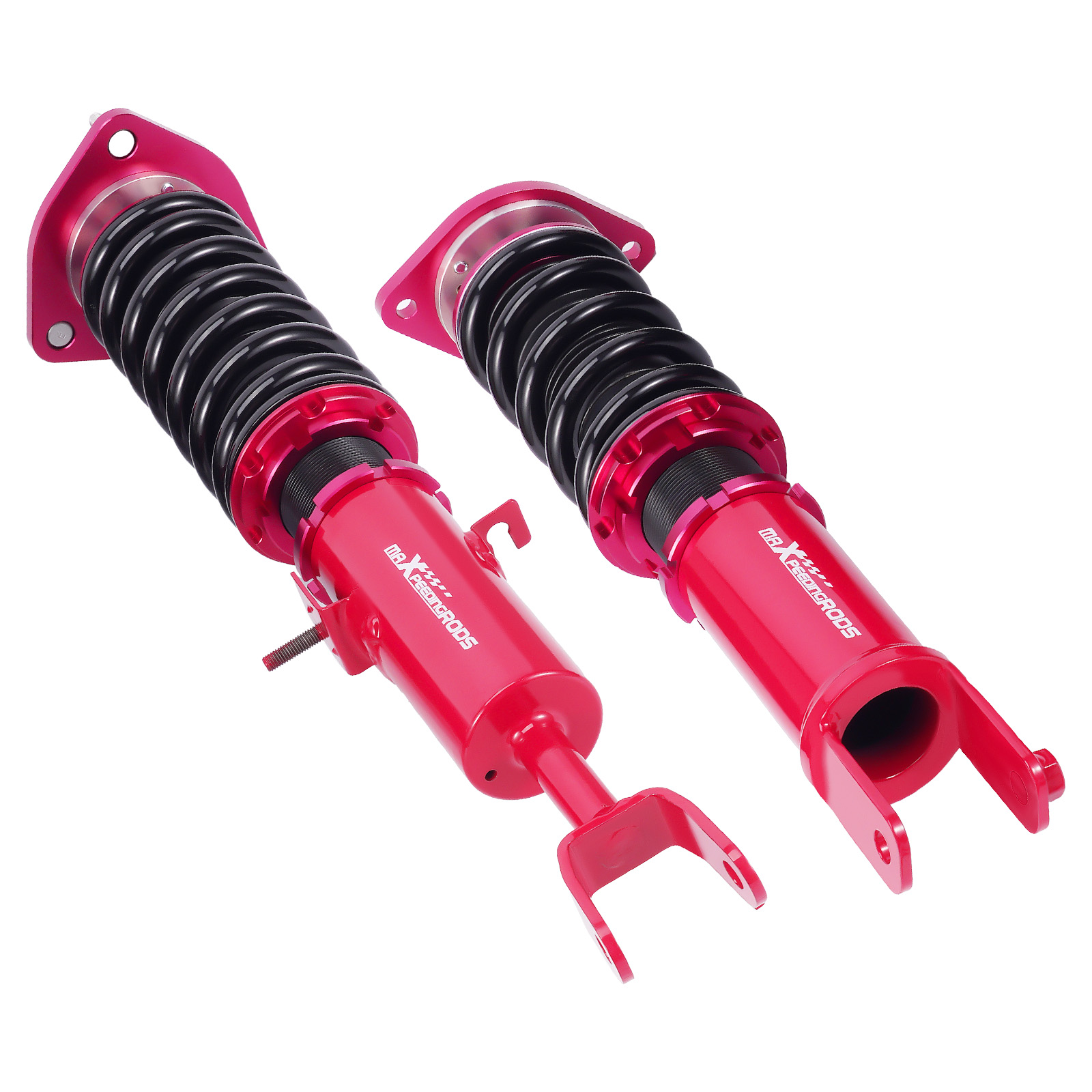

24 Click Damper Coilovers Struts Shocks Fit Nissan 350Z Base Coupe 2003-2008

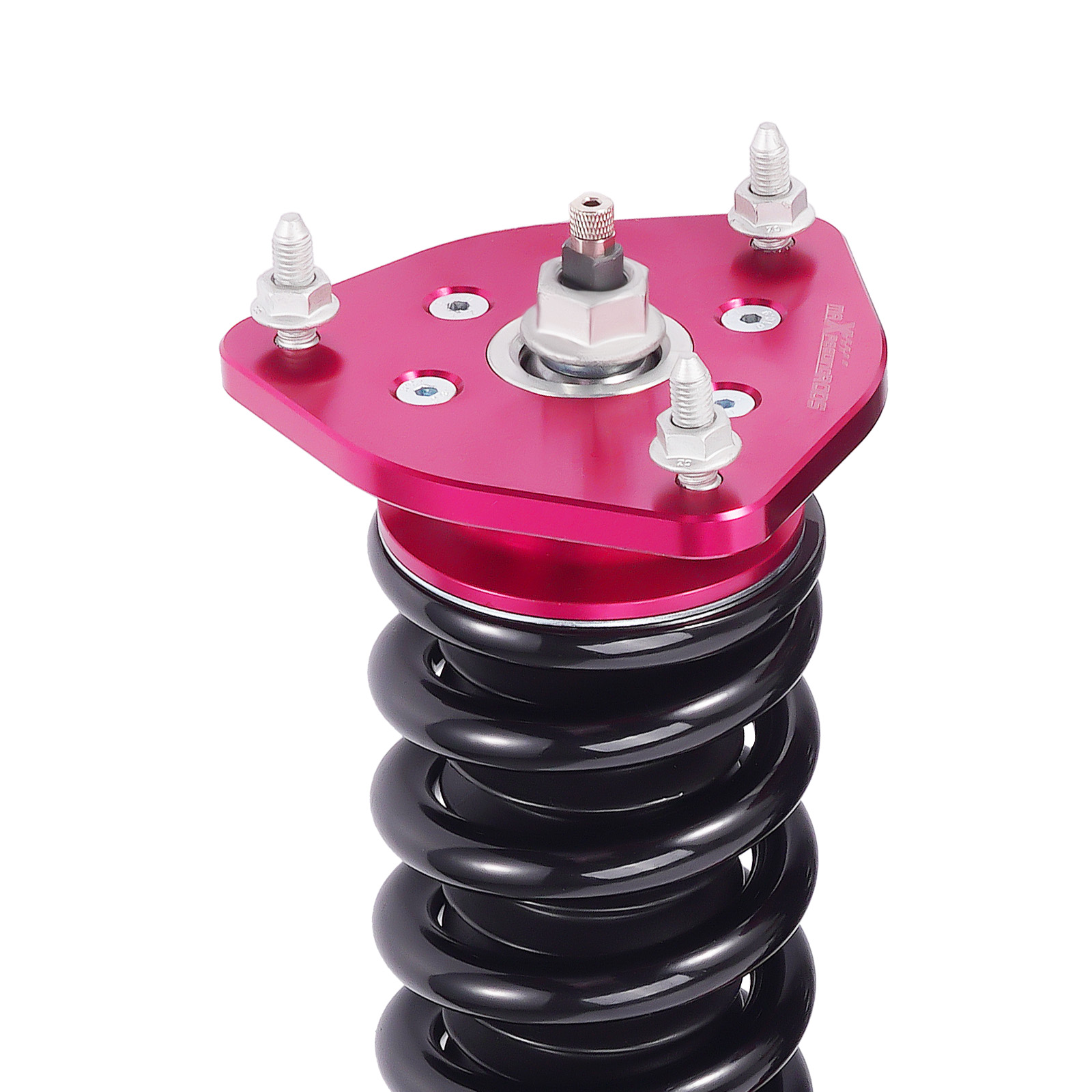

CNC Machined T6 6061 Aluminum Top Mount

High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.

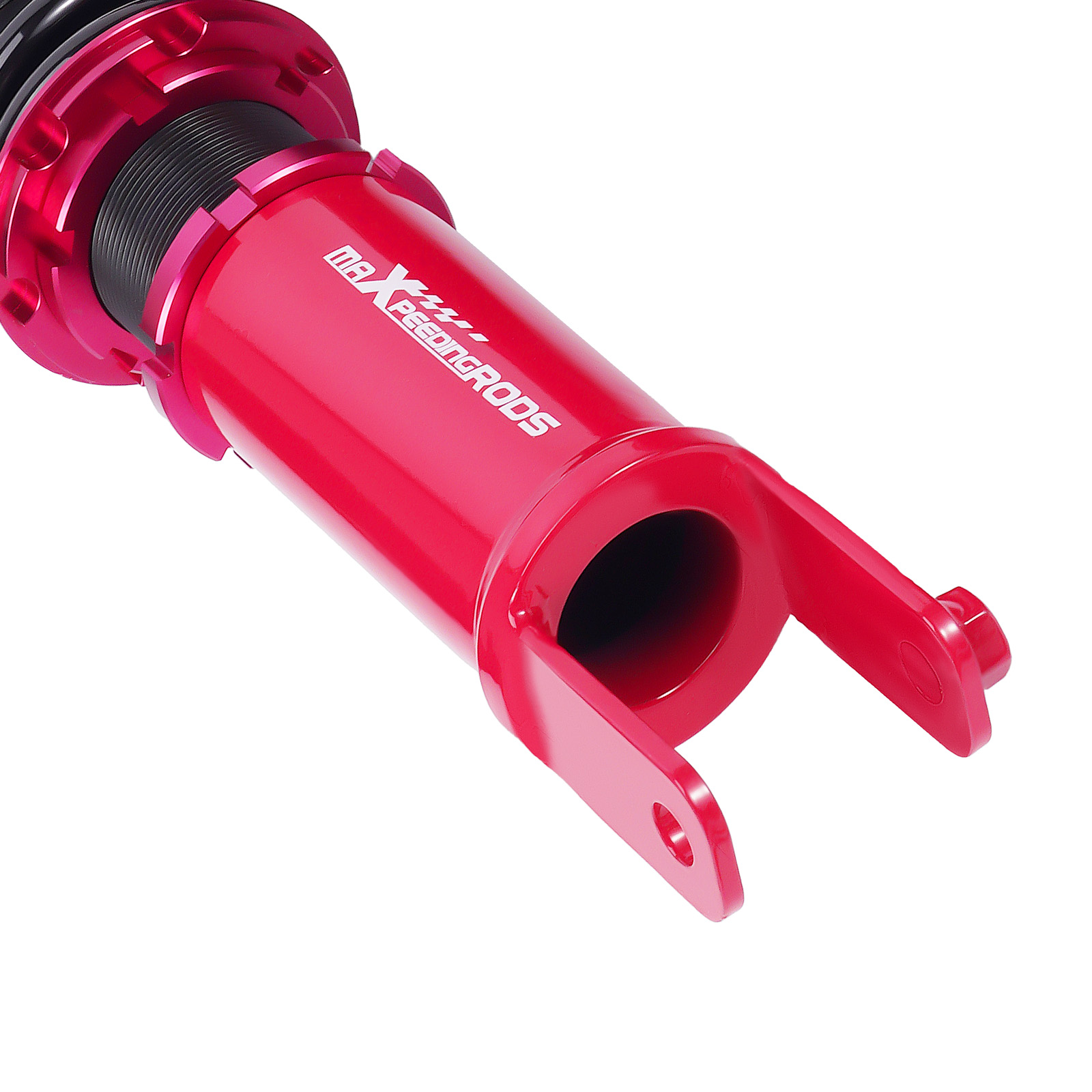

55mm Large Diameter Damper Body

High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.

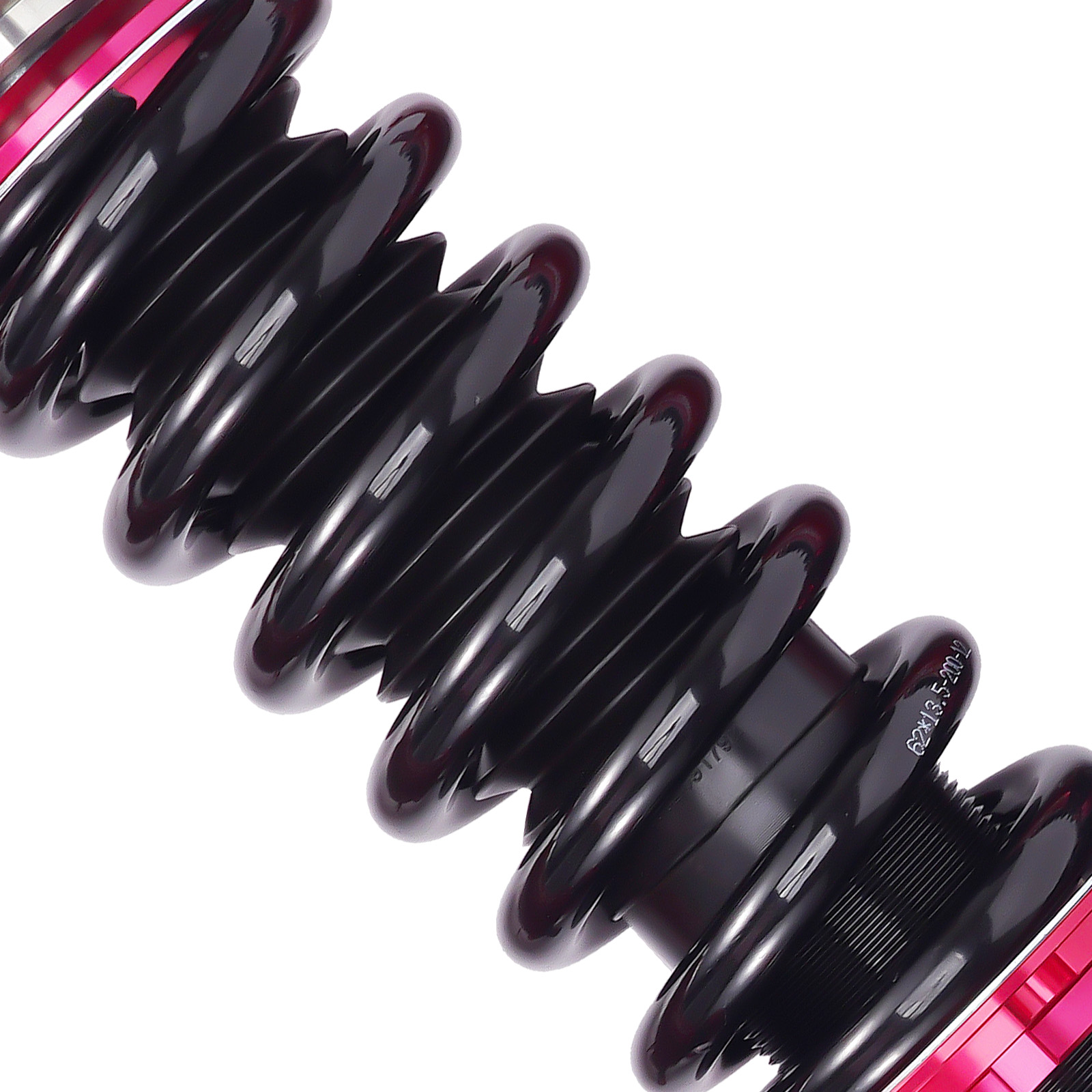

High Rigidity 55CrSi Steel Cold-bent Coil Springs

720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.

Drop 1 to 3 Inch From Factory Ride Height

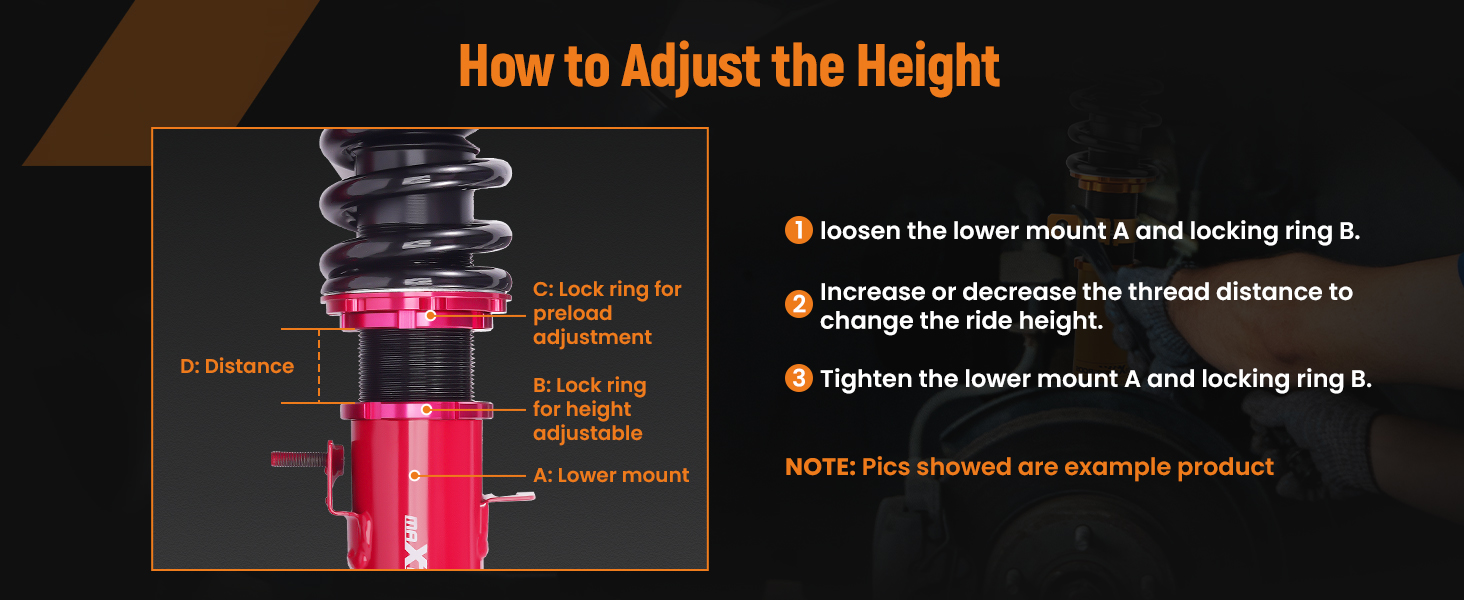

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Specifications


Adjustable damper Yes, 24 levels rebound damping adjustable
Adjustable height Yes, Lowering 1-3 inch
Front spring length 12 kg/mm (672 lbs/in)
Rear spring length 10 kg/mm (560 lbs/in)
Front spring inner diameter 62 mm
Rear spring inner diameter 62 mm
Front Spring length 200 mm
Rear Spring length 160 mm
Front Damper Body Diameter Φ55mm (2.17")
Rear Damper Body Diameter Φ55mm (2.17")

Features


- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

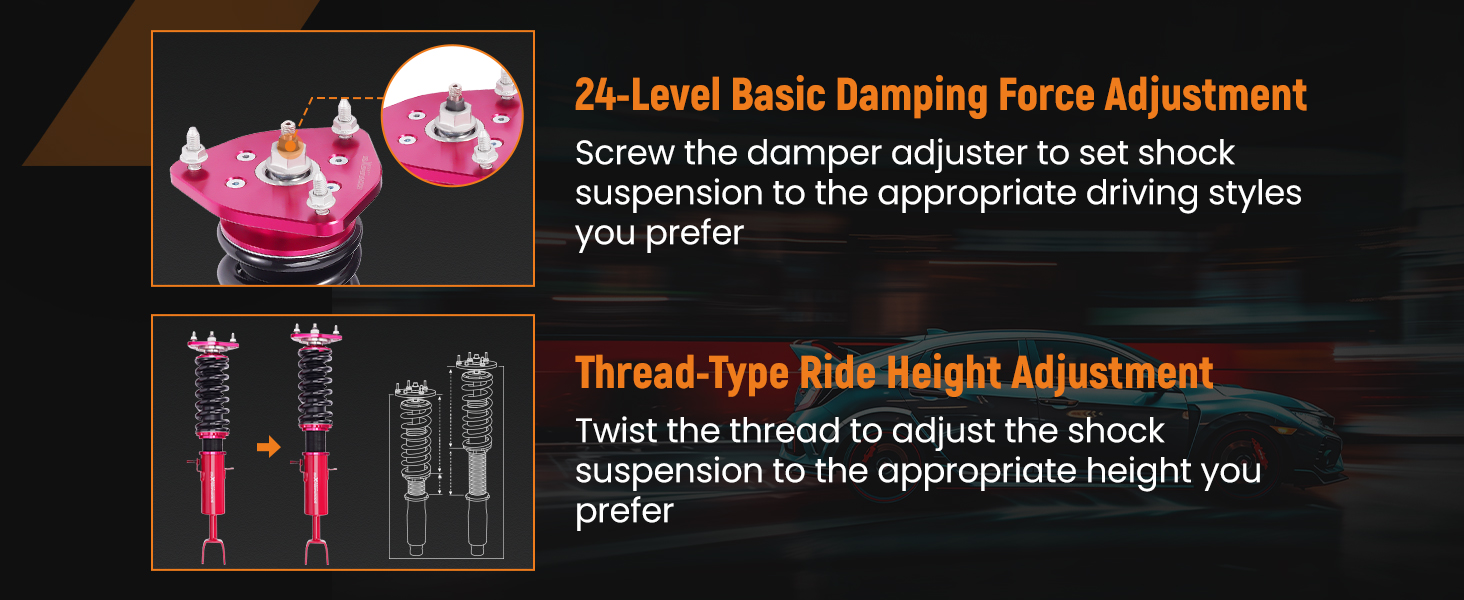

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.


Applications


For Nissan 350Z Coupe RWD 2003-2008 (Z33)
For Nissan 350Z Roadster Convertible RWD 2003-2008 (Z33)
For Nissan Skyline Coupe RWD 2003-2007（V35)
For Infiniti G35 Coupe RWD 2003-2007 (V35)
For Infiniti G35 Sedan RWD 2003-2006 (V35)
Not fit AWD models.


Specification


- Top mounts: pillow ball top mount front and rear
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75m depending on the vehicle models
- Spring Rate Front: 12 kg/mm (672 lbs/in)
- Spring Rate Rear: 10 kg/mm (560 lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 160 mm
- Spring Preload advised: 7-10 mm
- Color: Red


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; 24 Clicks of Rebound Damping Force Adjustment; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
