Introduction

MaXpeedingRods H-beam connecting rods are designed for demanding racing applications to increase horsepower and efficiency. The strength is suitable for high-horsepower applications while keeping the weight light. Professional processing makes it have super high wear resistance and excellent durability.

Application

Compatible for Mazda B6 1.6 / B6F Engine :

For Mazda 323 BG / 323F BG models B6F 1989-1994
For Mazda Miata /MX-5 B6 1.6 16-valve DOHC  1989-1993
For Mazda Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999
For Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003
For Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005
For Mazda Familia / 323 1.6 L B6 I4 1985–1989
For Ford Tonic GT-X Fifth Generation 1985–1989
For Mazda Familia / 323 1.6 L B6 I4 Sixth generation 1989–1994

Compatible for Mazda BP 1.8 Engine :

For Mazda Familia GT (European & Australian Market) 1989-1994
For Ford Laser TX3 (Australian Market)1989-1994
For Ford Laser KJ GLXi (Australian Market)1994-1998
For Mazda Artis "LX" VICS jm1 (North America Market)1994-1998
For Mazda Protege LX (with VICS)1990-1994
For Mazda Protege ES (Australian Market: 1994-1998 )1995-1998
For Mazda Infini 1990
For Mazda Protege GT (Canadian Market)1990-1991 and 1993
For Mazda 323 (European Market)1990-1993
For Ford Escort GT and LX-E 1991-1996
For Mercury Tracer LTS 1991-1996
For Kia Sephia RS, LS, for GS 1995-1997
For Mazda Familia (Japanese Market) 1994-1998
For Mazda Lantis 1994-1998
For Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997
For Suzuki Cultus Crescent/Baleno/Esteem 1996-1998

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

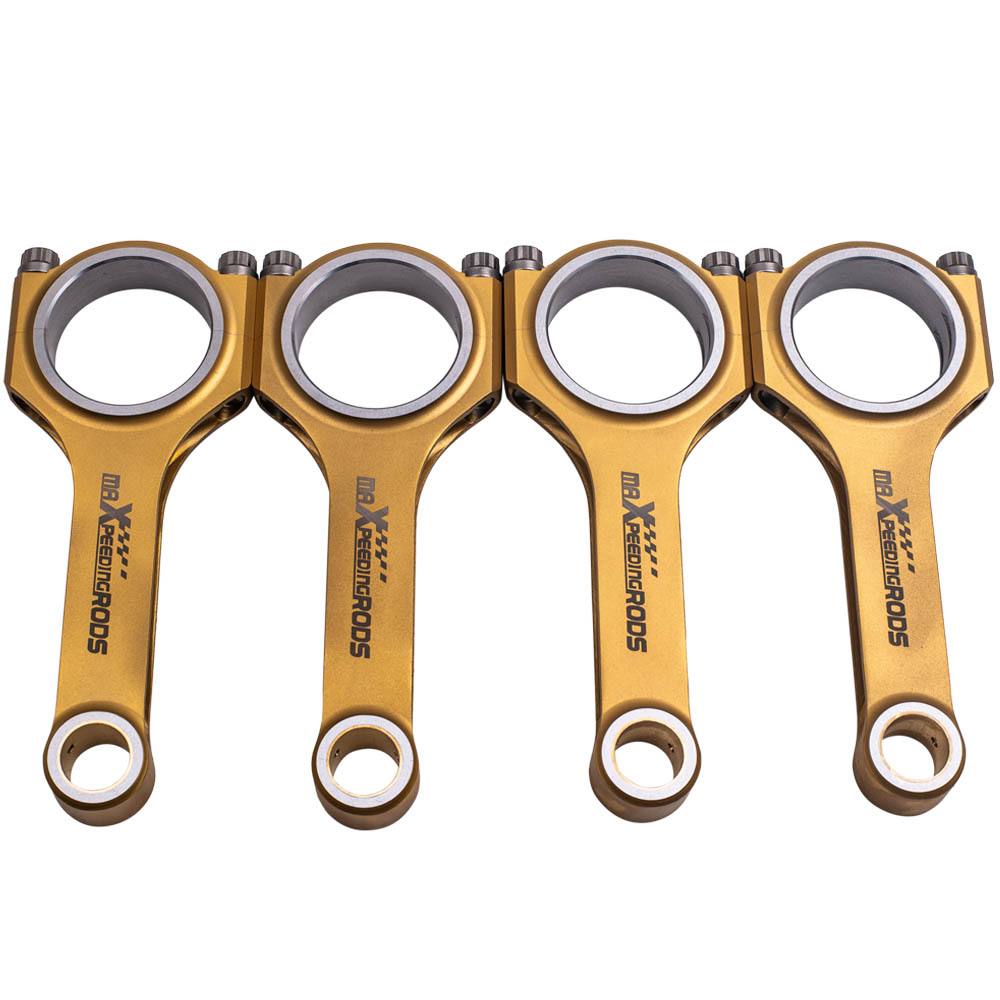

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimensions:
Center to center length: 133mm/ 5.2362 in.
Big end diameter: 48mm/ 1.8898 in.
Small end diameter: 20mm/ 0.7874 in.
Big end width: 21.84mm/ 0.8598 in.
Small end width: 21.84mm/ 0.8598 in

Feature:

The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.
1. Titanizing can further improve the bending strength of the product;
2. Titanizing will not affect the weight of the connecting rod;
3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;
4. TüV Certification Con Rods.
5. Material: Titanizing Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.
6. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade.
7. H-Beam design reduces weight without compromising strength.
8.Heat-treating & Shot-peened for remained consistent and strong, Shot-peened finish to remove potential for stress risers.
9.100% CNC machined,Precision rod cap alignment dowels.
10.Bores finished to +/- .005mm.
11.Balanced to within +/- 1 g per rod.
12. Each rod is magnetic particle tested to ensure free of flaws.
13.100% X-rayed, sonic tested.
14.Custom Service.

Note：

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
