FLIR BFS-U3-200S6M-C Blackfly S USB3: 20 MP, Mono, C-mount 2D Area Scan Camera
Item Description
FLIR Blackfly® S BFS-U3-200S6M-C
20 MP Monochrome USB3 C-Mount 2D Area Scan Camera — Sony IMX183

The Blackfly® S leverages the industry’s most advanced sensors in an ice-cube form factor. It is packed with powerful features that let you easily produce the exact images you need and accelerate your application development, with both automatic and precise manual control over image capture and on-camera pre-processing.

Built around Sony’s 20 MP IMX183 back-illuminated CMOS sensor in a 29 × 29 × 30 mm housing. C-mount lens compatibility, USB3 Vision interface, and the Spinnaker SDK make it a strong fit for machine vision, LCD/PCB inspection, scientific imaging and embedded camera builds.

Key Features
  • 20 MP (5,472 × 3,648) resolution for highly detailed images
  • Monochrome Sony IMX183 1″ back-illuminated CMOS sensor for high sensitivity
  • C-mount lens compatibility for versatile optics selection
  • USB 3.1 Gen 1 interface (USB3 Vision v1.0) for fast data transfer
  • Rolling shutter with global reset; 10-bit / 12-bit ADC
  • On-camera pre-processing: gamma, lookup table, sharpness, binning, decimation, ROI
  • Compact, durable ice-cube design built for industrial deployment
Key Specifications
Brand FLIR (Teledyne FLIR)
Model BFS-U3-200S6M-C
Camera series Blackfly® S
Imaging sensor Sony IMX183, progressive-scan CMOS (Exmor R BSI)
Resolution 5,472 × 3,648 (20 MP)
Sensor format 1″; sensing area 13.13 × 8.76 mm
Pixel size 2.4 µm × 2.4 µm
Spectrum Monochrome (no optical filter)
Max frame rate 18 fps at 12-bit (full resolution, Intel USB3 chipset)
Shutter Rolling shutter with global reset
ADC / pixel depth 10-bit / 12-bit
Dynamic range 71.89 dB
Exposure range 67 µs – 30 s
Interface USB 3.1 Gen 1, Micro-B with screw locks
Machine vision standard USB3 Vision v1.0
GPIO 1 opto-isolated in, 1 opto-isolated out, 1 non-isolated bi-directional, 1 non-isolated in
Power Via USB (5 V) or GPIO (8–24 V); <3 W consumption
Memory 240 MB image buffer; 6 MB non-volatile flash
Lens mount C-mount
Dimensions / weight 29 × 29 × 30 mm (excl. connectors/mount); 36 g
Software Spinnaker SDK (Windows / Linux, 32 / 64-bit)
Country of manufacture Canada

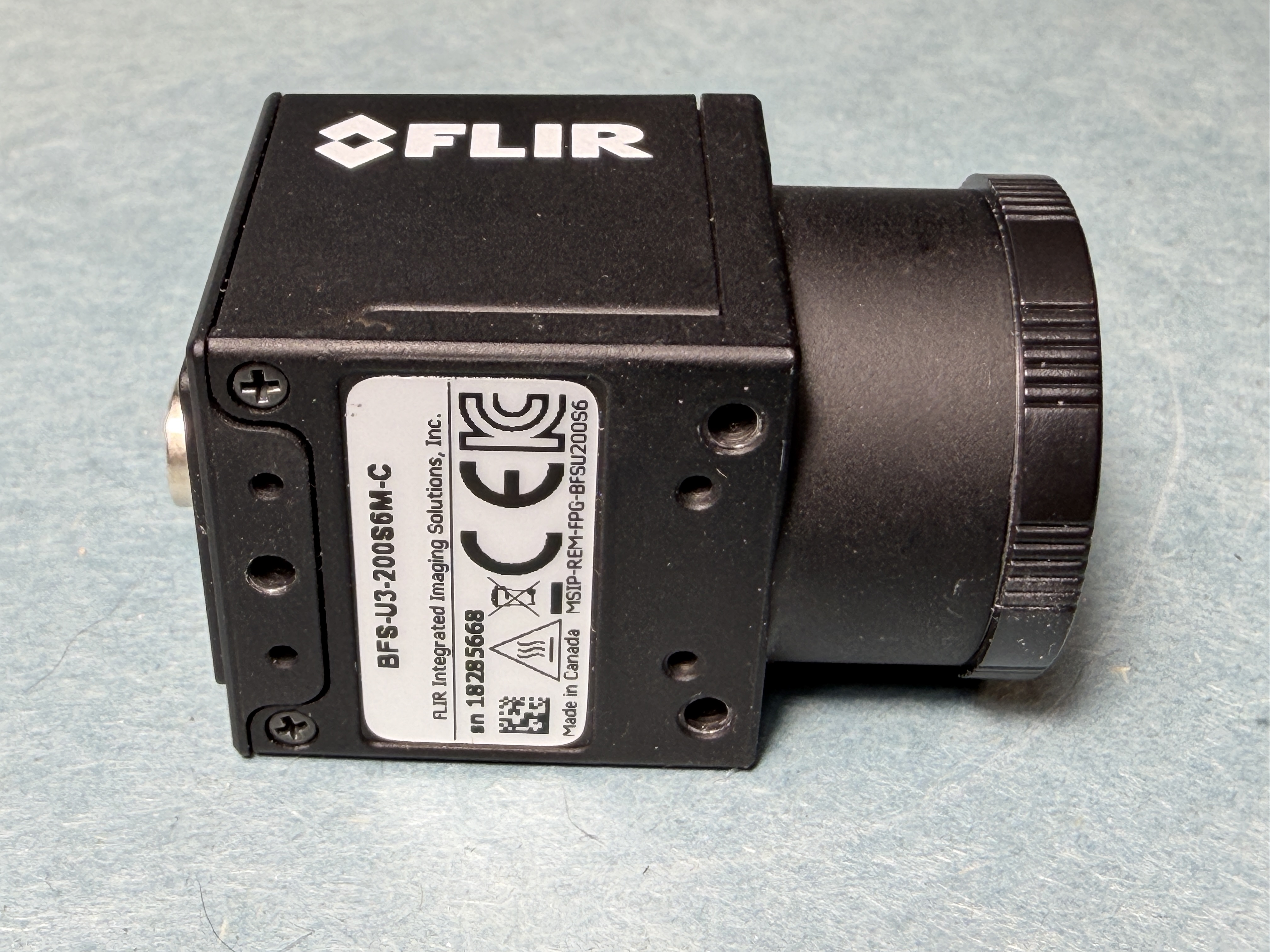

Serial number 18285668
Condition Used — tested working, see photos and note below
Condition

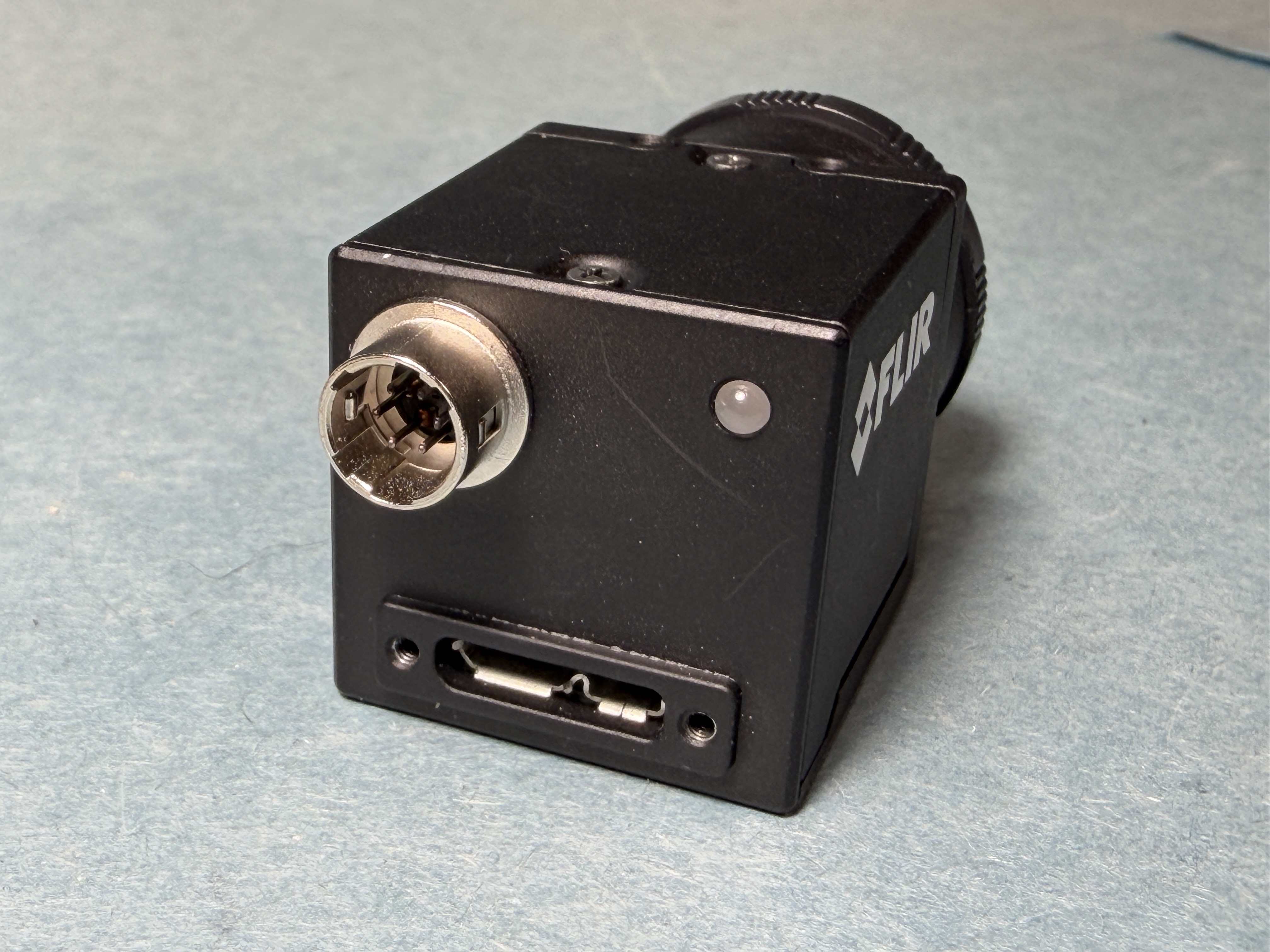

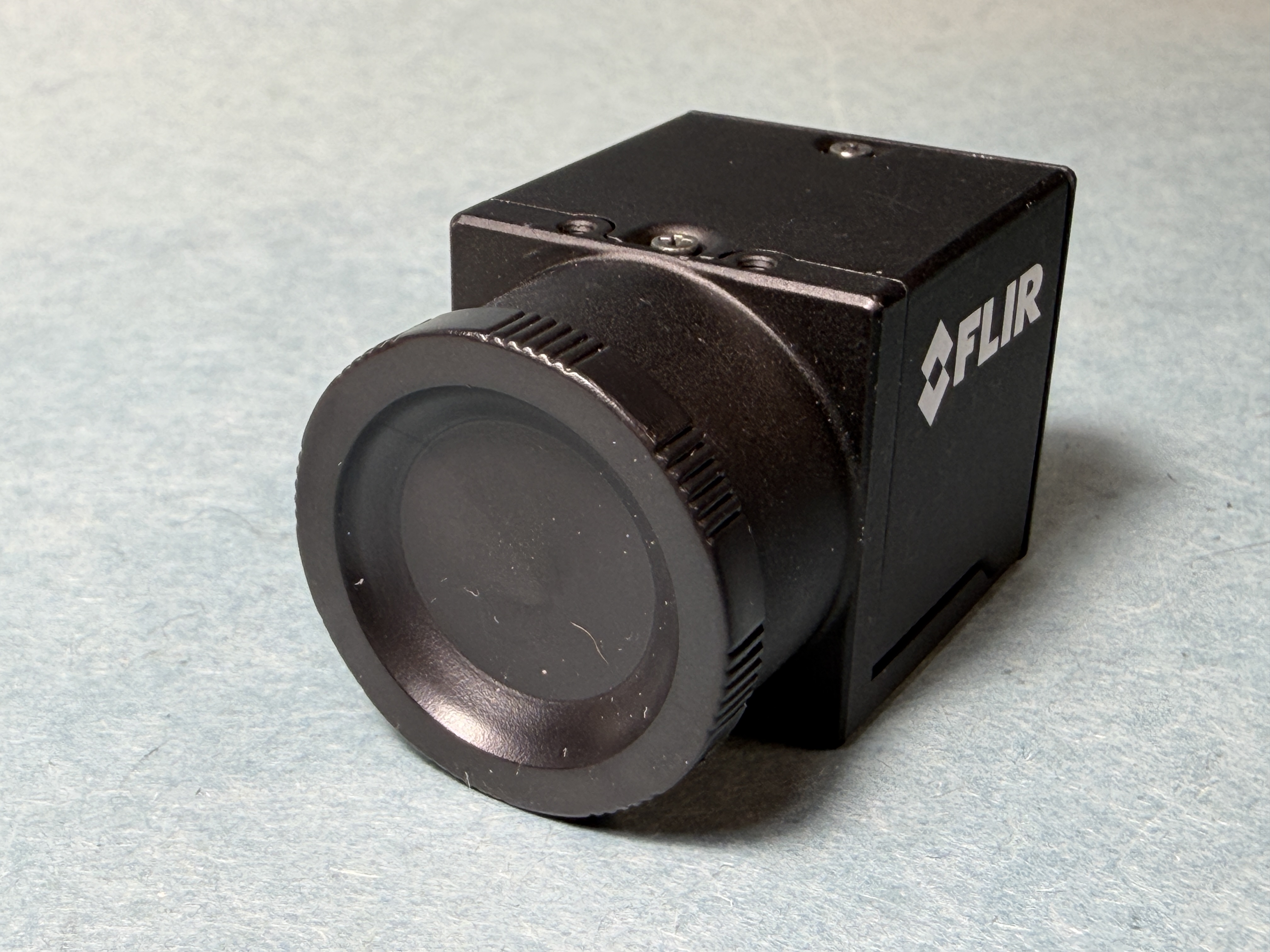

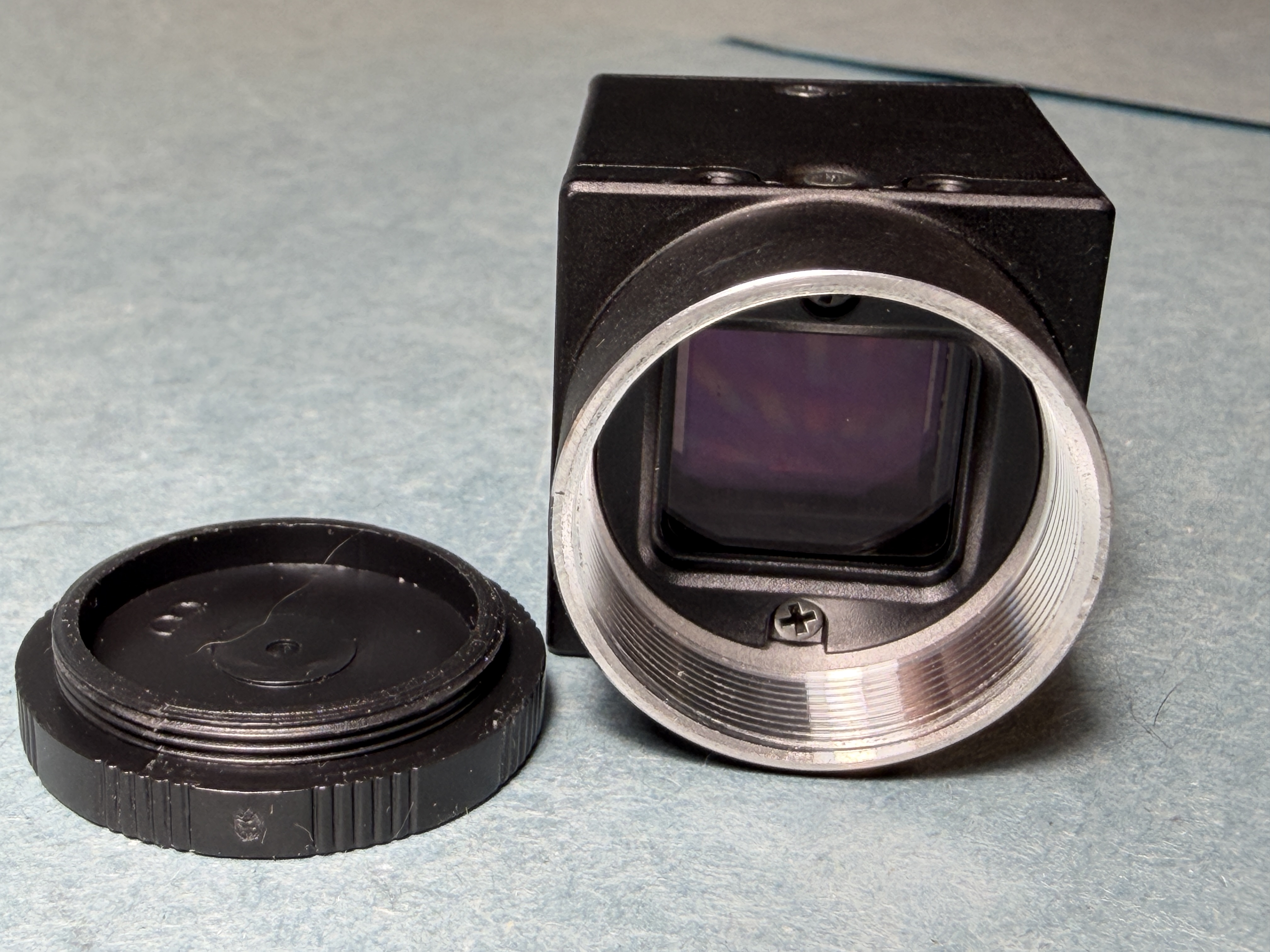

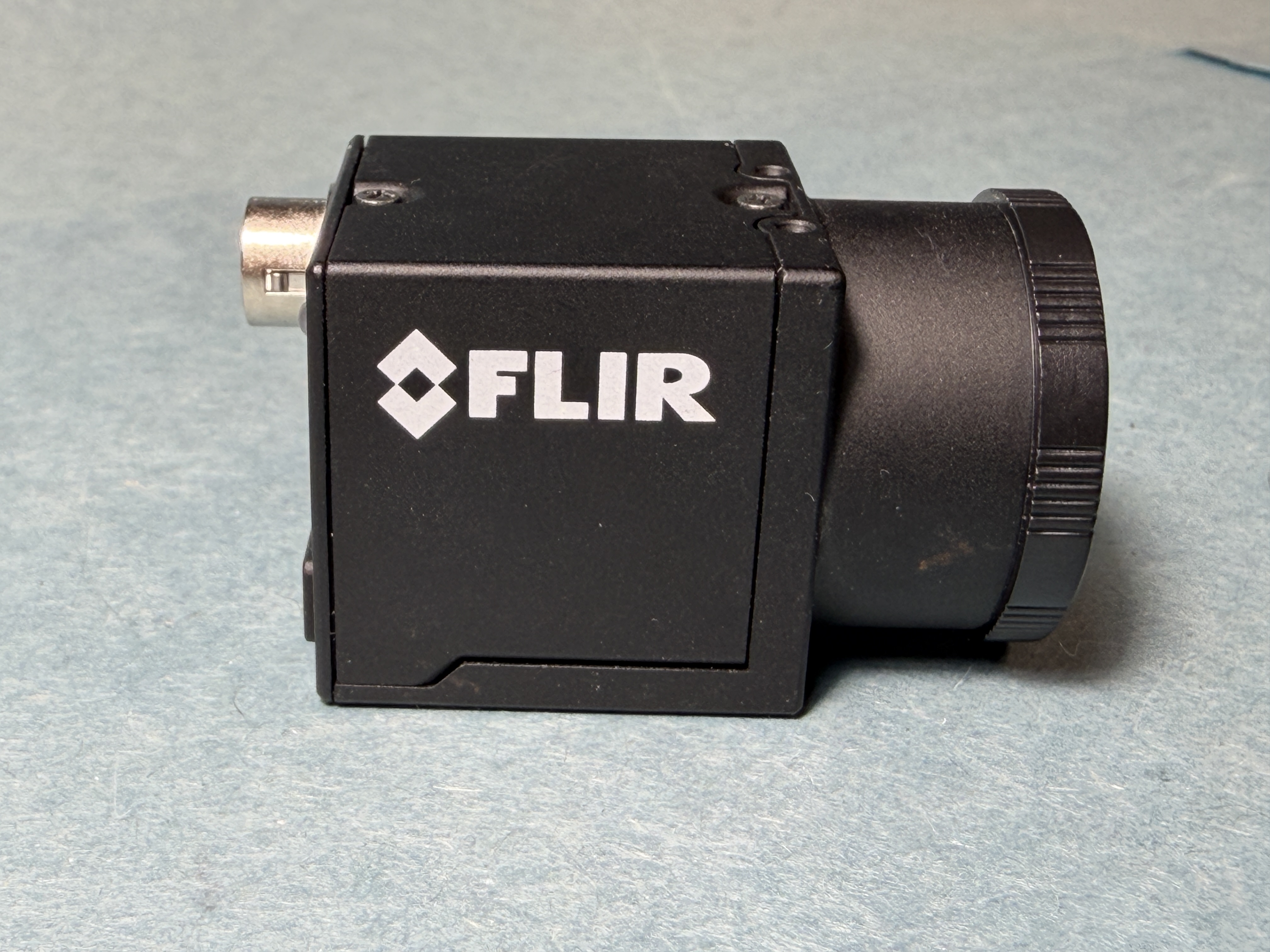

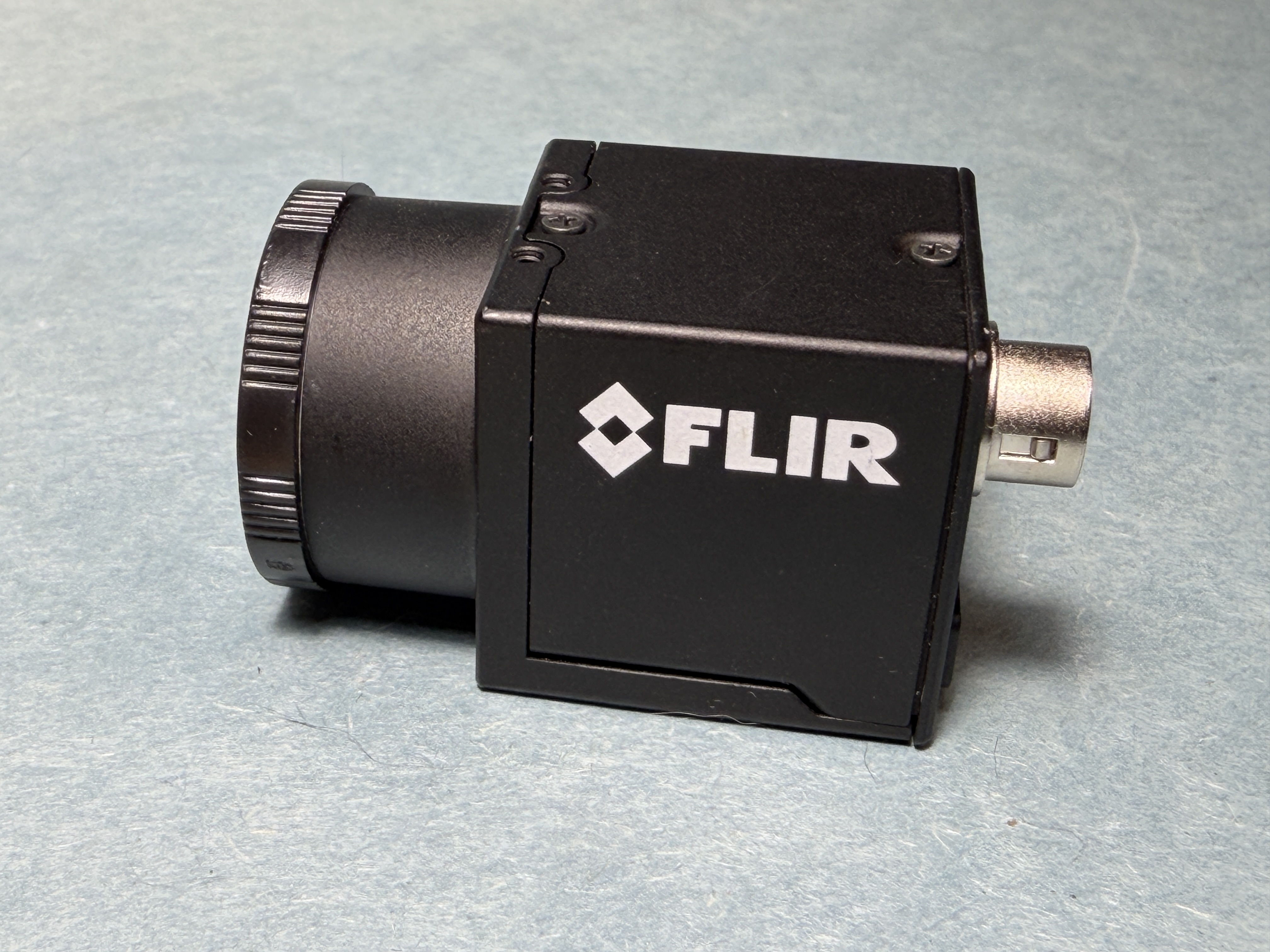

In good cosmetic condition with only minor handling marks consistent with lab / industrial use. Sensor cover glass is clean. See photos for the exact item you will receive.

What’s Included
  • 1 × FLIR Blackfly S BFS-U3-200S6M-C camera body
