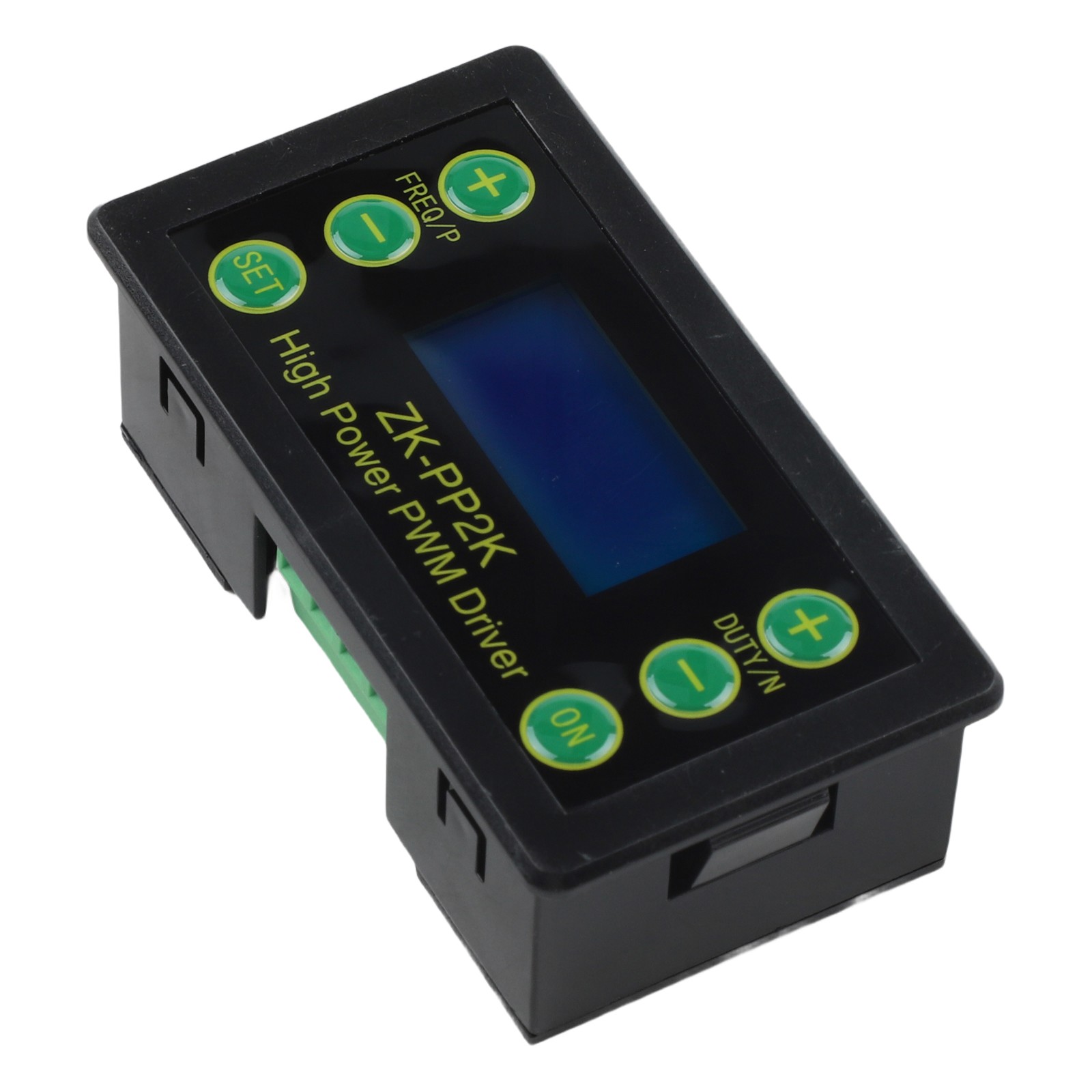

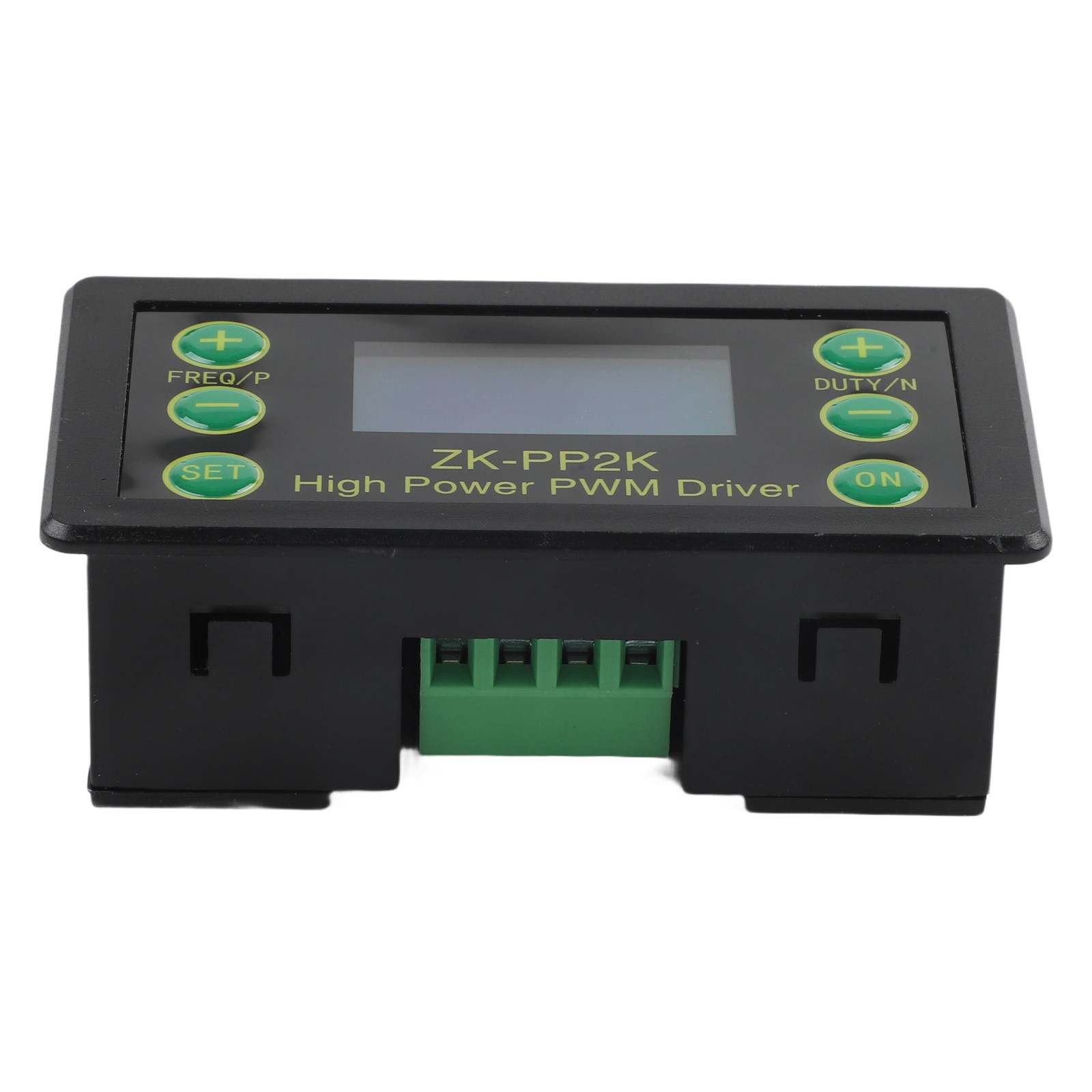

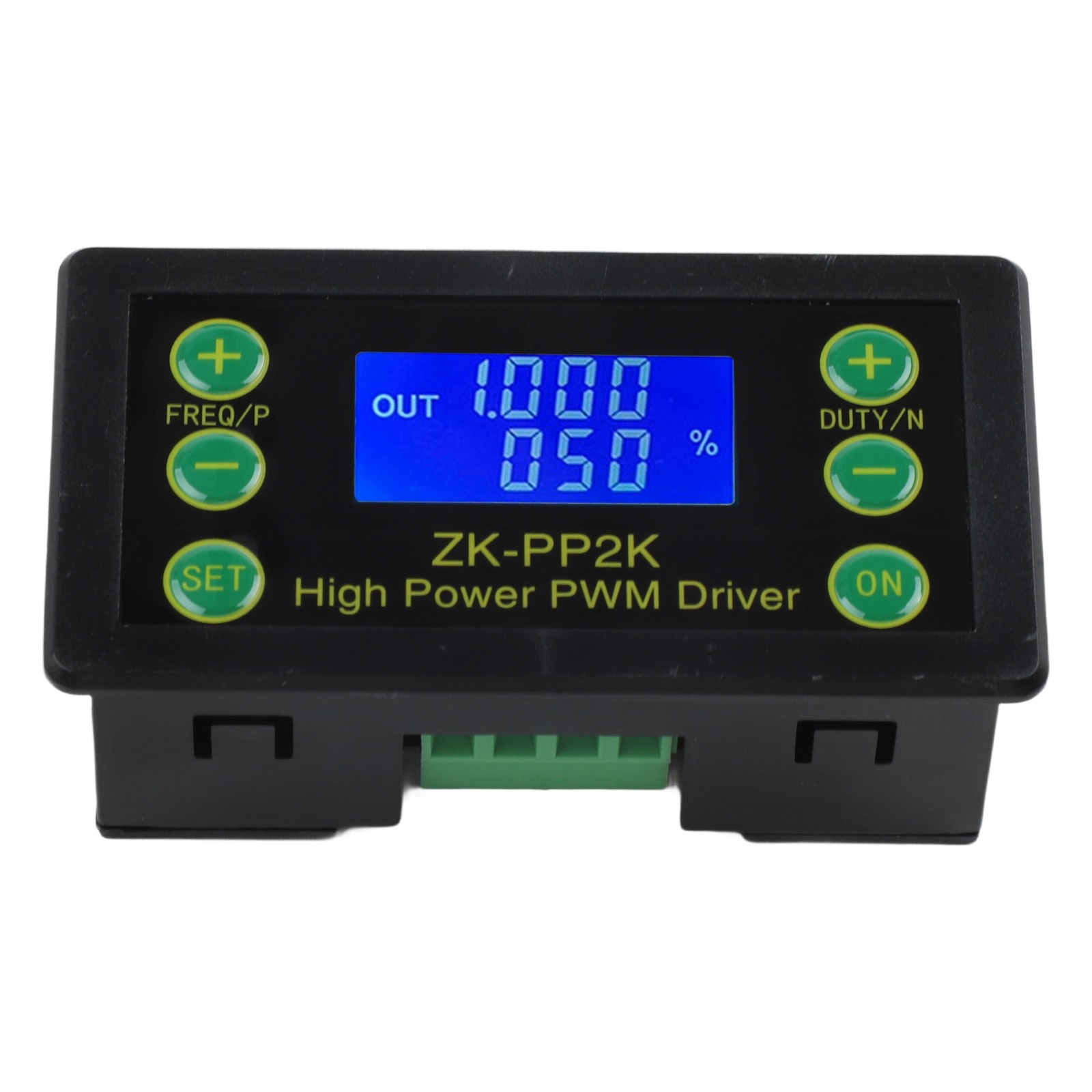

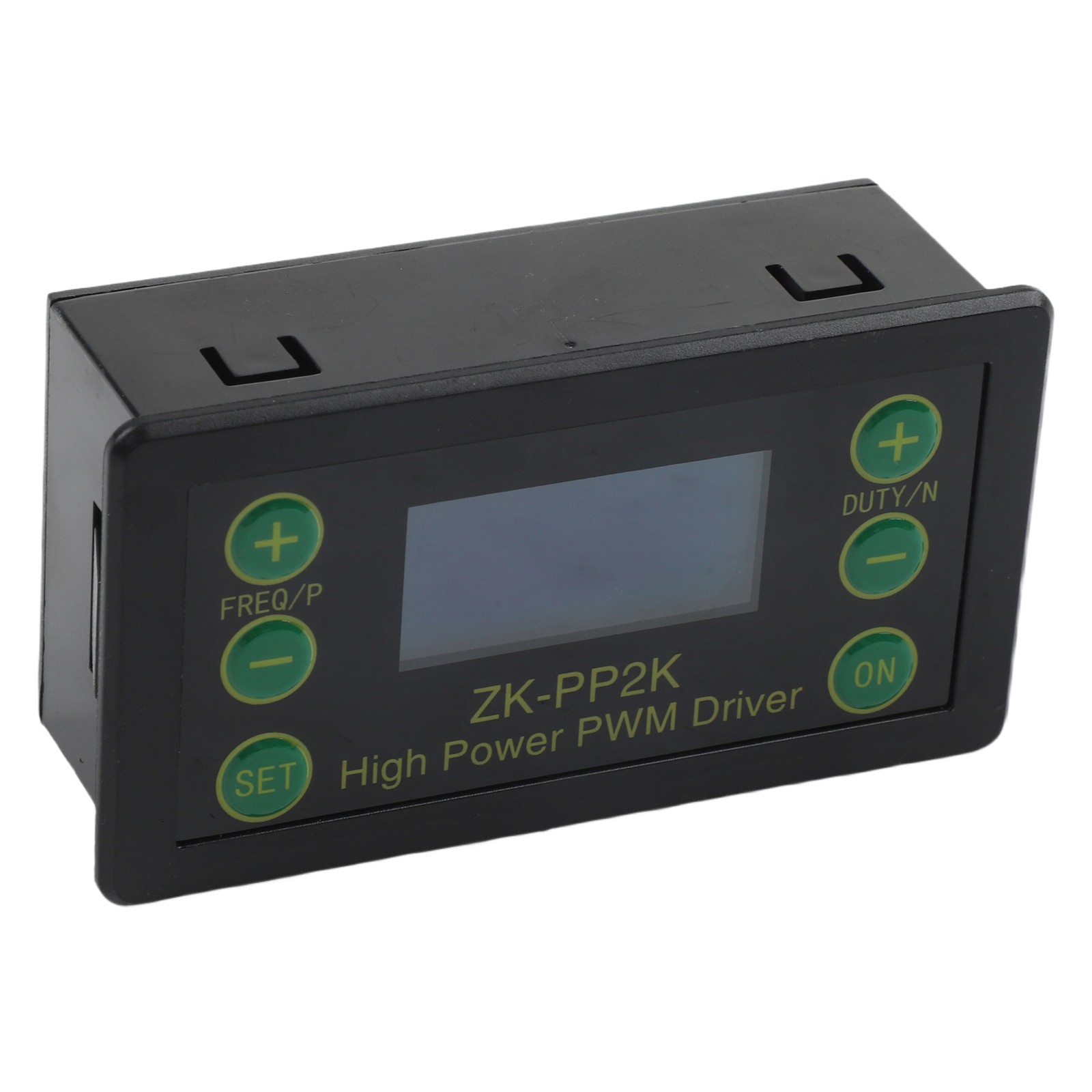

Adjustable Duty Cycle Driver with/Stop Control and Wide Voltage Input
DESCRIPTION

feature:


Can directly drive loads such as LEDs, motors, solenoid valves, .


Two modes can be:

for PWM mode- for Frequency(continuous), duty cycle. Note that the number of switching times cannot be set in this mode, and it has been cycled on and off;

for pulse for pulse mode-positive for pulse width time, negative for pulse width time, power-on delay start time, switch times are adjustable.


With start and stop button, can control start and stop

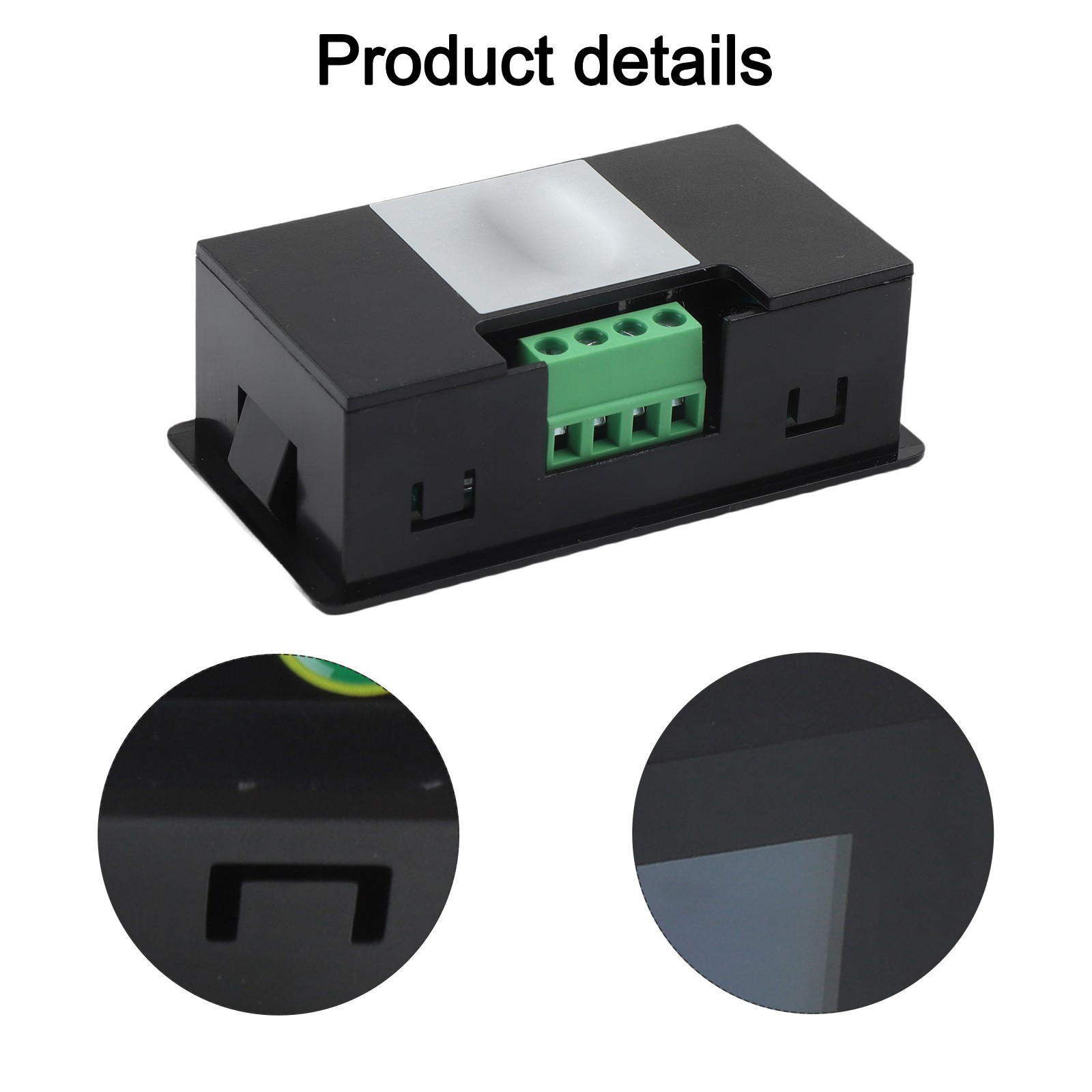

Wide voltage input 3.3-30V, 5.08mm terminal wiring



parameter:


Working voltage: 3.3~30V(note that the positive and negative poles are not reversed, otherwise it may be burnt)

for Frequency range: 1Hz~150KHz, accuracy is about 2%. Motor control generally choose 20KHZ

Duty cycle range: 0-, 1% step

Number of pulses: 1-9999, or infinite(display‘----’ means infinite)

Delay output time: 0.000s-9999s, the minimum can be set to 1ms

Positive and negative for pulse width length: 0.000s-9999s, the minimum can be set to 1ms

Output load capacity: less than 8A(MOS switch tube)

Output amplitude: The amplitude is equal to the power supply voltage(OUT+ and V+ are directly connected inside the module)

Product size: 79mm*43mm*30mm



Package list:

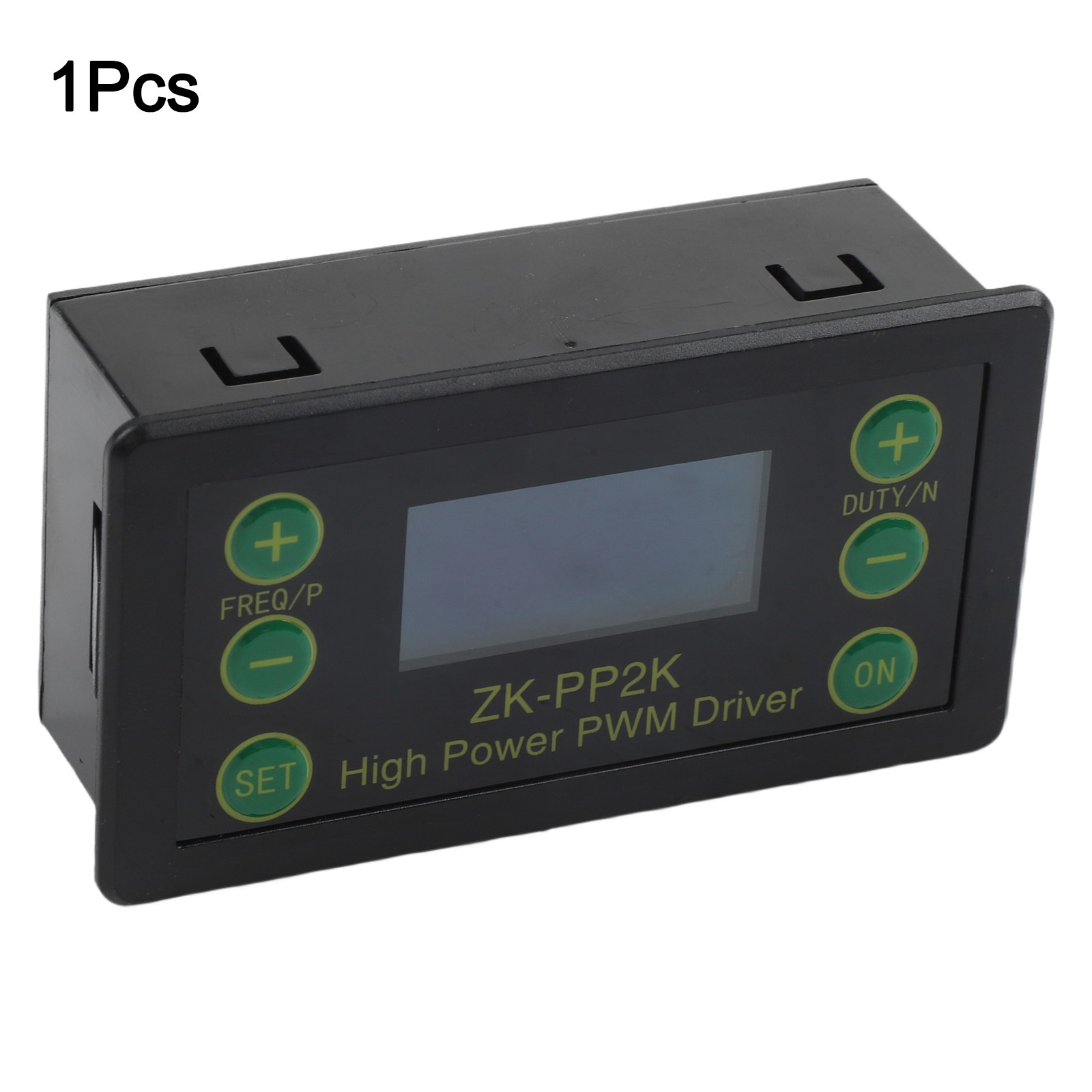

1* for PWM dimming motor



notes:


1. Due to manual measurement, please allow an error of 1-3mm.

2. Due to the difference of different monitors, the picture may not reflect the actual color of the item. Thanks!
