Introduction

The suspension lift kit designed to increase the ground clearance of the suspension, allowing the installation of larger tires and enhancing the off-road performance of the car. High-pressure nitrogen-filled shocks that provide a wonderful blend of off-road action and smooth on-road ride quality. Featuring natural rubber bushings and corrosion resistant metallic silver paint.

Feature

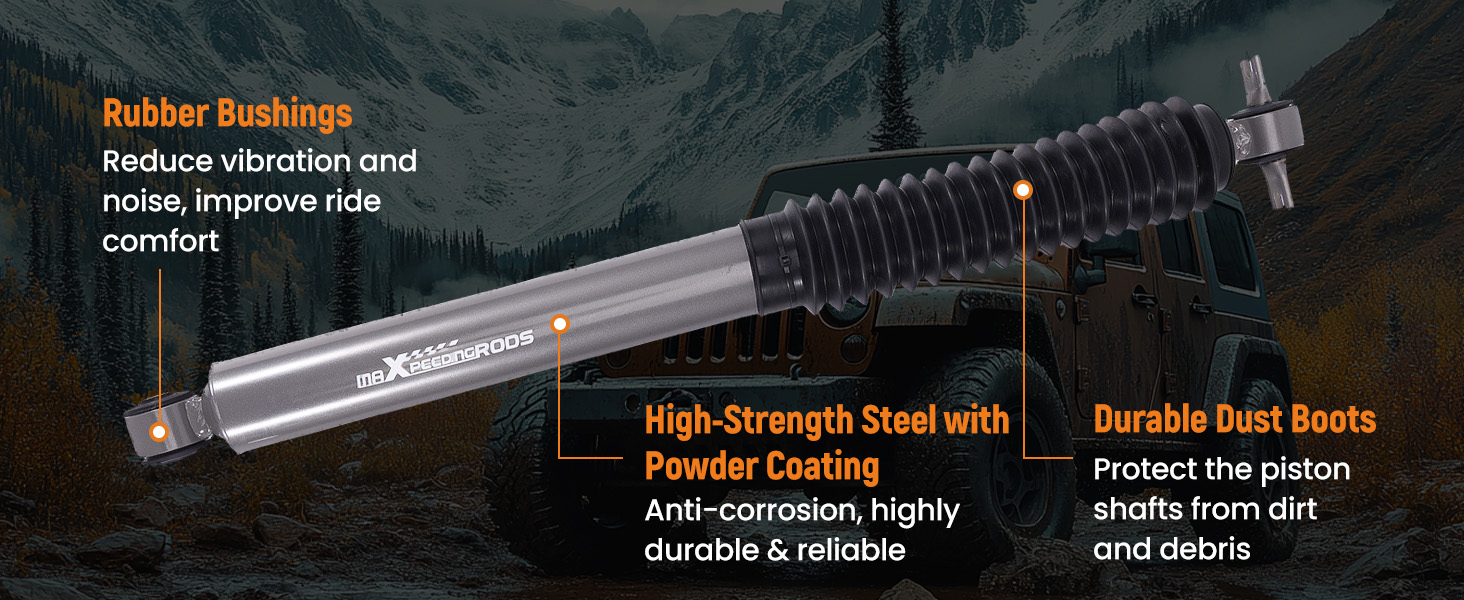

High-pressure nitrogen charged twin-tube shock absorber with high durability.

Rubber bushings for better absorption.

18mm Chromed Hardened Piston Rod.

35mm Diameter Sintered Iron Piston.

54mm body diameter for better heat dissipation

36KN Tensile Strength.

Dust cover included prevent the shaft rod and oil seal from damaging.

Precision Welding.

Improve your off-road ride.

Specification

Type: Lift leveling kit

Lift Height: 2.5" level the front with the rear

Finish: Powder coated

Bushing material: Rubber

Diameter of piston rod: F&R 18mm/0.70"

Piston diameter：F&R 35mm/1.38"

Outer cylinder diameter: F&R 54mm/2.13"

Travel: F: 250mm/9.84"    R:  243mm/9.57"

Extended Length: F: 710mm/27.95" R: 645mm/25.39"

Collapsed Length:F: 460mm/18.11"   R: 402mm/15.83"

Nitrogen charged：yes

Dust Cover Equipped: yes

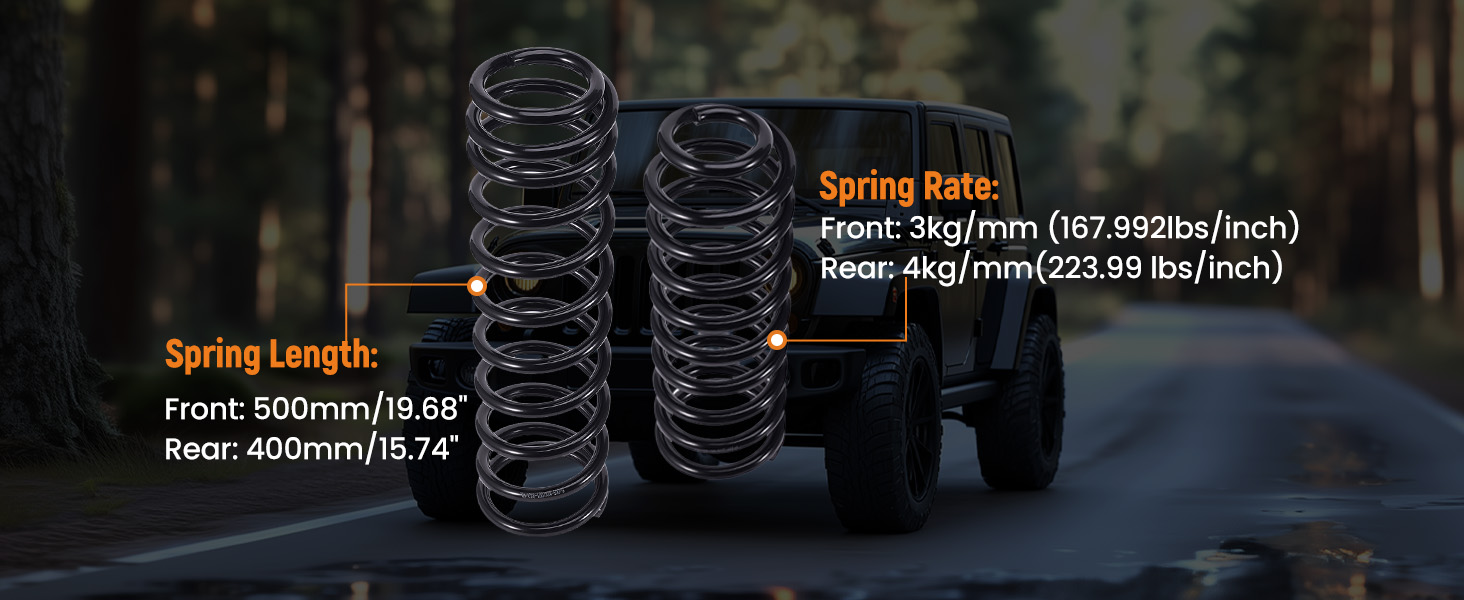

Spring Rate: F 3kg/mm (167.992lbs/inch)   R   4kg/mm(223.99 lbs/inch)

Spring Length:  F 500mm/19.68"     R 400mm/15.74"

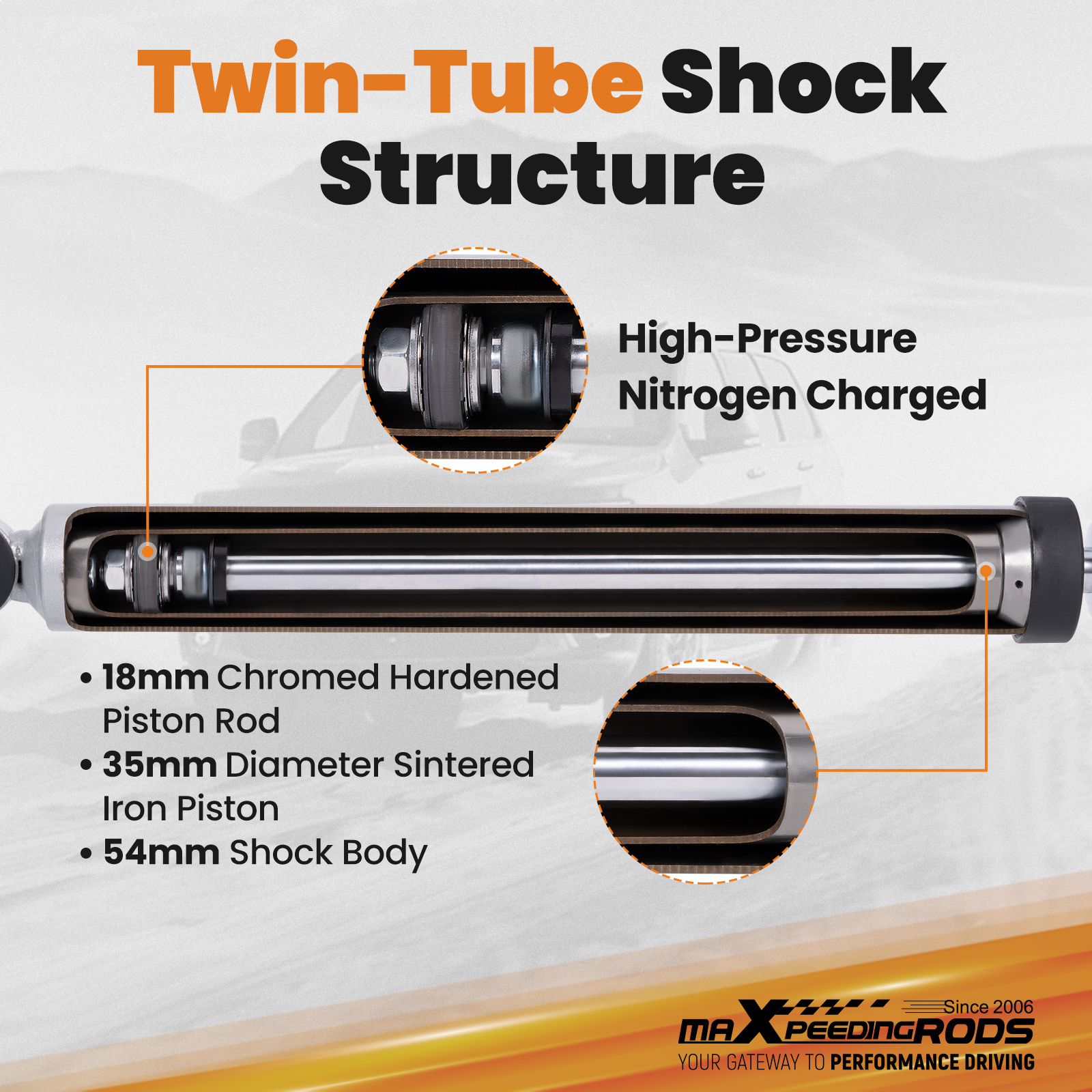

Twin-tube Shock Absorber

Note:

Note:

 Fits 4DR

 35" tires will clear but rubbing may occur w/ extreme articulation

  If running 35" tires on factory wheels, check clearance with the front tire, lower control arm and sway-bar links.

Tire Info:

285/75R17 Factory 17 5x5.0

33x12.50R17 17x9 5x5.0 +0

33x12.50R17 17x9 5x5.0 +1

33x12.50R17 17x9 5x5.0 12

33x12.50R18 18x9 5x5.0 +0

33x12.50R18 18x9 5x5.0 +1

33x12.50R18 18x9 5x5.0 12

33x12.50R20 20x9 5x5.0 +0

33x12.50R20 20x9 5x5.0 +1

33x12.50R20 20x9 5x5.0 12

35x12.50R17 17x9 5x5.0 +0

35x12.50R17 17x9 5x5.0 +1

35x12.50R18 18x9 5x5.0 +0

35x12.50R18 18x9 5x5.0 +1

35x12.50R20 20x9 5x5.0 +0

35x12.50R20 20x9 5x5.0 +1

If you run factory wheels, you will need to add 1.5in wheel spacers
