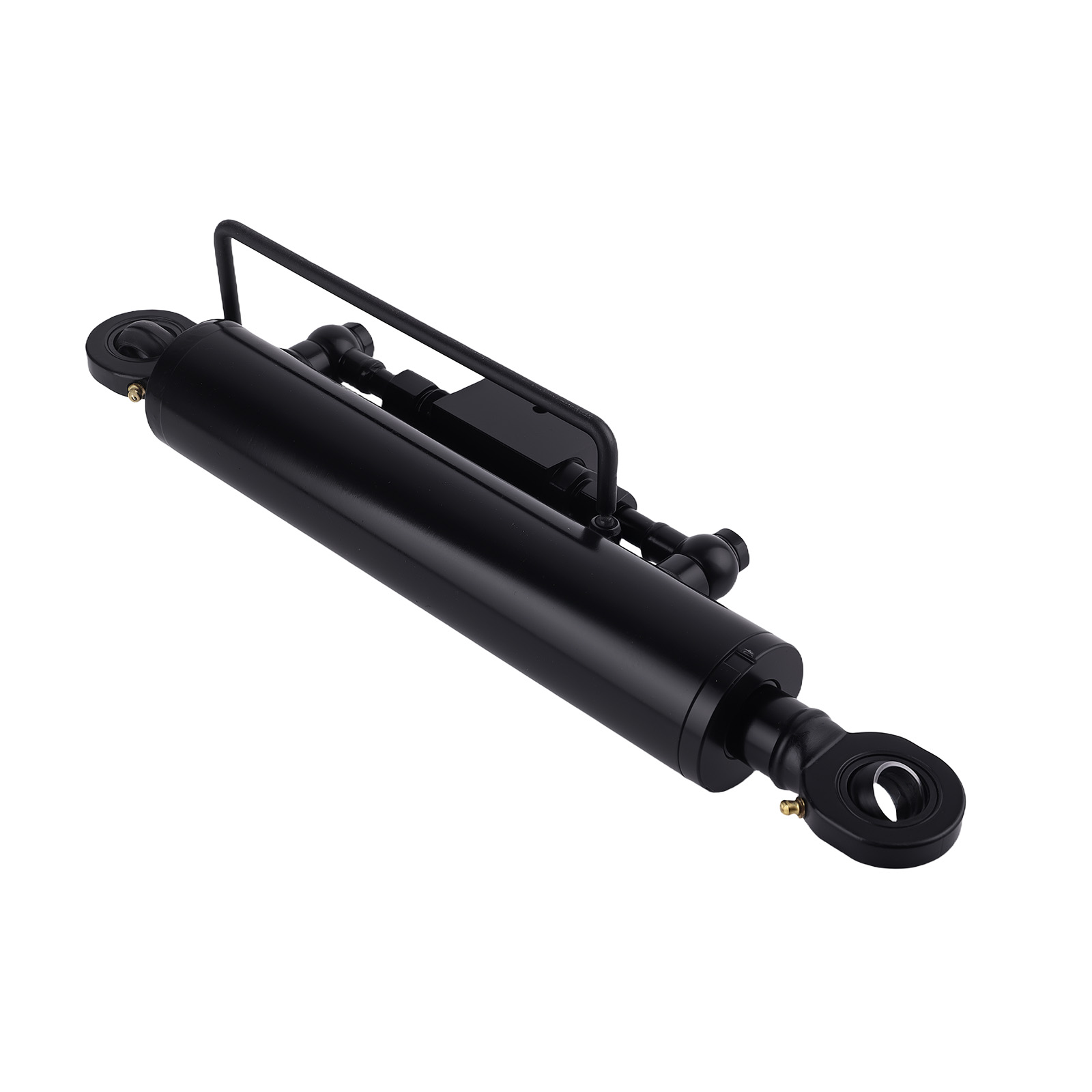

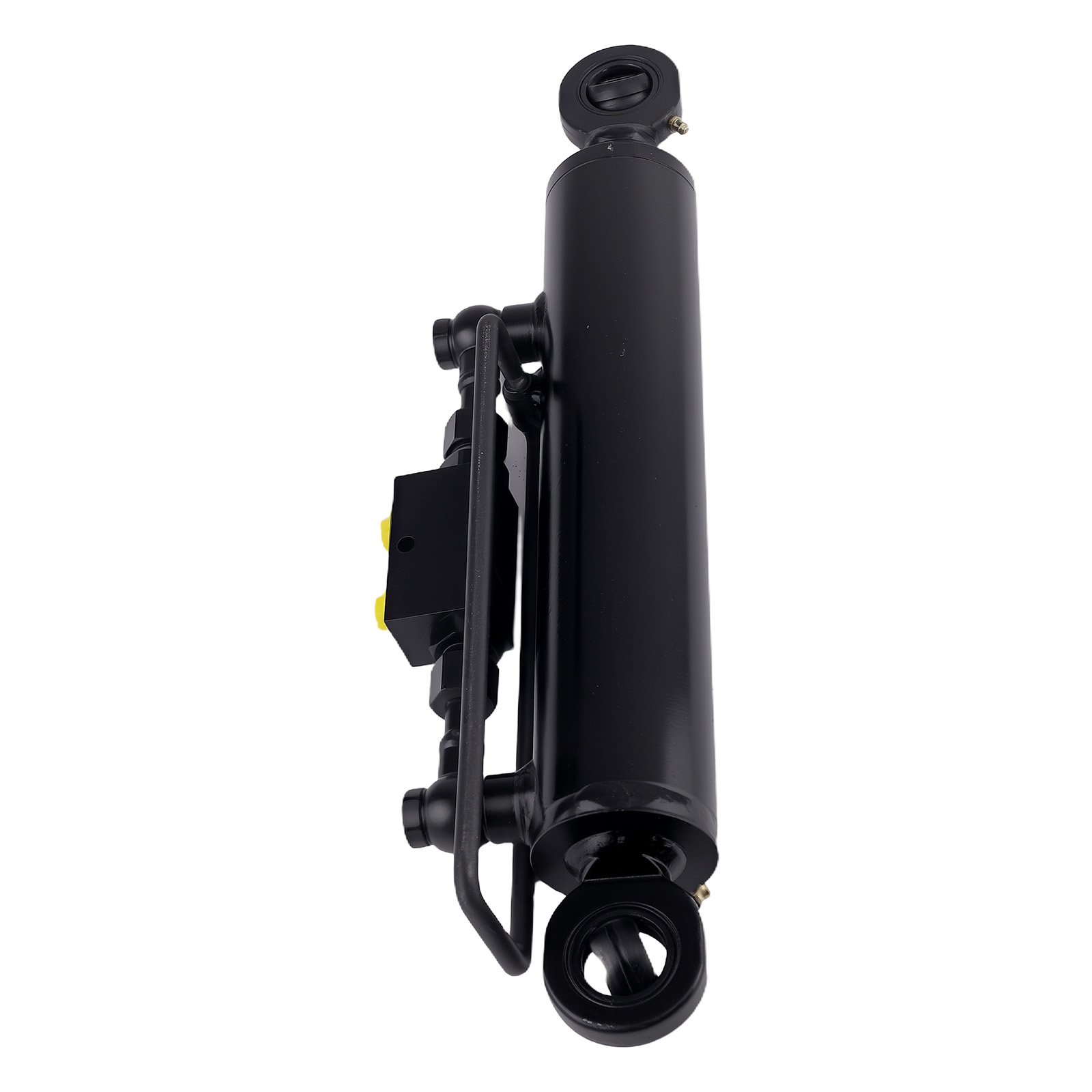

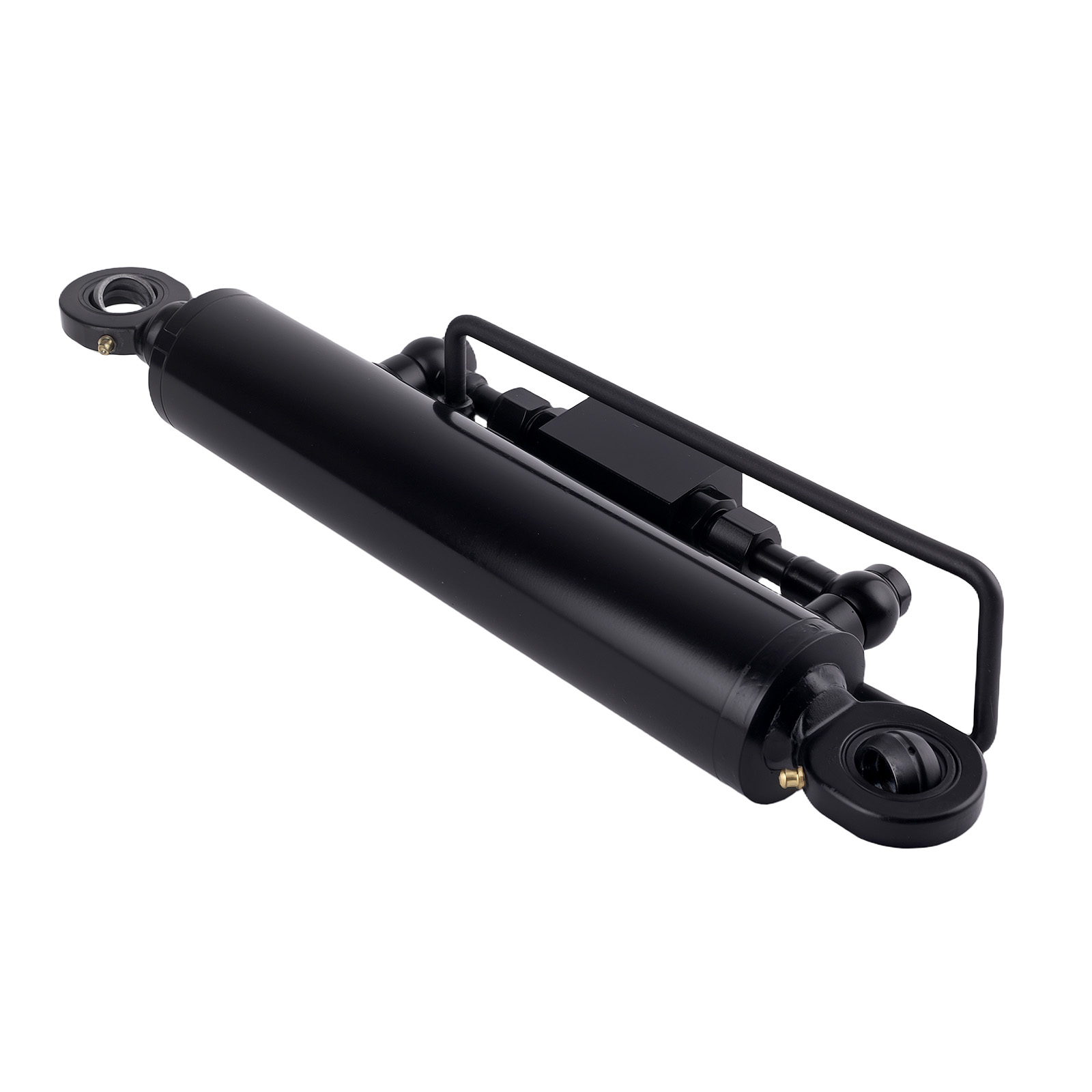

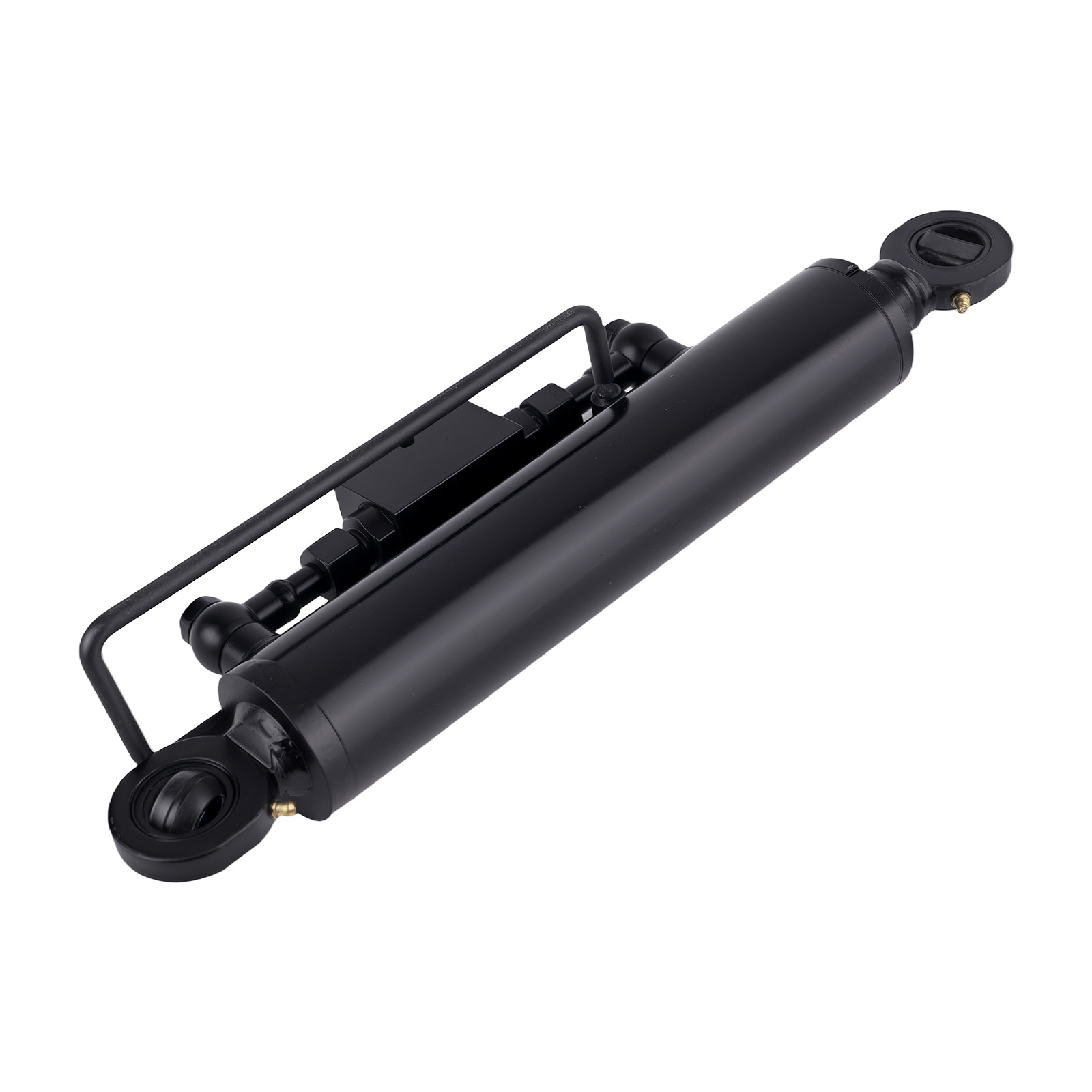

Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''
Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16'' Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16'' Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16'' Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16'' Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''

Double-acting Hydraulic Top Link Cylinder w/ Locking Block 16 1/8-22 7/16''

MostCompetitive Price

Easy ReturnQuick, Simple

Manufacturer We know our products

Guaranteed FitmentAlways the correct part

Description





Introduction:

This double-acting hydraulic cylinder converts the input hydraulic pressure energy into the mechanical energy of the piston's linear motion, thus providing strong pull and thrust for all types of mobile equipment. Its compact shape provides stable performance in compact devices.  Through the welding and polishing process, the fixation is more durable, and it is also an ideal choice for applications in harsh environments.







Application:

It can be directly mounted on tractors, excavators and Class 1 and 2 equipment and is widely used in waste, recycling, construction, transportation, agriculture, material treatment and other industries.







Specification:

Material: Steel
Surface Treatment: Painting
Pull Force: 2.3t/5070lbs
Thrust Force: 3.5t/7716lbs
Model: 16 1/8-22 7/16''
Stroke: 16cm/6.29in
Bore Diameter: 5/6.3cm(1.96/2.48in)
Rod Diameter: 3cm/1.18in
Joint Bearing Width: 5.3cm/2.08in
Joint Bearing Thickness: 1.6cm/0.62in
Pin Diameter: 2cm/0.78in
Max.  Length: 57cm/22.44in
Min. Length: 41cm/16in
Port Size: M14*1.5
Hydraulic Cylinder Work Pressure Max: 20Mpa
Double Pilot Check Valve Port Size: G3/8
Double Pilot Check Valve Press Max: 30Mpa
Double Pilot Check Valve Flow Max: 12L/min
Hydraulic Oil Hose Length: 75cm/29.52in
Hydraulic Oil Hose Port Size: G3/8*19

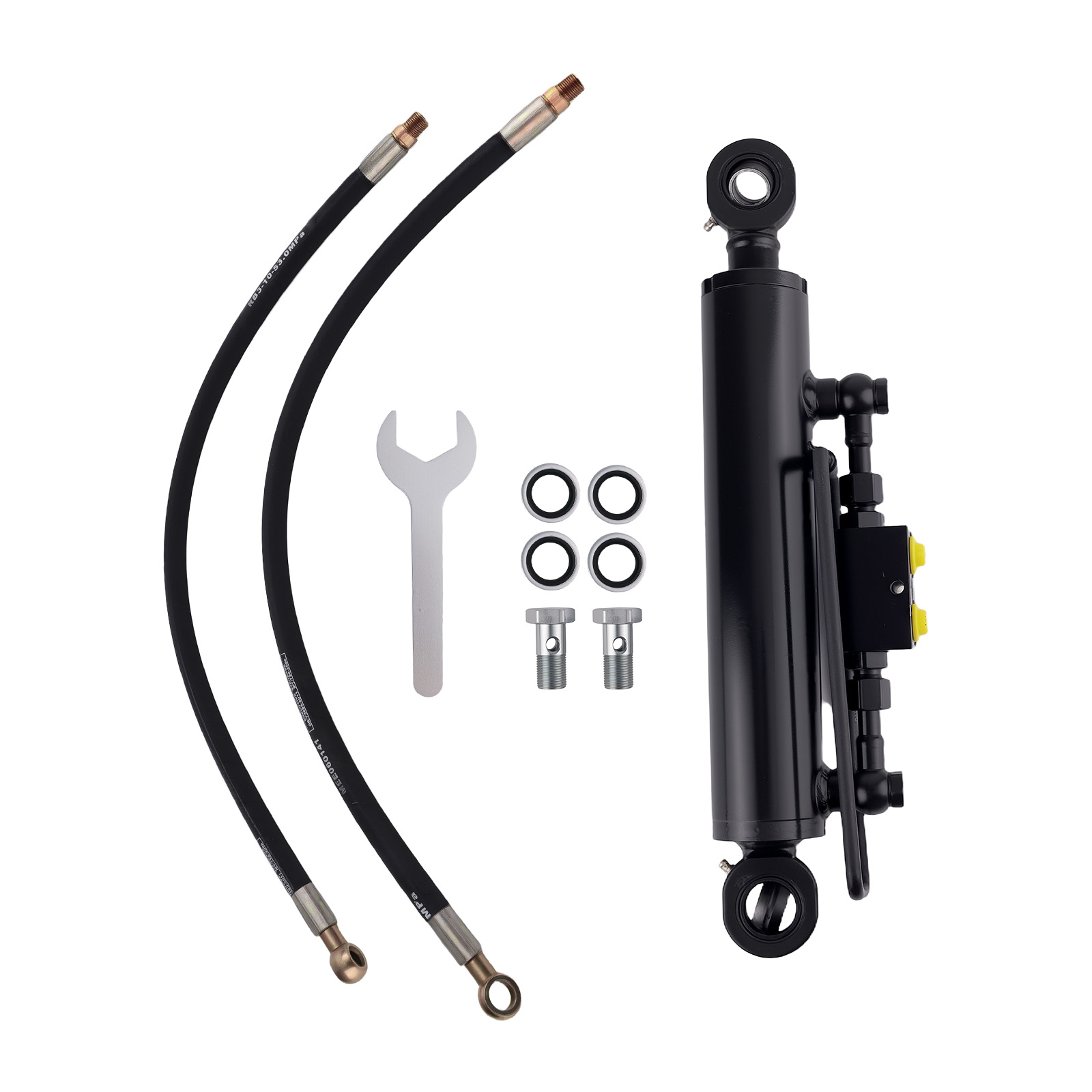

Package included:

1* Double-acting Hydraulic Cylinder
2* Hoses
2* Banjo Bolts
4* Sealing Rings
1* Wrench
1* Bracket









Feature:

Two-Way Design: It is equipped with a two-way check valve, which can complete retraction and extension.   The valve allows free flow in one direction, and the pressure drop is relatively small.   In the opposite direction, it is usually closed, and the valve can be opened only when there is pilot pressure from another oil circuit.
Good Sealing: The piston adopts a high-quality five-component compact seal for excellent performance, and the rod adopts a standard U-cup polyurethane rod seal with inner O-ring, POM-C wear rings, and polyurethane wiper to ensure excellent sealing performance, which is helpful to solve the problems of oil evaporation, air leakage, and piston blockage.
Strong Hydraulic Power: The double-acting hydraulic cylinder can exert linear motion and force through the hydraulic system(maximum working pressure of 20Mpa), without the need for mechanical gear or lever to generate 5070lbs pull force and 7716lbs thrust force.   So, it can achieve maximum performance even under heavy loads.
