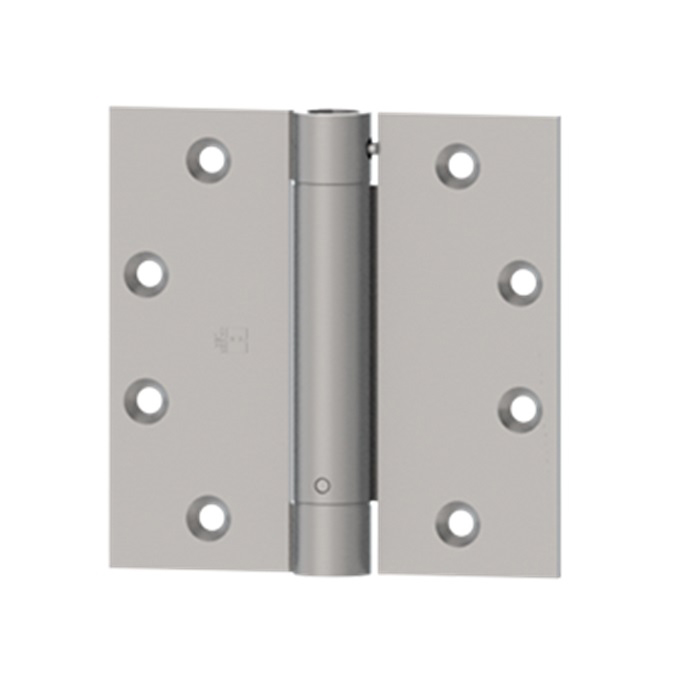

Hager 1250-4.5X4-26D Full Mortise Commercial Hinge Satin Chrome

FEATURES

DESCRIPTION

1250 Full Mortise - SpringCommercial Hinges

Single Acting, Square Corner

Application:
  • For maximum versatility use all spring hinges or a combination of spring hinges and ball bearing hinges. Do not use plain bearing hinges.
  • Full spring tension may not be required on all hinges
  • Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weatherstripping on doors may require additional spring hinges
  • Notes: Available in hospital tip (voids UL)
Specifications: Material:
  • Steel with Steel components ANSI K81071F
Finishes:
  • USP, US3, US4, US10, US10A, US10B, US26D
Notes:
  • Hager does not recommend using spring hinges on doors over 7'0"
Product Size Options:
  • Hinge Size (Inches) - 3 1/2 x 3 1/2
  • Hinge Size (mm) - 89 x 89
  • Gauge of Metal - 0.134
  • Hole Count - 6
  • Screw Size (Machine) - 1/2 x 10-24
  • Screw Size (Wood) - 1 x 9
  • Hinge Size (Inches) - 4 x 4
  • Hinge Size (mm) - 102 x 102
  • Gauge of Metal - 0.134
  • Hole Count - 8
  • Screw Size (Machine) - 1/2 x 12-24
  • Screw Size (Wood) - 1 1/4 x 12
  • Hinge Size (Inches) - 4 1/2 x 4
  • Hinge Size (mm) - 114 x 102
  • Gauge of Metal - 0.134
  • Hole Count - 8
  • Screw Size (Machine) - 1/2 x 12-24
  • Screw Size (Wood) - 1 1/4 x 12
  • Hinge Size (Inches) - 4 1/2 x 4 1/2
  • Hinge Size (mm) - 114 x 114
  • Gauge of Metal - 0.134
  • Hole Count - 8
  • Screw Size (Machine) - 1/2 x 12-24
  • Screw Size (Wood) - 1 1/4 x 12
Series 1 3/4" (45mm) Door: 1250:
  • Size - 4 1/2 x 4 & 4 1/2 x 4 1/2
  • RCM Max Door WT.(LBS) - 70
  • Spring Hinge - 1
  • Ball Bearing Hinge - 2
1250:
  • Size - 4 1/2 x 4 & 4 1/2 x 4 1/2
  • RCM Max Door WT.(LBS) - 115
  • Spring Hinge - 2
  • Ball Bearing Hinge - 1
1250:
  • Size - 4 1/2 x 4 & 4 1/2 x 4 1/2
  • RCM Max Door WT.(LBS) - 150
  • Spring Hinge - 3

SPECS

FinishSatin Chrome
FunctionSpring Hinge
MountFull Mortise
Hinge TypeFull Mortise Single Acting
Finish DescriptionSatin Chrome
Hinge Size4-1/2 x 4 Inch
Hinge WeightStandard
Hinge CornerSquare Corner
Product TypeHinge/Pivot
Series1250 Series
Pin TypeNon-Removable
WarrantyLifetime limited
Color Code626/US26D
Bearing TypeSpring
Finish FamilySatin Chrome
Included ComponentsFasteners/Screws
Product MaterialSteel with Steel Component
Number of Mounting Holes8 Foot (96 Inches)
StandardsANSI K81071F
Fastener SizeMachine Screw: #12-24 x 1/2 in; Wood Screw: #12 x 1-1/4 in
Function FamilyHinge/Pivot
FeaturesFull Mortise, Spring Hinge, Standard Weight, Square Corner
Manufacturer ParentHager Companies
Box Dimensions (L x W x H)6.5x8.5x11.56
Sub-SeriesHP_Spring_Hinges_hager_4
Number of Knuckles3
