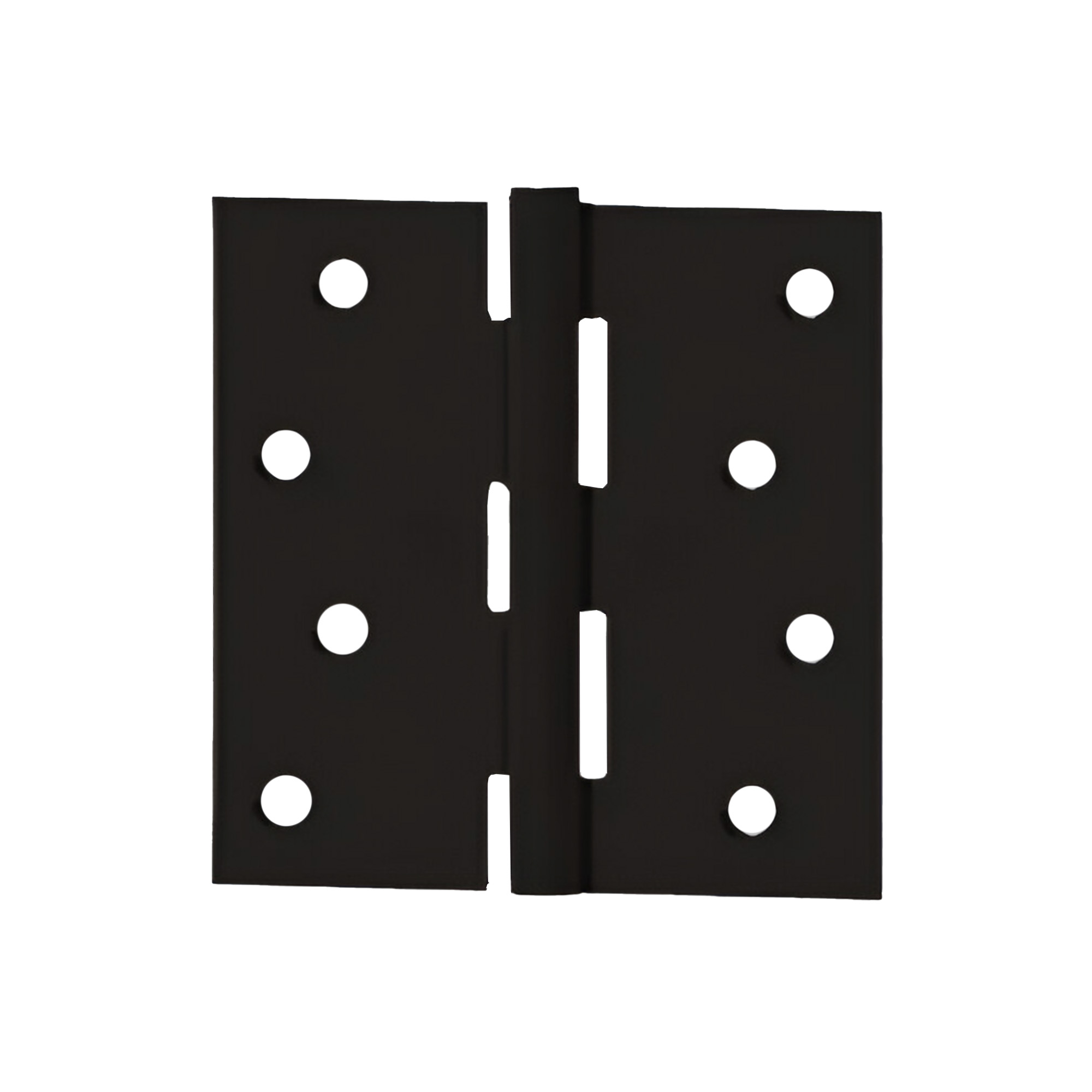

Hager 1741-4X4-1D Full Mortise Residential Hinge
FEATURES
DESCRIPTION
1741Five Knuckle
Plain Bearing Hinge
Application:- ANSI A5134
- Reversible
- Square corners
- Removable pin
- Steel with steel pin
- USP, 2D, US3, US10A, US26, US26D
- USP, 1D, 2D, US3, 3LB, US4, ABA/US5, US10A, US10R, US15, AN/US15A, US26, US26D
- USP, 1D, 2D, US4, ABA/US5, US10A, US10R, US15, AN/US15A, US26, US26D
- Hager residential hinges are provided without lubrication. We recommend lubricating the hinges after installation.
- All residential hinges conform to the "Light Weight" requirements of ANSI A156.1.
- Hinge Size (Inches) - 3 x 3
- Hinge Size (mm) - 76 x 76
- Hole Count - 6
- Gauge of Metal - .085
- Pin Diameter - .234
- Screw Size (Wood) - 3/4 x 9 FH
- Hinge Size (Inches) - 3-1/2 x 3-1/2
- Hinge Size (mm) - 89 x 89
- Hole Count - 6
- Gauge of Metal - .085
- Pin Diameter - .234
- Screw Size (Wood) - 3/4 x 9 FH

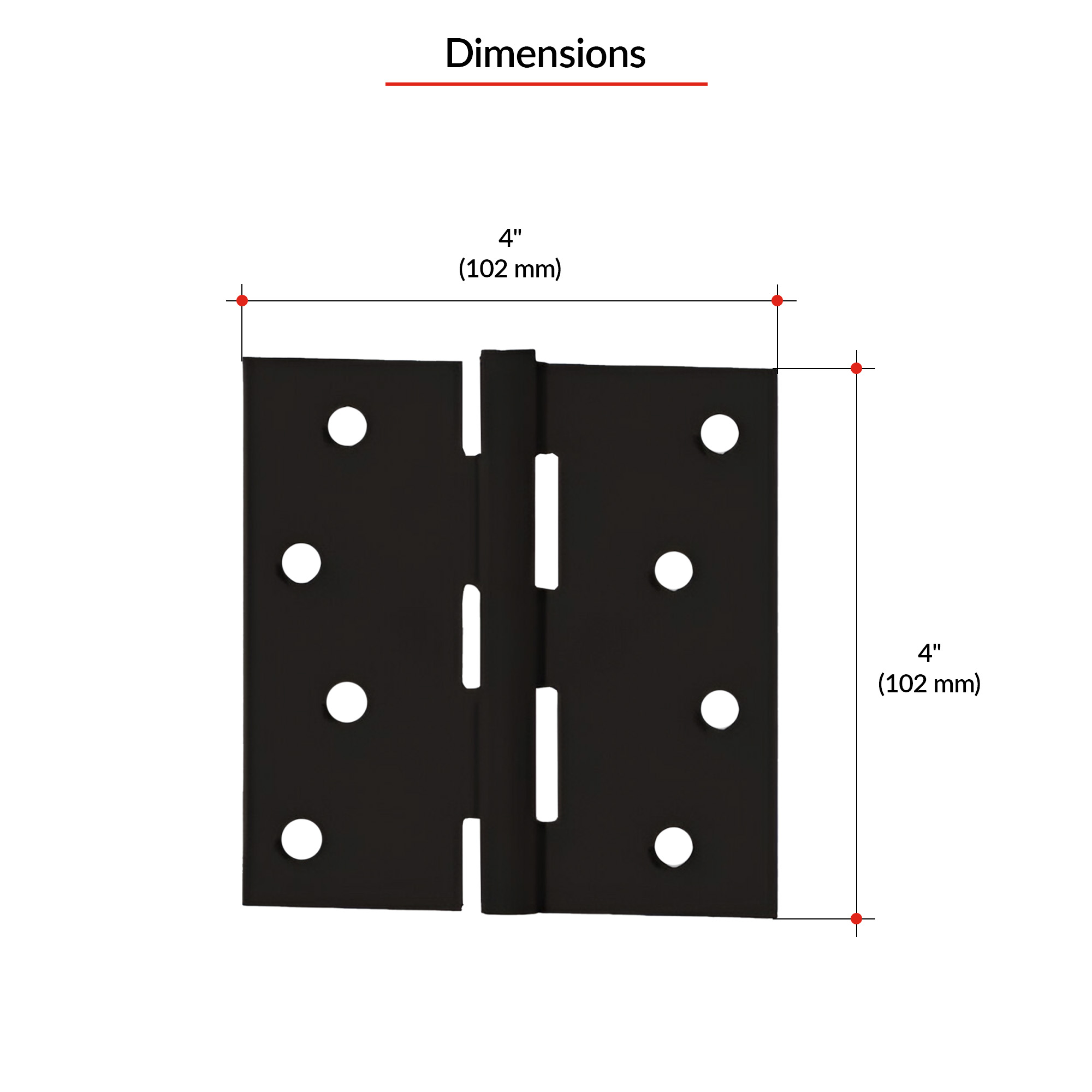

- Hinge Size (Inches) - 4 x 4
- Hinge Size (mm) - 102 x 102
- Hole Count - 8
- Gauge of Metal - .085
- Pin Diameter - .234
- Screw Size (Wood) - 3/4 x 9 FH
SPECS
| Pin Type | Removable |
| Warranty | Lifetime limited |
| Color Code | 1D |
| Function | Plain Bearing Hinge |
| Mount | Full Mortise |
| Hinge Type | Full Mortise |
| Number of Knuckles | 5 |
| Finish Description | Black |
| Bearing Type | Plain |
| Finish Family | Black |
| Included Components | Fasteners/Screws |
| Hinge Size | 4 x 4 Inch |
| Product Material | Steel |
| Number of Mounting Holes | 8 |
| Standards | ANSI A8134 |
| Fastener Size | 3/4" x 9 FH Wood |
| Hinge Weight | Residential |
| Hinge Corner | Square Corner |
| Function Family | Hinge/Pivot |
| Features | Plain Bearings; Reversable; Non-Removable Pin |
| Product Type | Hinge/Pivot |
| Series | 1741 Series |
| Manufacturer Parent | Hager Companies |
| Box Dimensions (L x W x H) | 5.37x7.31x13.18 |
| Sub-Series | HP_Residential_Hinges_hager_5 |
