Hager 190S-34X34-32D 190S Kick Plate, Satin Stainless Steel Finish
FEATURES
DESCRIPTION

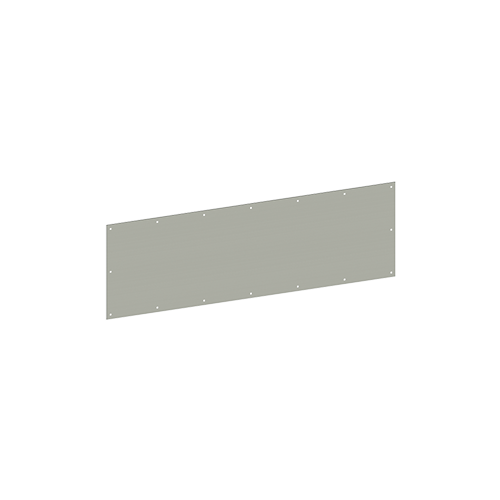

190SDoor Protection Plate
0.050" gauge with four beveled edges
NFPA Notes:- NFPA 80 Standards
- 6.4.5 Protection Plates 6.4.5.1
- Factory installed protection plates shall be installed in accordance with the listing of the door. 6.4.5.2
- Field installed protection plates shall be labeled and installed in accordance with their listing. 6.4.5.3
- Labeling shall not be required where the top of the protection plate is not more than 16" (406mm) above the bottom of the door.
- Note: If needing the 190S with rounded corners, please order the 196R.
- 0.050" (1 mm)
- Aluminum, Brass, Bronze, Stainless Steel
- US3, US4, US10, US10B, DBZ, US28, US32, US32D
- 4 edges
- Furnish item #, height, width, and finish (i.e., 190S – 6" x 30", US32D).
- Plates are sized on even inches. Odd size available and priced to next larger size.
- May be ordered with countersunk holes (specify "CSK") at extra charge.
- Meets ANSI A156.6 for J101 Metal Armor Plate, J102 Metal Kickplate, and J103 Metal Mop Plate
- UL listed for US32 and US32D with screw fasteners (must specify UL stamp)
- Self-adhesive tape available on all plates
- Spanner head screws
- Torx head screws
- Round corners - specify 196R
- Wrap around side and bottom return
- 0.125" material
- Item - 190S
- B&S Gauge - 16
- US Gauge - 18
- Bevel - B4E
- Fasteners - #6 x 5/8 truss head screws
SPECS
| Manufacturer Parent | Hager Companies |
| Finish Description | Satin Stainless Steel |
| Product Width | 34 Inch |
| Function | Door Protection Plate |
| Product Thickness | 0.050 Inch |
| Sub-Series | 190S-34X34-32D |
| ADA Compliant | No |
| Product Height | 34 Inch |
| Standards | EPD; NFPA 80 Standards 6.4.5 Protection Plates; 6.4.5.1 Factory Installed Protection Plates; 6.4.5.2 Field Installed Protection Plates; 6.4.5.3 Labeling; Meets ANSI A156.6 |
| Product Type | Door Accessory |
| Series | 190 Series |
| Finish Family | Stainless Steel |
| Finish | US19 - Flat Black |
| ANSI/BHMA Standards | EPD, NFPA 80 Standards 6.4.5 Protection Plates, 6.4.5.1 Factory Installed Protection Plates, 6.4.5.2 Field Installed Protection Plates, 6.4.5.3 Labeling, Meets ANSI A156.6 |
| Substrate Type | Stainless Steel |
| Size | 8" x 30" (For 36" Wide Door) |
