Application:

for Buick LaCrosse Exhaust; Intake Engine Desg. LAF, 1st Digit of VIN is W, To VIN B1014160 2011

for Buick Regal Exhaust; Intake Engine Desg. LAF, 1st Digit of VIN is W, To VIN B10141 2011 0

for Buick Regal Exhaust; Intake Engine Desg. LHU, Gray Cap 2011-2013

for Buick Verano Exhaust; Intake Engine Desg. LHU 2013-2016

for Chevrolet Cobalt Exhaust; Intake 2006-2008

for Chevrolet Cobalt Exhaust; Intake Engine Desg. LE5 2008-2010

for Chevrolet Equinox Exhaust; Intake Stamped 12578515, Color-Gray 2010-2011

for Chevrolet HHR Exhaust; Intake 2006-2011

for Chevrolet Malibu Exhaust; Intake Engine Desg. LE5 2008-2009

for Chevrolet Malibu Exhaust; Intake Engine Desg. LE9/LE5 2010-2012

for GMC Terrain Exhaust; Intake Stamped 12578515, Color-Gray 2010-2011

for Pontiac G5 Exhaust; Intake 2007-2008

for Pontiac G6 Exhaust; Intake 2006-2010

for Pontiac Pursuit Exhaust; Intake 2006

for Pontiac Solstice Exhaust; Intake 2006-2009

for Saturn Aura Exhaust; Intake 2007-2009　

for Saturn Ion Exhaust; Intake 2006-2007 　

for Saturn Sky Exhaust; Intake 2007-2010

for Saturn Vue Exhaust; Intake 2007-2010

OE/Part number:

1258226, 12585226, 12591894, 12621284, 12624936, 12630084, 1334067, 1334075, 1334083, 12608580, 24449448, 90537338, 24461834, 24424758, 9-0753S, 55 352 124, 12578515, 917-270, EN-48585, EN-43653, J43653, EN-955-10, EN-48953, KM 955, J43651, Z20N, B207, A20N, 71739401, 71751273, 89036356, 90537805, 9194747, 93170401, 93172718, 93178602, 93181118, 93195308, PA7217, 1307350, W9228M, 05636 413, 5636 413, 90537337, 917-254, VVT524, EN-45027, EN-49212, EN-49212-1, EN-49212-2 I, J-43651, 6616, 1334154, 1334282, 19181920, 24439797, 24439798, 24461382, 24467301, 4804957, 4813567, 55352570, 6334002, 6334042, C6209S, 94201S, 76209, 55352124, 13104978, 12621505, 12578516, EN-955-20, KM 955-20, EN-45027-1, J-45027-1, J-45027-2, EN45027-2, Z22S

Specification:

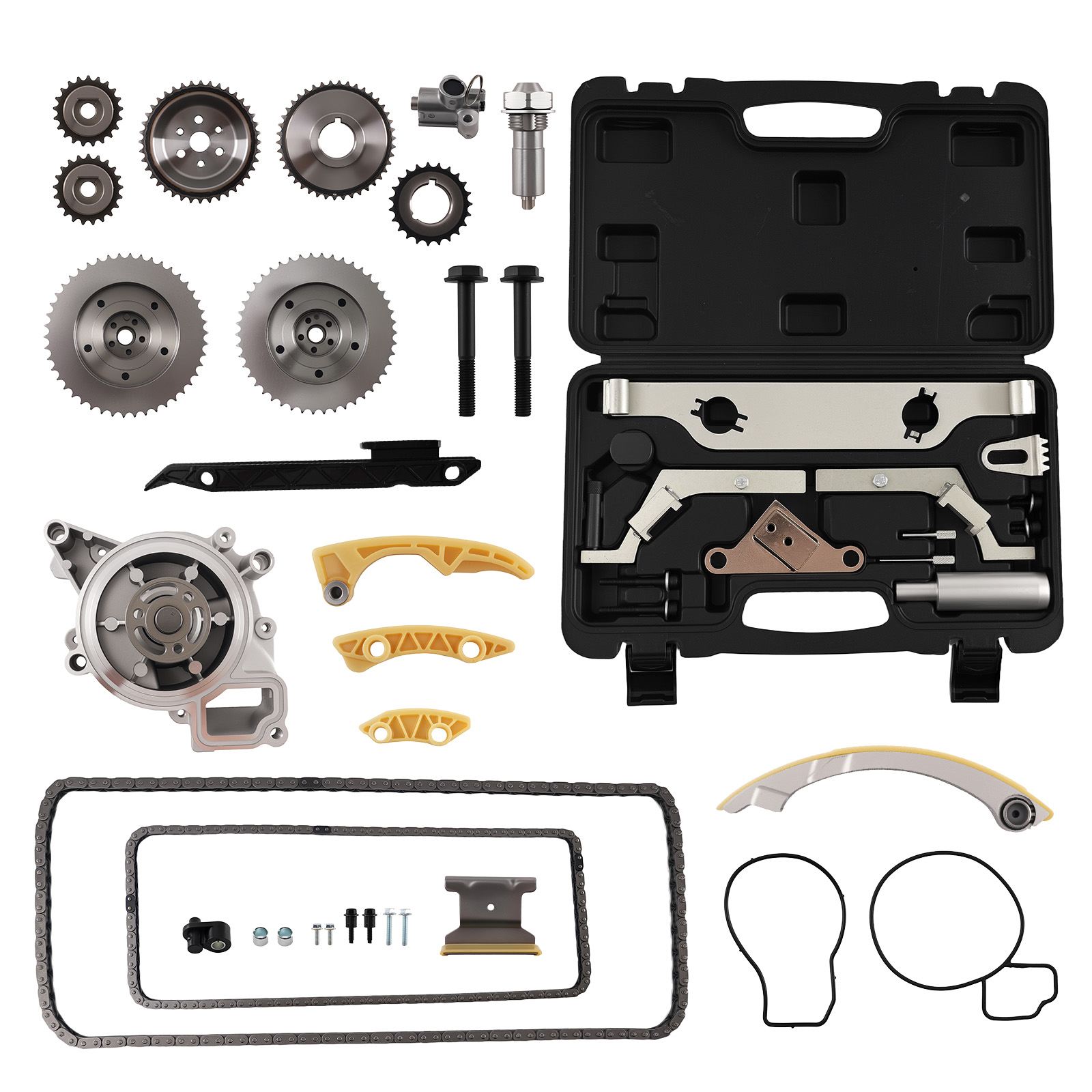

Type: Timing Chain Kit

Package included:

1*Timing Chain (148 links)

1*Timing chain balance shaft (134 links)

1*Crank Sprocket

1*Crank Sprocket (23 teeth)

1*Crank sprocket (inner - 42 teeth)

1*Balance shaft sprocket (intake side)

1*Balance shaft sprocket (exhaust side)

1*Timing Tensioner

1*Balance shaft tensioner

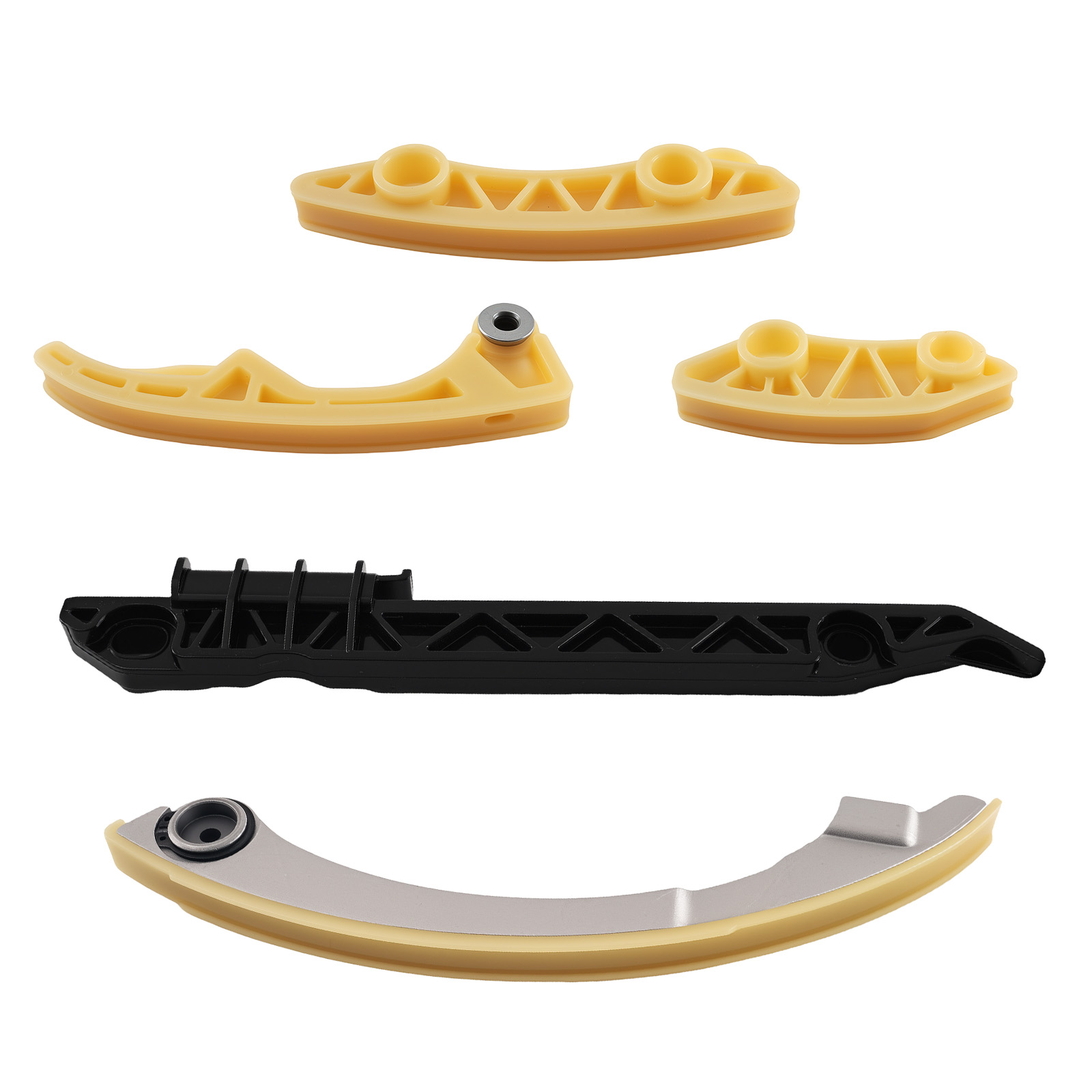

1*Guide Rail (tensioner guide)

1*Guide Rail (left for cam chain)

1*Guide Rail (upper for cam chain)

1*Guide rail balance shaft (upper)

1*Guide rail balance shaft (left)

1*Guide rail balance shaft (right)

1*Chain Oil Nozzle

1*Bolt Set

1*Water pump

2*Gasket

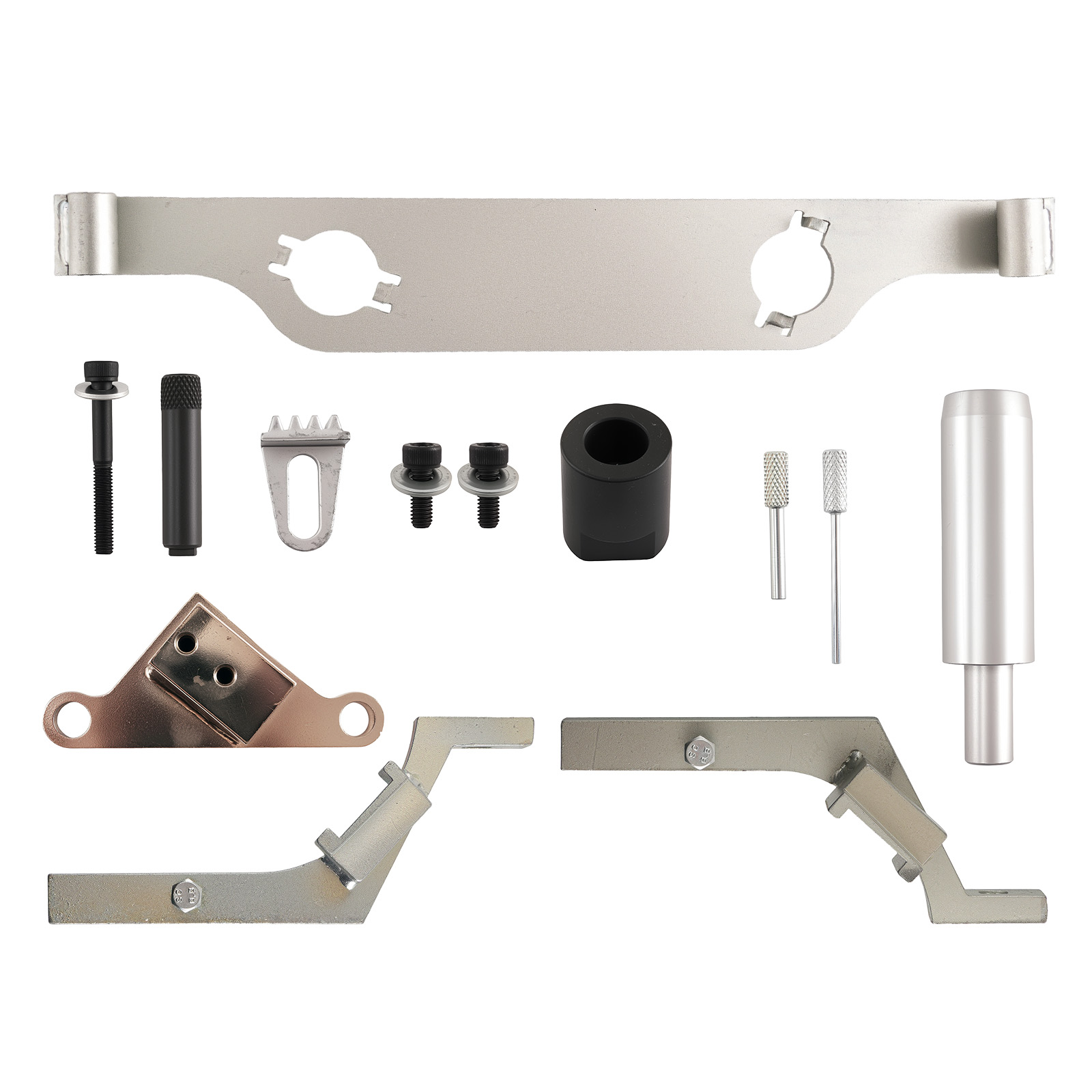

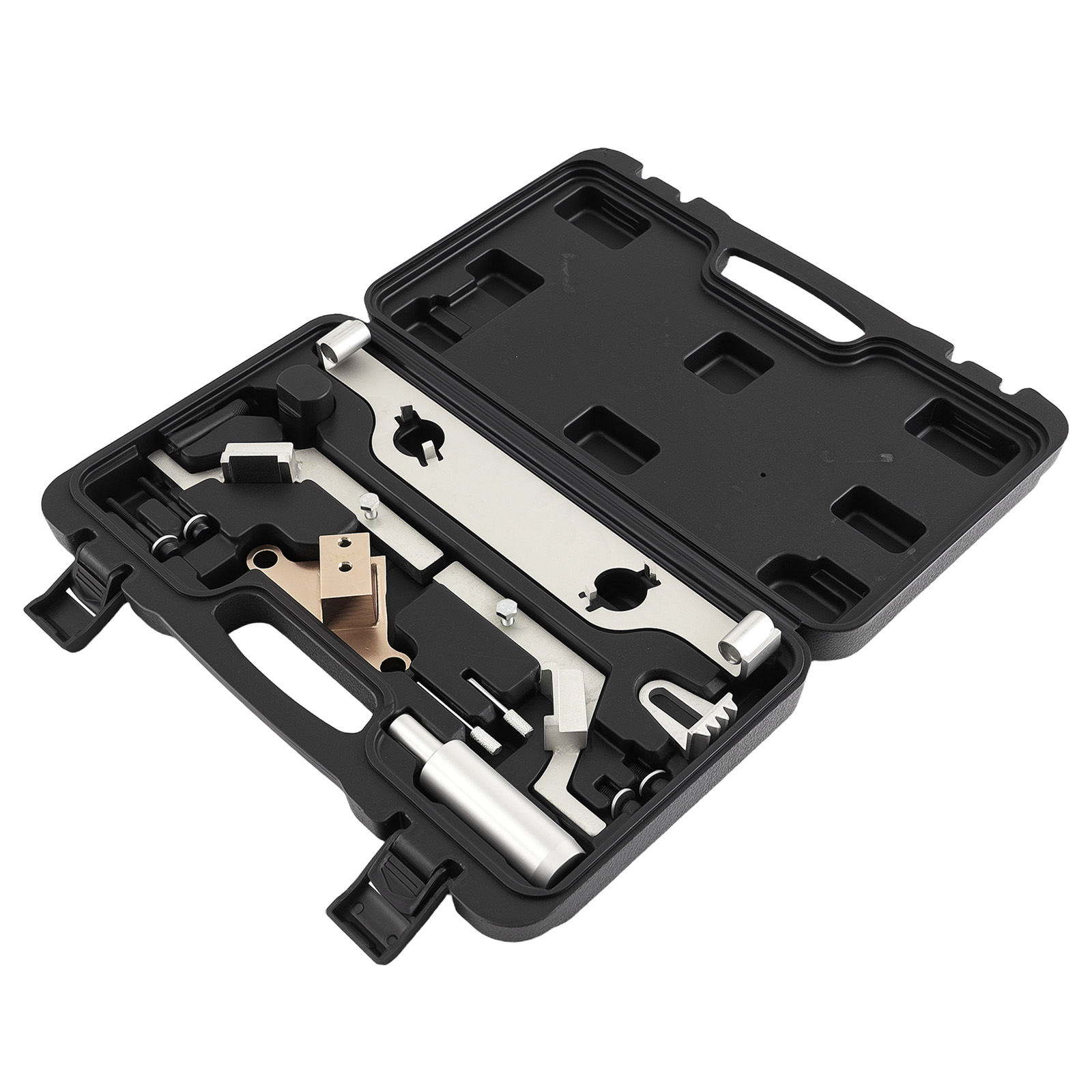

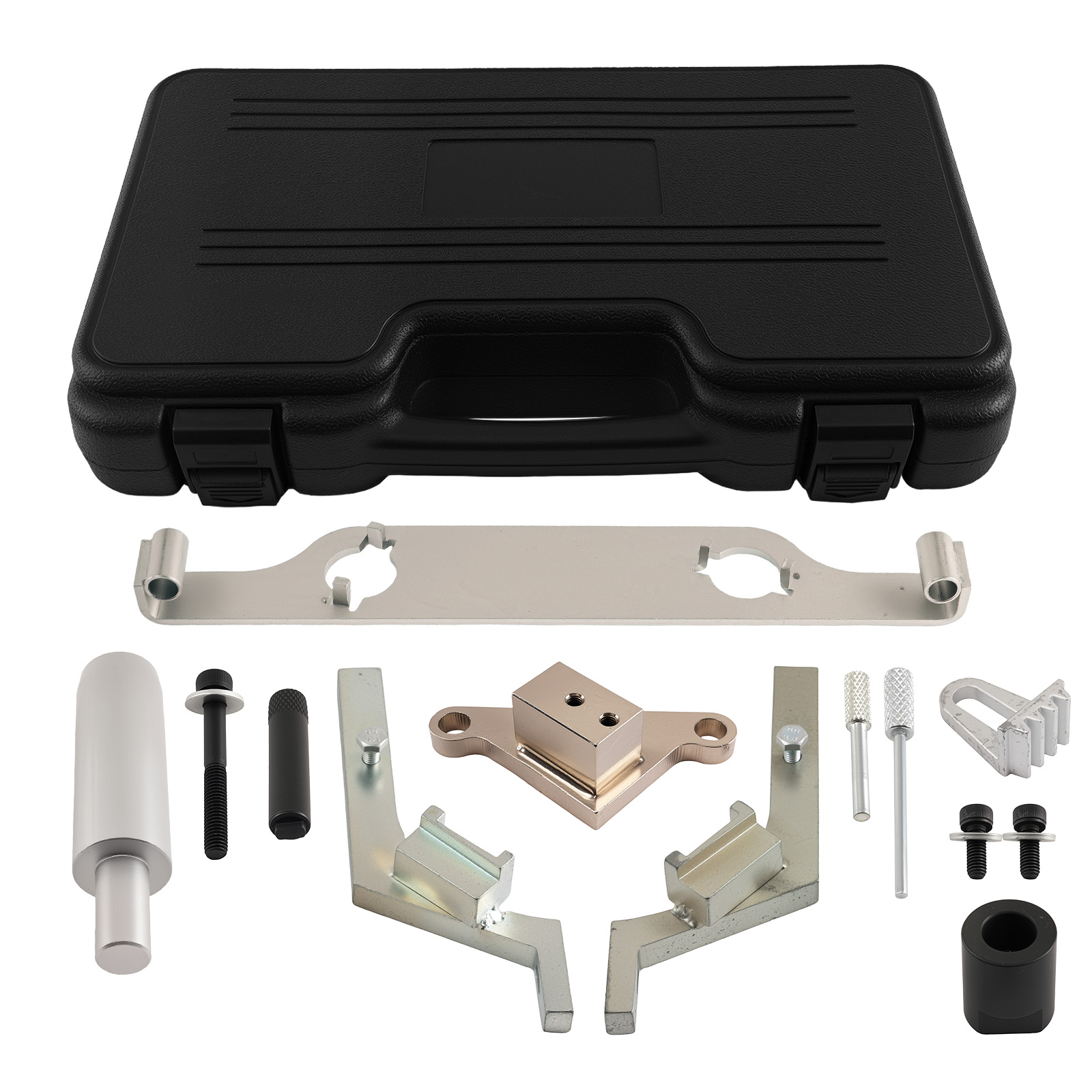

Timing Tool Set :

1*Water Pump Sprocket Holding Tool

1*Cam shaft locking device left

1*Cam shaft locking device right

1*Cam shaft adjustment holding tool, 310 mm

1*Crankshaft locking pin O 15 mm

1*Piston holder tension pin, 11 mm

1*Piston holder remover, 16 mm

1*Fly wheel holding tool bottom

1*Screw M6 x 50, 55 mm

1*Washers M6

1*Screw M6 x 16, 22 mm

1*Flywheel locking tool, 28 x 45 mm

1*Tensioner retaining pin, O2.5 mm

1*Tensioner retaining pin, O4.0 mm

1*Intake Variable Valve Timing Gear VVT W / Bolt

1*Exhaust Variable Valve Timing Gear VVT W / Bolt

Box color – in Random

W/o Product Instruction

Feature:

1.100% NEW.

Every product has quality inspection before leaving the factory.

2.High Quality

Components and materials ensure a longer service life.

3.Direct for

Less expensive, easier to install.

Note:

1.Professional installation is highly recommended.

2.Please make sure it will for your machine before purchasing it.

3.Please check pictures for more details.
