Racing CoilOver Suspension Lowering Kit For Mitsubishi 3000GT GTO AWD 1991-1999



Advanced Twin-Tube Technology

Twin-Tube System for Comfortable Ride on Streets. Low Gas Pressure Avoids Stress On Seals And Keep Friction Low.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

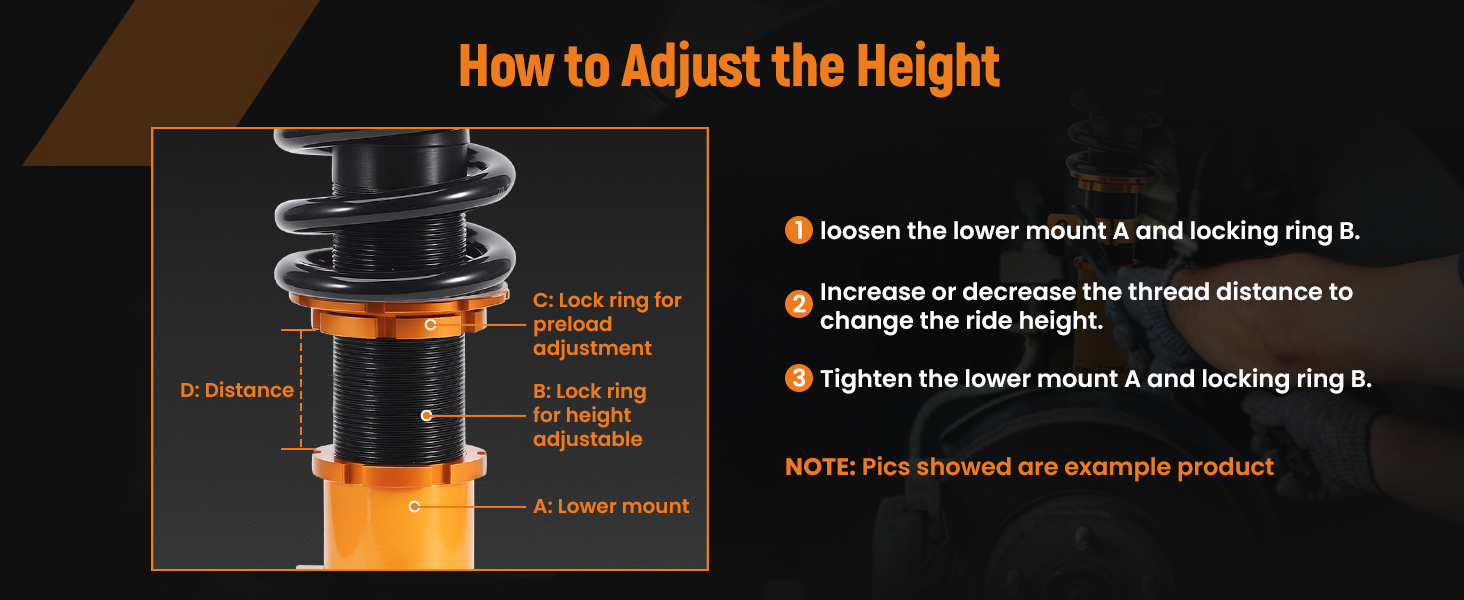

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Height adjustable Yes
Front Spring length 200 mm
Rear Spring length 200 mm
Front spring length 10 kg/mm (560 lbs/in)
Rear spring length 7 kg/mm(392 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Feature

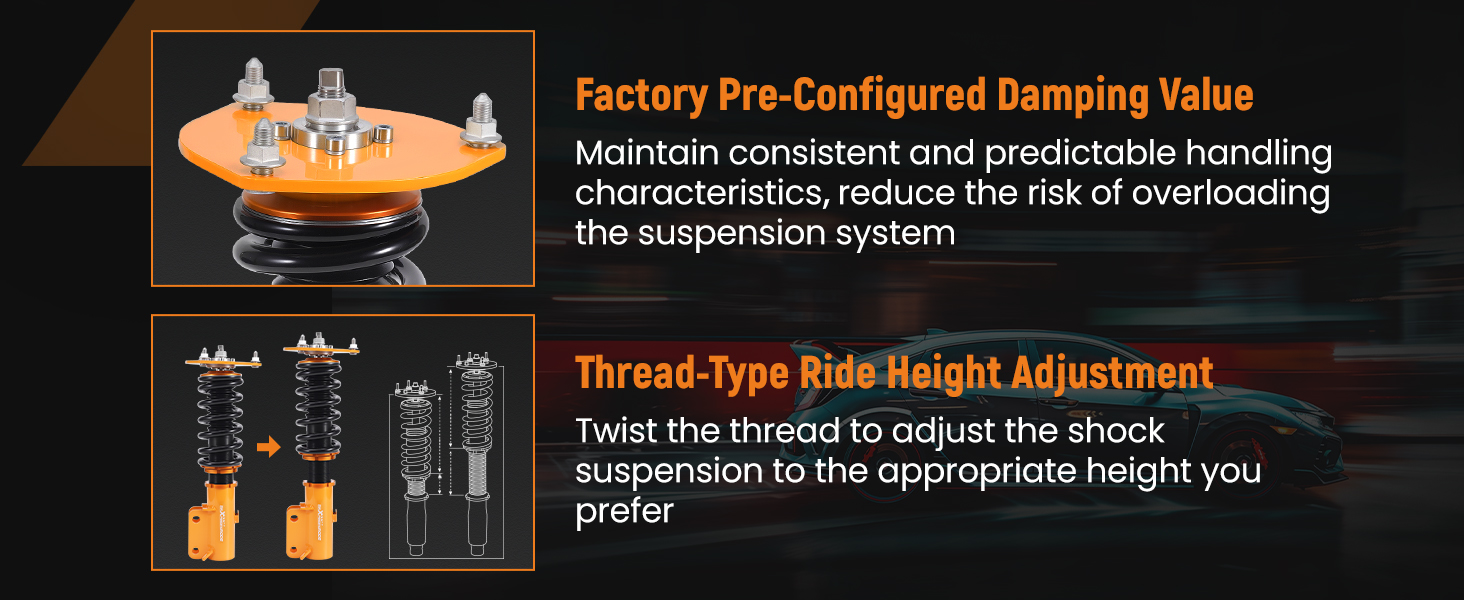

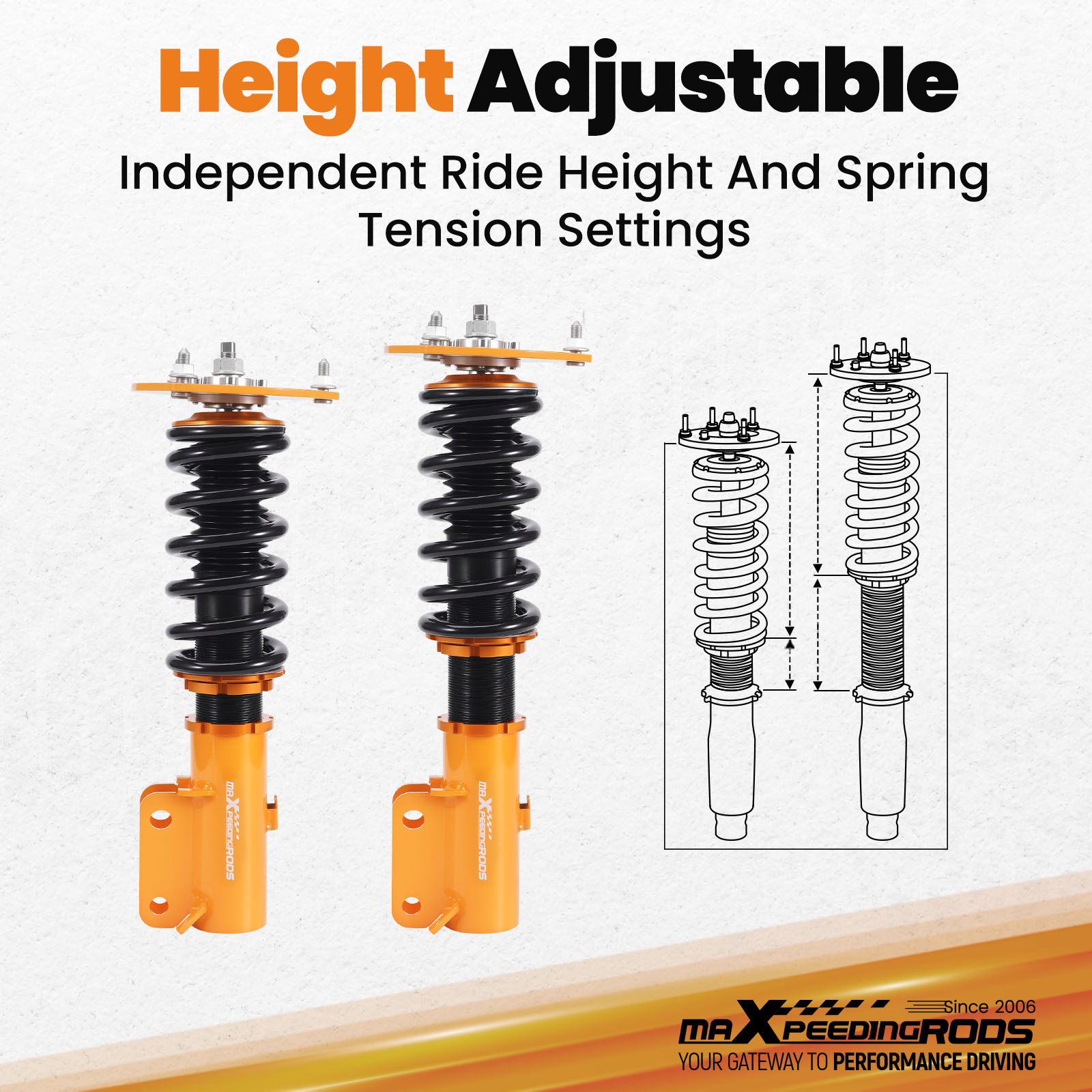

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height

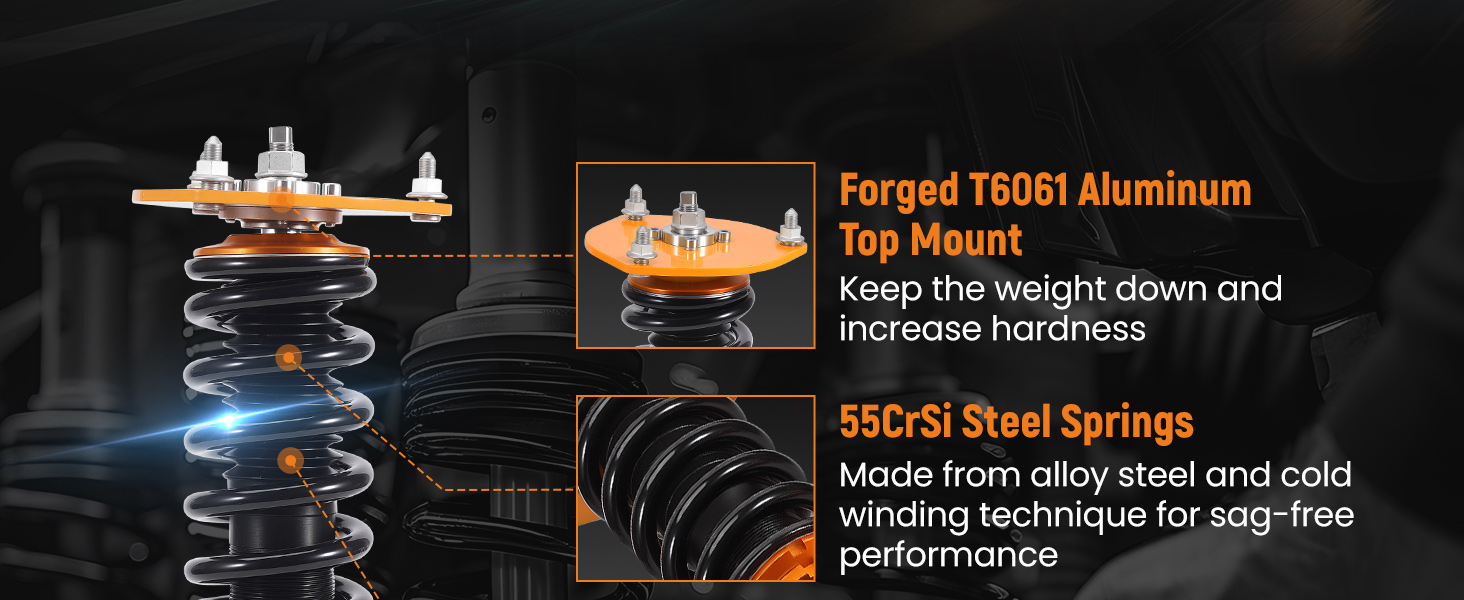

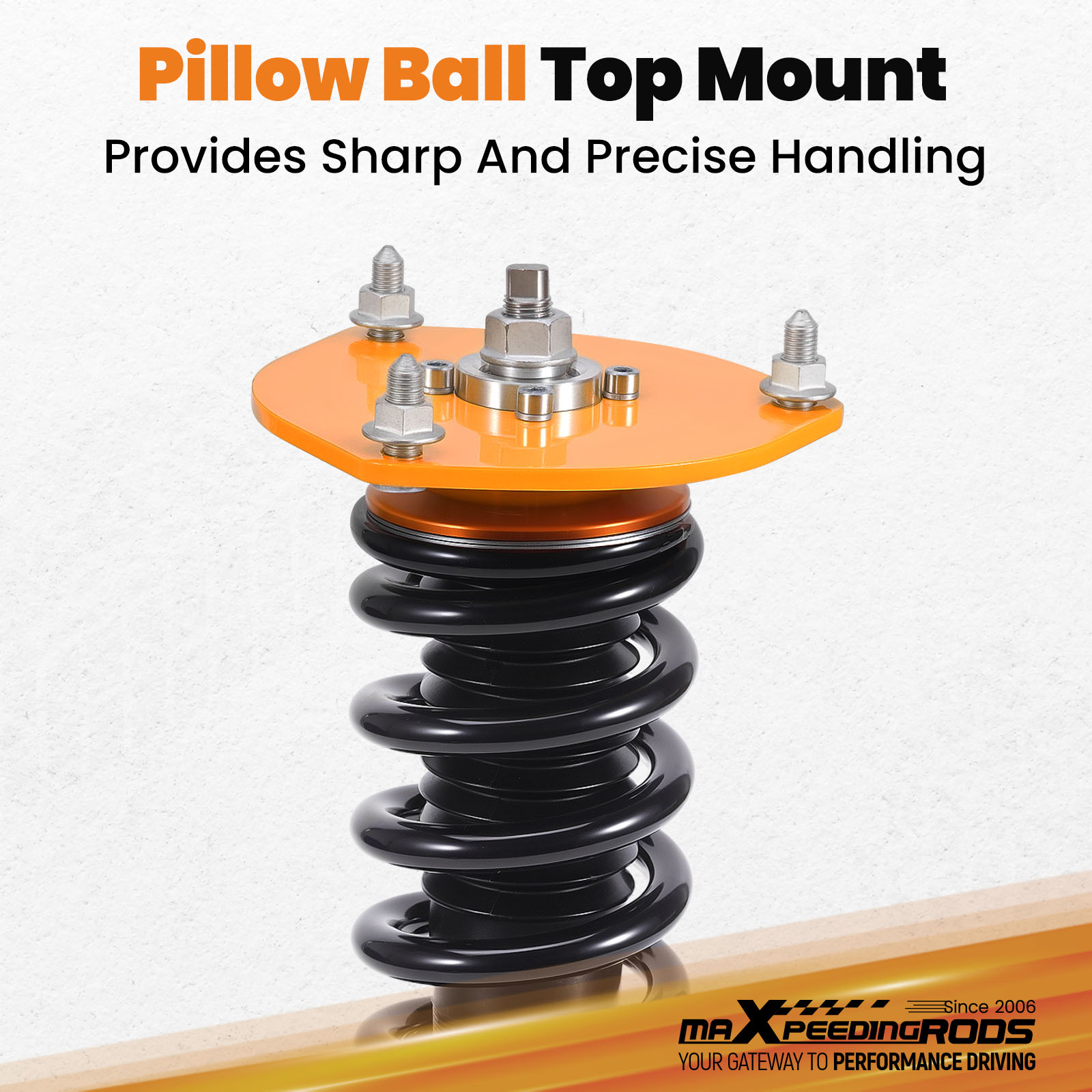

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver

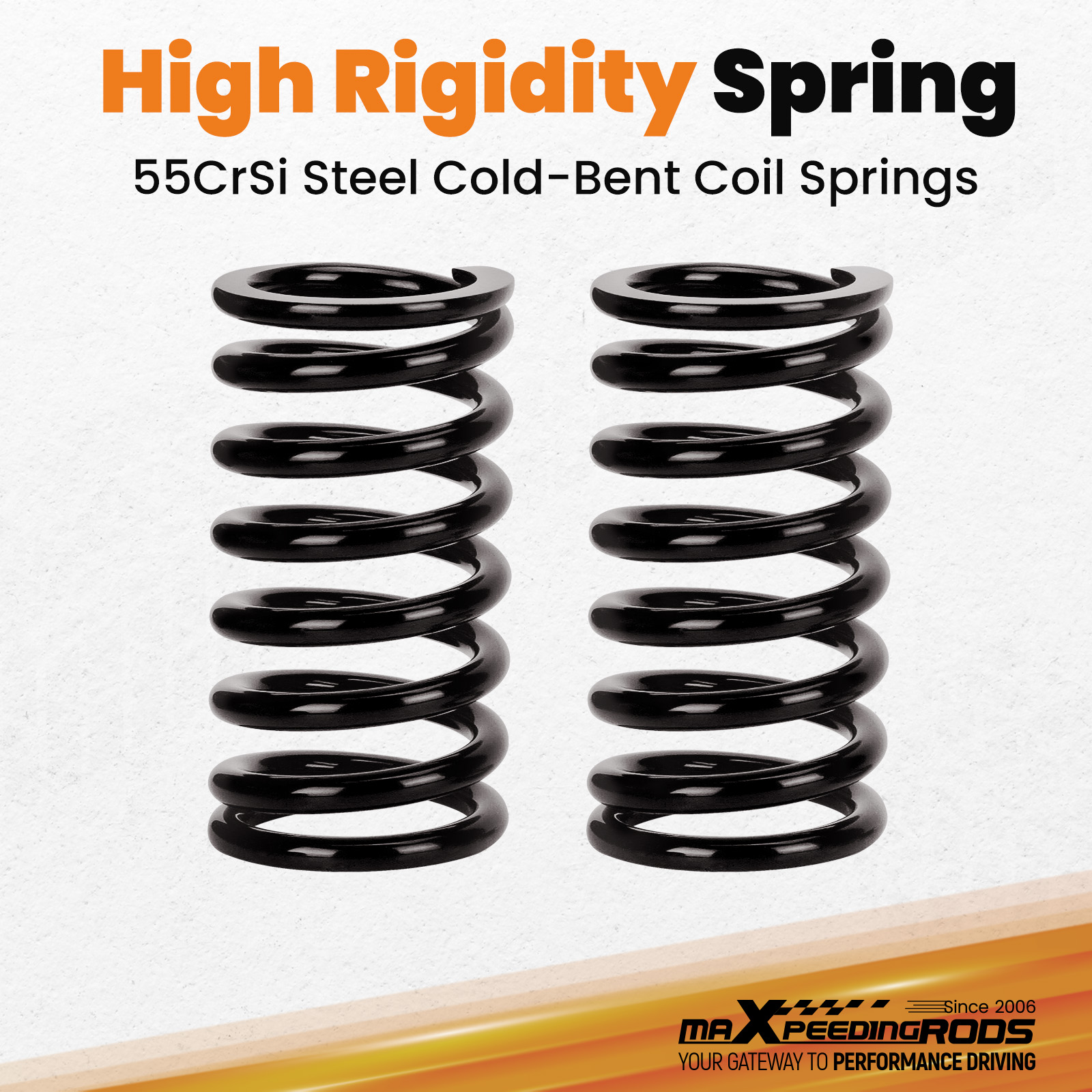

High Rigidity 55CrSi Steel Cold-bent Coil Springs

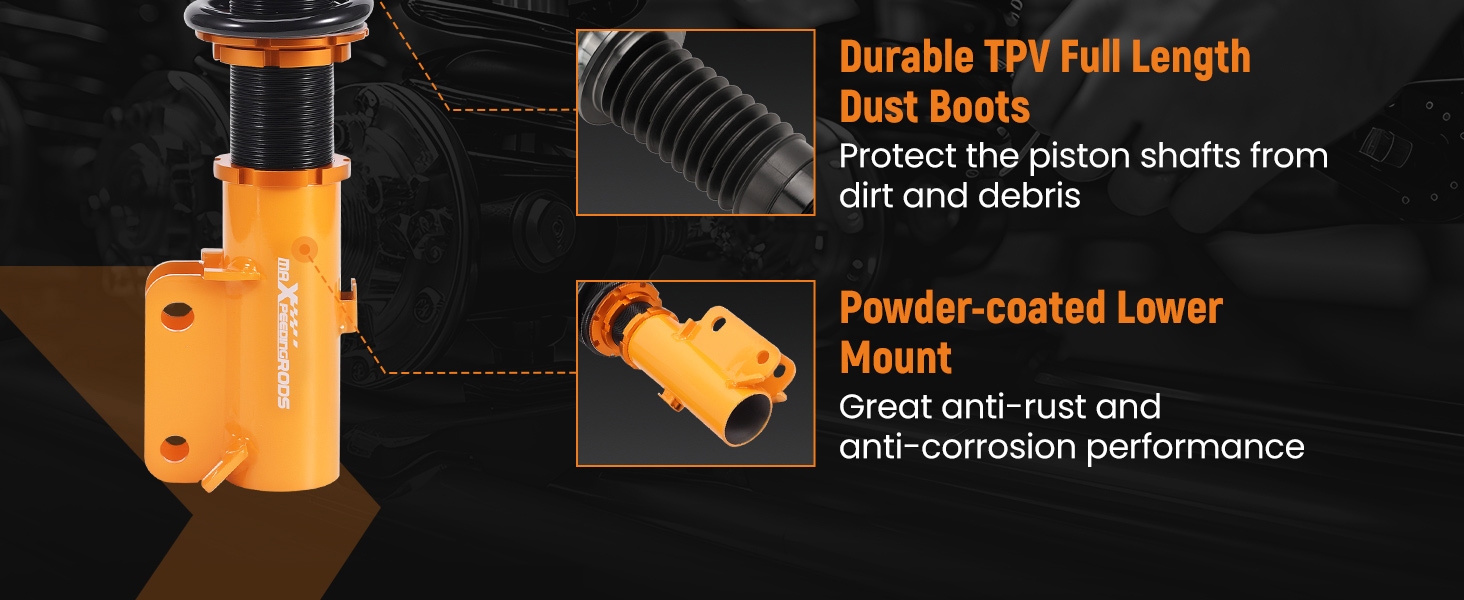

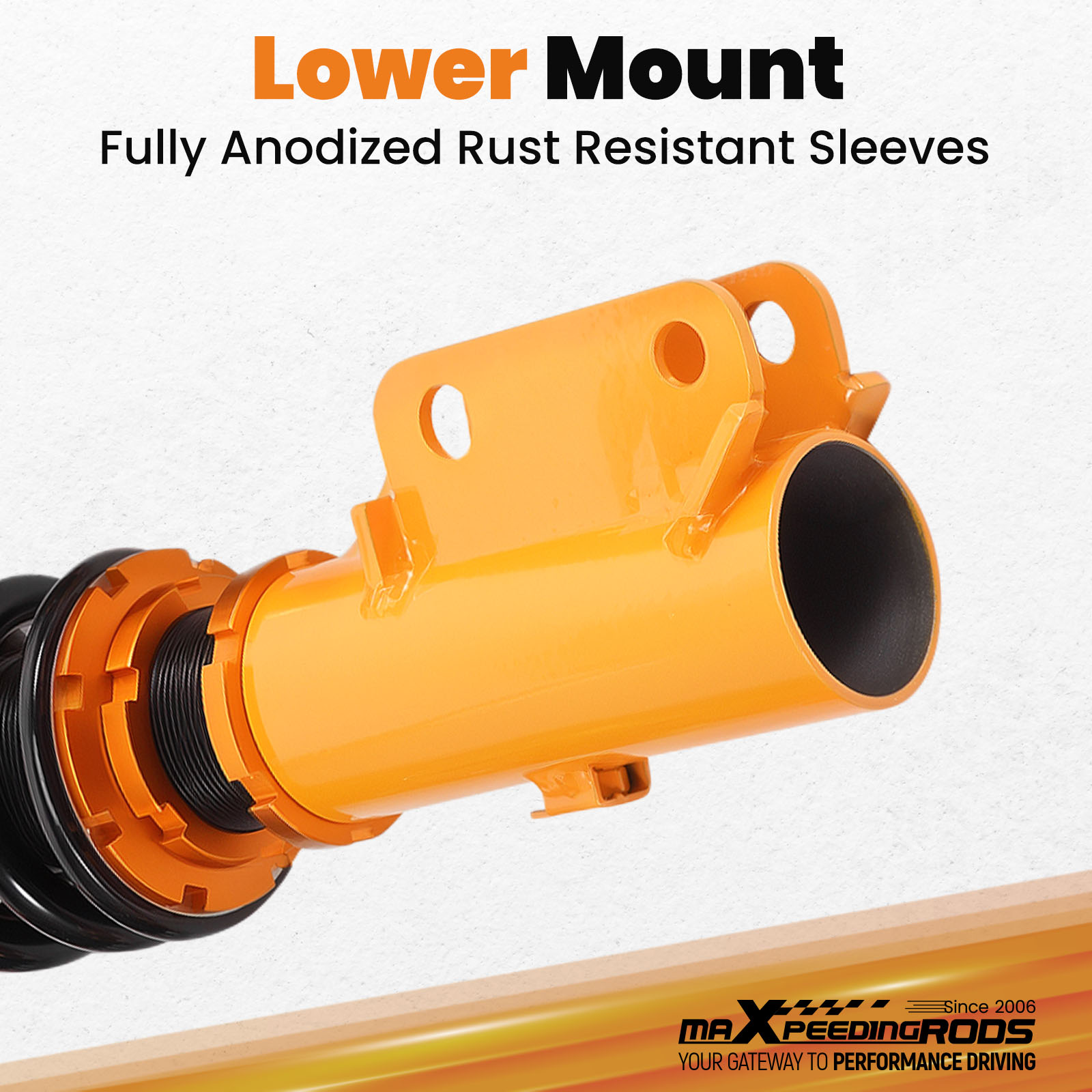

Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Application


For MITSUBISHI GTO 1990.10-2000.07 JPN 3000 4WD (AWD)  Z16A TWIN TURBO
For MITSUBISHI GTO 1993.08-2000.07 JPN 3000 4WD (AWD) Z15A TWIN TURBO MR, SR
For MITSUBISHI 3000GT 1991-1999 USA 4WD (AWD/VR-4) Coupe Z16A V6 turbo
For Dodge Stealth 1991–1996 4WD (AWD)


Specification


- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 7 kg/mm(392 lbs/in)
- Spring length Front: 200 mm
- Spring length Rear: 200 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x front coil-overs
2x rear coil-overs
1x Allen wrench
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
