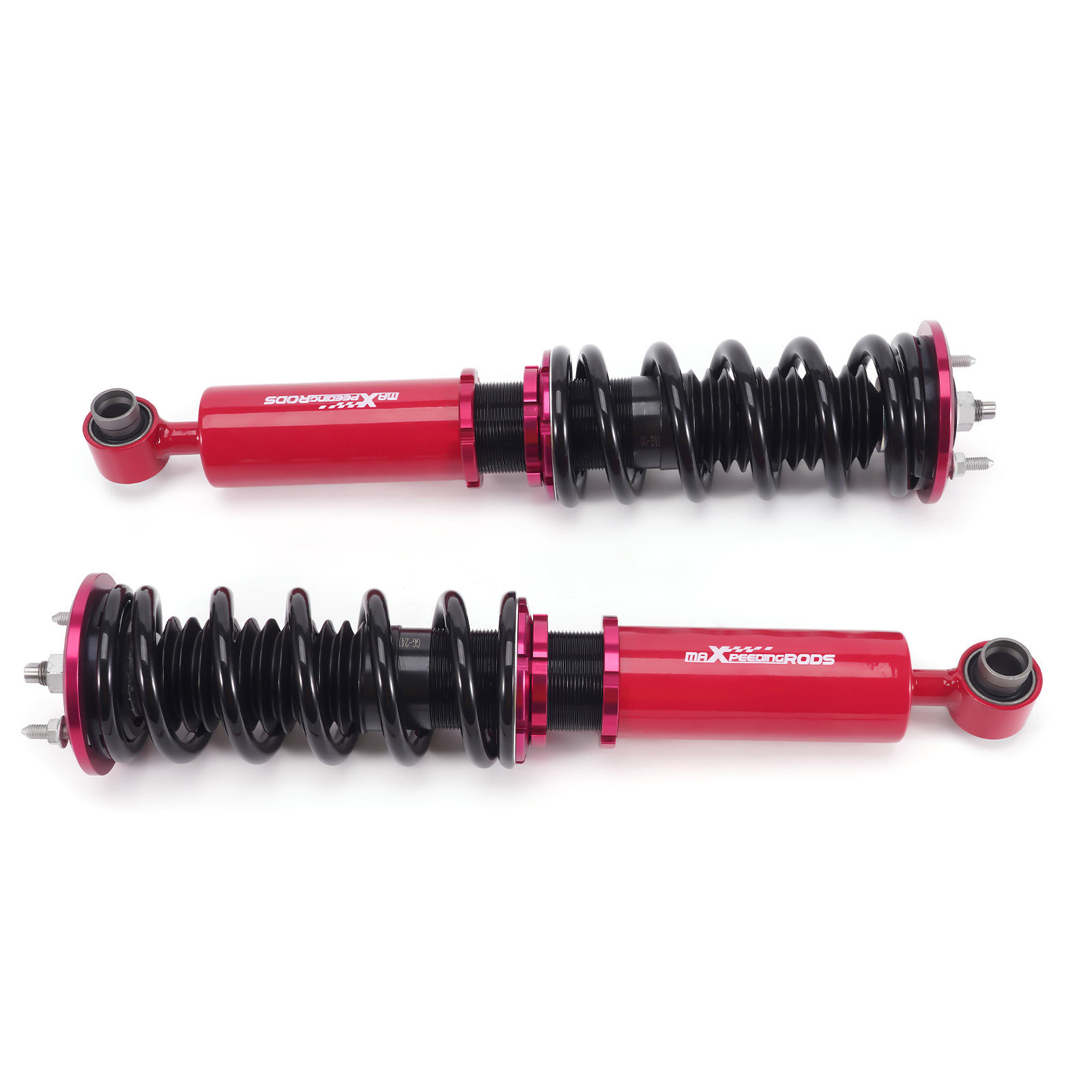

Coilovers Suspension Lowering Kit For Nissan S13 180SX 240SX 240SX 1989-1994



55mm Large Diameter Damper Body

High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.

CNC Machined T6 6061 Aluminum Top Mount

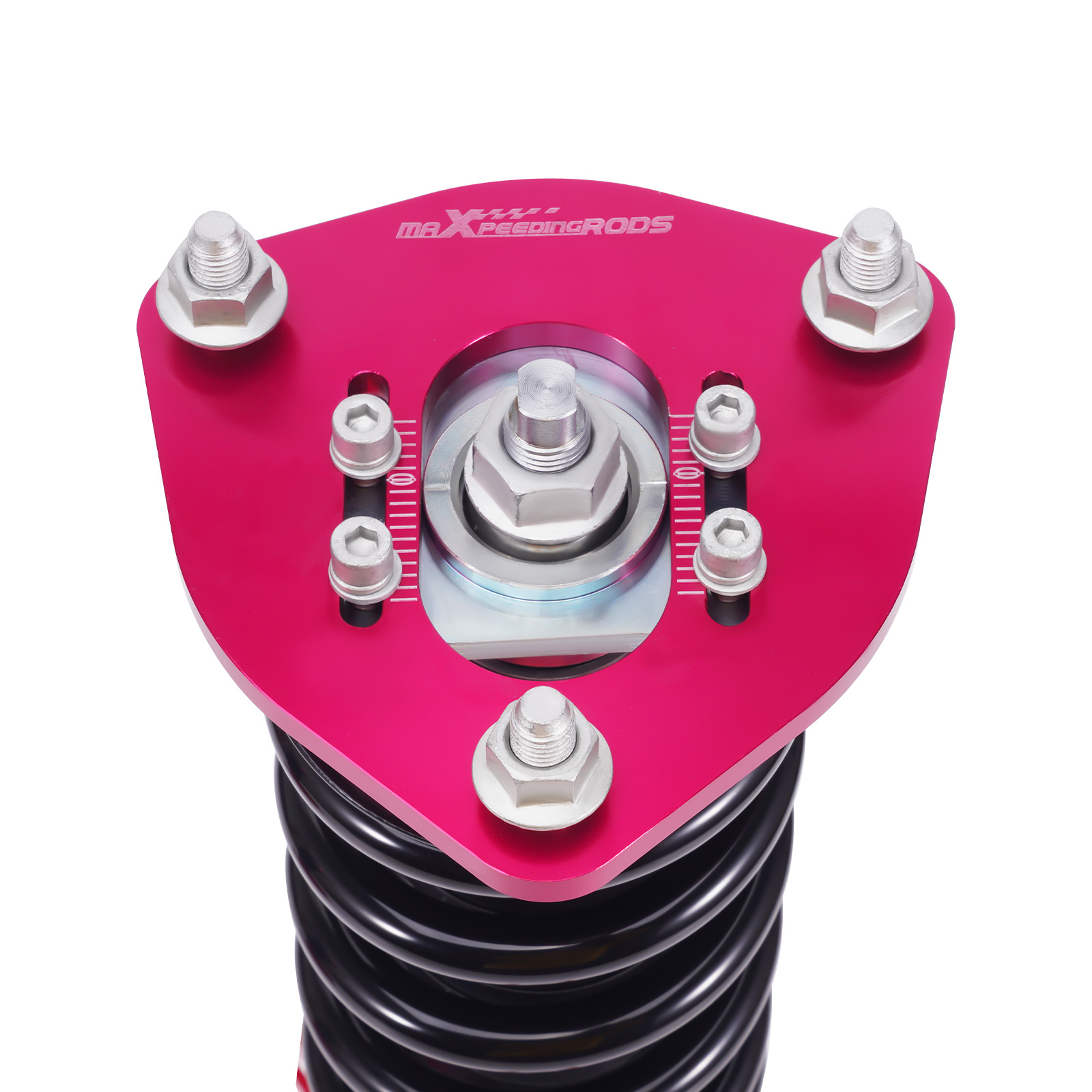

Adjustable Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

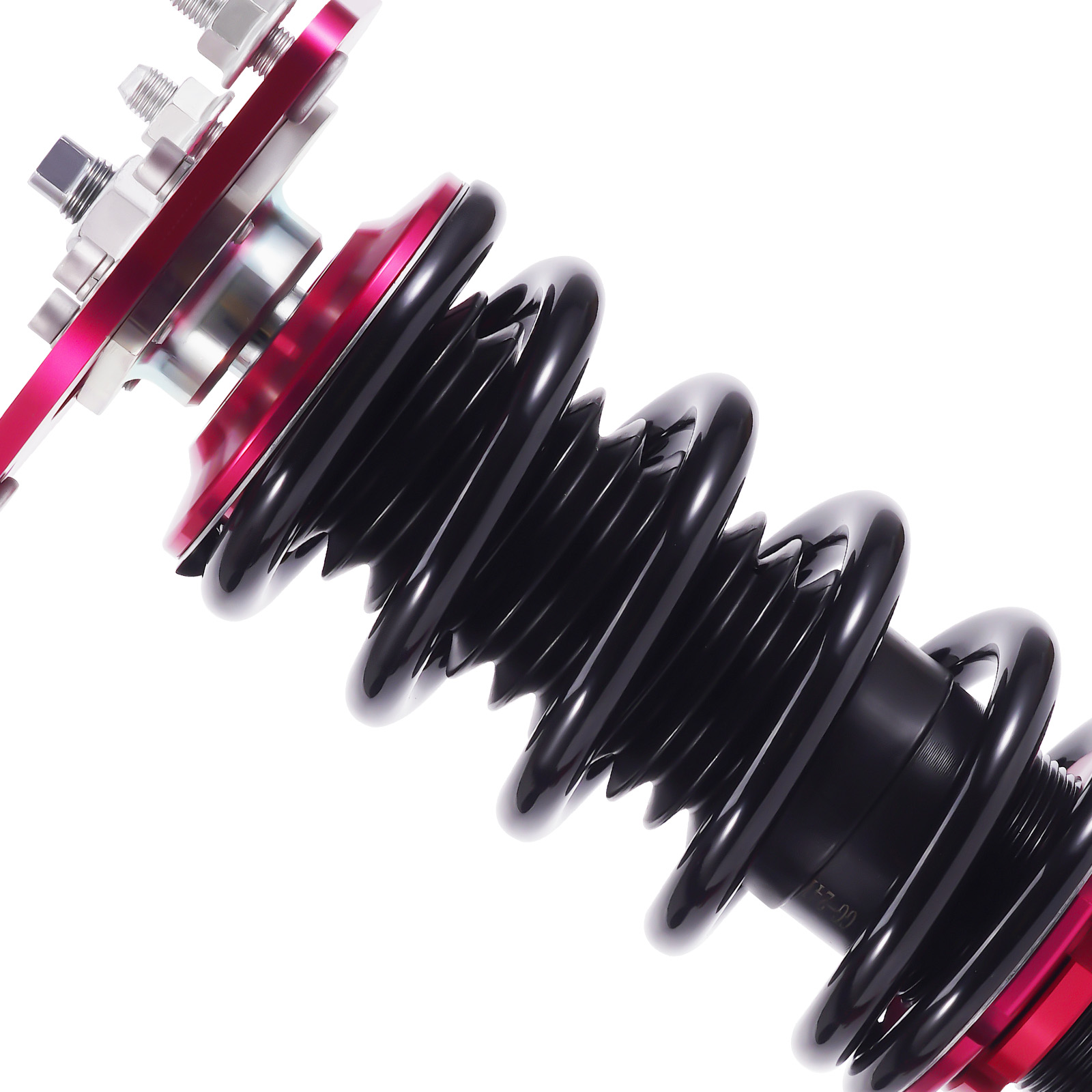

High Rigidity 55CrSi Steel Cold-bent Coil Springs

720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.

Drops From 1 to 3 Inch From Factory Ride Height

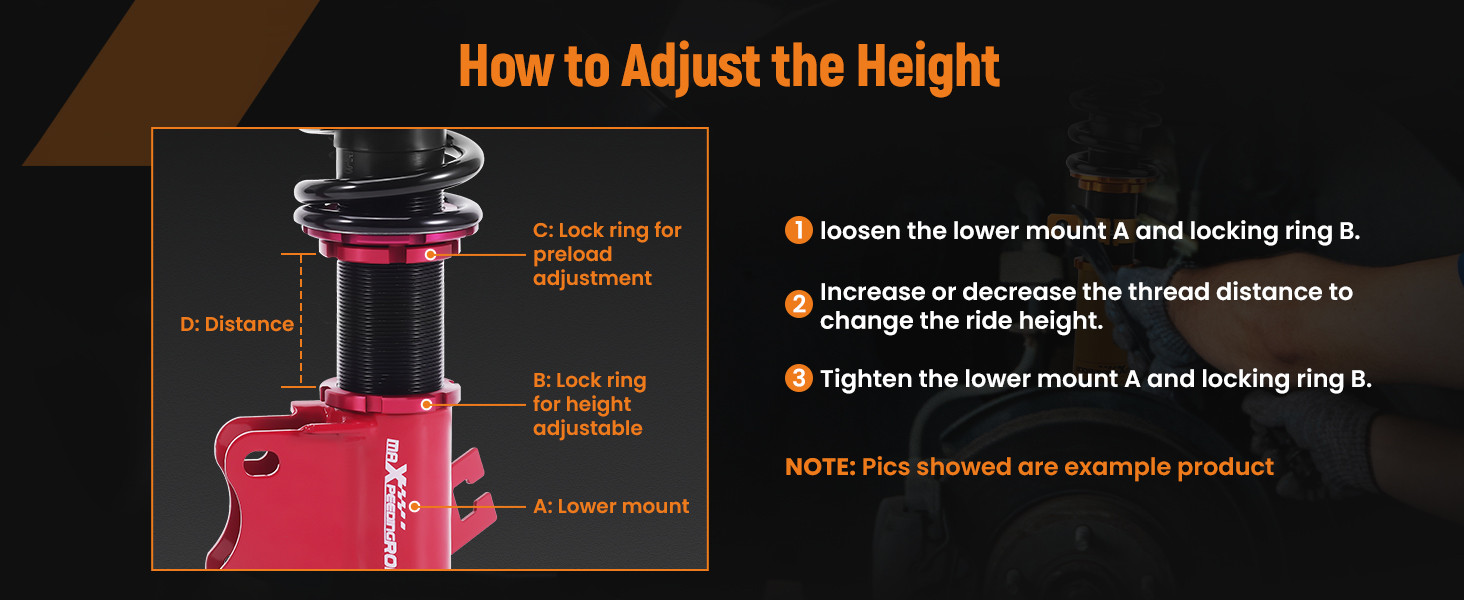

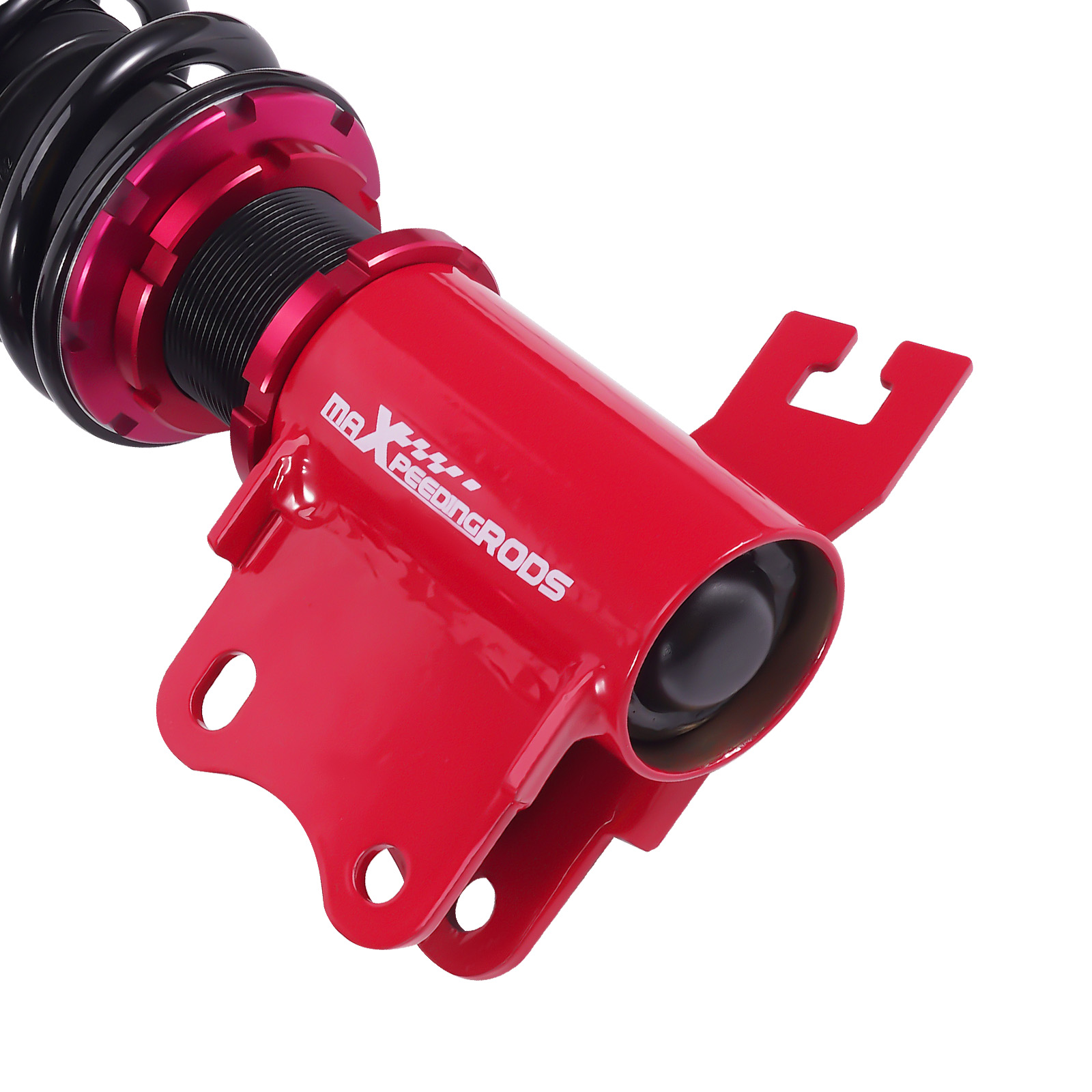

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Specifications


Camber adjustable Yes
Height adjustable Yes, Lowering 1-3 inch
Front Spring length 180 mm
Rear Spring length 220 mm
Front spring length 8 kg/mm (448 lbs/in)
Rear spring length 7 kg/mm(392lbs/in)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 70.5 mm
Front Damper Body Diameter Φ55mm (2.17")
Rear Damper Body Diameter Φ55mm (2.17")
Front Coilover Length 420 mm - 470 mm
Rear Coilover Length 500 mm - 590 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

MaXpeedingrods Brand Introduction

Founded in 2006, MaXpeedingrods is a trusted global brand specializing in a full range of high-performance automotive parts. With a strong focus on suspension and coilovers, we hold a leading market share online and are widely recognized by enthusiasts worldwide. All products are engineered for reliable performance, durability, and perfect fitment, serving daily driving, street tuning, and light track use.

Features

◆ Full-Length Threaded Body For True Ride Height Adjustment Without Sacrificing Suspension Travel.
◆ Camber-Adjustable Pillow Ball Upper Mounts For Precise Alignment And Sharper Steering Response.
◆ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response.
◆ Premium Cold-Coiled Springs Deliver Consistent Rate And Durable Performance.
◆ Street-Tuned Fixed Damping For Balanced Comfort And Improved Handling.
◆ Heavy-Duty Construction With Corrosion-Resistant Coating For Long-Lasting Durability.
◆ Direct Bolt-On Design, Vehicle-Specific Fit With All Necessary Hardware Included.
◆ Brand New Complete Kit with 1-Year Warranty


Application

For Nissan S13 Silvia Japan Market 89-93
For Nissan S13 180SX Japan Market 89-98
For Nissan S13 200SX Europe/New Zealand Market 89-94
For Nissan S13 240SX North America 89-90
For Nissan S13 Sileighty Japan Market 98


Specification

- Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 8 kg/mm(448lbs/in)
- Spring Rate Rear: 7 kg/mm(392lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 180 mm
- Spring length Rear: 220 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

✅ 100% BRAND NEW | 1 YEAR LIMITED WARRANTY ✅ Full Length Adjustable Ride Height For Custom Stance Without Suspension Compromise ✅ Precision Tuned Damping Requires No Adjustment ✅ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response ✅ 55mm Large Diameter Damper Body Delivers Superior Stability And Control ✅ 55CrSi Cold-Bent Steel Springs Provide Max Strength And Long-Term Durability ✅ T-6061 Billet Aluminum Construction With High-Durability Thrust Seats & Reinforced Rubber Bushings ✅ Perfect for Daily Commuting and Weekend Street Performance
