Installation:

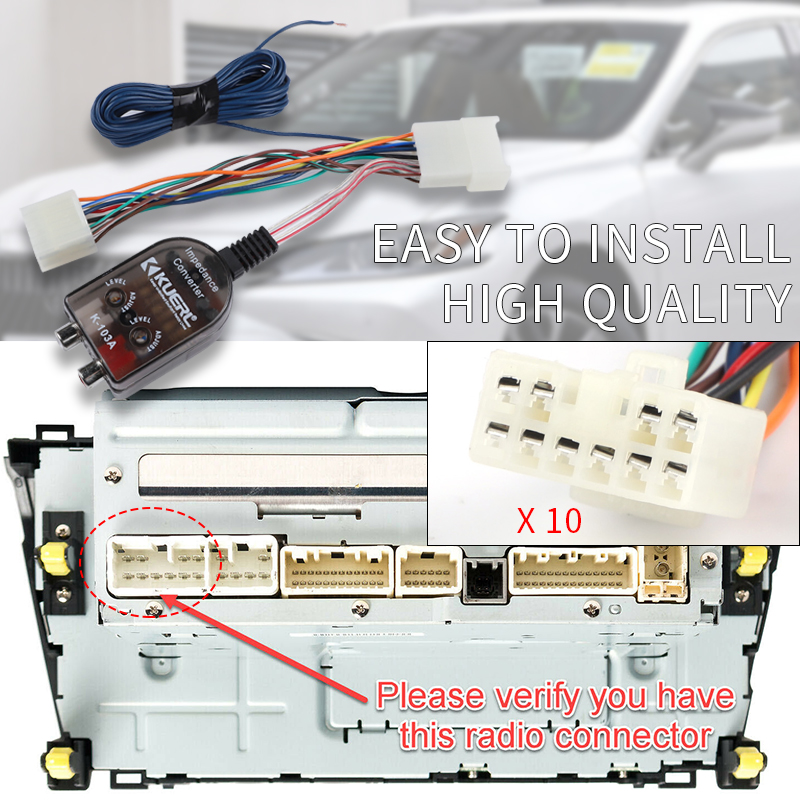

Remove your OEM factory radio

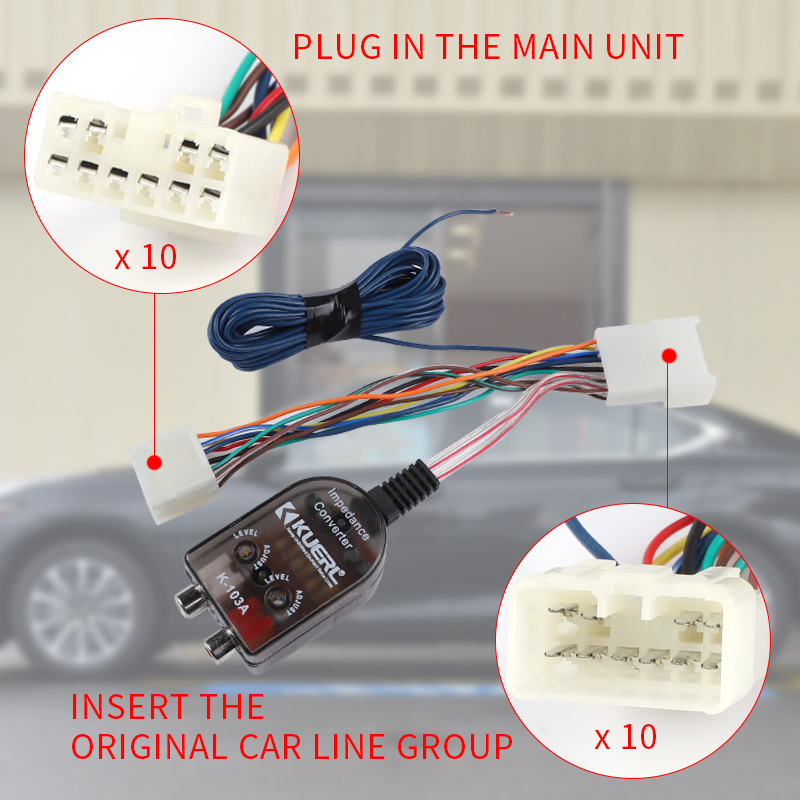

Unplug the OEM factory wiring and plug in this wire harness
Reinstall your OEM factory radio

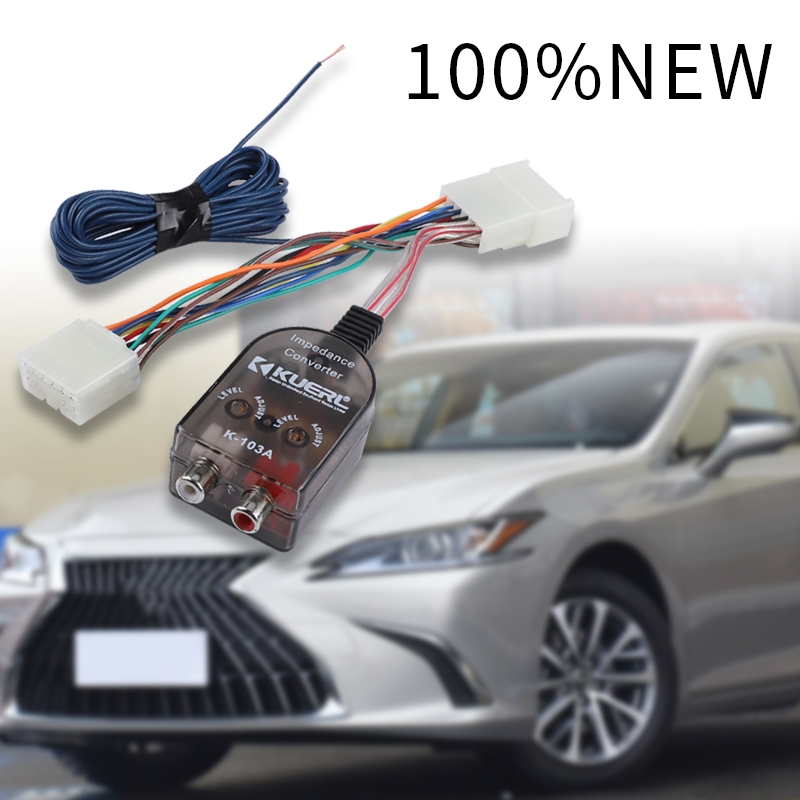

This wire harness provides a line out converter for connection to one set of RCA cables to provide an audio signal to an external amplifier. Also pre-installed on the harness is a remote amplifier turn on wire. This wire, along with a set of RCA cables, is run to your aftermarket amplifier. All that's left for you to do is connect your own main power wire from your battery and a ground.
Inclues:
One (1) plug and play wire harness
Compatibility Notes:

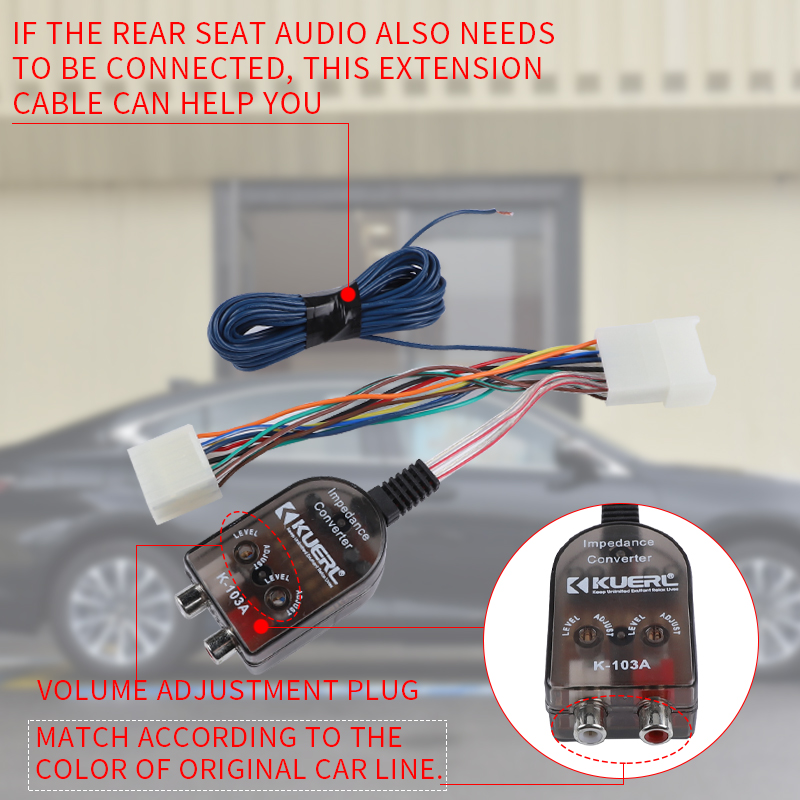

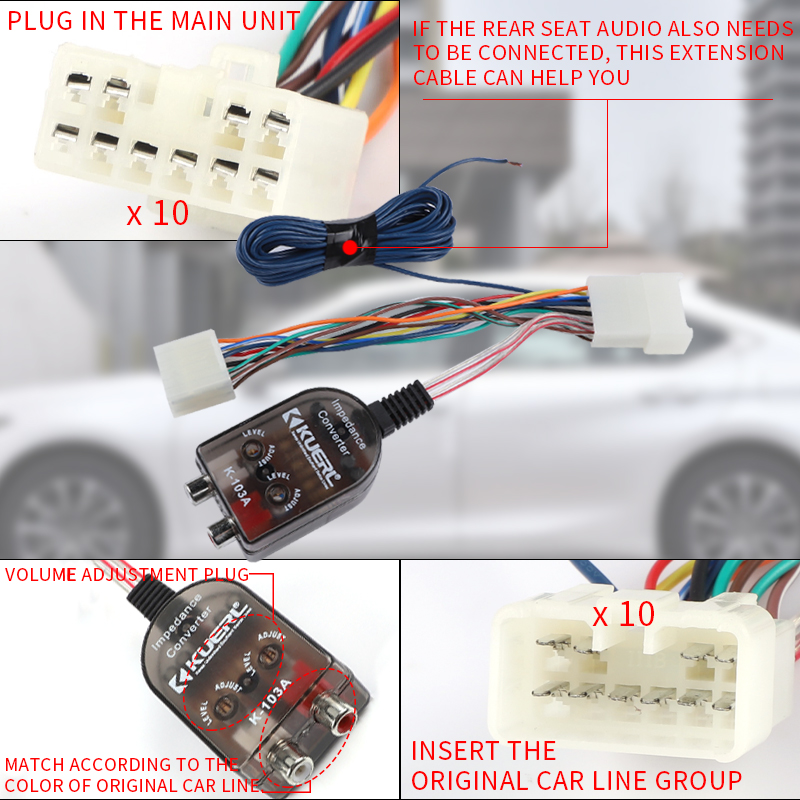

Audio volume to the amplifier can be adjusted by the dials on the harness.
If this is being installed on a vehicle with a "premium sound" system such as JBL, this harness may need to be connected at the JBL amp and not directly at the radio.
A variety of wire colors may be used for the remote wire coming off the harness. Regardless of color, rest assured it is for the remote turn on of an amplifier.

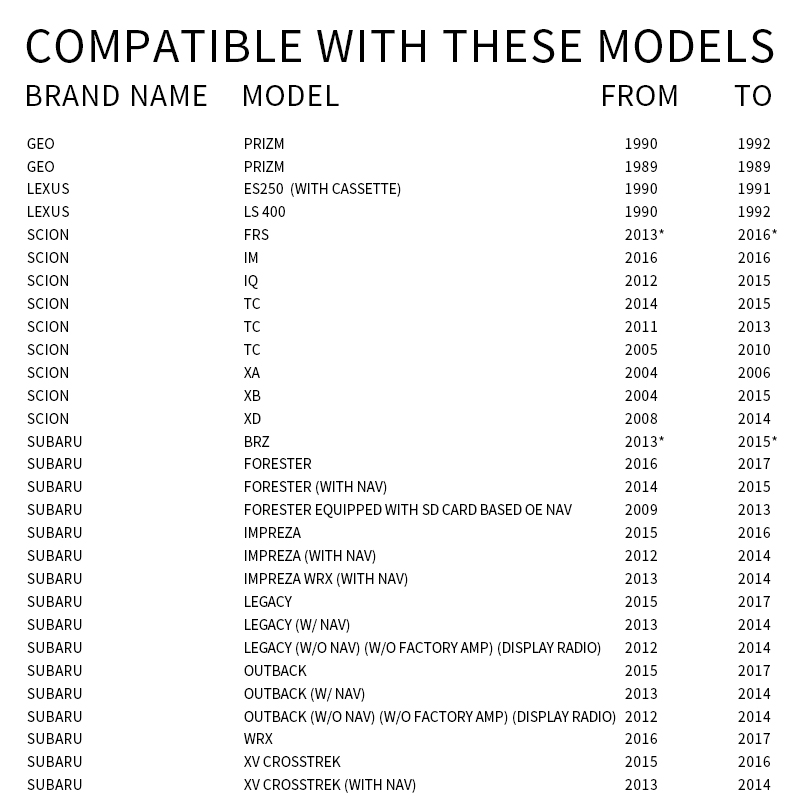

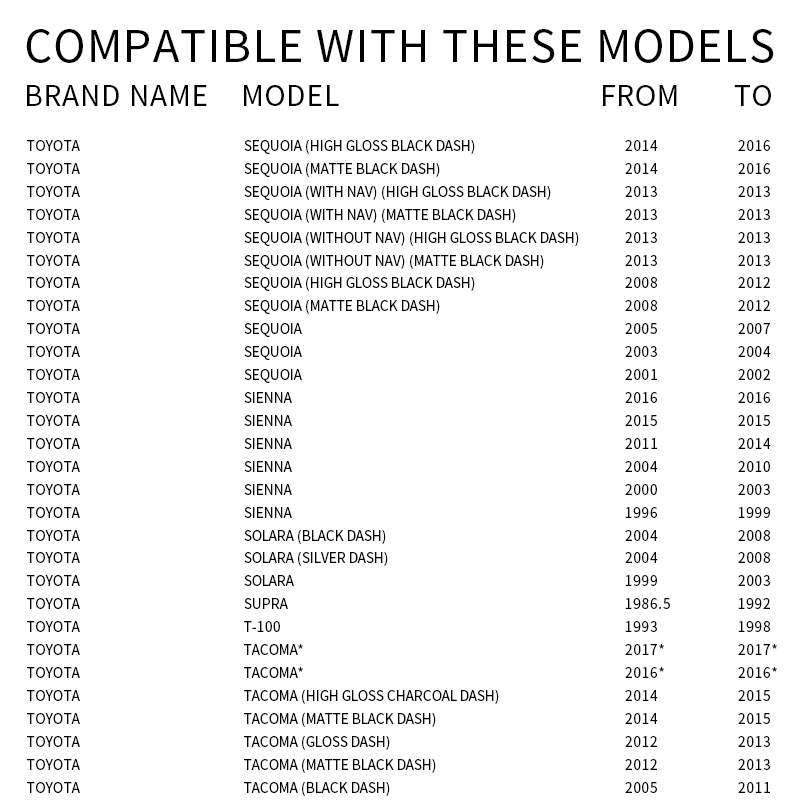

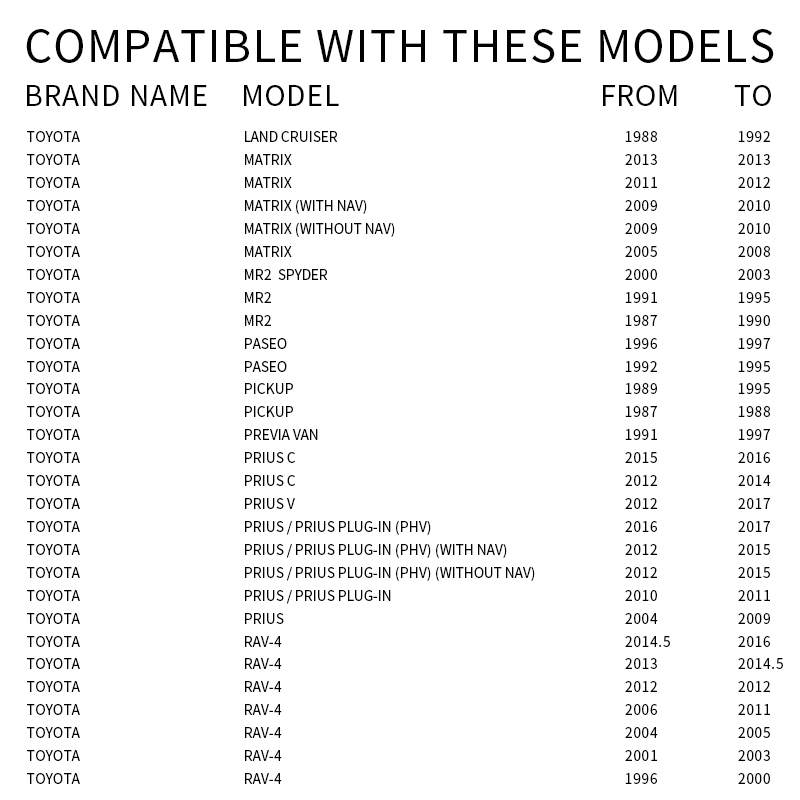

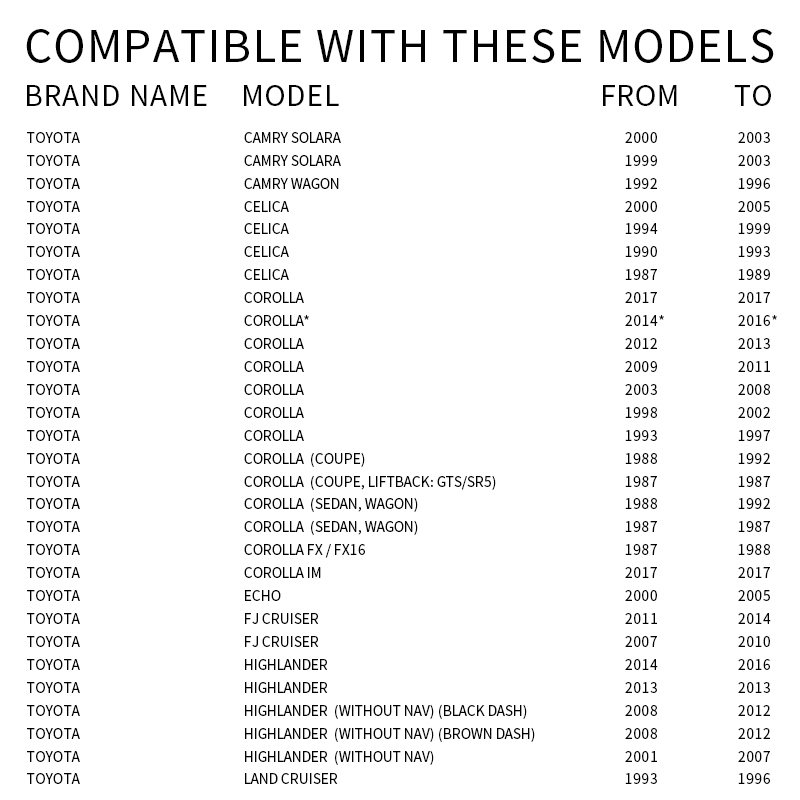

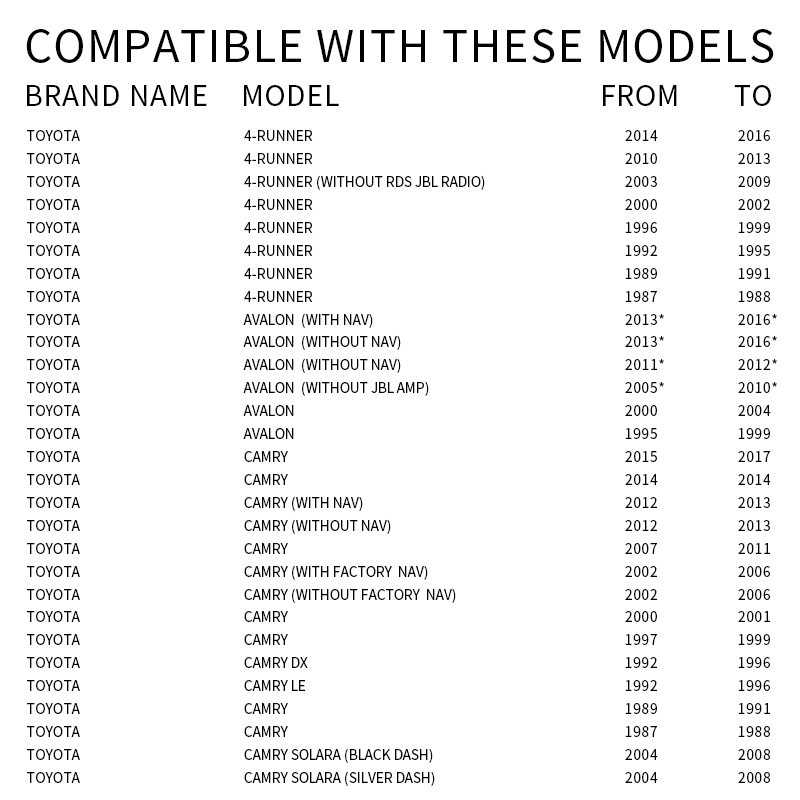

Compatible with these models: As Picture showed
For Geo
- 1989-1992 Prizm
- 1990-1991 ES250 (with cassette)
- 1990-1992 LS400
For Scion
- 2016 iM
- 2012-2015 iQ
- 2005-2015 tC
- 2004 - 2006 xA
- 2004 - 2015 xB
- 2008-2015 xD
- 2013*-2016* FR-S
For Subaru
- 2013*-2015* BRZ
- 2016-2017 Forester
- 2014-2015 Forester (with NAV)
- 2009-2013 Forester (with SD card or OE NAV)
- 2015-2016 Impreza
- 2012-2014 Impreza (with NAV)
- 2013-2014 Impreza WRX (with NAV)
- 2015-2017 Legacy
- 2013-2014 Legacy (with NAV)
- 2012-2014 Legacy (w/o NAV, w/o factory amp)(display radio)
- 2015-2017 Outback
- 2013-2014 Outback (with NAV)
- 2012-2014 Outback (w/o NAV, w/o factory amp)(display radio)
- 2016-2017 WRX
- 2015-2016 XV Crosstrek
- 2013-2014 XV Crosstrek (with NAV)
For Toyota
- 2010-2016 4-Runner
- 2003-2009 4-Runner (Without RDS JBL radio)
- 1987-2002 4-Runner
- 2013*-2016* Avalon (with NAV)
- 2013*-2016* Avalon (w/o NAV)
- 2011*-2012* Avalon (w/o NAV)
- 2005*-2010* Avalon (without JBL amp)
- 1995-2004 Avalon
- 1987-2017 Camry
- 2004-2008 Camry Solara (black dash)
- 2004-2008 Camry Solara (silver dash)
- 1999-2003 Camry Solara
- 1992-1996 Camry Wagon
- 1987 - 2005 Celica
- 2017 Corolla
- 2014*-2016* Corolla
- 1987-2013 Corolla
- 1987-1988 Corolla FX / FX16
- 2017 Corolla iM
- 2000 - 2005 Echo
- 2007 - 2014 FJ Cruiser
- 2013-2016 Highlander
- 2008-2012 (w/o NAV) (black dash)
- 2008-2012 (w/o NAV) (brown dash)
- 2001-2007 Highlander (w/o NAV)
- 1988-1996 Landcruiser
- 2005-2013 Matrix
- 2000-2003 MR2 Spyder
- 1987-1995 MR2
- 1992-1997 Paseo
- 1987-1995 Pickup
- 1991-1997 Previa
- 2012-2016 Prius C
- 2012-2017 Prius V
- 2010-2017 Prius / Prius Plug-In
- 2004-2009 Prius
- 1996-2016 RAV4
- 2001-2016 Sequoia
- 1996-2016 Sienna
- 1999-2008 Solara
- 1986.5 - 1992 Supra
- 1993 - 1998 T100
- 2016*-2017* Tacoma
- 1995-2015 Tacoma
- 1987 - 1998 Tercel
- 1999 - 2016 Tundra
- 1987-1990 Van
- 2009 - 2015 Venza
- 2007 - 2016 Yaris
