Feature:

1. Operating voltage range: 6-30VDC

2. Adaptive 12V vehicle system and 24V Vehicle System

3. Automatic alarm of defective threshold and automatic battery disconnect

4. Frequency 433.92 Mhz, matching self-locking mode

5. Indicator display (ON and OFF)

6. 700uA ultra-low standby power consumption

7. Driving process and ignition error trigger protection



Product parameters:

1. Operating temperature -20 degrees-+ 90 degrees.

2. Switch-rated current 240A

3. Switching instantaneous current to 500A

4. Loss protection threshold 11.8 V+-0.2V/23V+-0.2V

5. Loss of power delay 60 seconds alarm 120 seconds automatic disconnect

6. Standby current 0.003A

Specification:

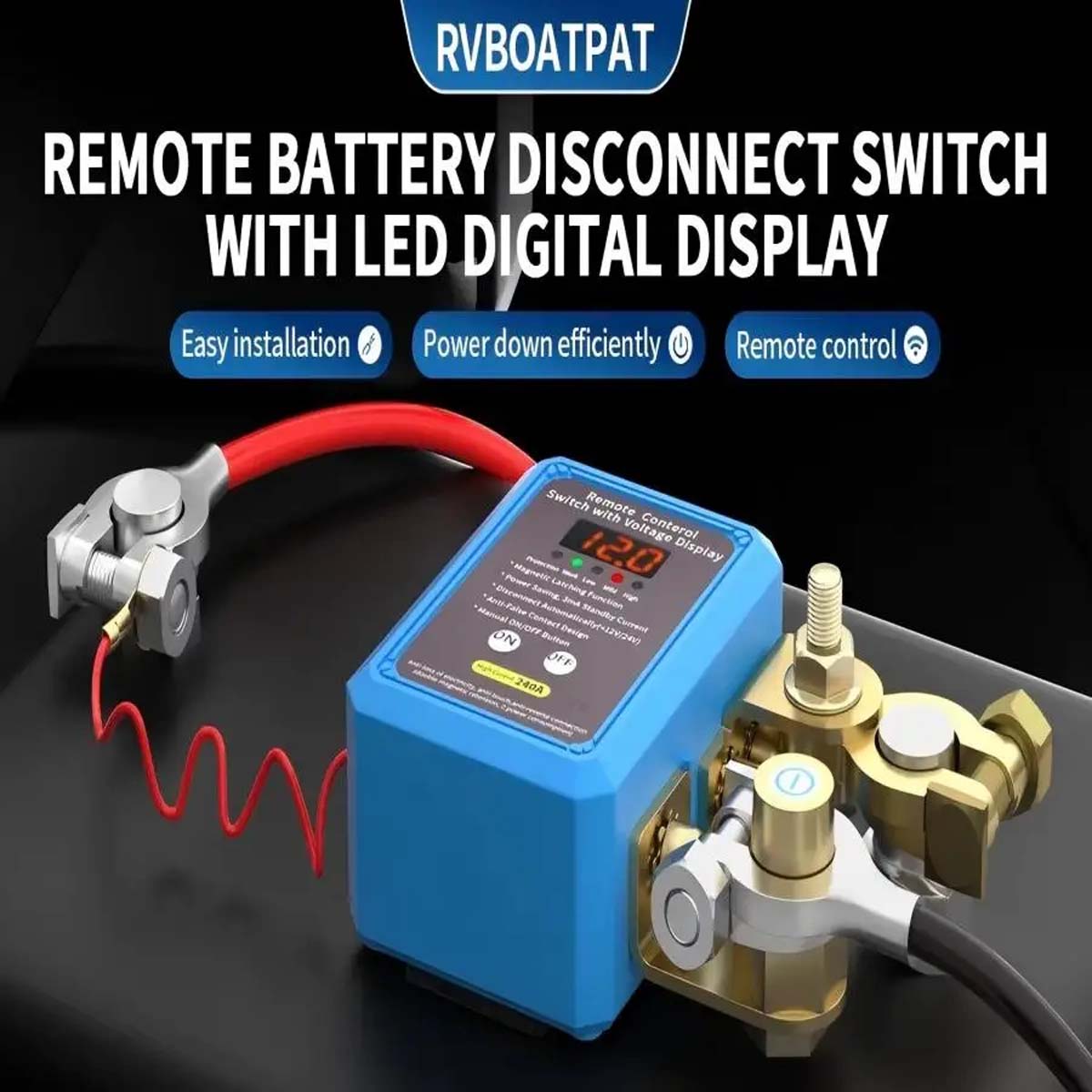

Type:Remote Battery Disconnect Switch

Operation Mode: Automatic,Automatically,Off

Current Rating: 240 Amps

Operating Voltage: 12 Volts

Switch Type: Kill Switch

Terminal: Button

Mounting Type: Panel Mount

Actuator Type: Push Button

Control Method: Remote

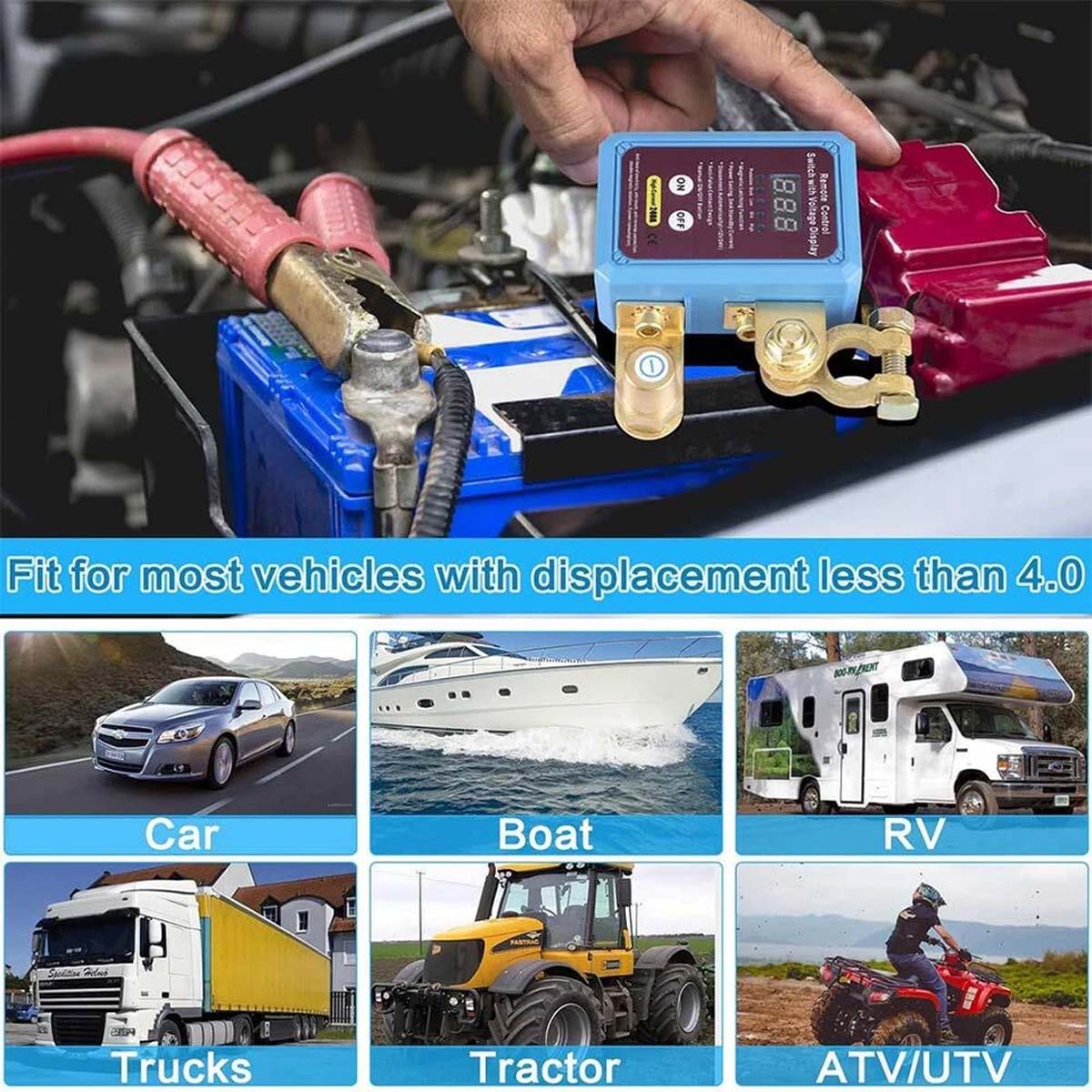

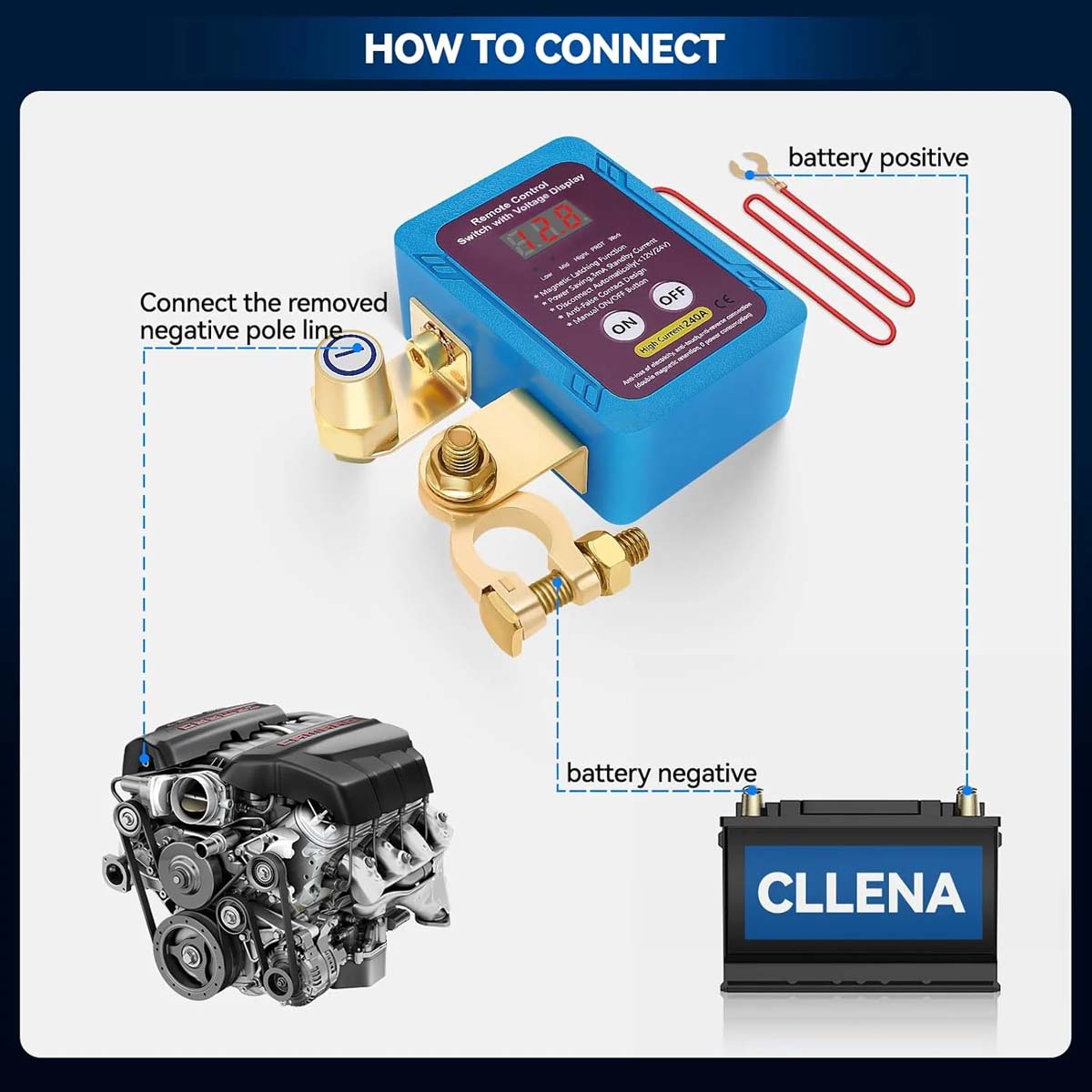

Installation Location: Car battery

Rated Voltage: 12V

Rated Current: 240A

Standby Current: 0.01A

Instantaneous Current: 500A

Negative Pole: 9-13mm, 15-17mm

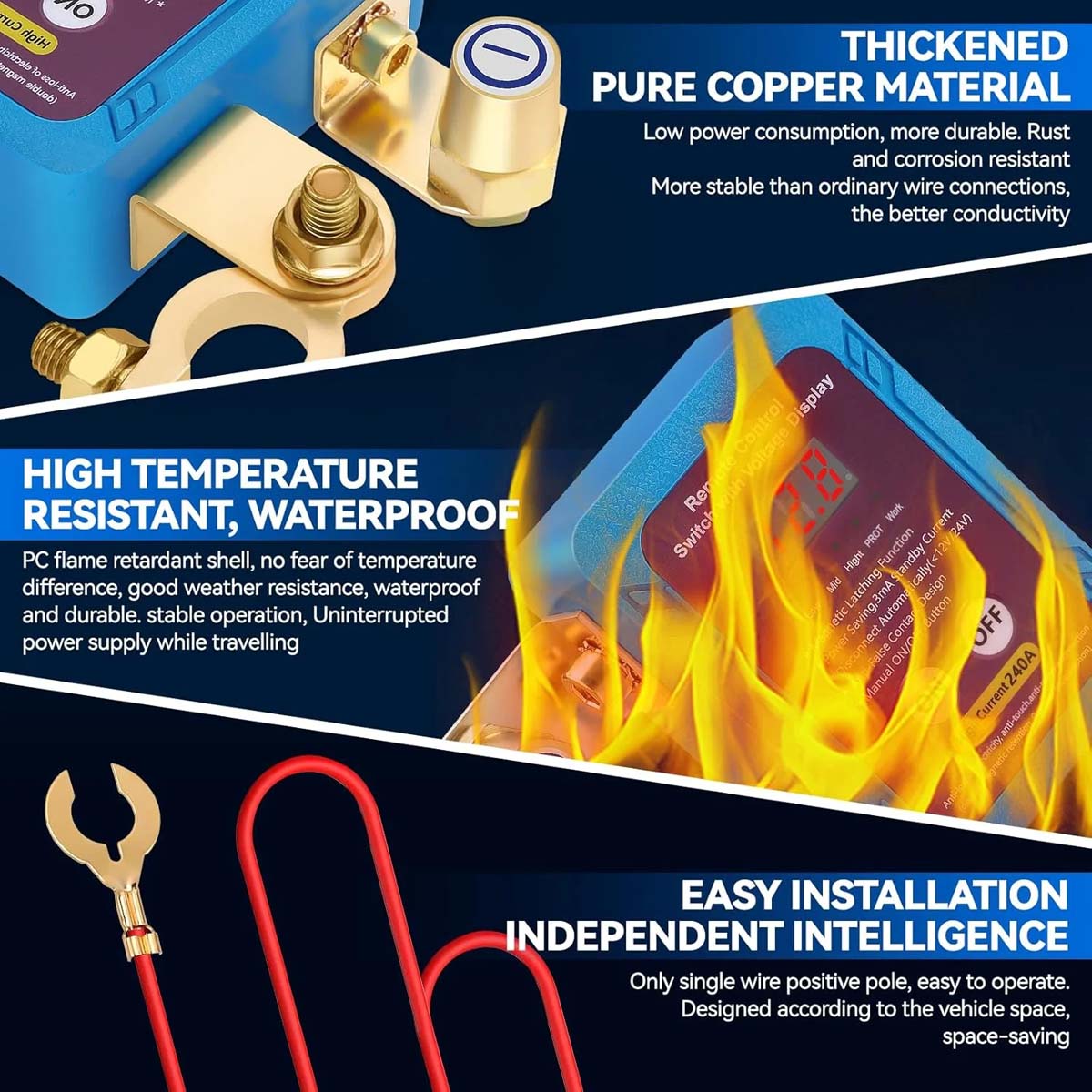

Material: Copper 4AWG and 6AWG silicone flexible wire

Contact: Silver tin oxide

Packing Size:11.50cm*10.50cm*6.00cm

Weight:0.4kg





Notes:

1. The working voltage range of the remote control and equipment can be normal pairing

2. The working voltage range of the manual button ON/OFF can be connected and disconnected equipment.

3. Supply voltage less than 6V or more than 3V, the equipment automatically shuts down and disconnects.

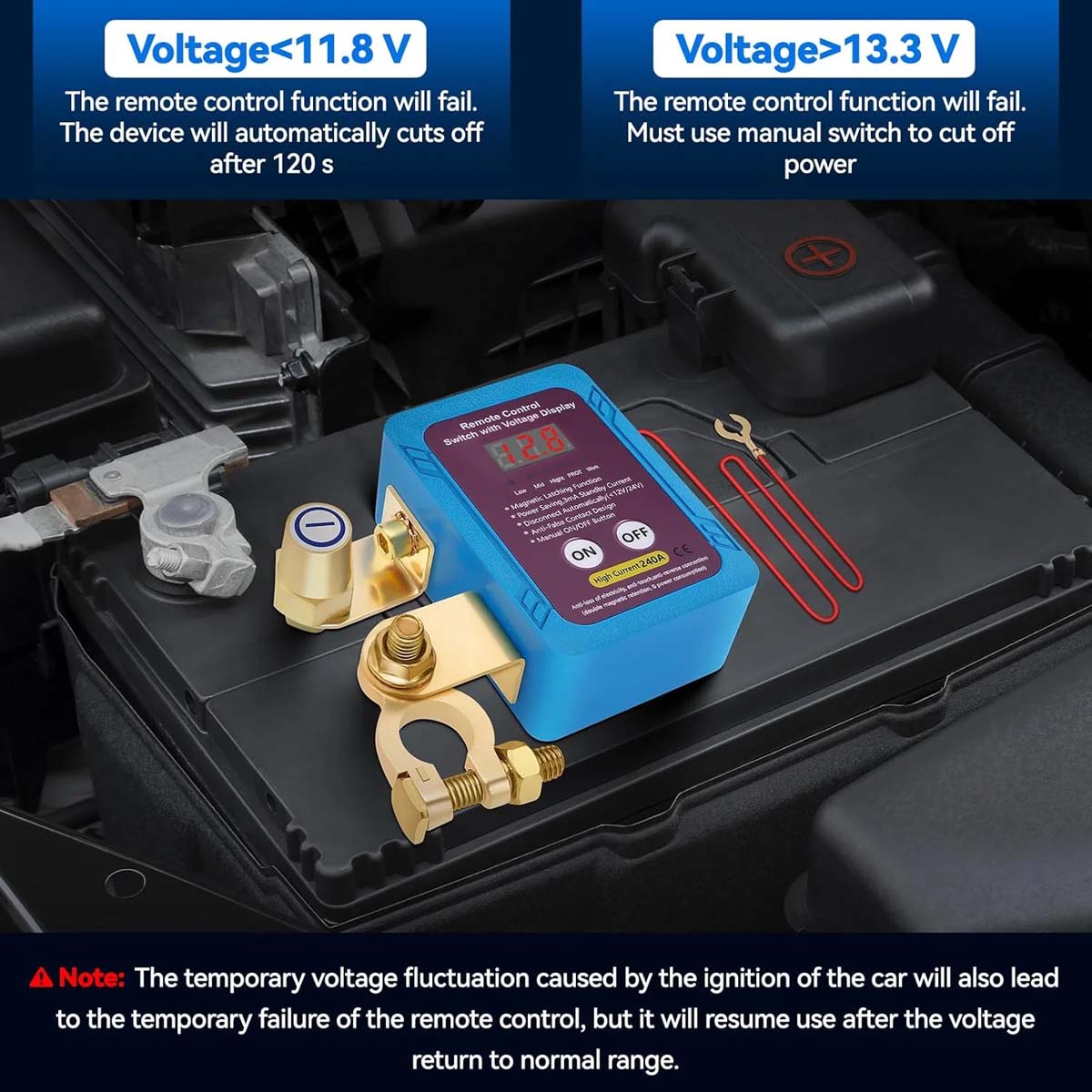

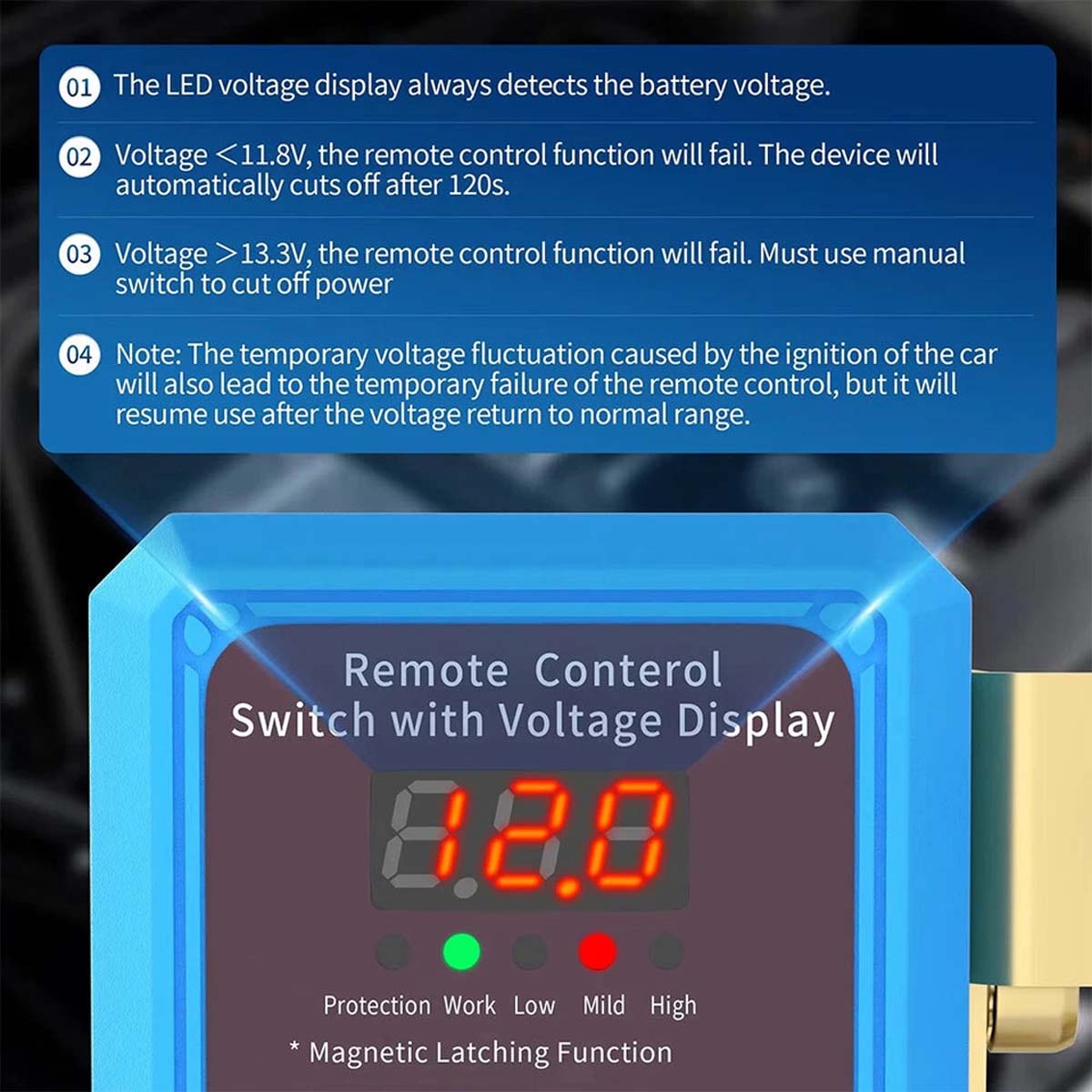

4. Power supply voltage below the protection threshold voltage (11.8 V/23.2 V) for 60 60-second alarm prompt, 120 seconds to automatically disconnect the device to protect the battery.

5. If the voltage is higher than 13.3 V (12V system)/26.2 V (24V system), the RF remote control will fail to prevent the remote control button from accidentally touching the remote control during driving, which will lead to power failure.

6. The voltage range is 6-18V and the self-identification is a 12V vehicle system, which works in response to the 12V system threshold

7. Voltage Range in 18-30V self-identification for the 24V vehicle system, response to the 24V system threshold work

8. When the battery voltage is relatively high, the system enters the trip-triggered protection state.

9. When the battery voltage is relatively low, the system enters the protection state of ignition misfiring.

Remote control matching instructions

1. Interlock mode (applicable to vehicle system control)-continuously press the manual key ON the code for 3 seconds and the indicator light flashes 3 times to enter the learning state, press the key ON the remote control, and then the indicator light flashes three times after the code is successfully aligned, then press another button on the remote control to code successfully after the indicator flashes three times.

2. After entering the learning state learning code indicator light within 30 seconds did not receive the remote control signal to automatically quit the learning state.

3. Clear code-long press the manual key ON to the code indicator flashing 8 times to indicate that the clear code is completed (long press the manual key ON to see the indicator flashing 3 times, 4 times, 5 times, 8 times in turn; of which flashing 3 times is the interlock mode learning state, flashing 4 times is the self-lock mode learning state, flashing 5 times is the click-move mode learning state, flashing 8 times is the clear code state)

4. A set of 20 codes can be paired with 10 different remote controls at the same time.

Note:

-Please Allow 1-2mm Differences Because of the Manual Measurement. Please Understand.

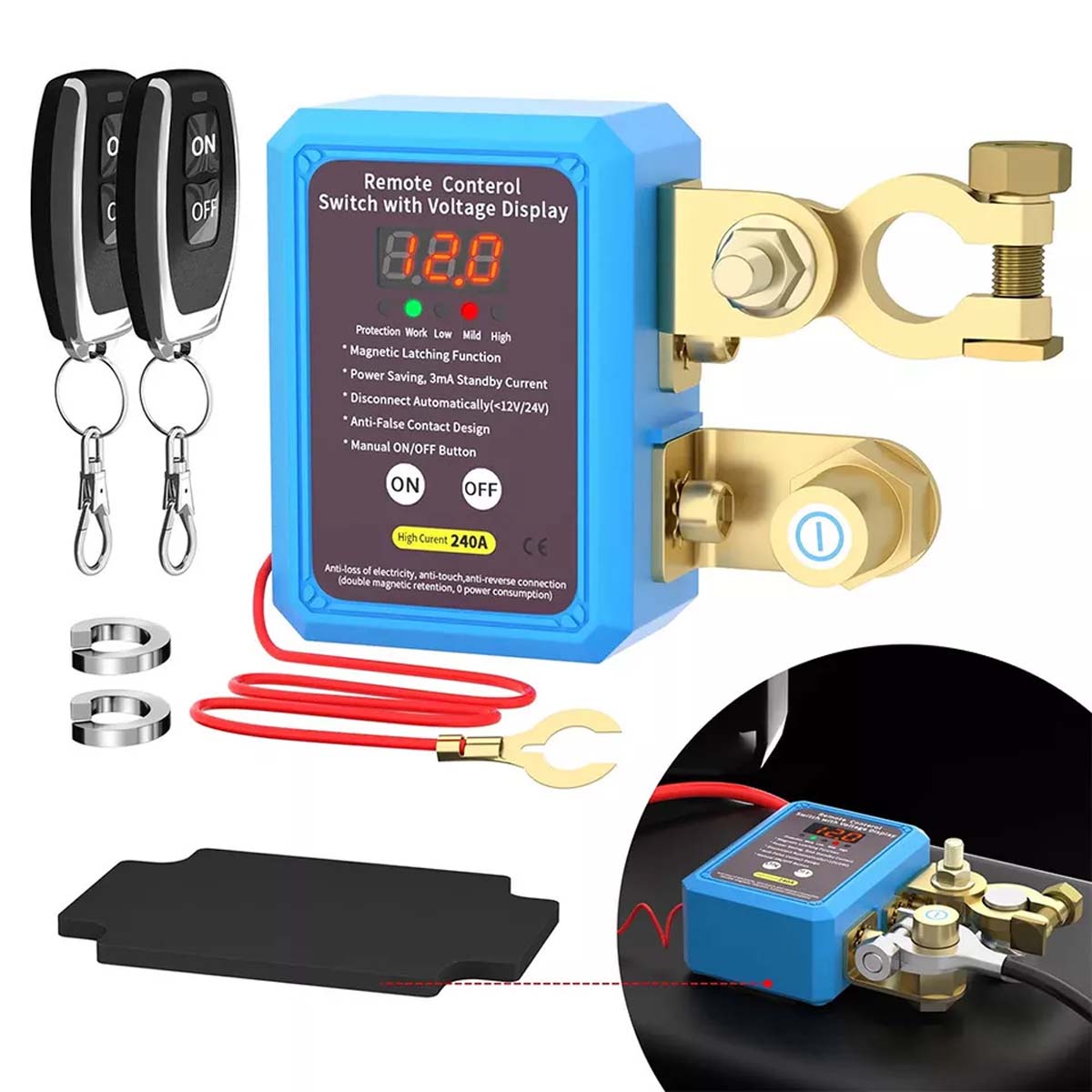

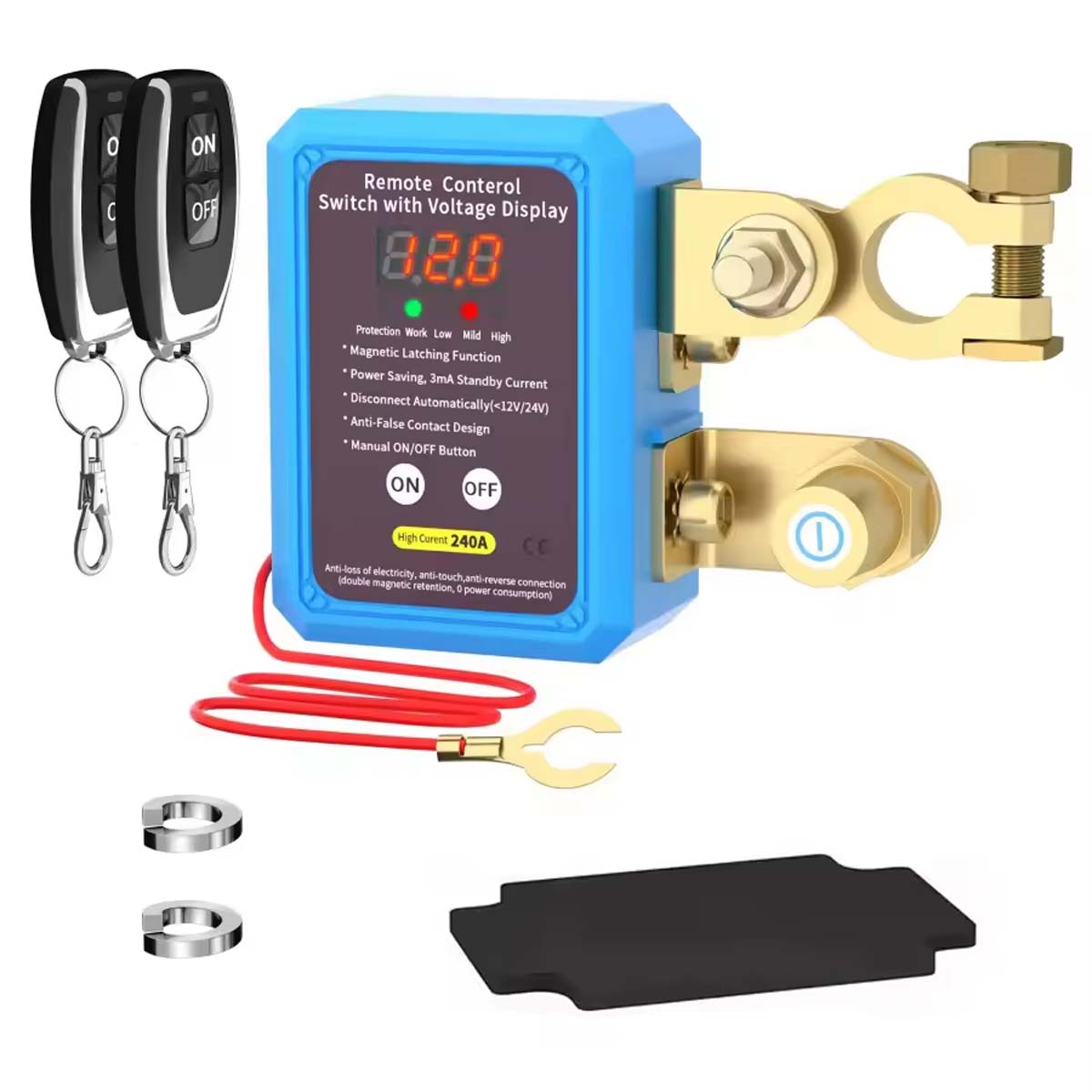

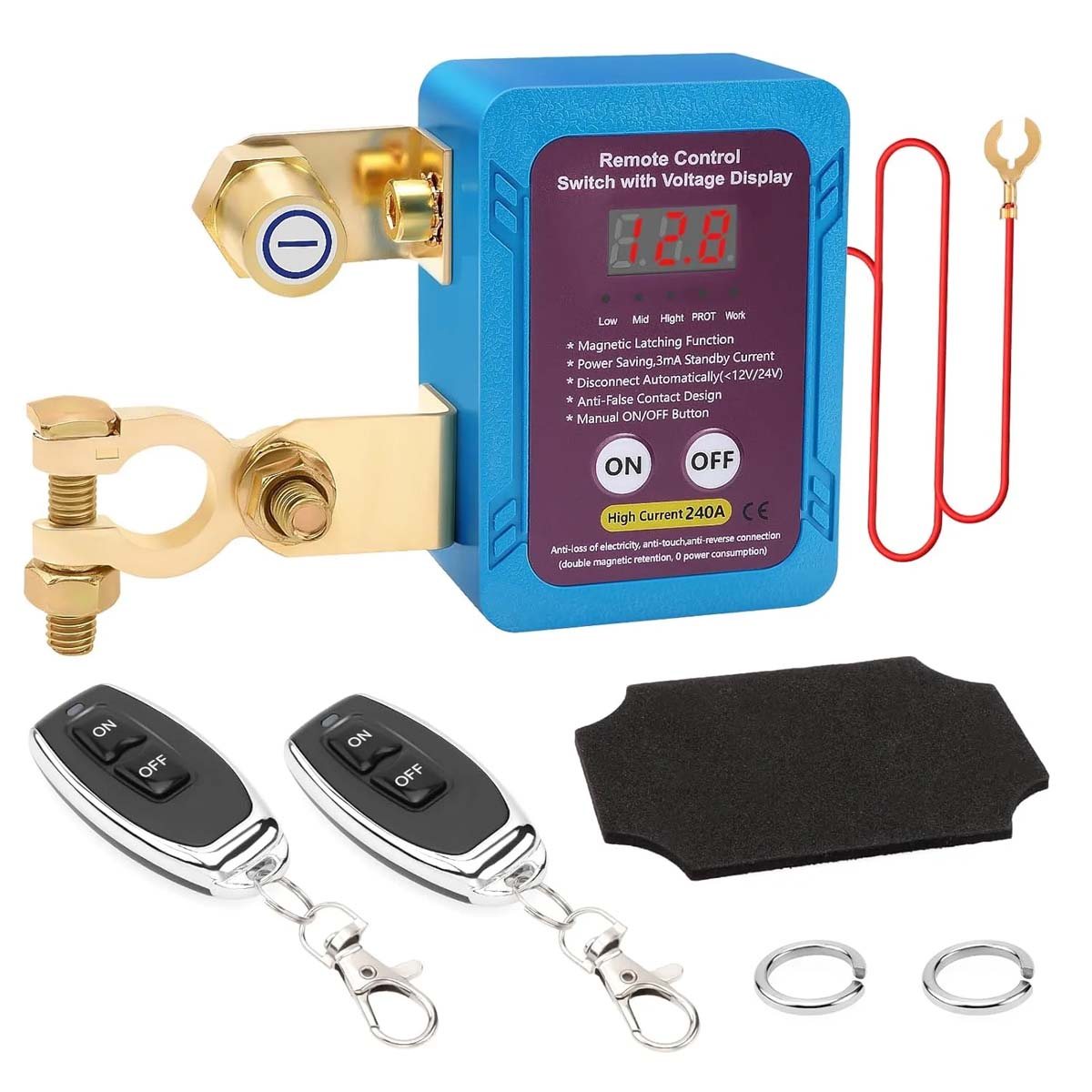

Package Contents:

1 x Battery disconnect switch

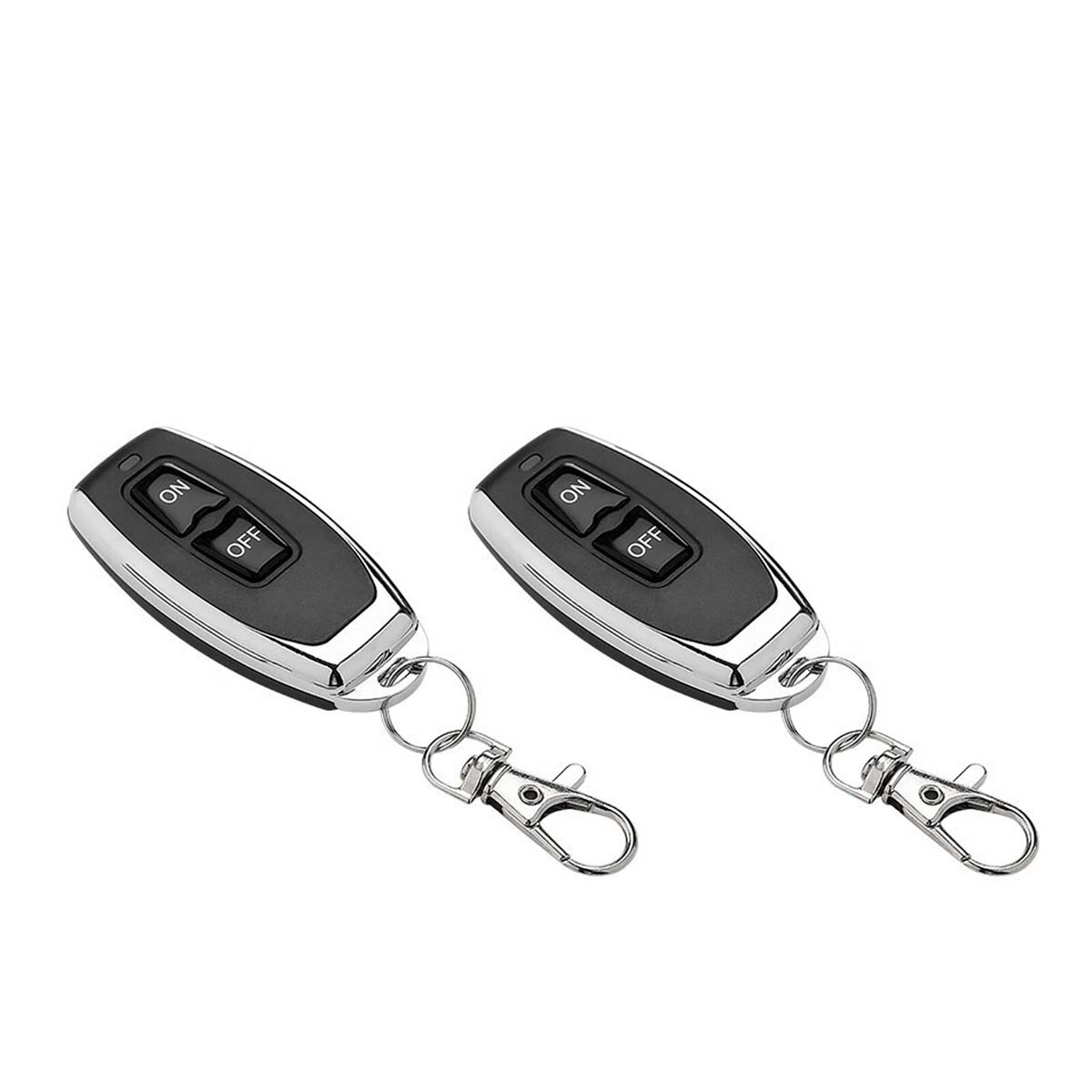

2 x Remote control

1 x English user
