Coilover Lowering Kit For BMW E36 3 Series 316 318 323 325 328 M3 RWD 92-99

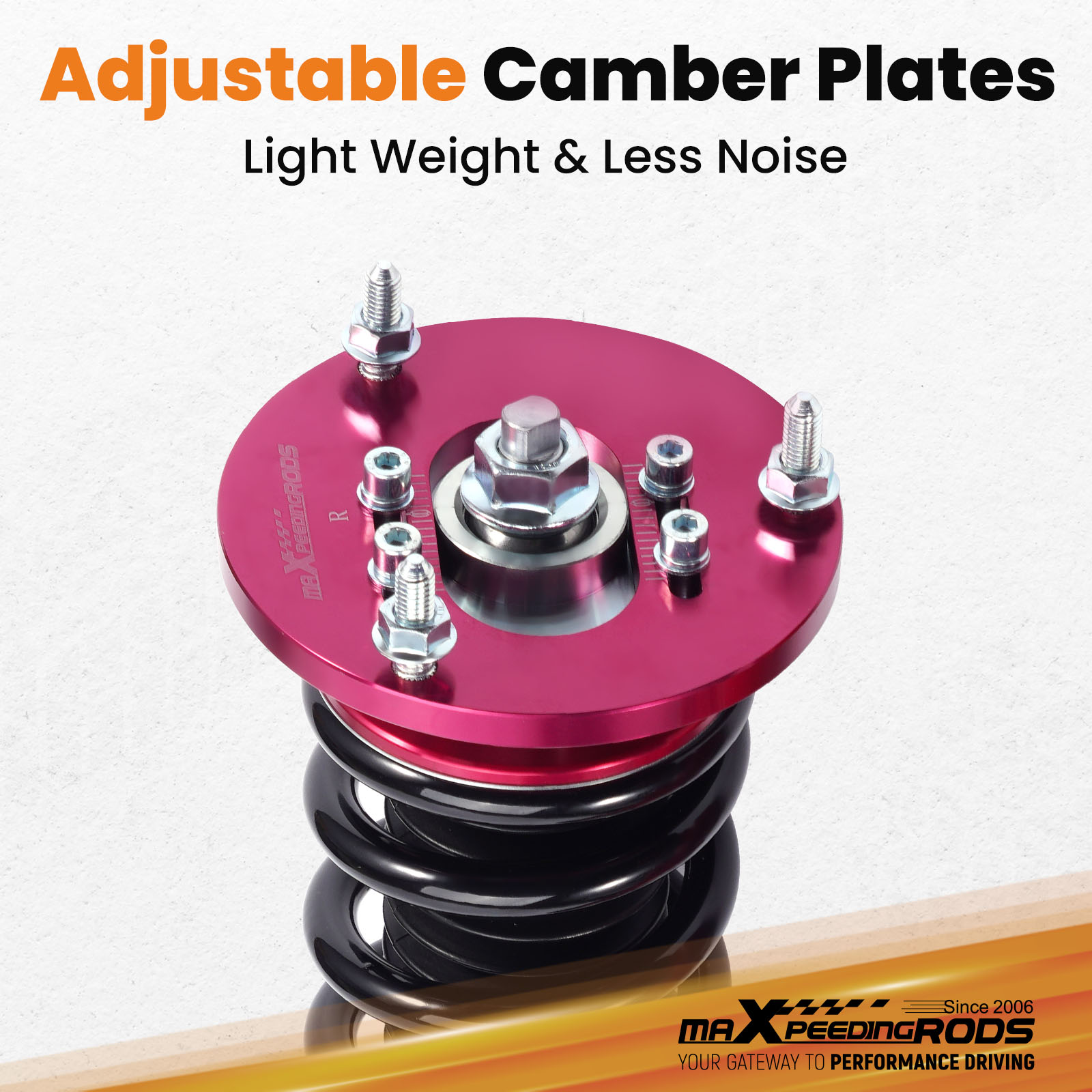

Aluminum Camber Plate with Pillow Ball Mount

Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

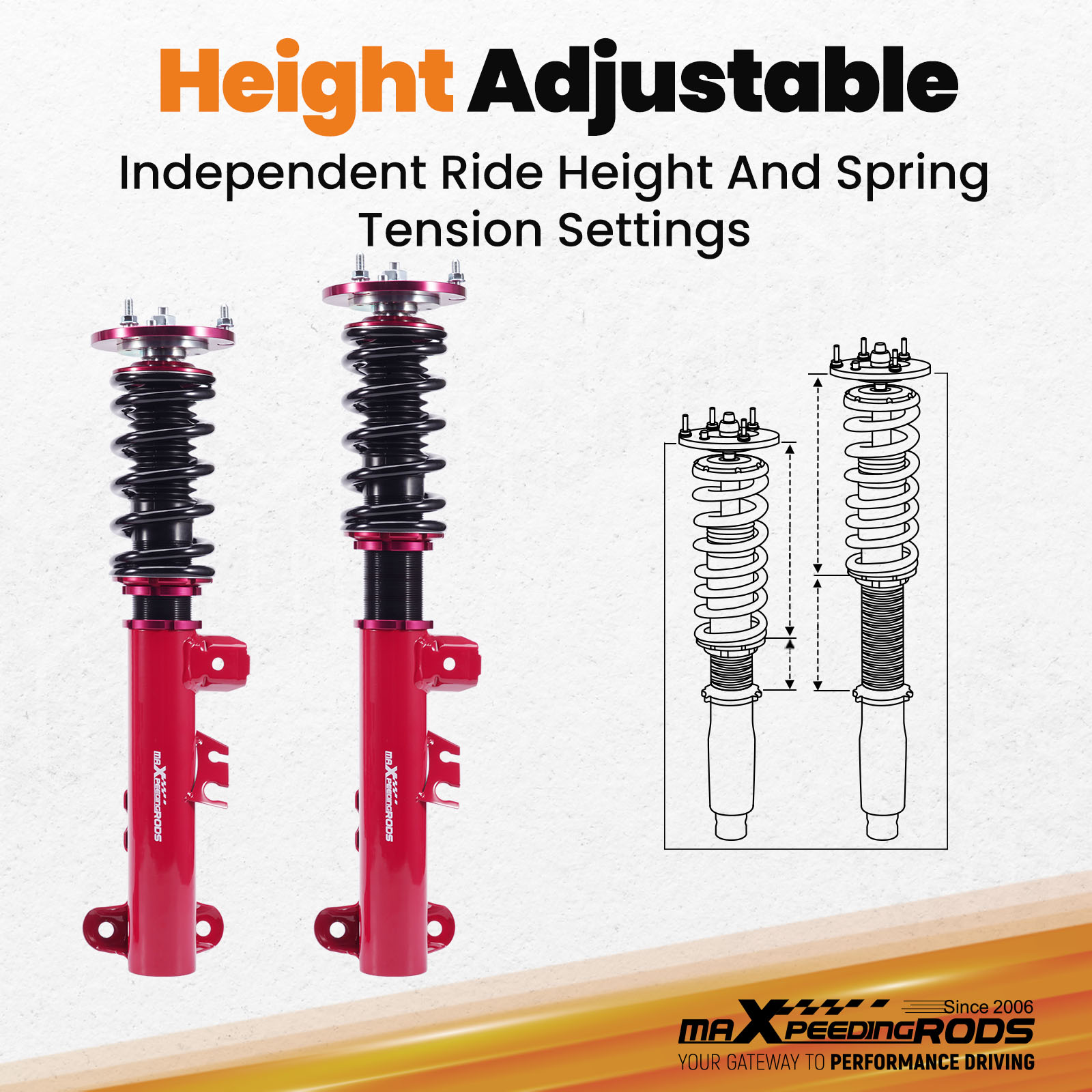

Drops From 1 to 3 Inch From Factory Ride Height

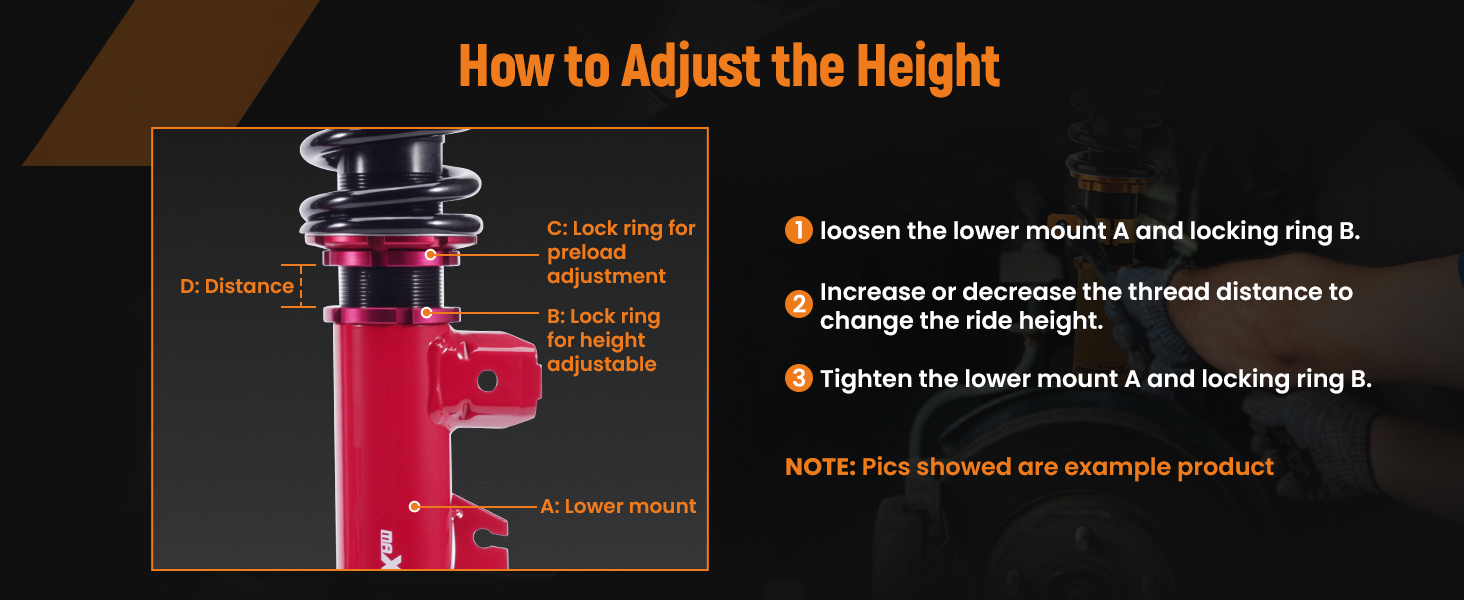

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Adjustable height Yes, Lowering 1-3 inch
Adjustable damper Yes
Front Spring length 180 mm
Rear Spring length 183 mm
Front spring length 8 kg/mm (448 lbs/in)
Rear spring length 7 kg/mm (392 in/lbs)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features


100% Brand New, Never Used or Installed

Twin-Cylinder Design - Allows Sufficient Stroke Within The Shock Absorber.

Full Length Adjustment - Lowers The Car Without Ruining Spring Tension

Independent Spring Tension - Custom Stiffness Without Change Ride Height

Pillow-Ball Top Mount Provides Sharp And Precise Handling

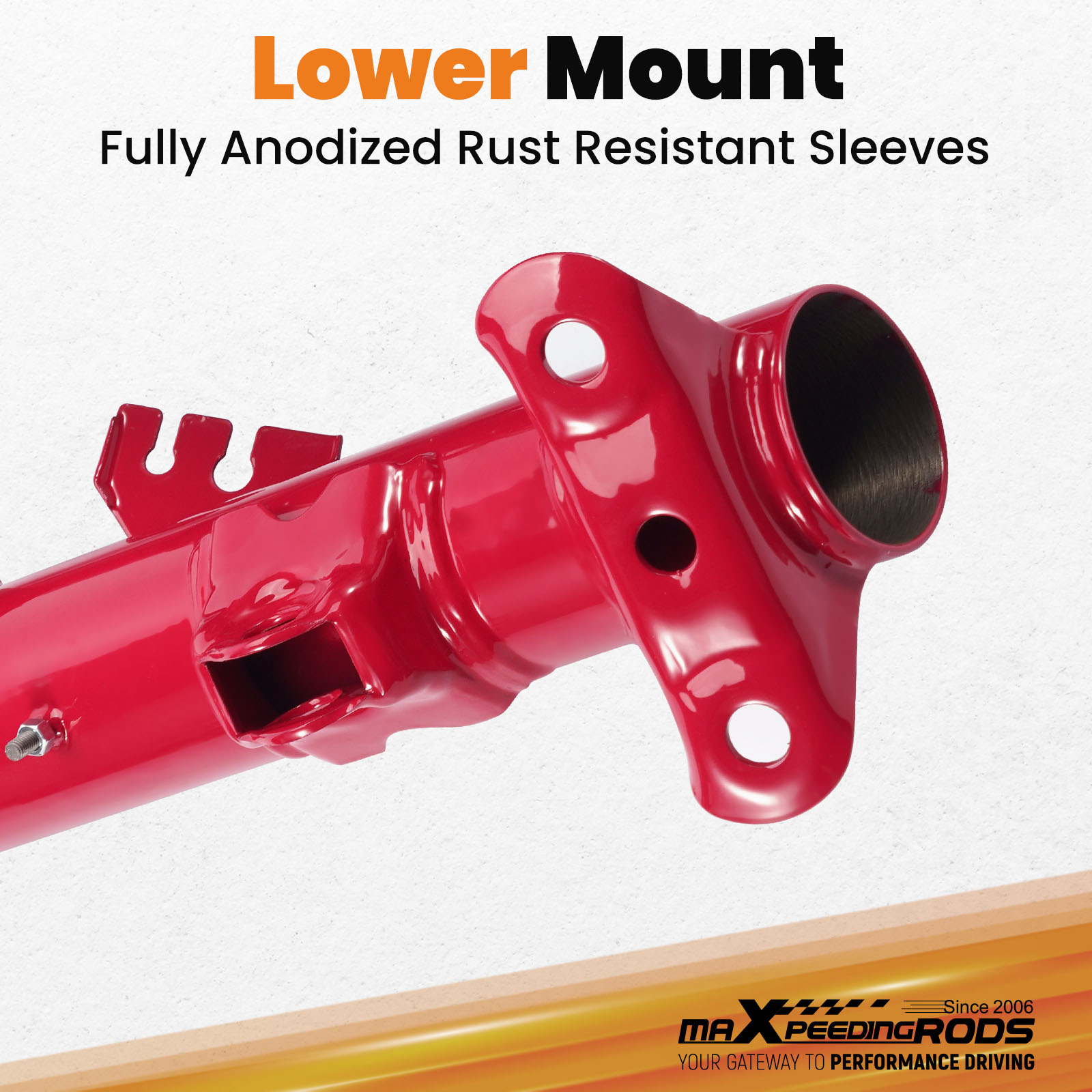

Fully Anodized Rust Resistant Sleeves.

Full Year Limited Warranty From Date of Purchase


Application


For BMW 3 (E36) 4-door sedan 316i; 318i; 318is; 320i; 323i; 325i; 325is; 328i; 318tds; 325td; 325tds; (09/1990-12/1998)
For BMW 3 (E36) 2-door coupe 318is; 316i; 320i; 323i; 325i; 328i; 328is(09/1991-04/1999)
For BMW 3 Convertible (E36) 318i; 320i; 323i; 325i; 328i; (03/1993-04/1999)
For BMW 3 Touring (E36) 5-door wagon 316i; 318i; 318tds; 320i; 323i; 325tds; 328i (08/1994-12/1999)



Specifications


- Front top mounts: pillow ball top mount with camber plate
- Rear top mounts: pillow ball top mount
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 7 kg/mm (392 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 63-66 mm
- Spring length Front: 180 mm
- Spring length Rear: 183 mm
- Spring Preload advised: 7-10 mm


Package Including


2 x Front coil-overs
2 x Rear coil-overs
2 x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
