Coilover Suspension Kit for VW Volkswagen Golf MK1 Adj. Height Shock Absorber



Specifications


Top mounts Front and rear OE top mounts required
Height adjustable Yes, lowering 0-25mm depending on the vehicle models
Front Spring length 170 mm
Rear Spring length 170 mm
Front spring length 8 kg/mm (448 lbs/in)
Rear spring length 8 kg/mm (448 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Feature


Ride Height Adjustable - Drops1 Inch From Factory Ride Height
Twin-Tube System for Comfortable Ride on Streets

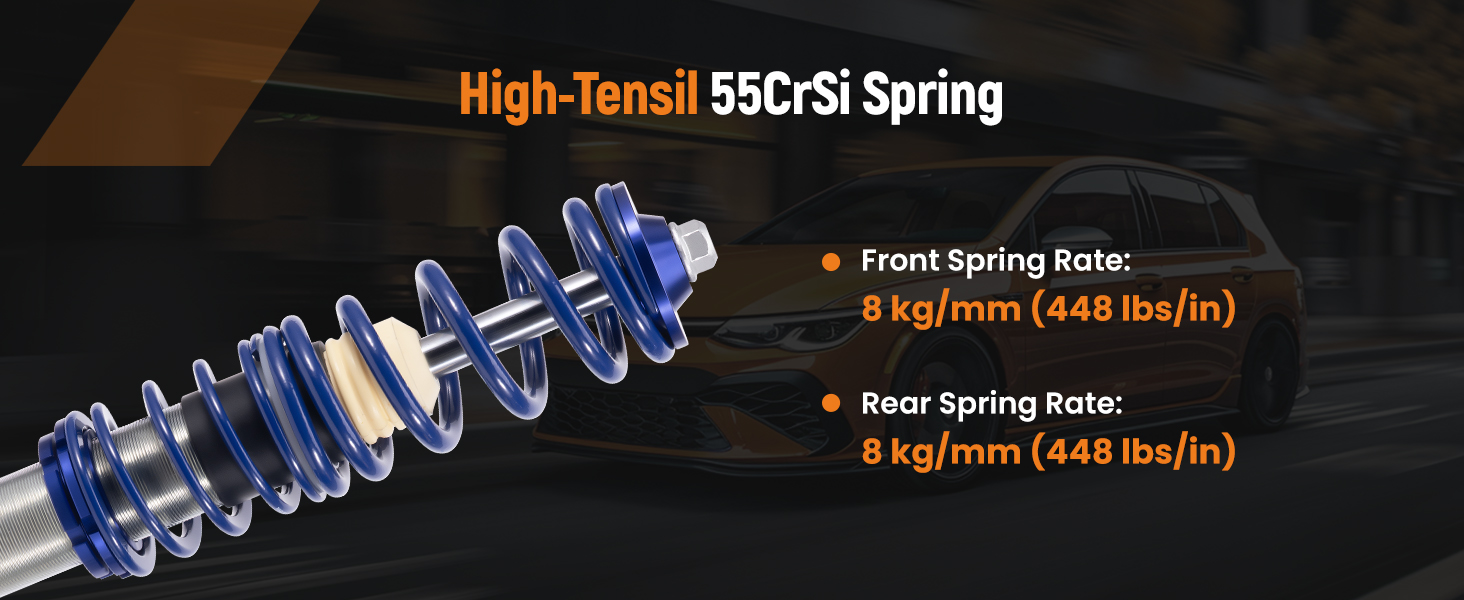

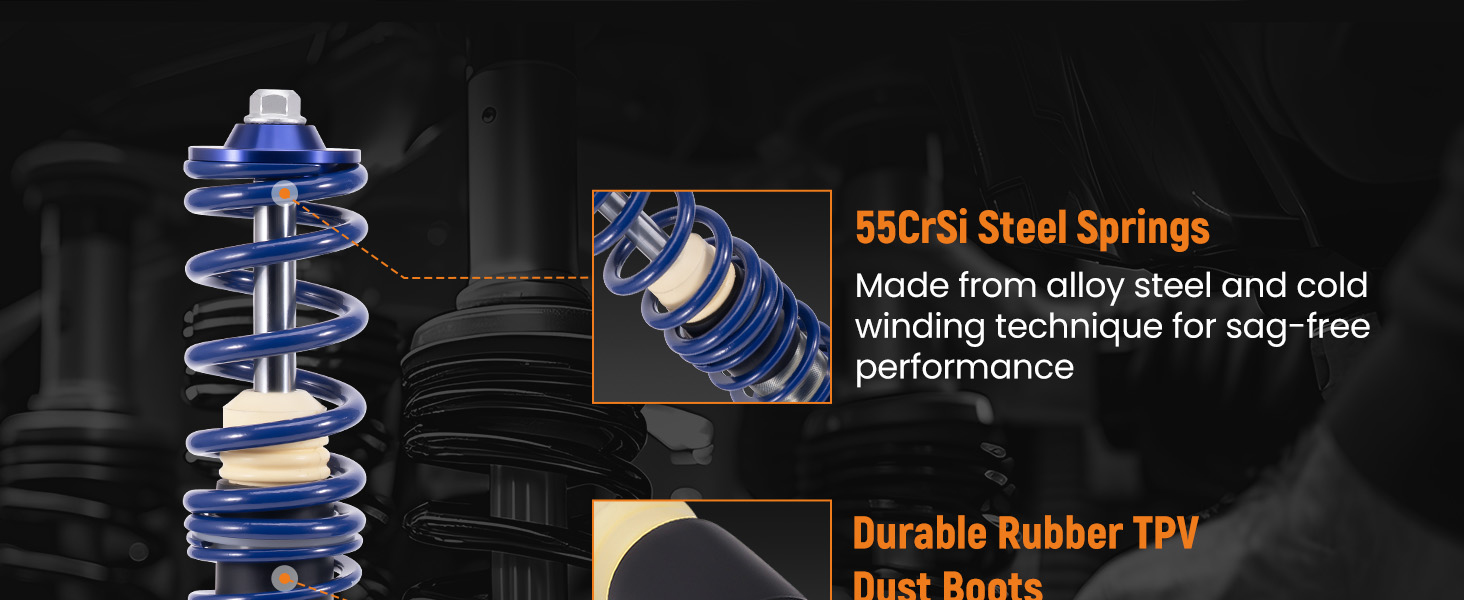

High Rigidity 55CrSi Steel Cold-bent Coil Springs
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Application


For VW Rabbit / Golf MK1(models 1975-1984)
For VW Jetta MK1(models 1980-1984)
For VW Scirocco MK1(models 1975-1981)
For VW Scirocco MK2(models 1982-1989)


Specification


- Top mounts: Front and rear OE top mounts required
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 8 kg/mm (448 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 170 mm
- Spring length Rear: 170 mm
- Help spring rate Front and Rear: 1 kg/mm (56 lbs/in)
- Help spring length Front and Rear: 102 mm
- Spring Preload advised: 7-10 mm
- Color: Silver body with blue spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
