24 Way Damper Adjustable Coilovers Suspension Kit for Ford Fusion 2013-2020

Rebound Damping Force Adjustable

24 Step To Adjust Soft / Hard Adjustment According To Your Preference.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Matt Finish For Superior Strength And Corrosion Protection.

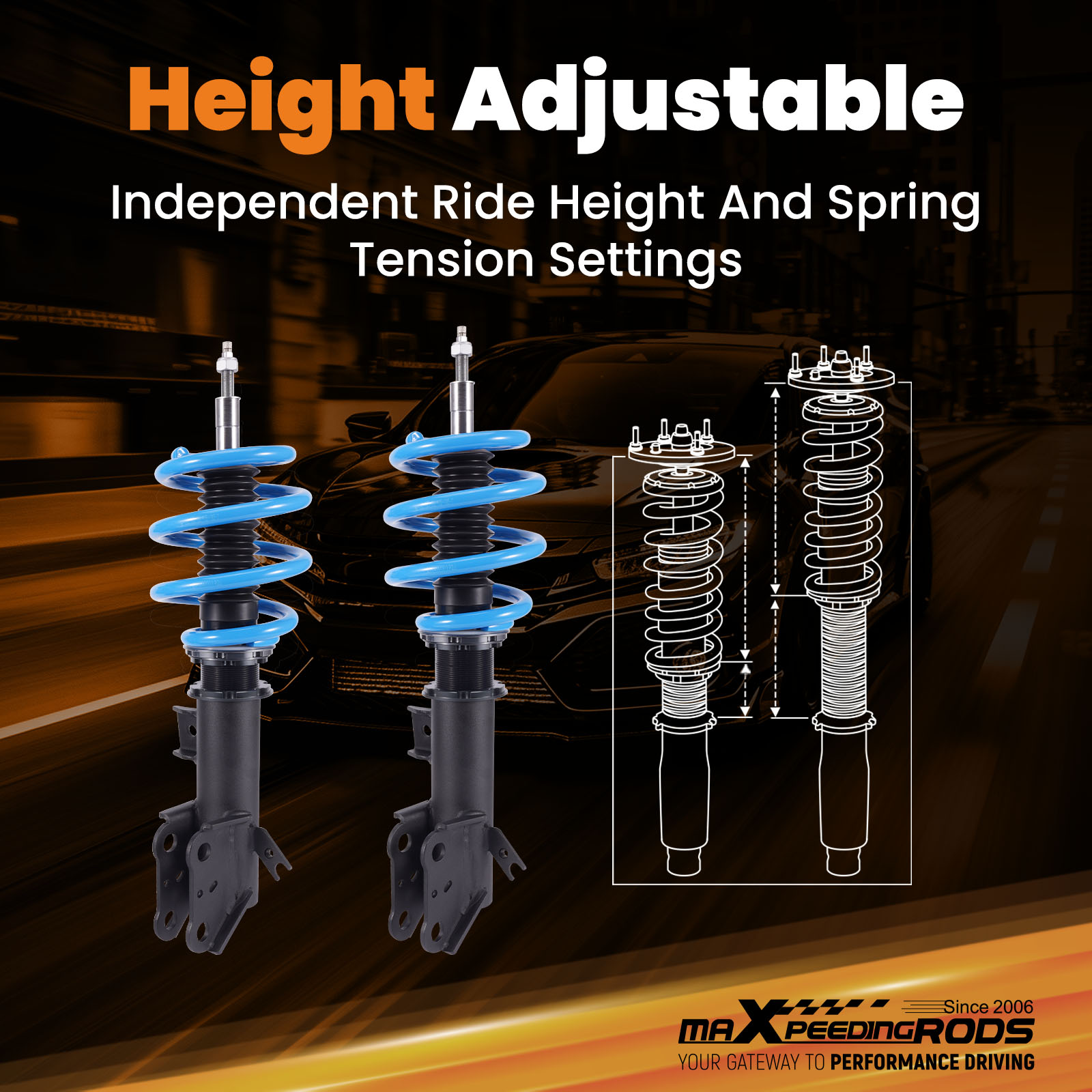

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

Durable Cold Wound Steel & Heat Treated Coils

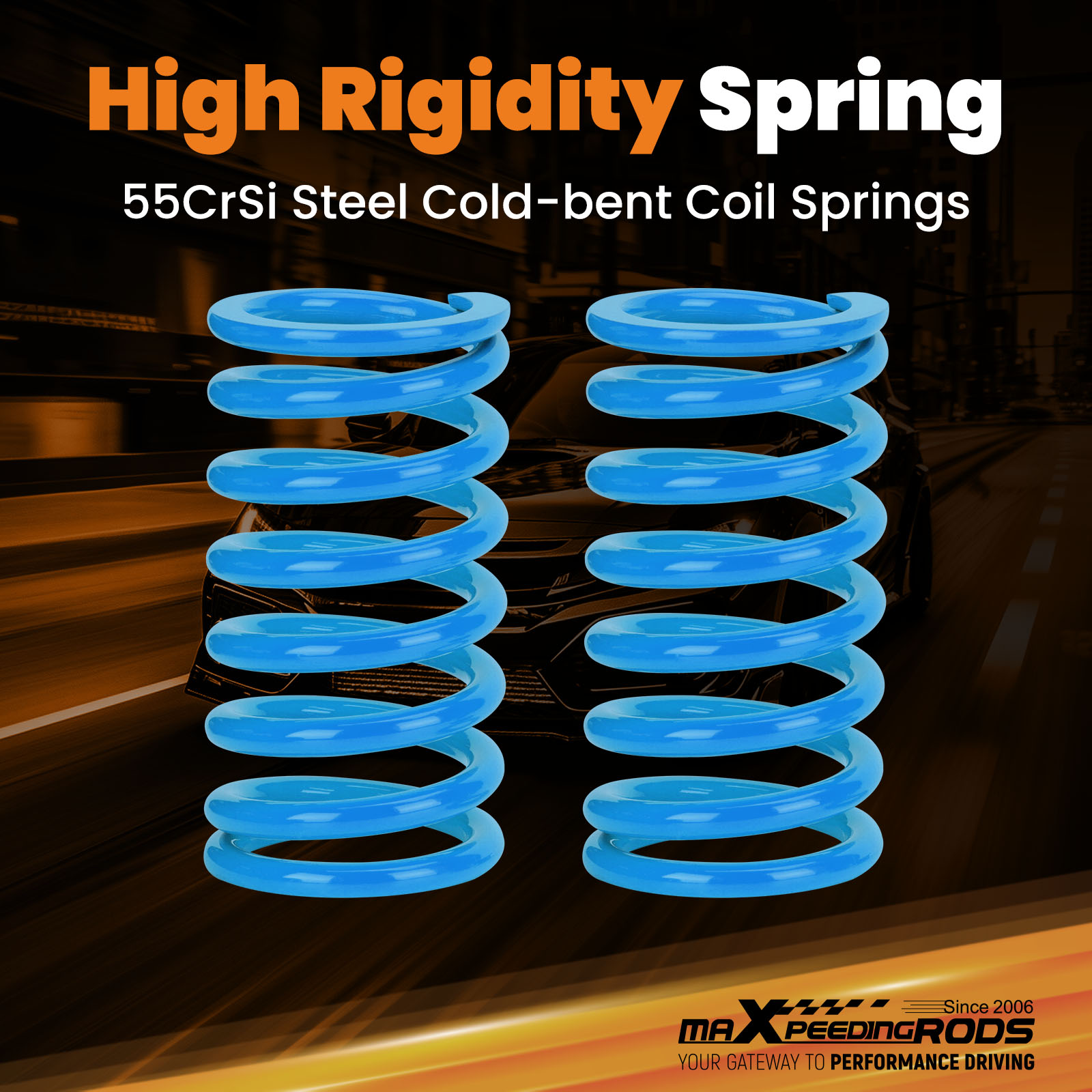

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Damping adjustable	Yes, 24 levels of rebound damping force
Height adjustable	Yes, Lowering 1-3 inch
Front Spring length	185 mm
Rear Spring length	230 mm
Front spring length	7 kg/mm (336 lbs/in)
Rear spring length	14 kg/mm (784 lbs/in)
Package Including	2 Front + 2 Rear
Warranty	2 Years

Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent.
3. High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.

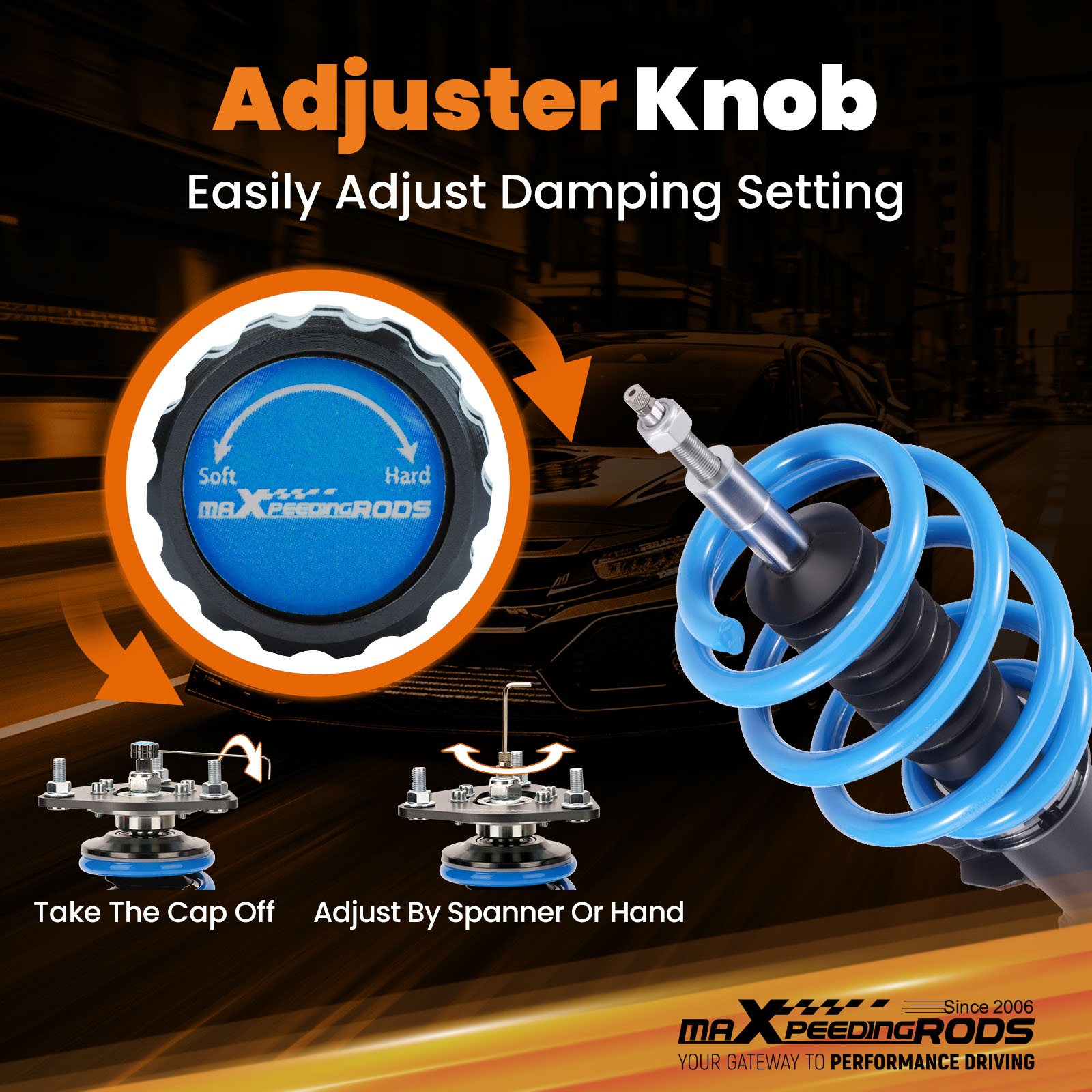

4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions.
9. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts.
10. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
11. Clean room assembled---maintain higher level of accuracy and reliability.

Application

For Ford Fusion 2nd gen 2013-2020
For Ford Mondeo 4th gen 2014–2022

Specification

- Front top mount structure: OE top mount required
- Rear top mount structure: OE top mount required
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 7 kg/mm (336 lbs/in)
- Spring rate Rear: 14 kg/mm (784 lbs/in)
- Front spring inner diameter: 62-155-86 mm
- Rear spring inner diameter: 100 mm
- Spring length Front: 185 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring

Package included

2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
