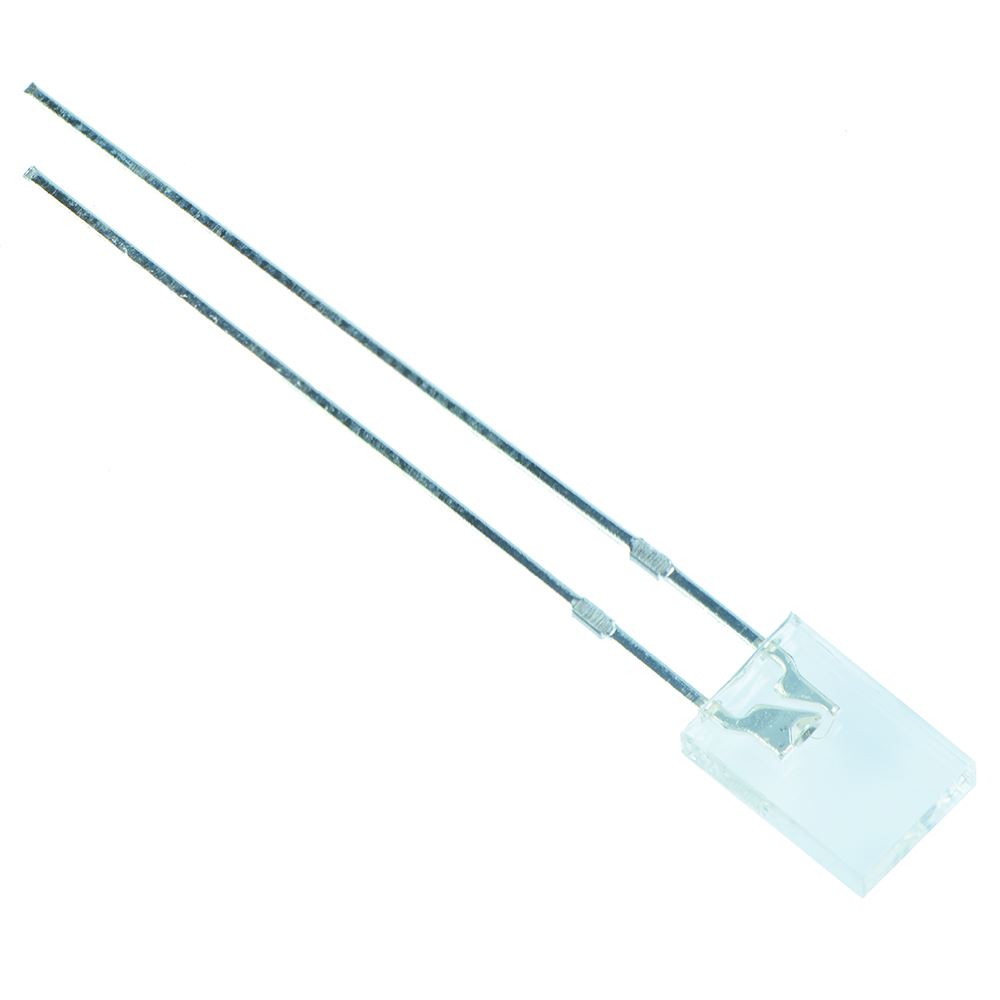

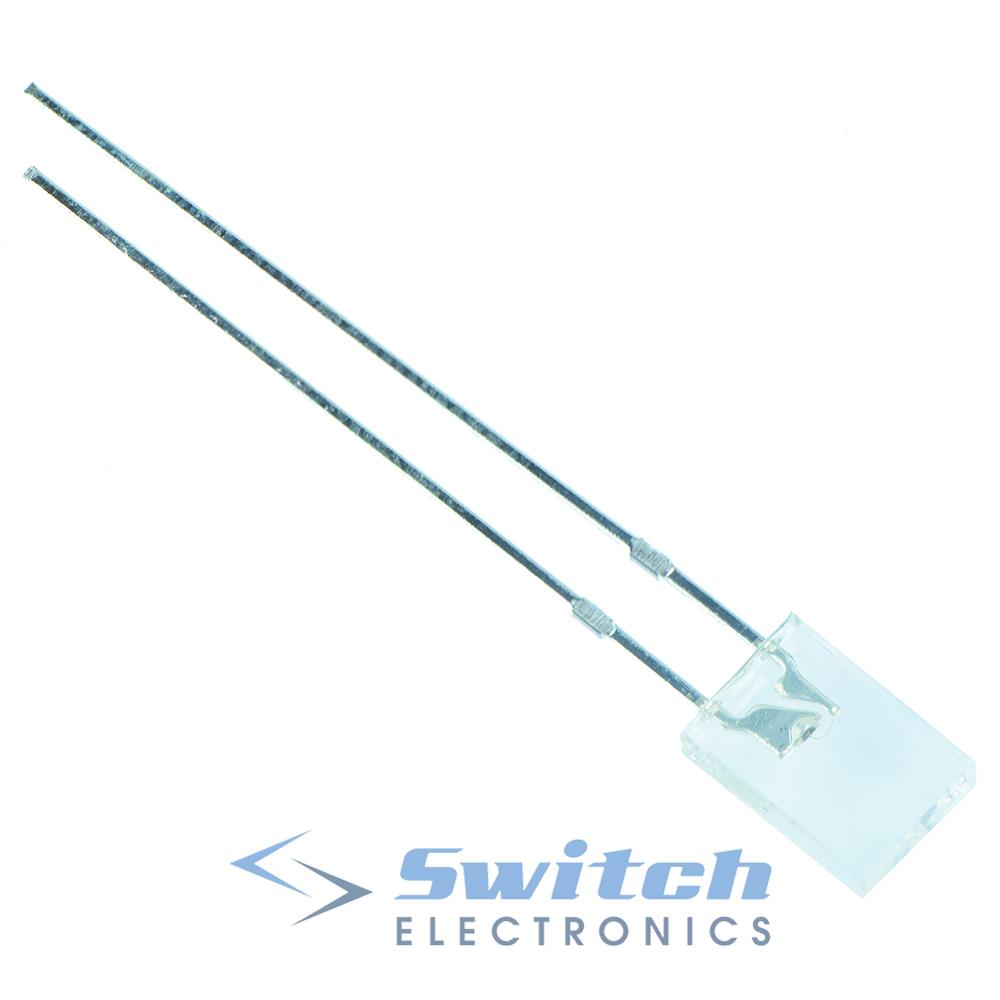

Rectangular 2 x 5mm Water Clear LEDs Rectangle

Rectangular 2 x 5mm Water Clear LEDs Rectangle

£
3.69 - 9.99

Ask a question
Rectangular 5mm LEDs housed in a water clear package offering low power consumption and a long lifespan suitable for general purpose applications including use as indicators, backlighting and signs.

  • Range of colours available
  • Flangeless construction
  • Cathode identified as the shorter lead
  • Water clear lens
  • Excellent weather resistance
  • Long lifespan

    • Colour Brightness Wavelength Forward Current Forward Voltage
    White 1000mcd 7000K 25mA 3.0V
    Red 50mcd 650nm 30mA 2.0V
    Blue 300mcd 470nm 25mA 3.0V
    Green 1000mcd 520nm 25mA 3.0V
    Yellow 300mcd 590nm 30mA 2.0V
    Amber 300mcd 605nm 30mA 2.0V

    Technical Information

    Package Size 2 x 5 x 7mm
    Viewing Angle 120°
    Reverse Voltage 5V
    Operating Temperature -40°C to +85°C
