5 x 1k Linear 16mm Stereo Splined Potentiometer Pot

5 x 1k Linear 16mm Stereo Splined Potentiometer Pot

£
6.99

Ask a question

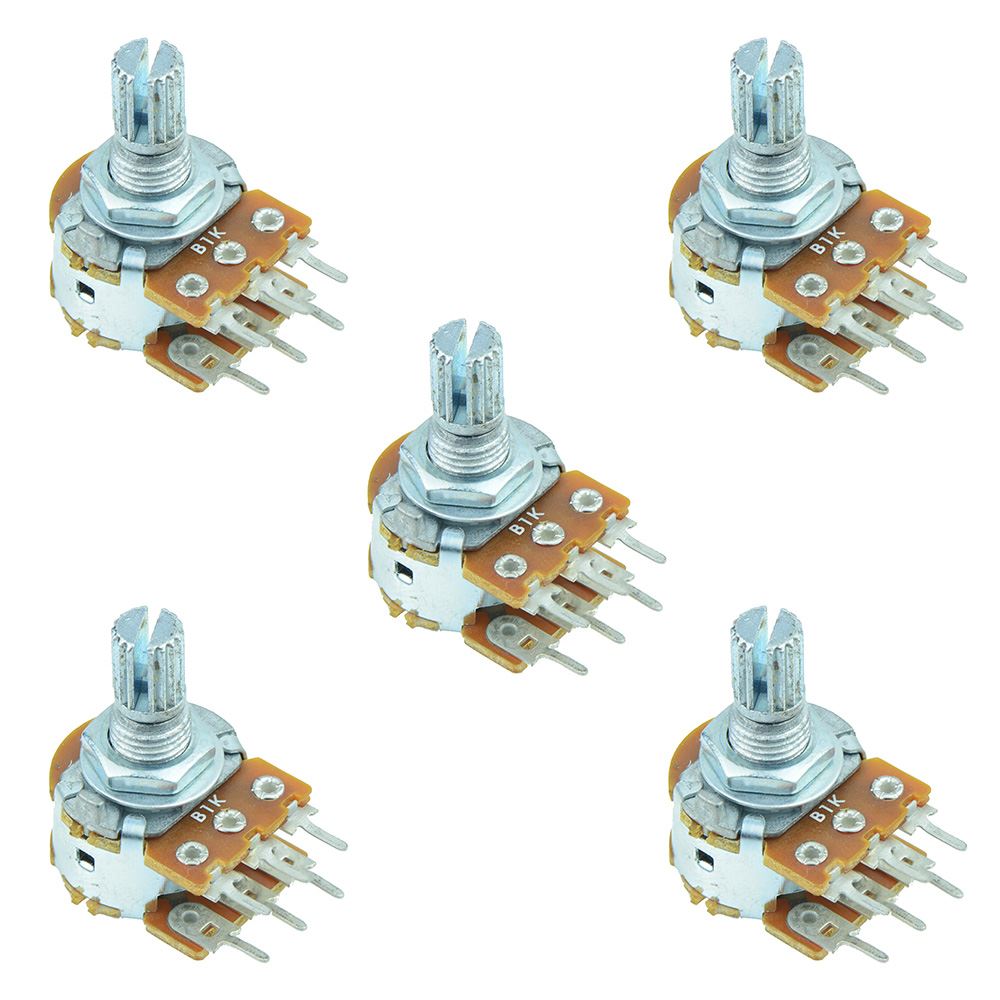

Stereo 16mm potentiometers with a splined 6mm shaft suitable for PCB mounting.

  • Pack size: 5
  • 1k linear taper
  • Standard 16mm body diameter
  • PCB contacts
  • 20% tolerance
  • Panel cut-out: 7mm
  • 5mm pitch
  • 15mm shaft length

    • Technical Information

    Value 1KΩ
    Shaft Diameter 6mm
    Total Rotation 300°
    Tolerance 20%
    Rated Wattage 0.2W
    Rated Voltage 200V
    Insulation Resistance 100MΩ Min
    Dielectric Strength 500V AC 1 Minute
