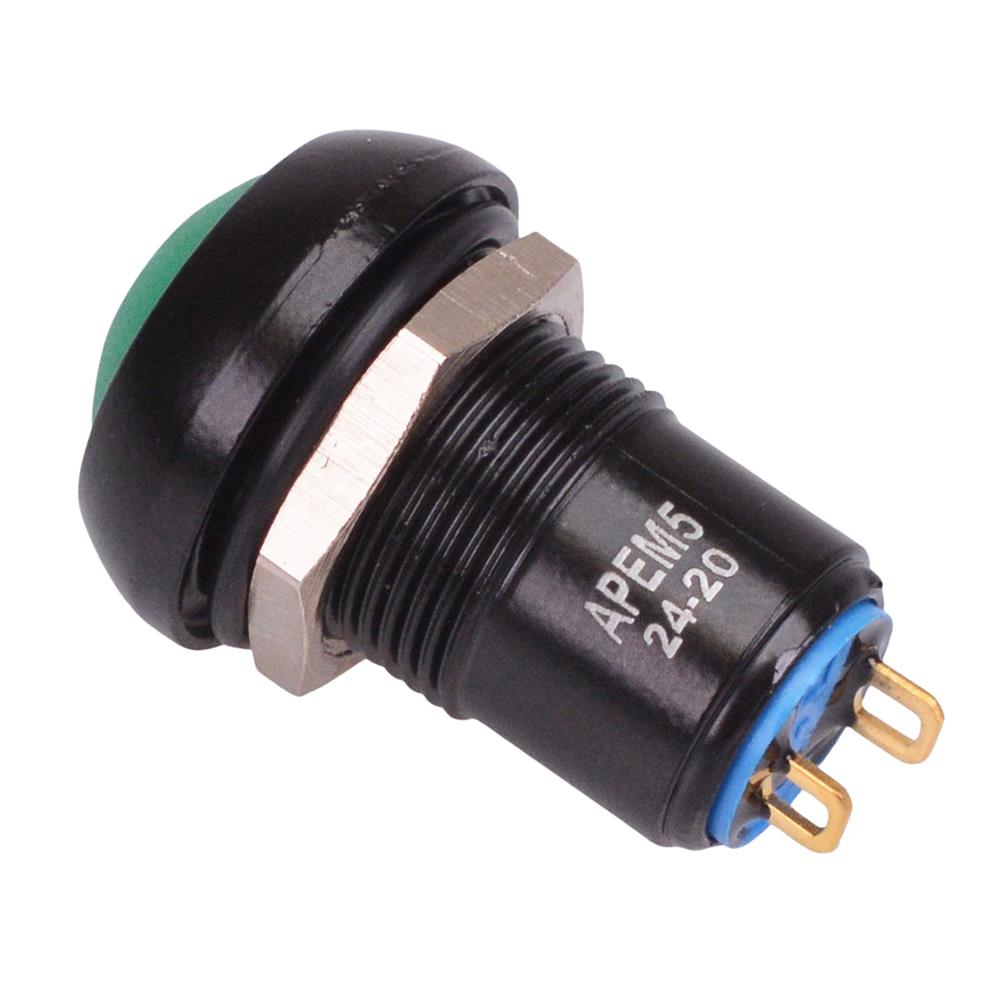

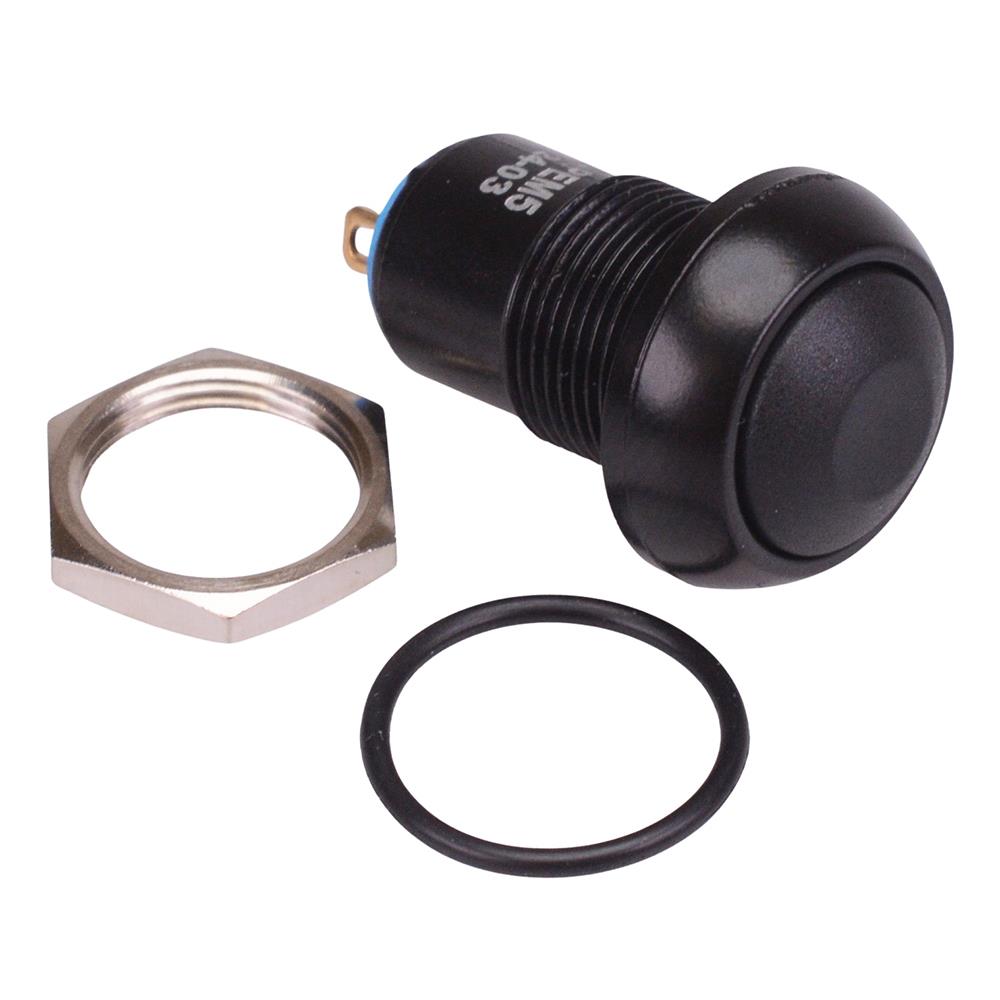

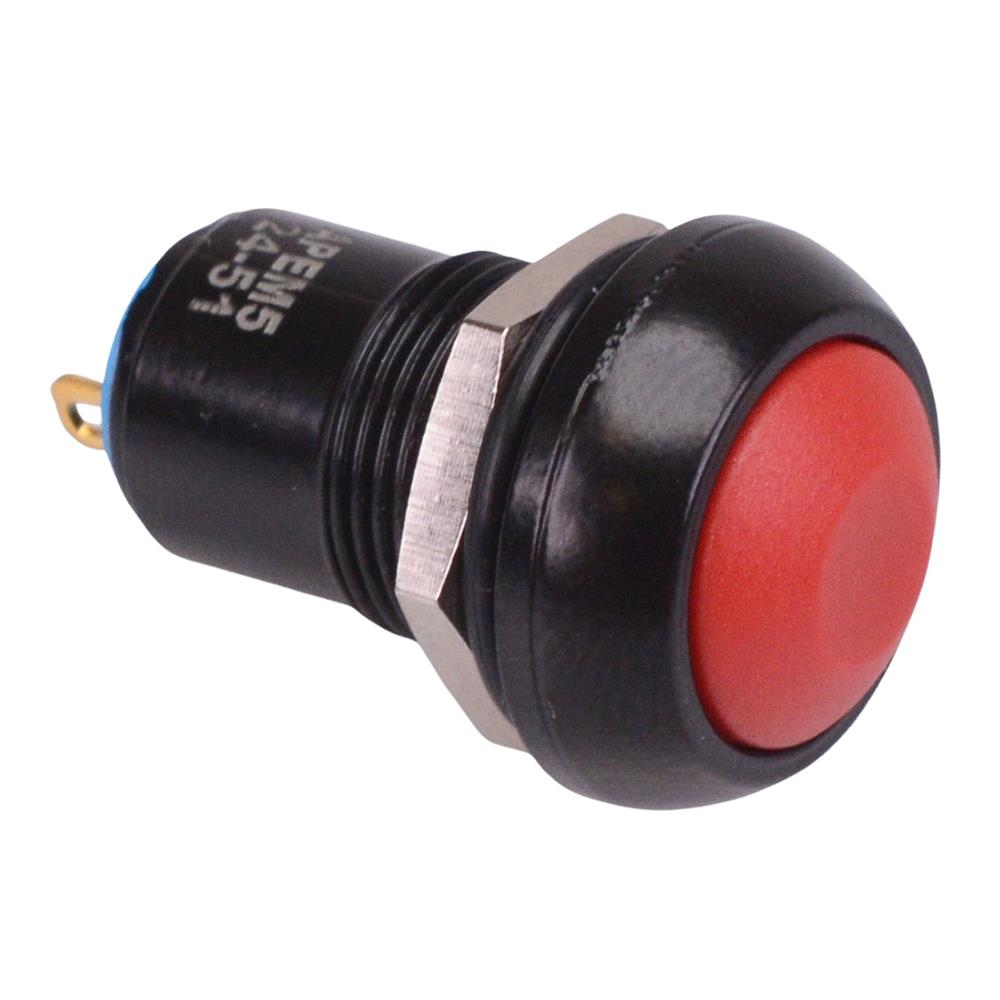

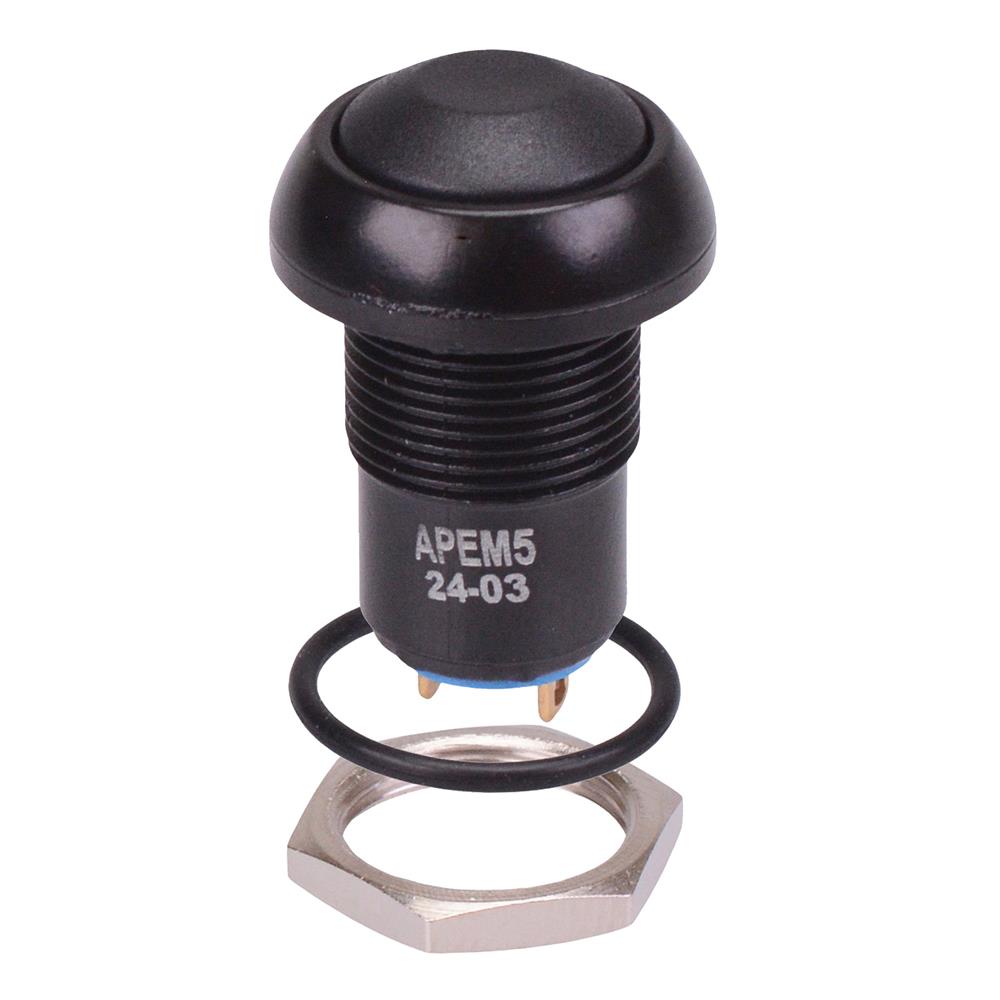

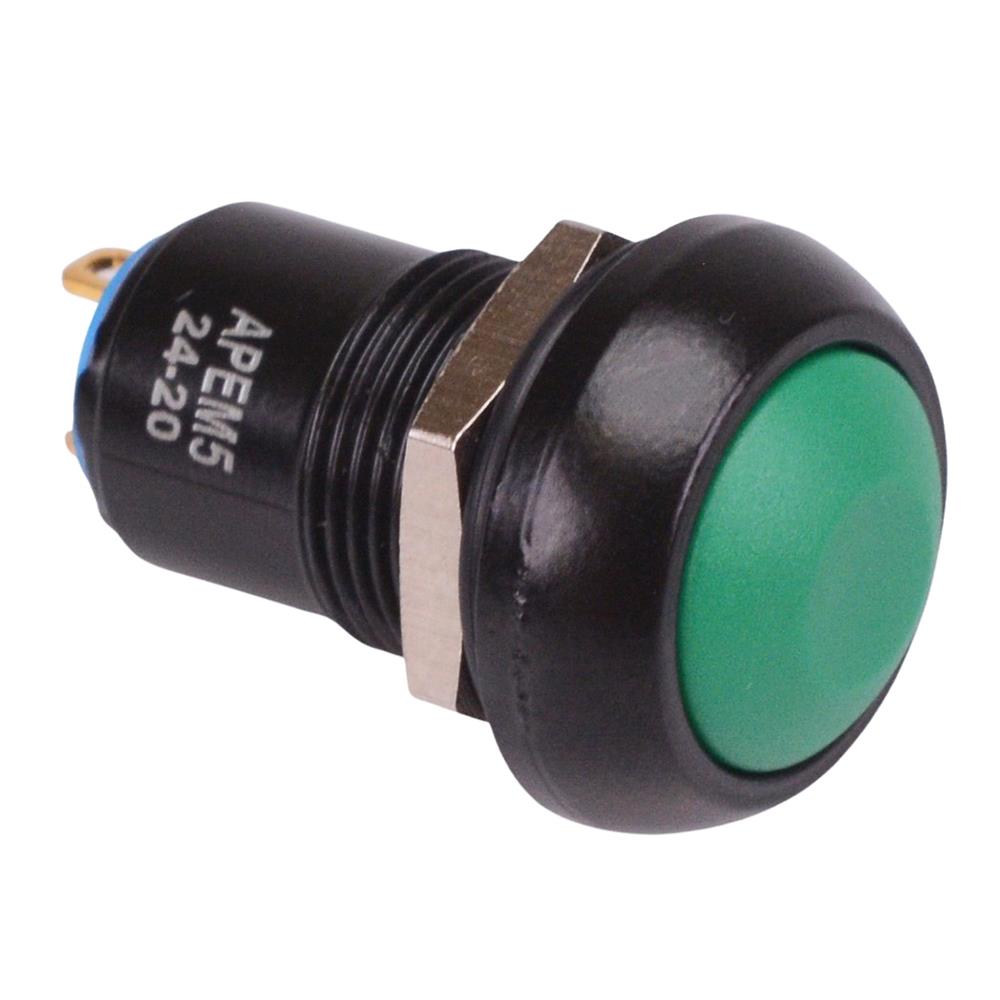

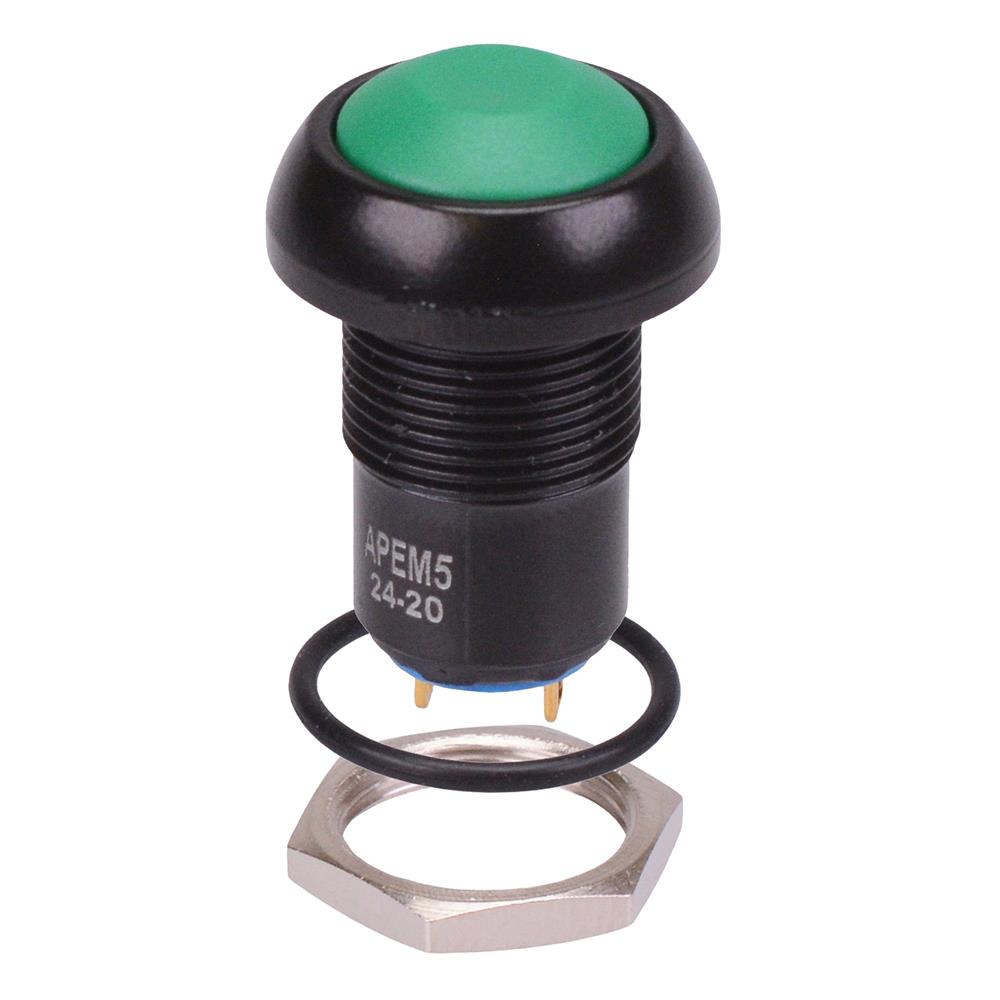

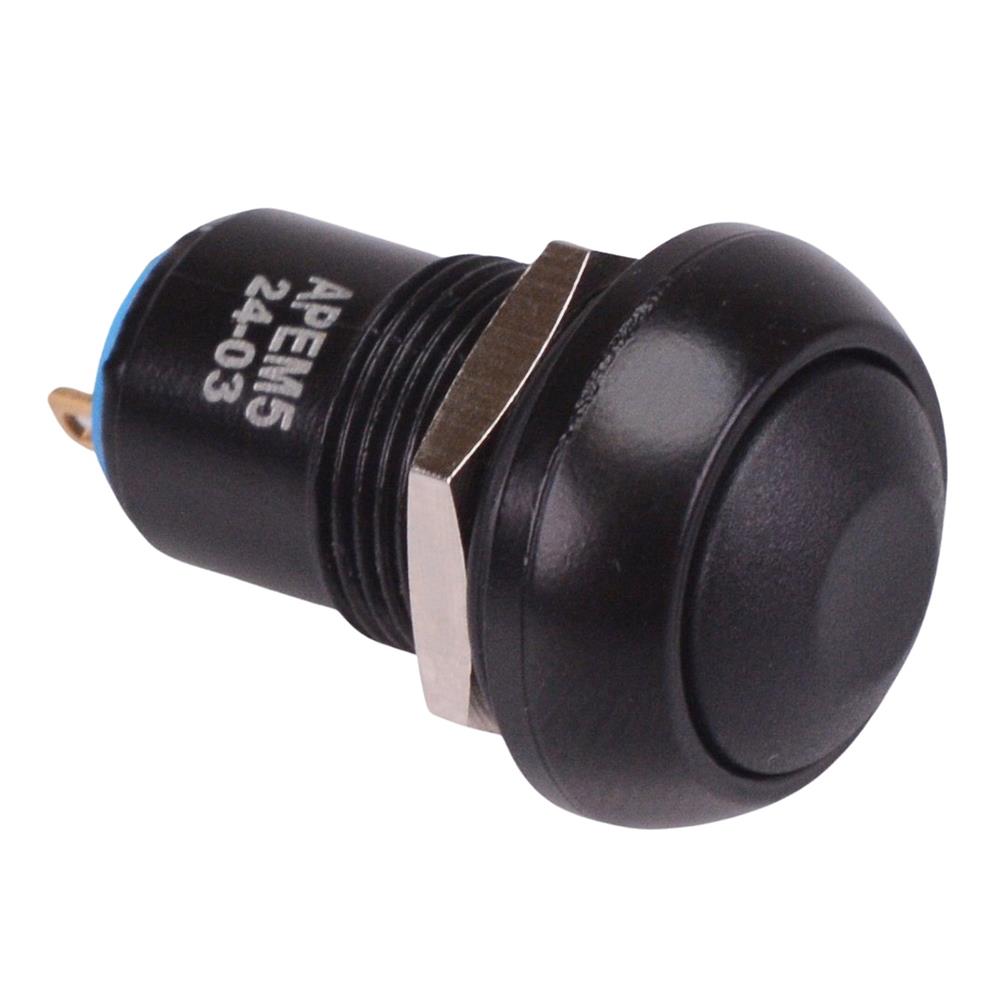

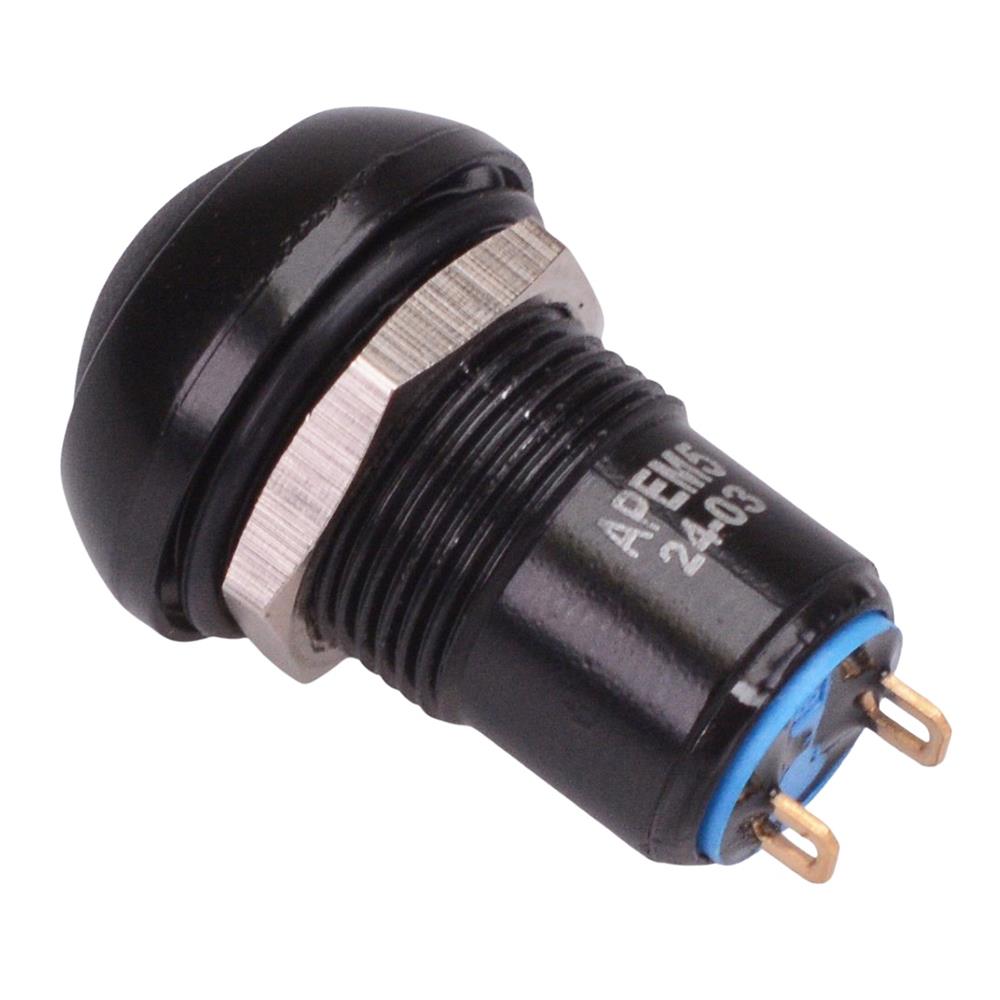

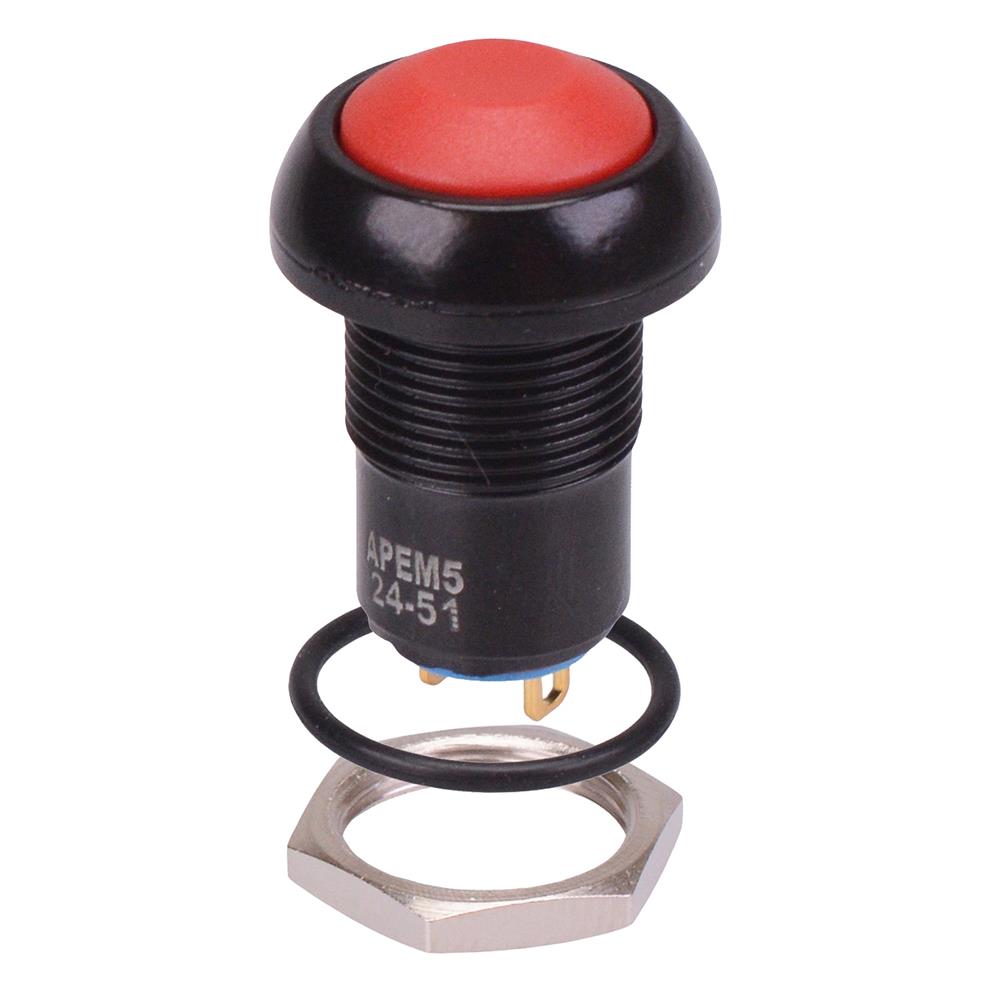

IP Series APEM Latching 12mm Push Button Switch SPST IP67 - Black Red Green

IP Series APEM Latching 12mm Push Button Switch SPST IP67 - Black Red Green

£
17.59 - 20.99

Ask a question

The IPR series are a high quality latching push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments requiring a high performance switch.

  • Latching operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Back of panel space requirement: 19.1mm minimum
  • Dimensions: 27.6 x 17.5mm (length x diameter)
