Introducing the all-new C3 Series by maXpeedingrods — engineered for performance and built to last. Featuring a premium stainless steel shock body for superior corrosion resistance and durability, the C3 ensures long-term reliability in any condition. At its core, the 2-way adjustable damper delivers precise control with independent rebound and compression tuning, allowing drivers to tailor their ride for optimal comfort and handling. Designed for enthusiasts who demand both strength and adjustability, the C3 Series redefines value in performance suspension.

Features

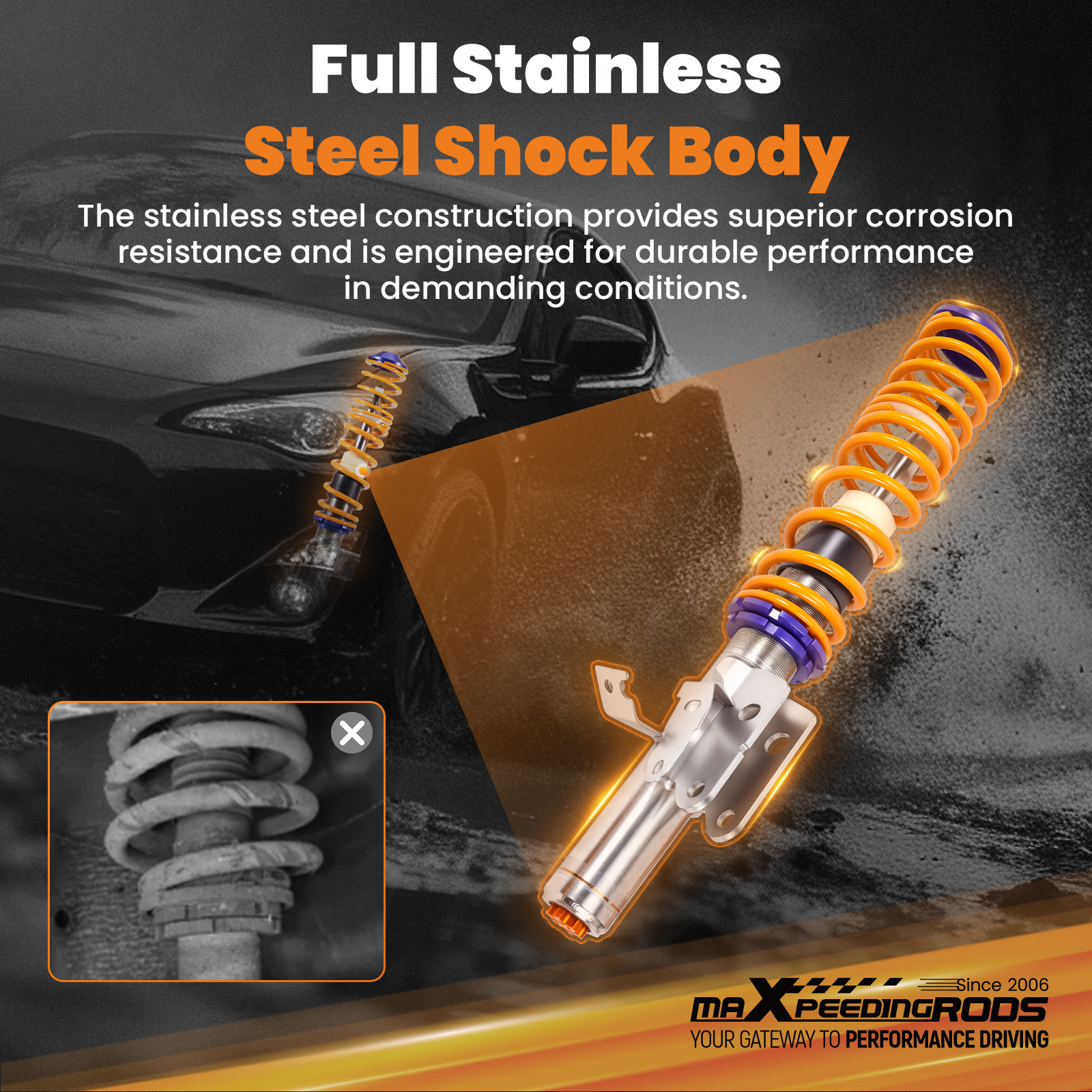

- Durable Stainless Steel Body: Resists corrosion and extends lifespan for long-term reliability.

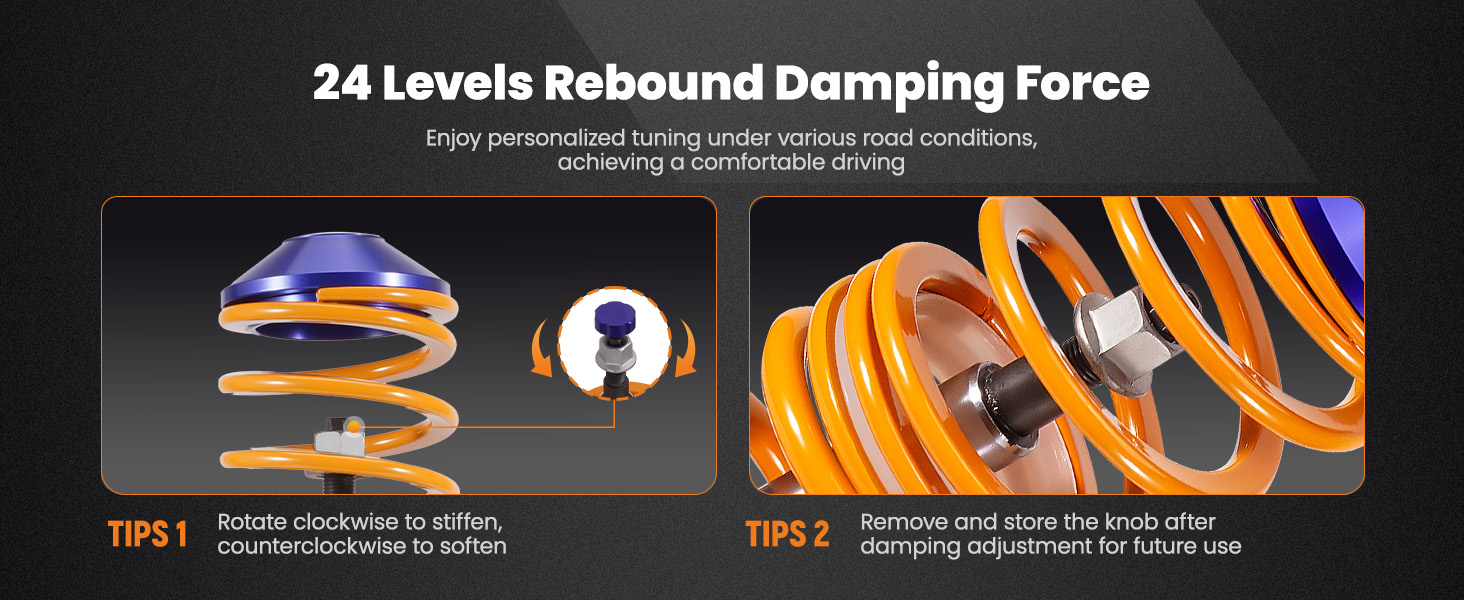

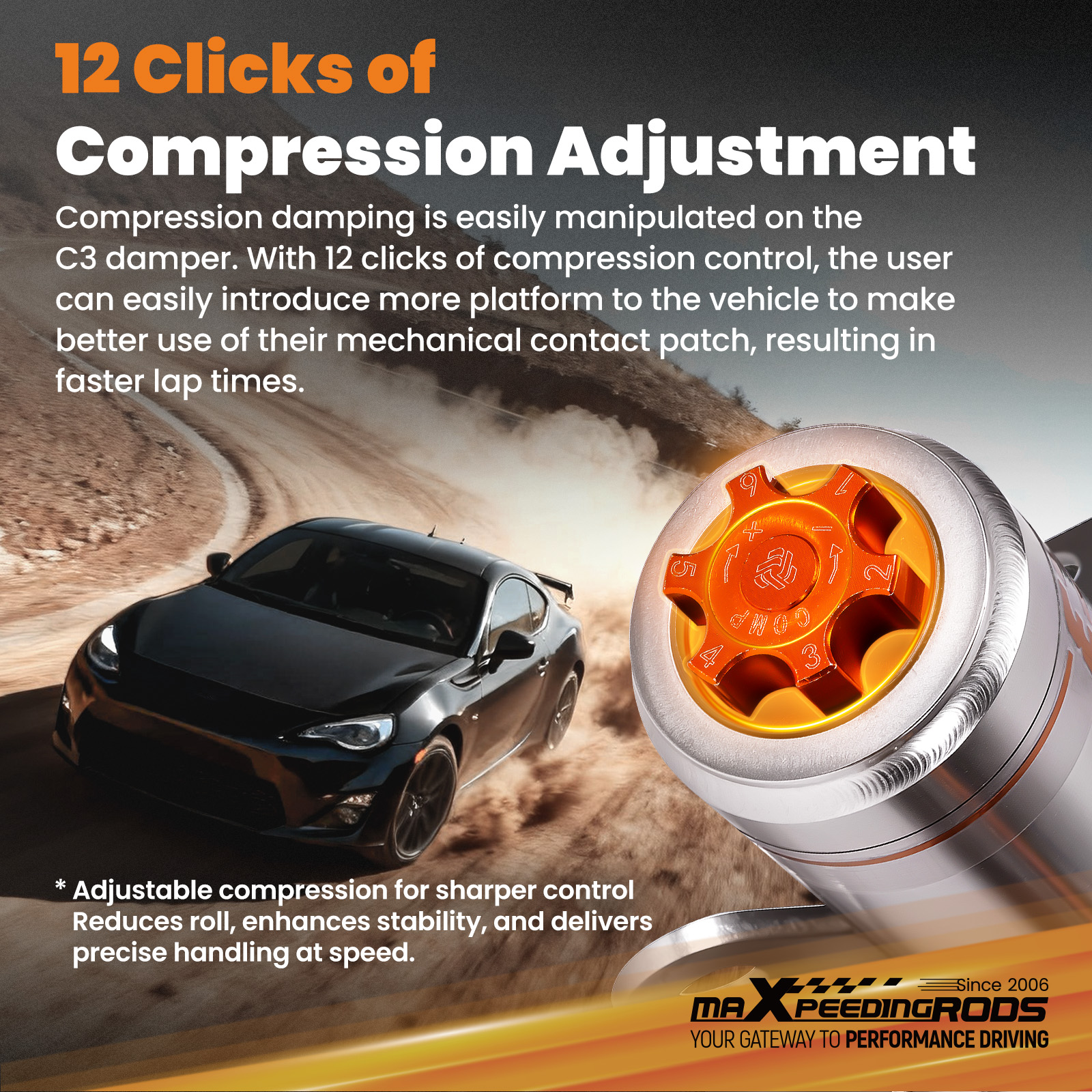

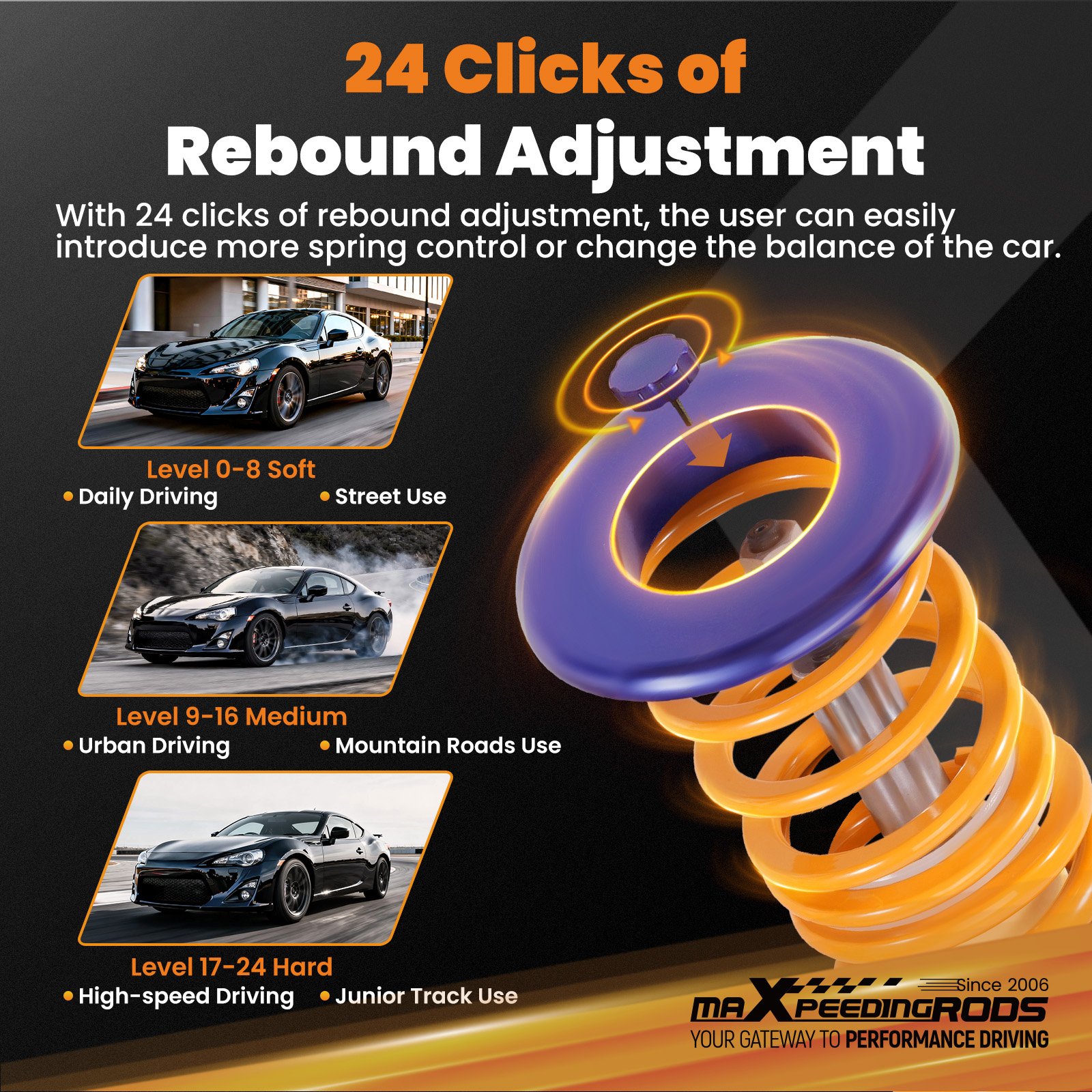

- Precise 24-Click Rebound & 12-Click Compression Damping: Fully customizable tuning for a personalized driving experience.

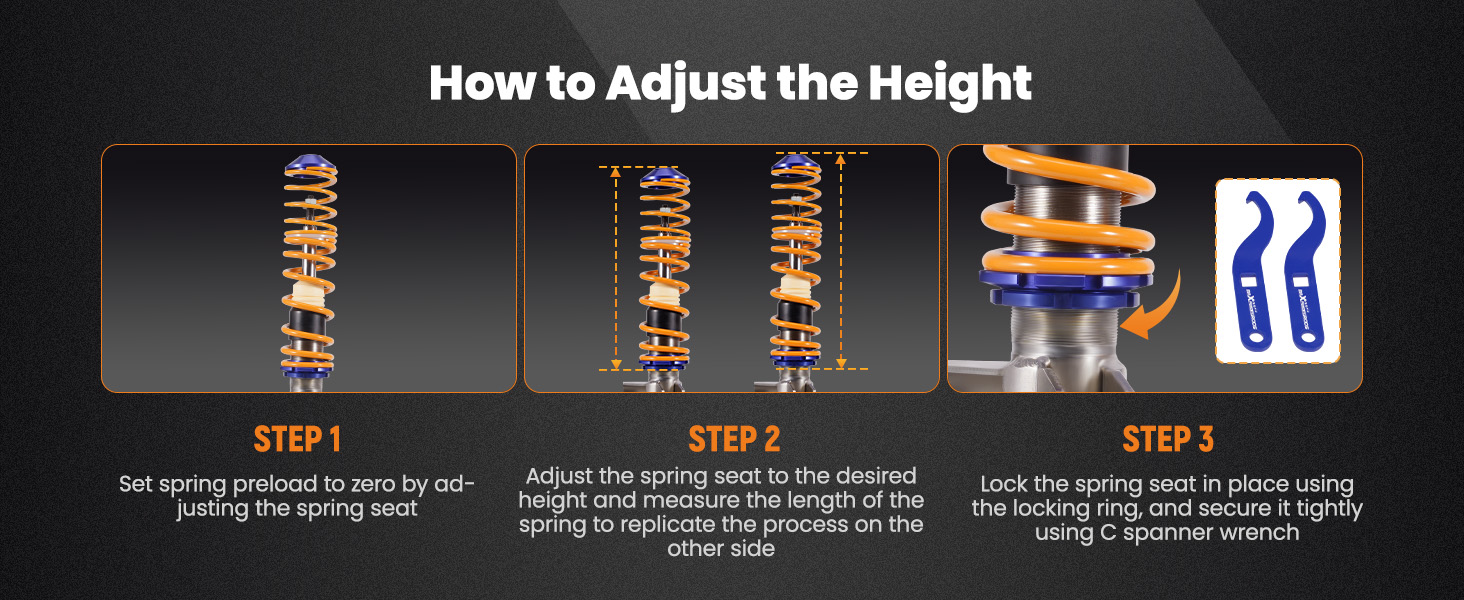

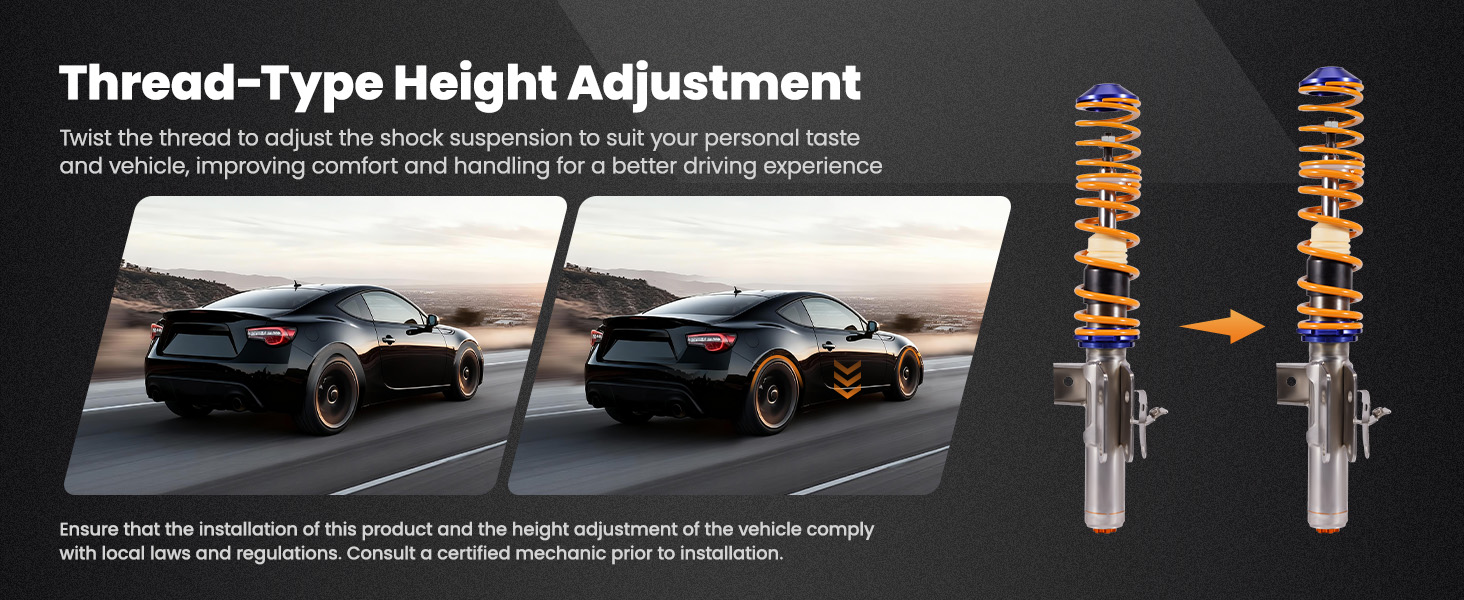

- Adjustable Ride Height: Fine-tune your vehicle’s stance to optimize handling and comfort.

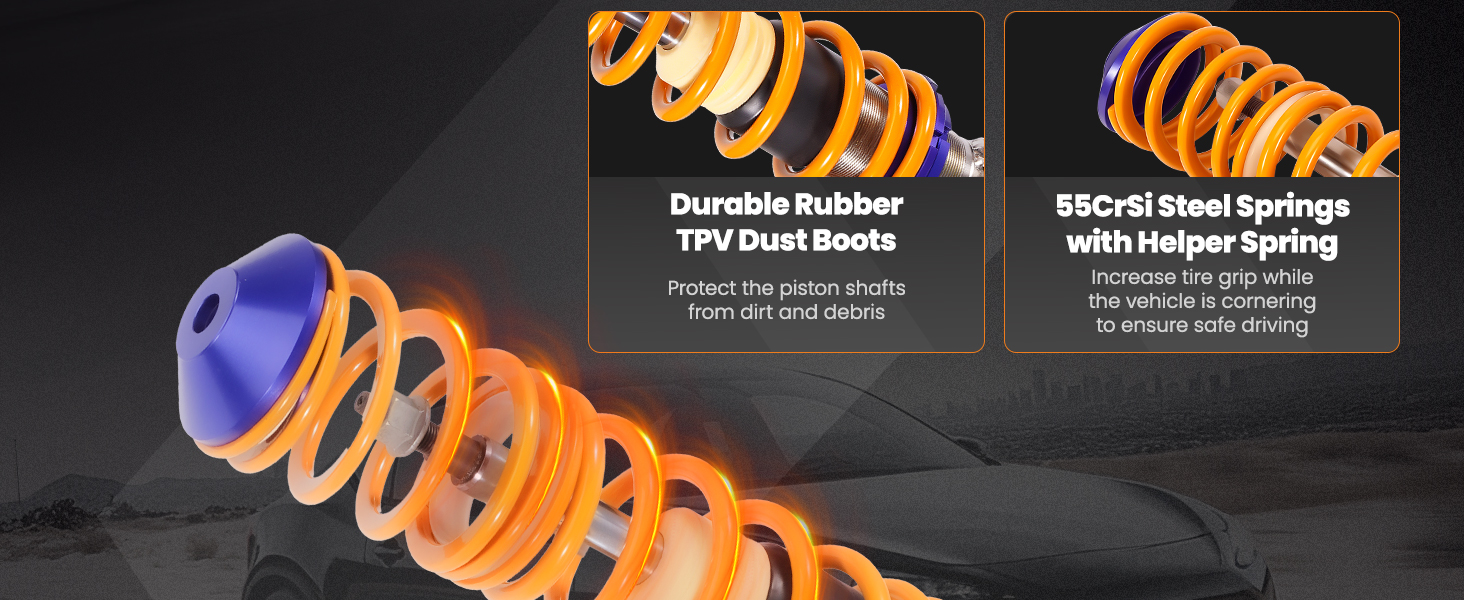

- High-Strength Variable Stiffness Springs: Deliver balanced support and superior cornering stability.

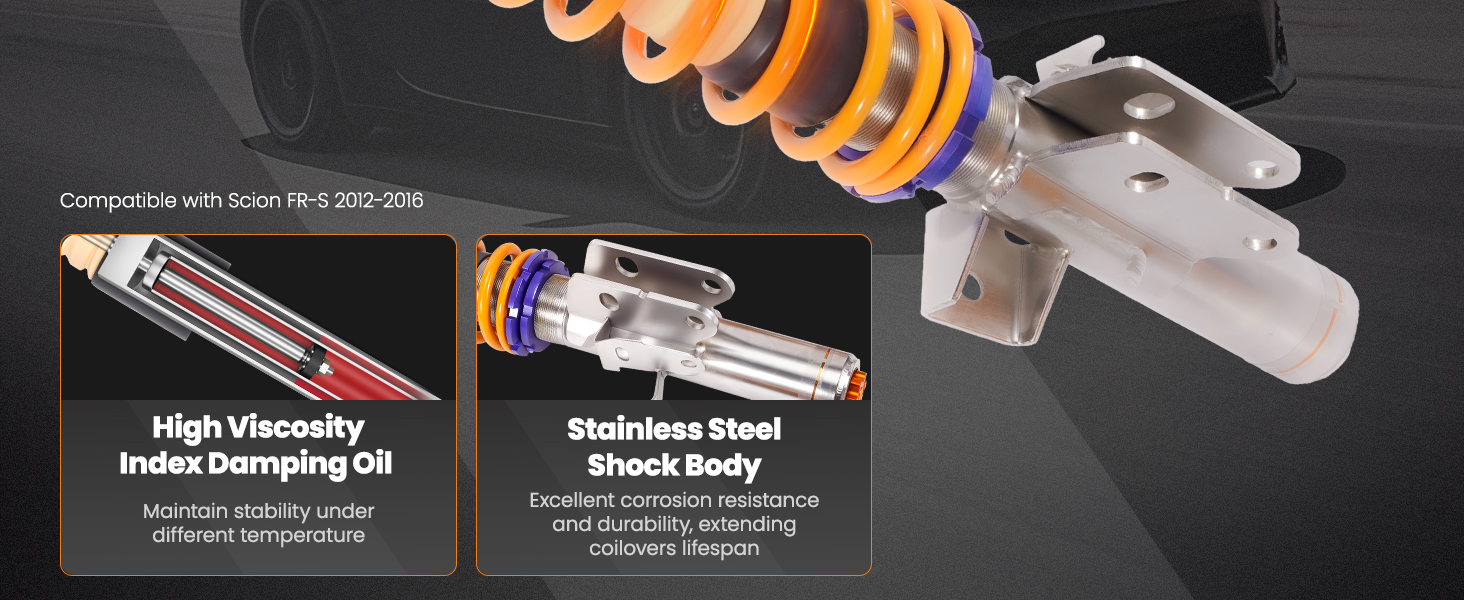

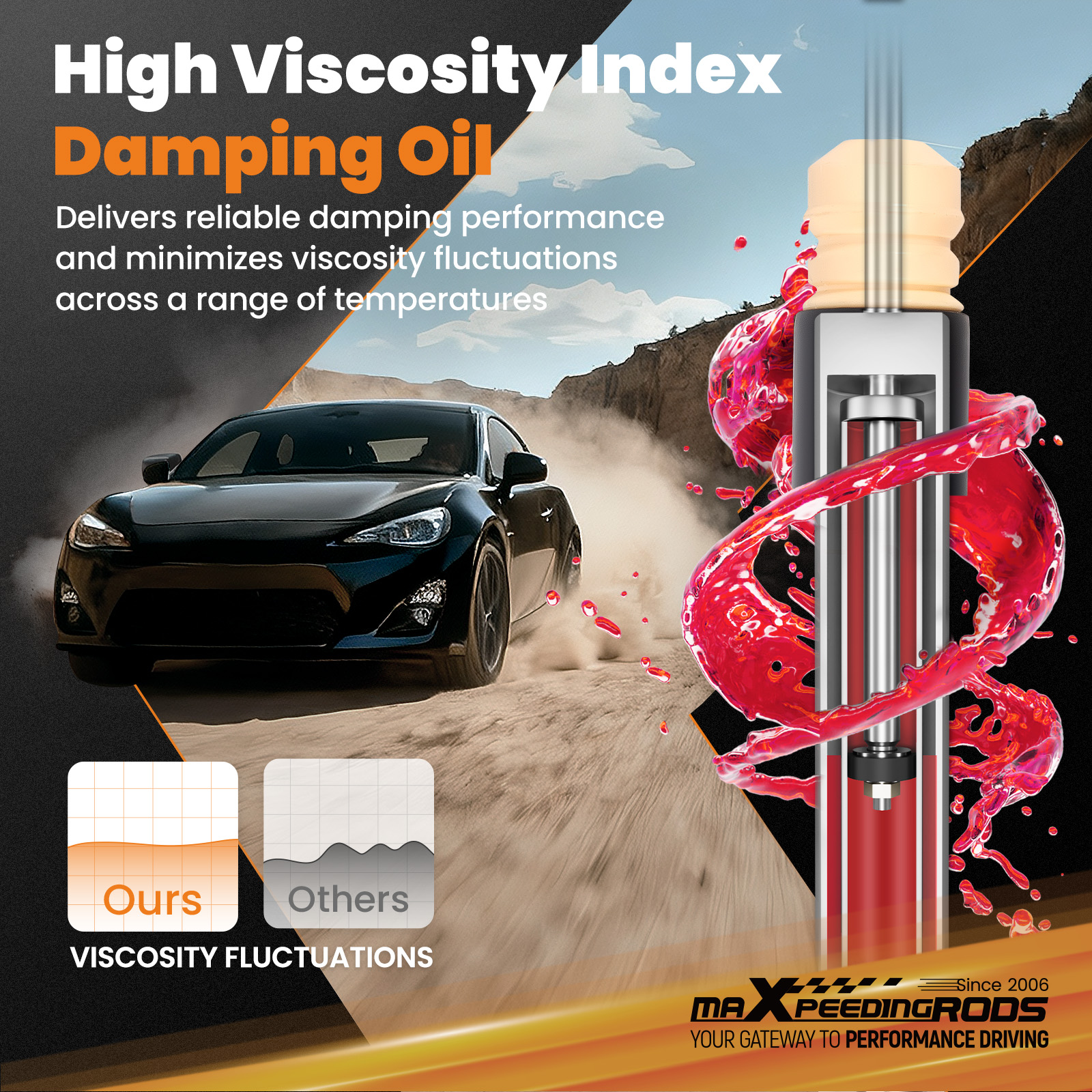

- High Viscosity Index Damping Oil: Maintains consistent performance in extreme temperatures.

- Reinforced 45# Steel Piston Rod: Provides exceptional strength, durability, and wear resistance.

- Lightweight Anodized AL6061 Aluminum Components: Corrosion-resistant and robust for lasting performance.

- Enhanced Sealing & Dust Protection: Prevents oil leaks and contamination, maximizing system longevity.

- Comfort-Optimized Rubber Buffer: Improves shock absorption for a smoother, quieter ride.

Applications

For Scion FR-S 2012-2016
For Subaru BR-Z 2012-2021
For Toyota 86 2017-2020
For Toyota GR86 2022+
For Subaru BR-Z 2022+

Specifications

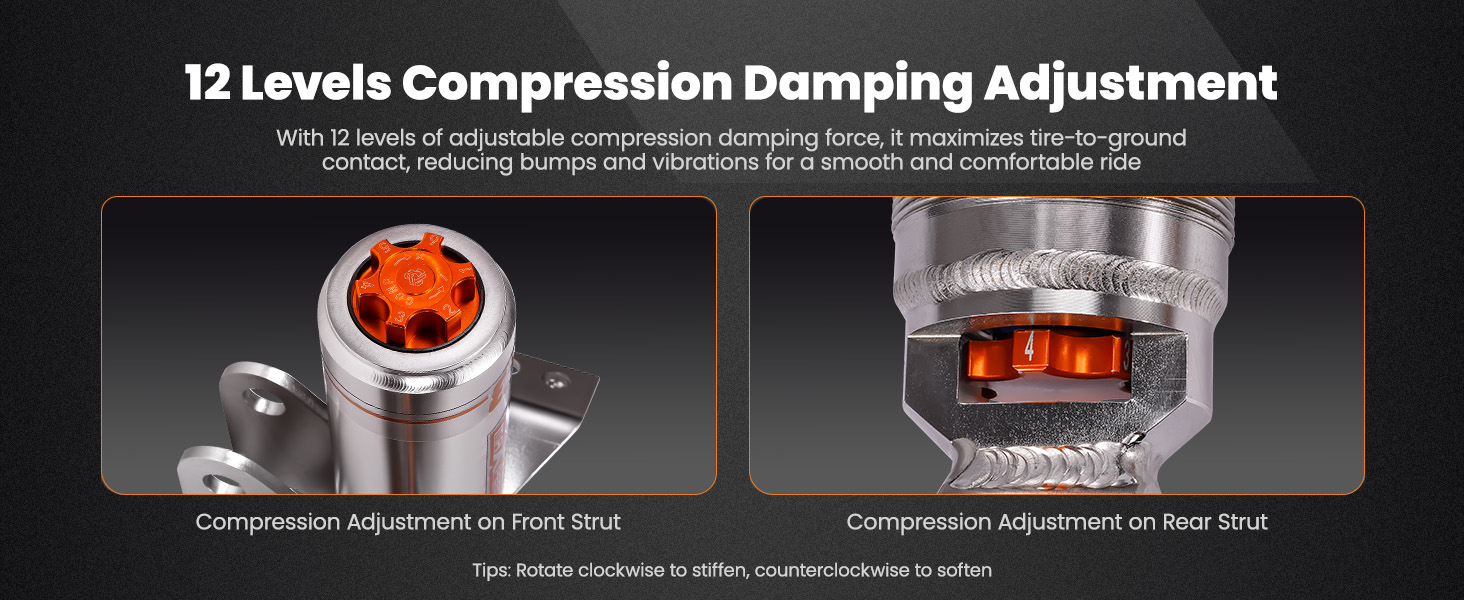

- Damping Adjustable: Yes, 24 Levels of Rebound Damping Force & 12 Levels of Compression Damping Force

- Height Adjustable: Yes

- Front and Rear Shock Body Material: Stainless Steel
- Lowering Height (Compare With OE Height) Front: 65-95mm
- Lowering Height (Compare With OE Height) Rear: 103-130mm
- Spring Rate Front: 4 kg/mm (224 lbs/in)
- Spring Rate Rear: 5 kg/mm (280 lbs/in)
- Front Spring Inner Diameter: 62 mm
- Rear Spring Inner Diameter: 62 mm
- Spring Length Front: 200 mm
- Spring Length Rear: 200 mm
- Help Spring Rate Front: 1 kg/mm (56 lbs/in)
- Help Spring Length Front: 102 mm
- Help Spring Rate Rear: 1 kg/mm (56 lbs/in)
- Help Spring Length Rear: 102 mm
- Spring Type Front: Linear Spring
- Spring Type Rear: Linear Spring
- Spring Material: 55CrSi Steel

- Front Top Mounts: OE Top Mount Required
- Rear Top Mounts: OE Top Mount Required
- Color: Silver Body With Golden Spring

Package Including

2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Rebound adjustment knob
1x sticker

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
