Features

1. Lowered height adjustment from 1" - 3" which allow lower center of gravity and also add a more aggressive stance.
2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

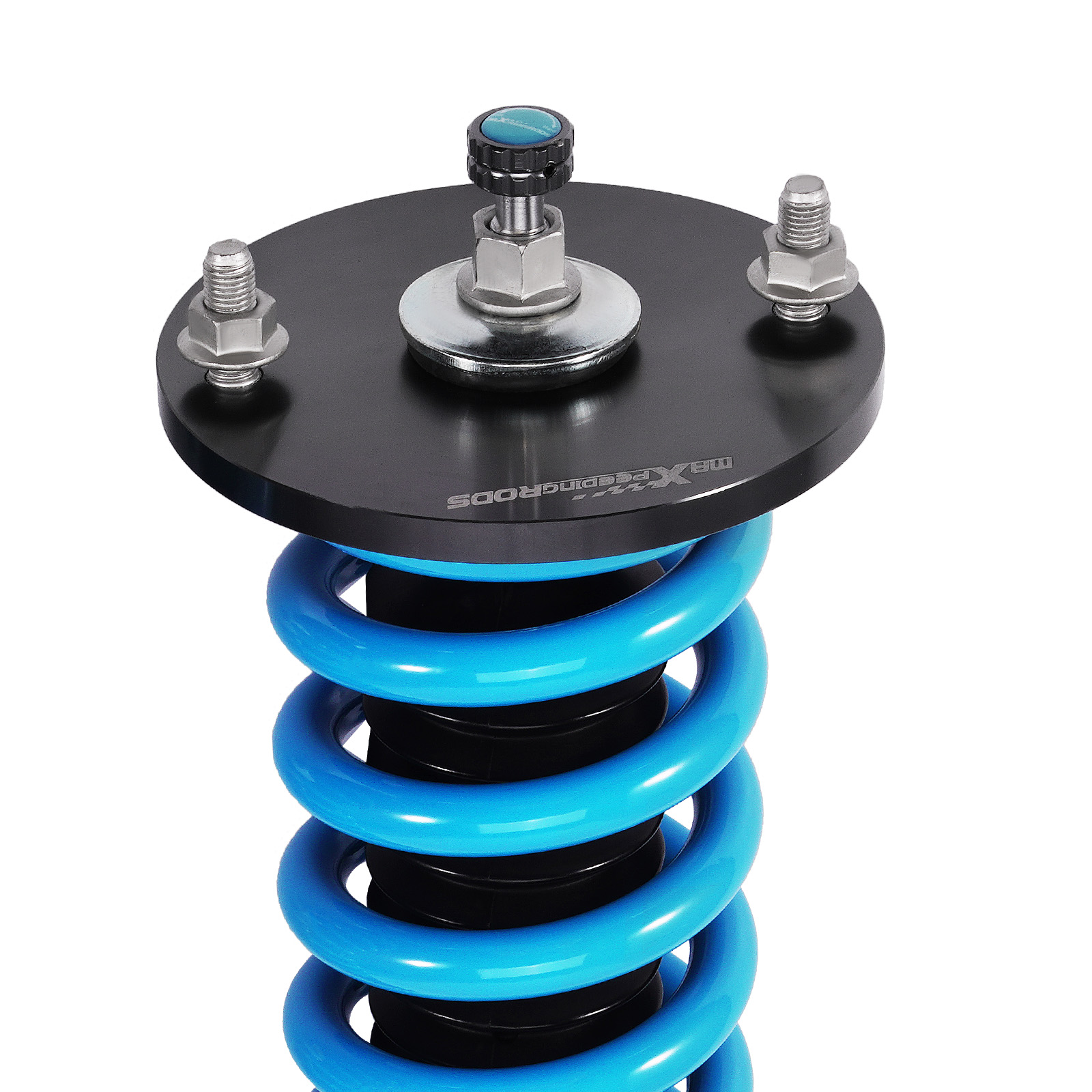

3. Camber plate top mounts help to eliminate the need for a separate camber kit.

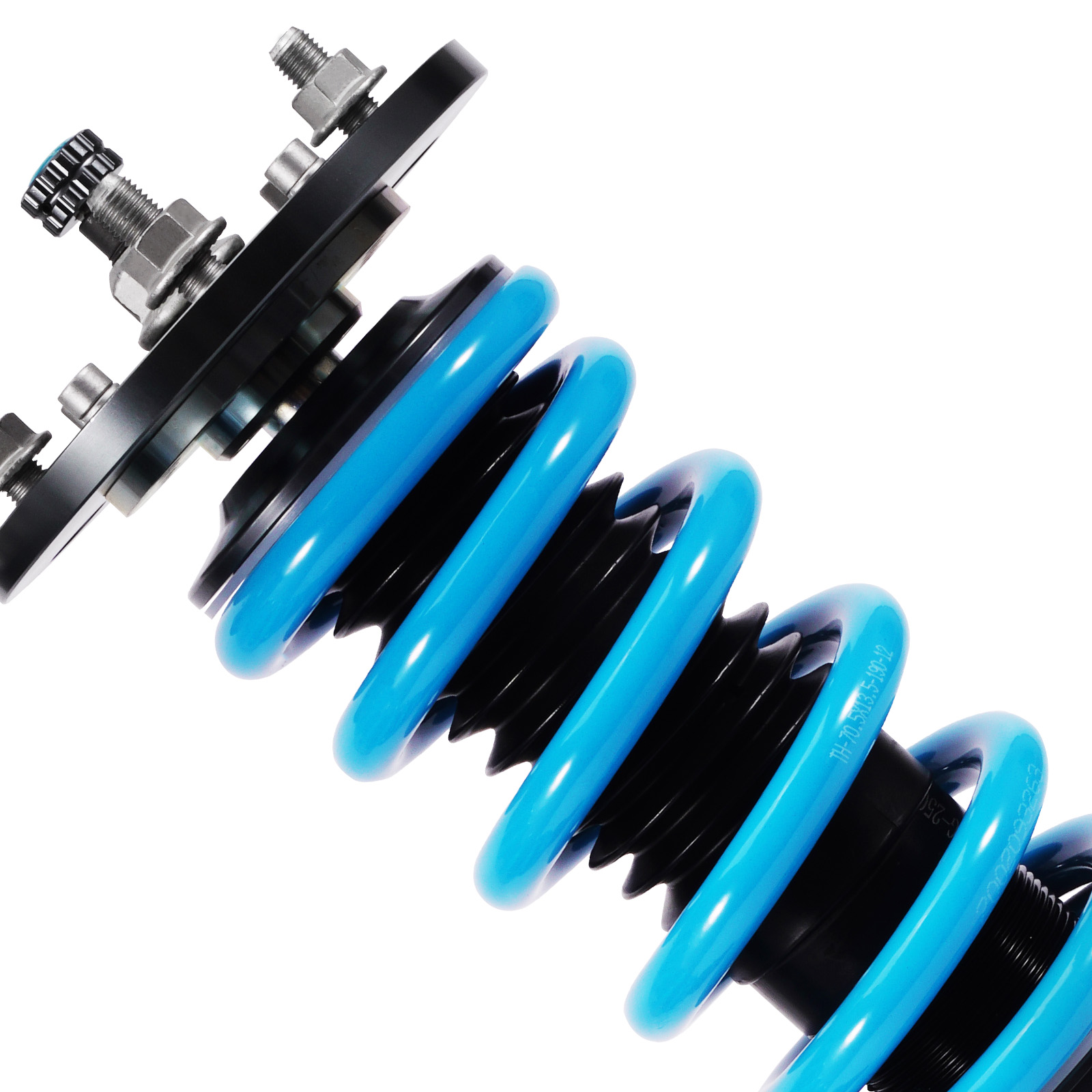

4. Full length dust boot keeps shaft and oil seal from damage.
5. Upgraded damper adjust knob makes damping setting easier.
6. Upgraded valving for more smooth ride.
7. Twin-Tube structure allows sufficient stroke within the shock absorber.
8. High-Performance Damping Oil--maintains a stable viscosity in a broad temperature range, which sustains smooth stroke and reliable damping force in a variety of circumstances.
9. High Rigidity 55CrSi Steel Cold-bent Coil Springs - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%.
10. Decent appearance benefits from CNC machined parts and special surface treatment.
11. Most pieces in our coilover systems, including mounts, collars and spring perches, are made from 6061-T6 Billet Aluminum resulting in light weight, durable and rust resistant components.
12. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
13. Separate height adjustment does not affect damper stroke and height can be adjusted with coilovers installed on the vehicle.
14. All coilovers were produced and assembled at dust-free factory which guaranteed the highest quality.

Fitment

For MITSUBISHI ECLIPSE 1995-1999USA D38A CONVERTIBLE, 4CYL/TURBO
For MITSUBISHI ECLIPSE 1995-1999USA D33A 4CYL/TURBO
For MITSUBISHI ECLIPSE 1995-1999USA D32A 4CYL/TURBO
For MITSUBISHI ECLIPSE 1995-1999USA D31A  4CYL/NON TURBO

Specifications

- Front top mount: Pillow ball with camber  plate
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Available
- Spring rate Front: 12 kg/mm (672 lbs/in)
- Spring rate Rear: 10 kg/mm (560 lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 190 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Black body with blue spring

Package included

2x Front coil-overs
2x Rear coil-overs
2x Allen wrench
2x C spanners
1x Sticker

★ 30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
