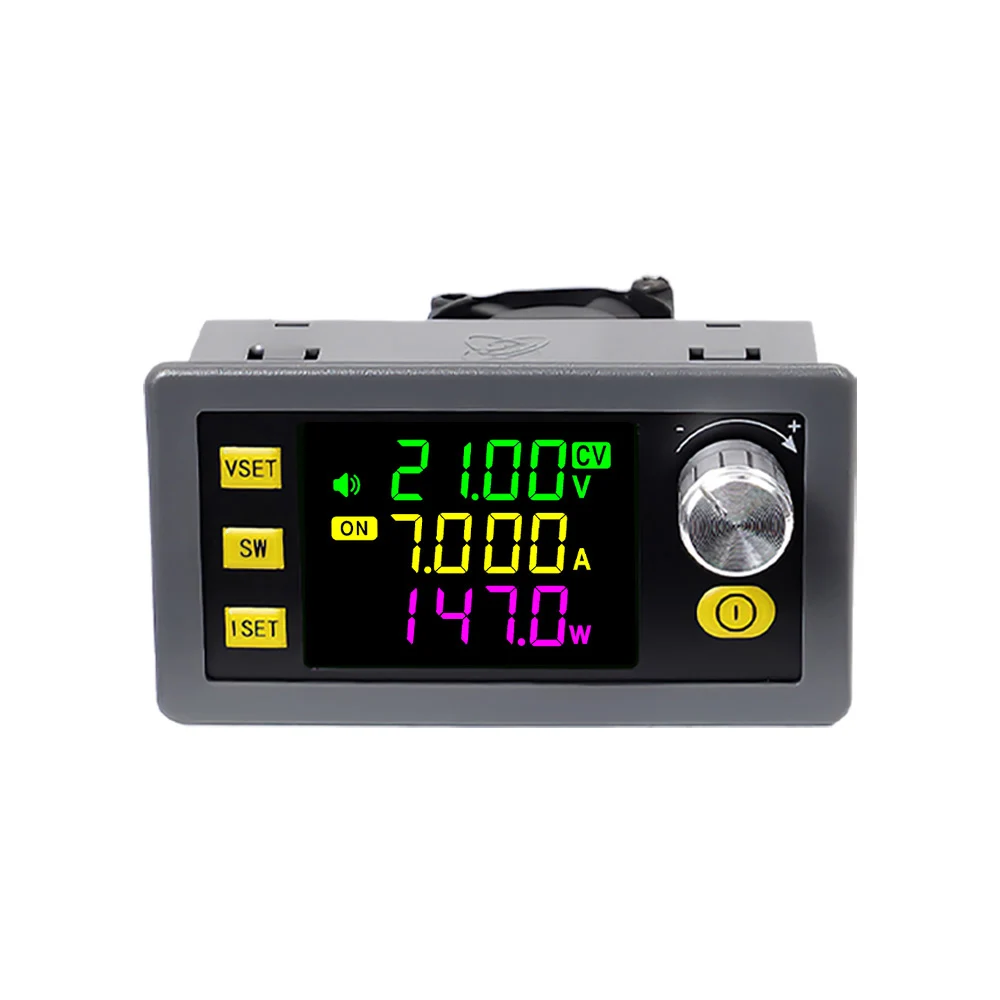

SK120/SK150 CNC DC Buck Boost Converter 7A 150W/6A 120W 0-36V Adjustable Regulated Laboratory Power Supply CC CV Power Module
Description
| origin | Mainland China |
| eu lvd voltage | Low voltage: Below 50Vac or 75Vdc |
| current type | DC |
| certification | CE |
| model | SK-150/120 DC Buck Boost Converter |
| current | 6A/7A |
| choice | yes |
SK120/SK150 CNC DC Buck Boost Converter 7A 150W/6A 120W 0-36V Adjustable Regulated Laboratory Power Supply CC CV Power Module

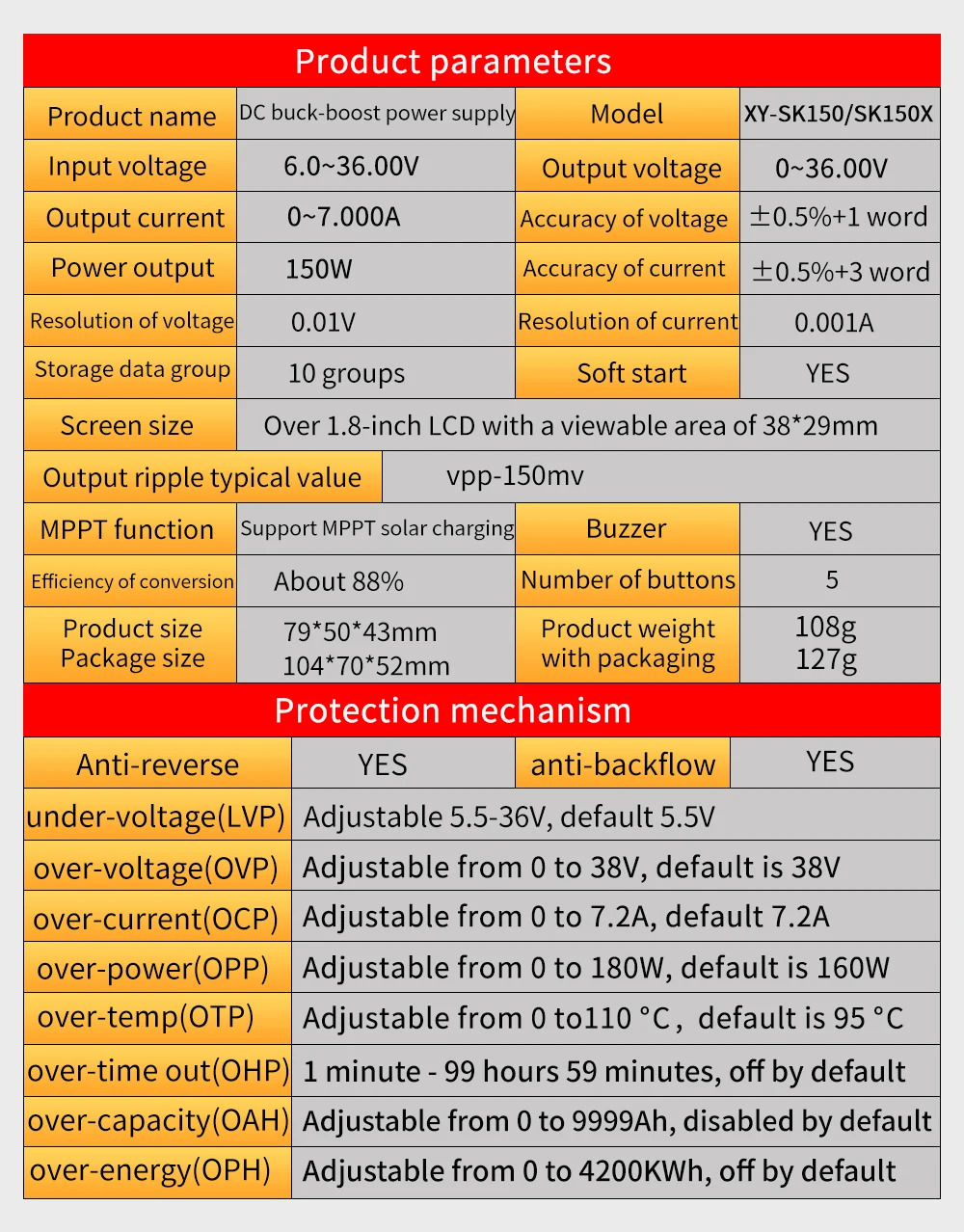

Product parameters

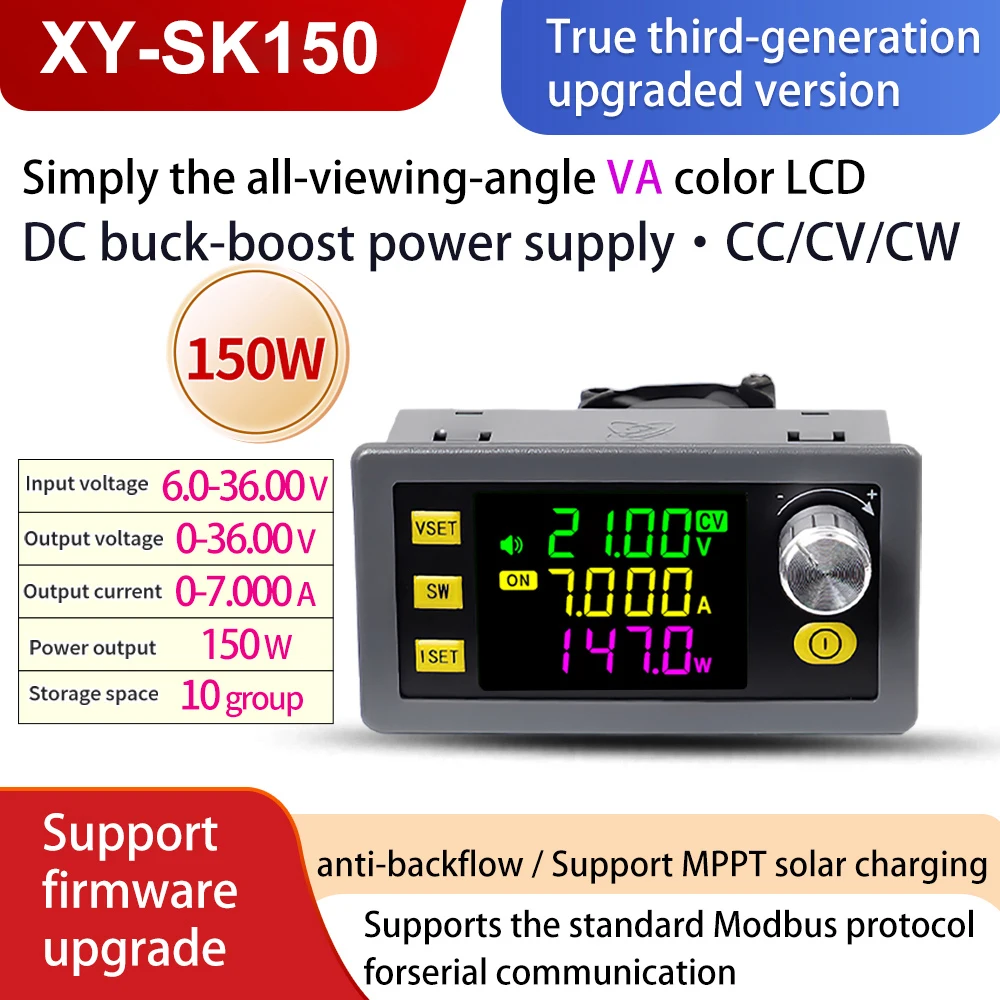

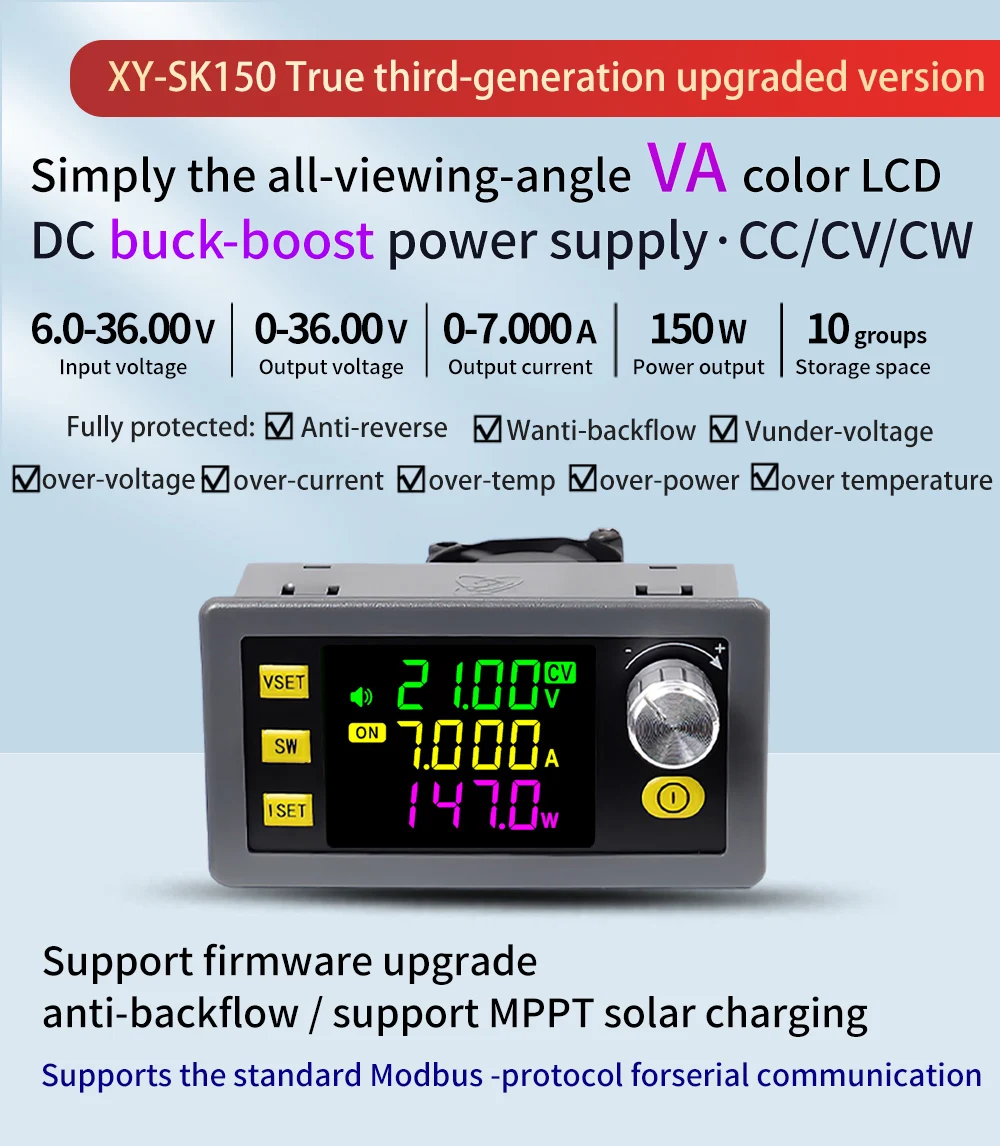

●Model 1:XY-SK150/SK150 finished
Input voltage:6-36.00V
Output voltage:0.0-36.00V
Output current:0-7.000A
Accuracy of voltage:+0.5%+1 word
Power output:150W
Accuracy of current:±0.5%+3 wordResolution of voltage:0.01V
Resolution of current:0.001A

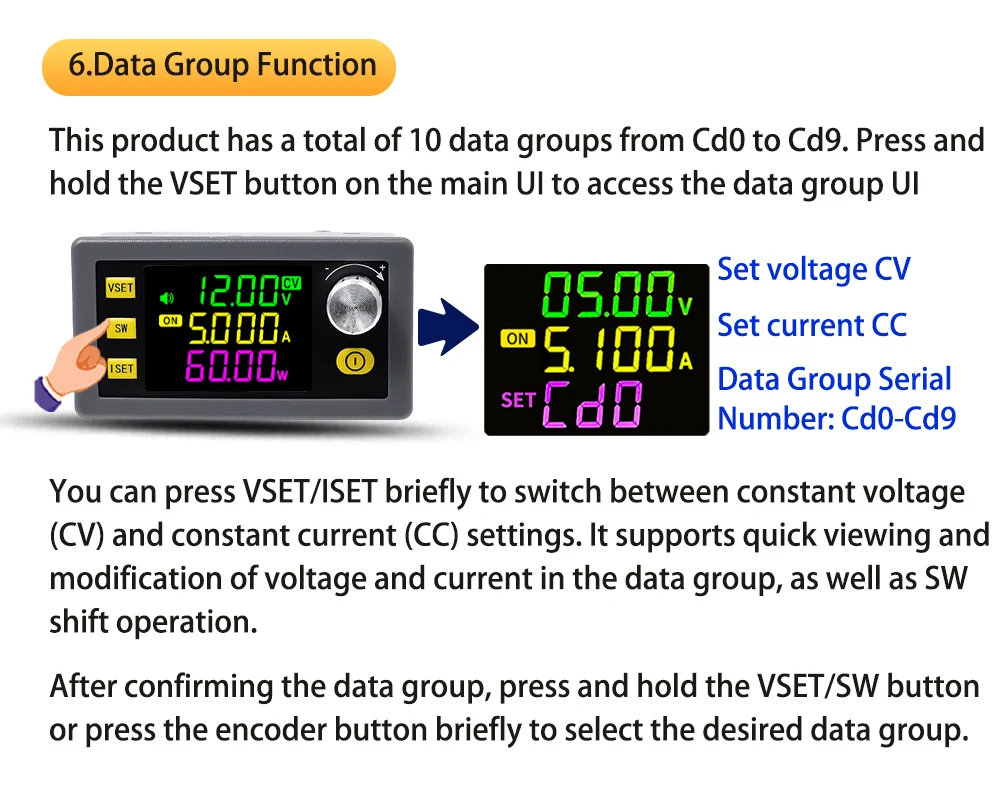

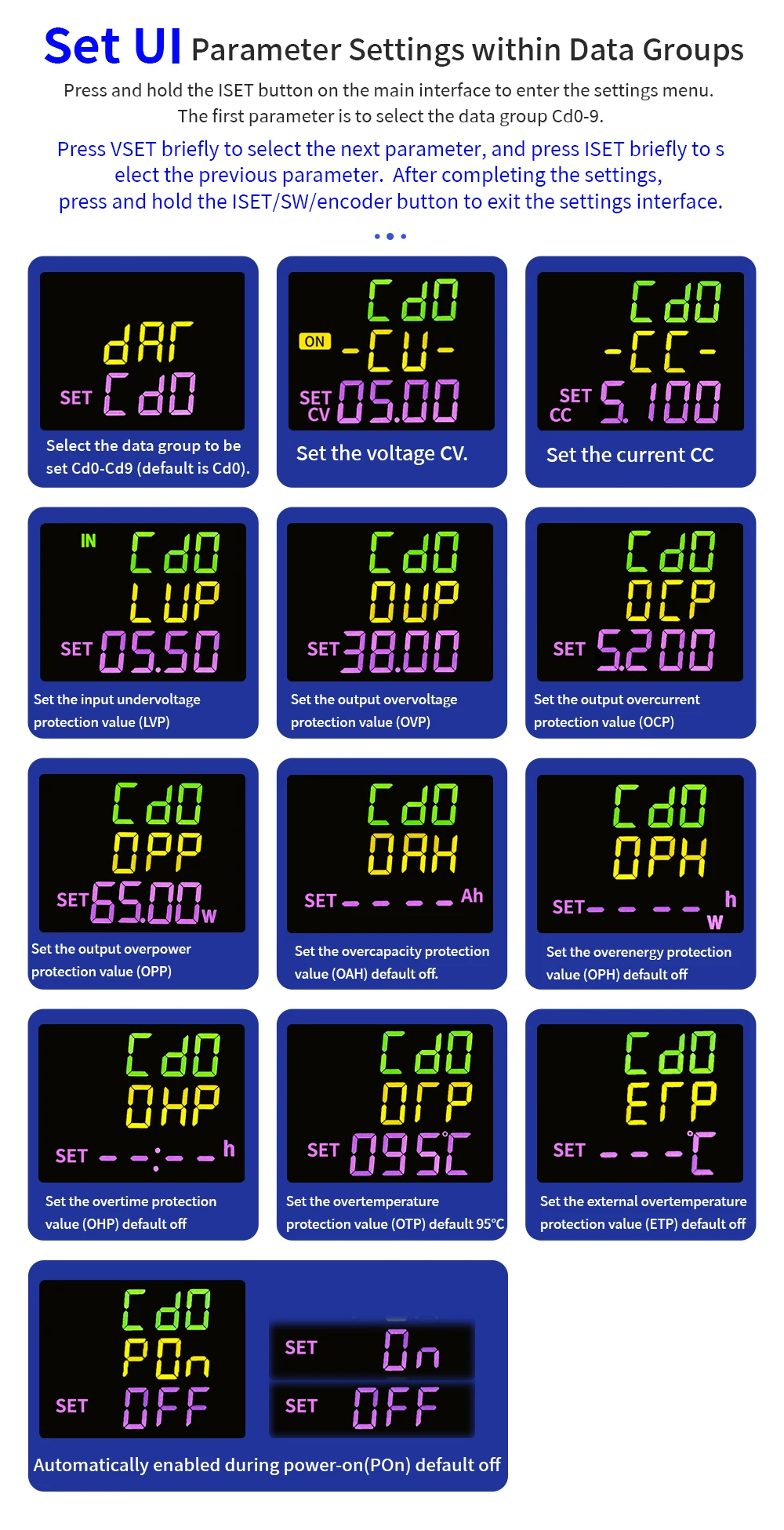

Storage data group:10 groups

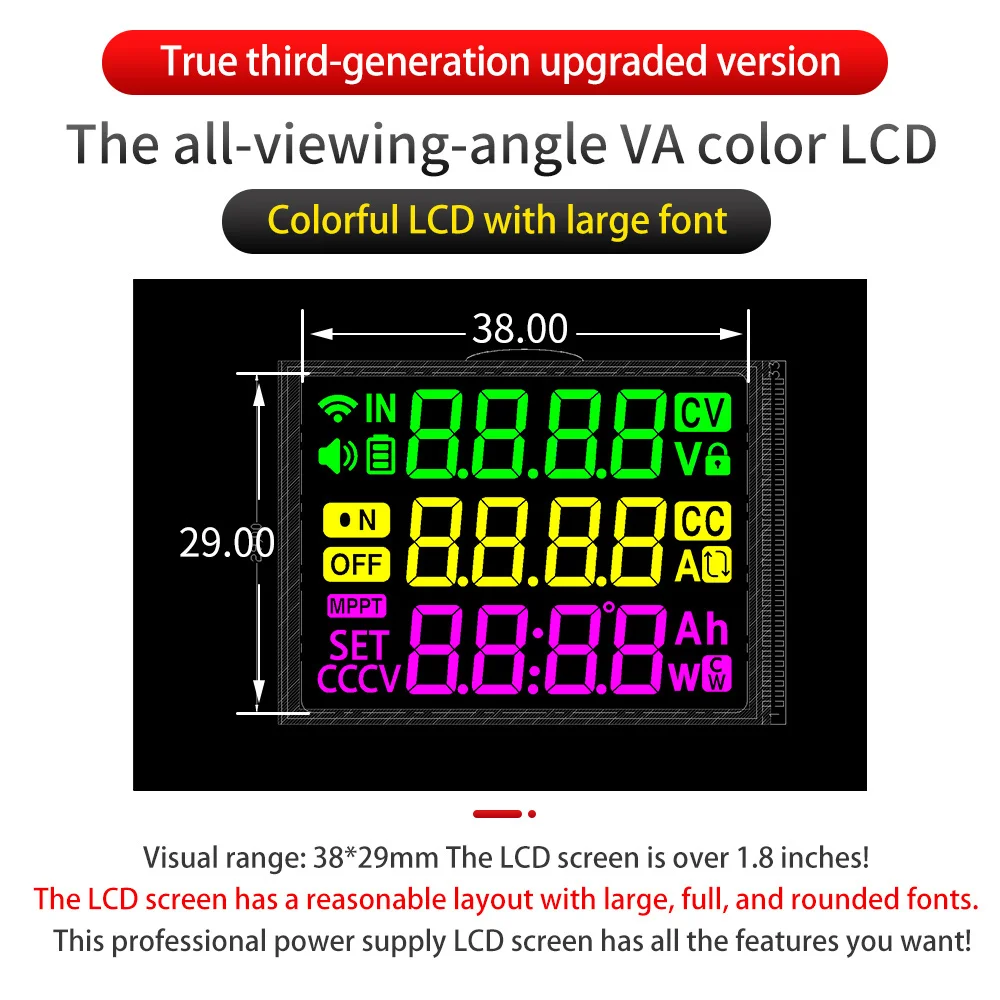

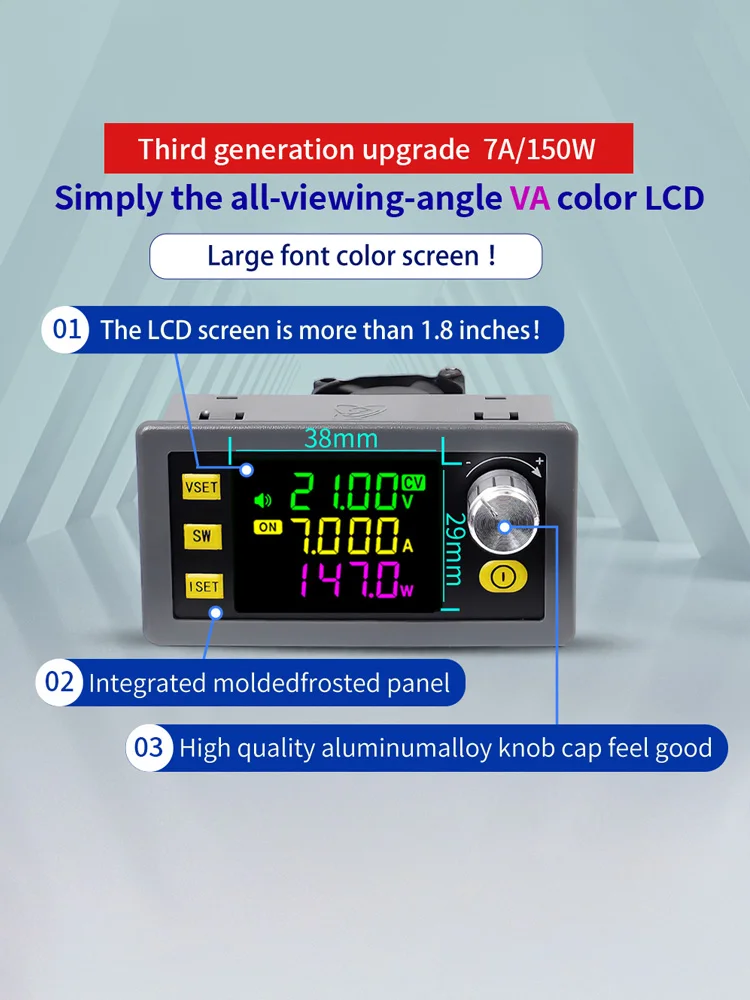

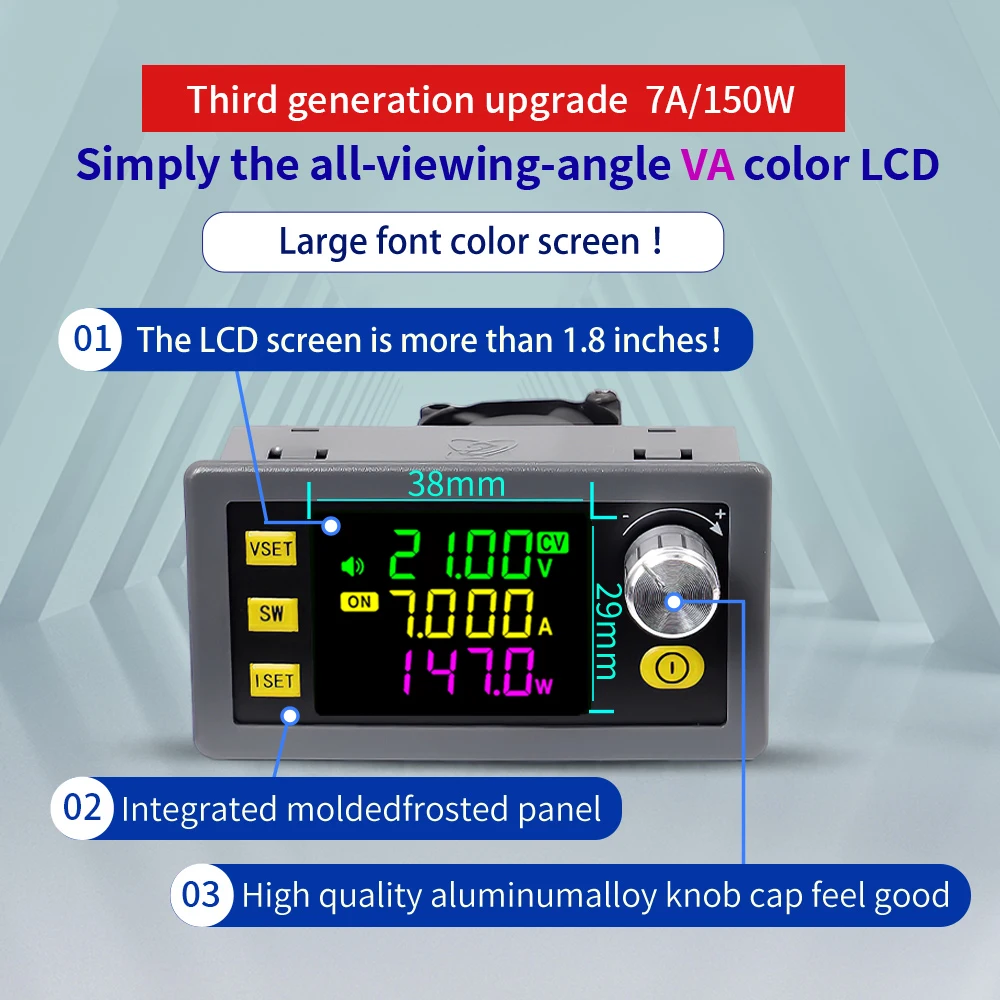

Screen size:Over 1.8-inch LCD

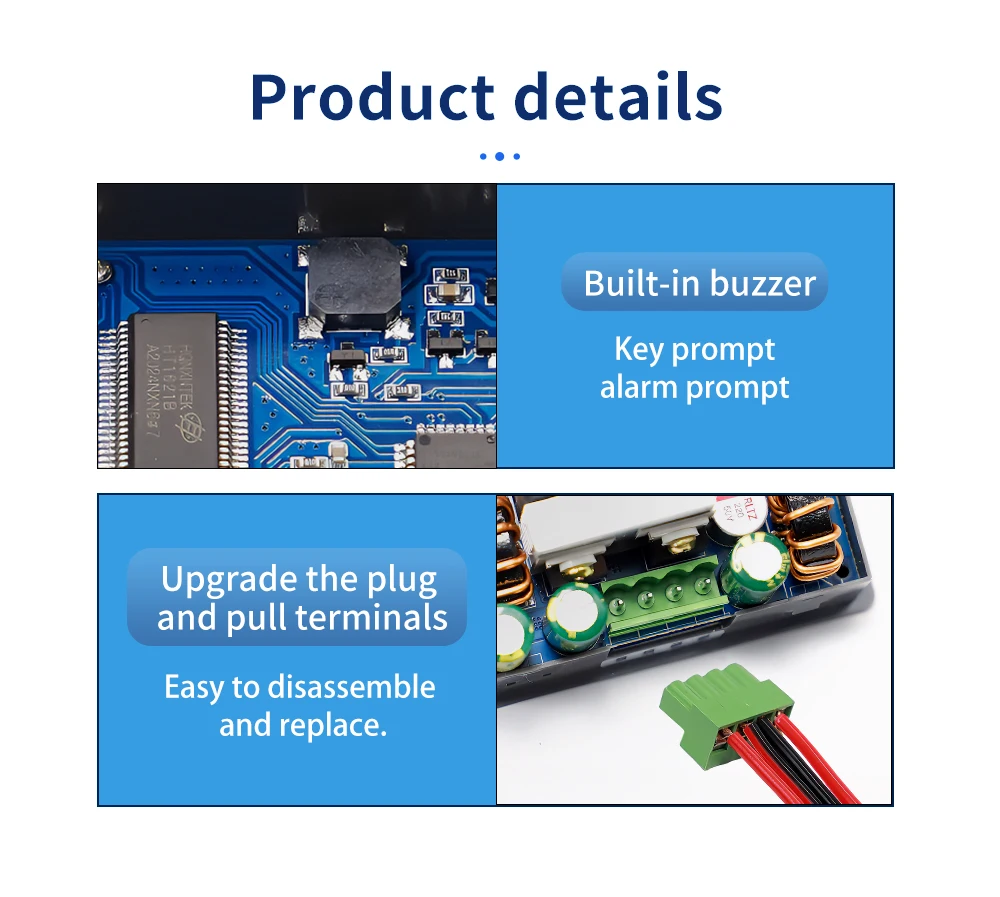

Buzzer:YES
Efficiency of conversion:About 88%Output ripple typical
value:vpp-150mv

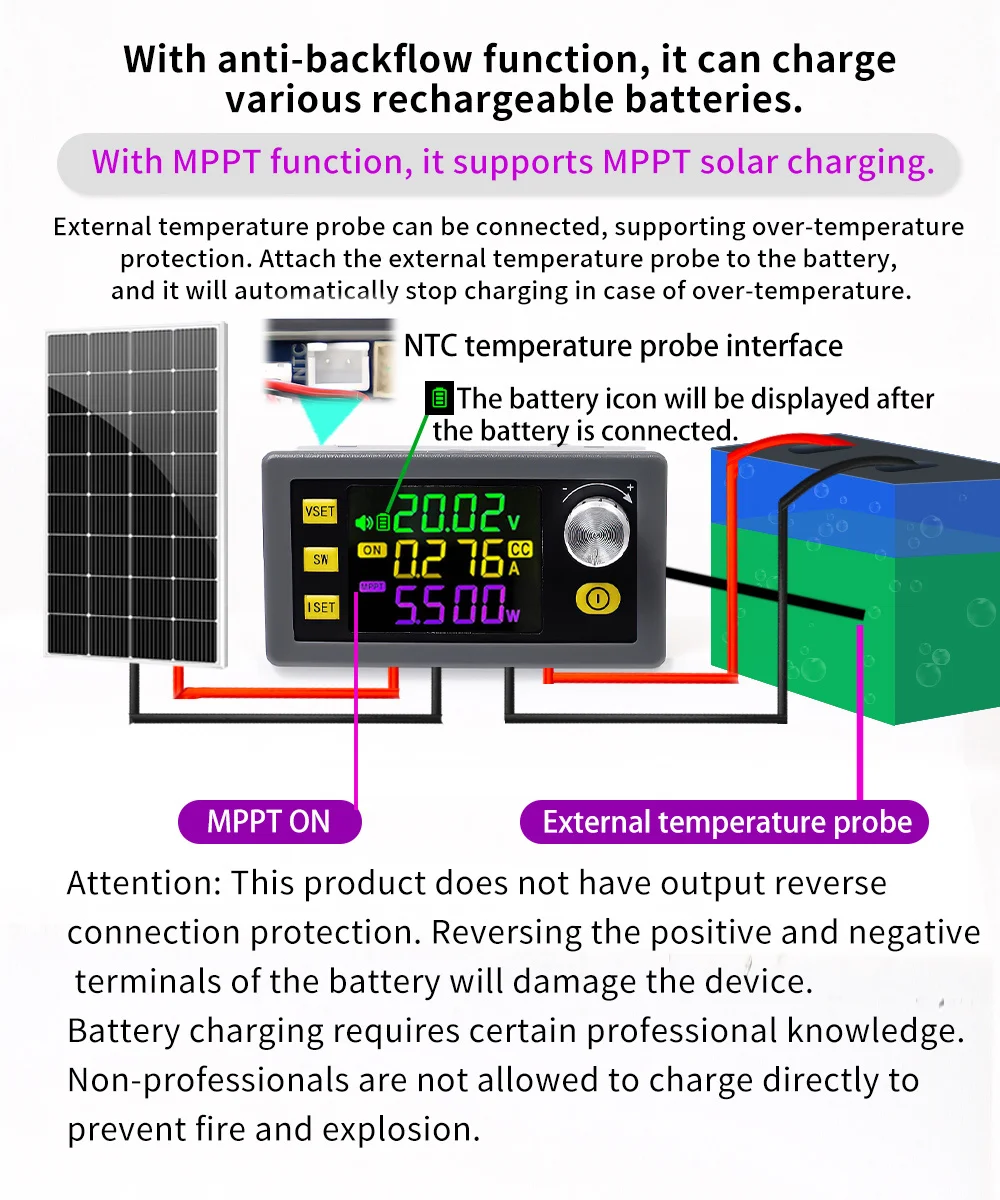

MPPT function:Support MPPT solar charging
Size:SK-150:79x43x50mm
Protection mechanism
Anti-reverse: YES
Anti-backflow: YES
under-voltage (LUP): (Adjustable 5.5-36V, default 5.5V)
over-voltage (OUP): (Adjustable from 0 to 38V, default is 38V)
over-current (OCP): (Adjustable from 0 to 7.2A, default 7.2A)
over-power (OPP): (Adjustable from 0 to 180W, default is 160W)
over-temp (OTP): Adjustable from 0 to 110℃, default is 95 ℃
over-time out (OHP): 1 minute-99 hours 59 minutes, off by default
over-capacity (OAH): 0-9999Ah, off by default
over-energy (OPH): 0-4200KWh, off by default

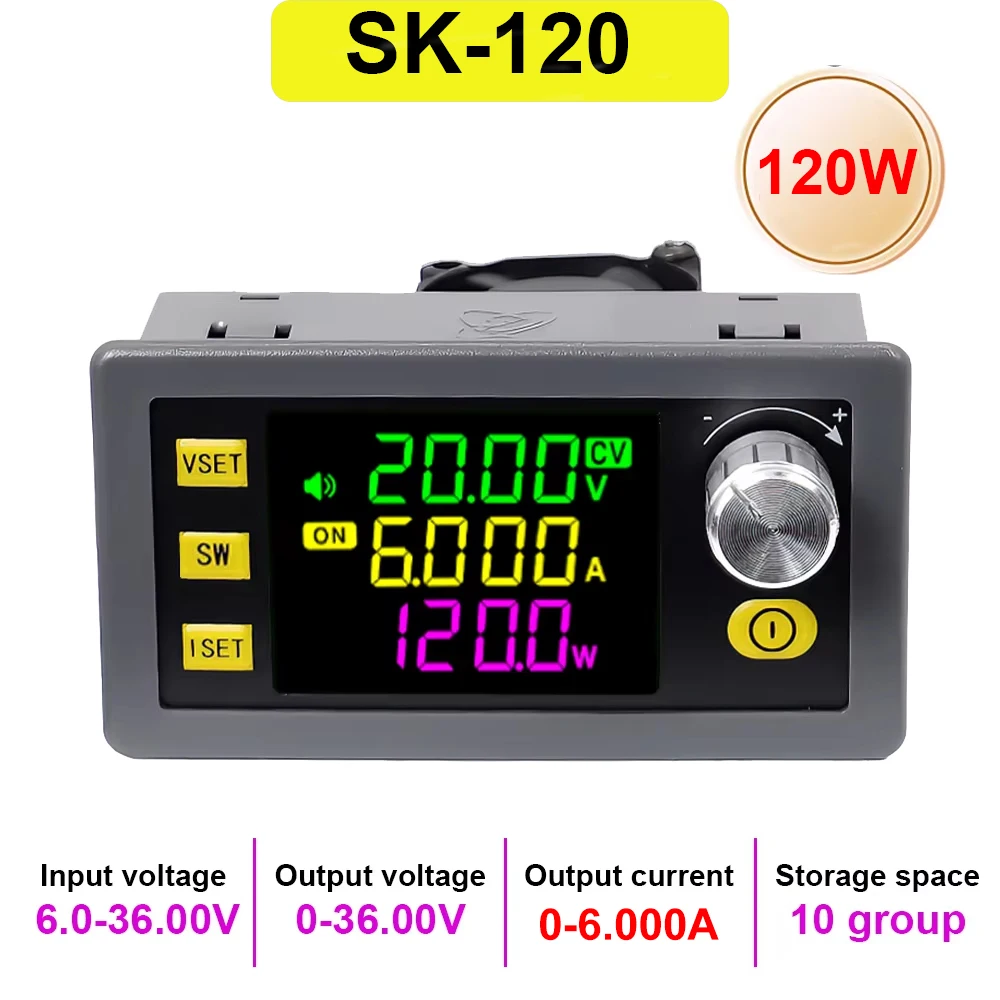

●Model:XY-SK120/SK120 finished
Input voltage: 6.0~36V
Output current: 0~6.000A
Output power: 120W
Voltage resolution: 0.01V
Conversion efficiency: 88% or so
Output Voltage: 0~36V
Voltage accuracy: ±0.5%+1 word
Current accuracy: ±0.5%+3 words
Current resolution: 0.001A
Storage data group: 10 groups
MPPT function: support MPPT solar charging
Buzzer: Yes
Soft start: Yes
Protection mechanism:
Input anti-reverse connection: Yes
Output anti-reverse: Yes
Input undervoltage protection: 5.5-36V
adjustable, default 5.5V
Output over-voltage protection: 0-38V
adjustable, default 38V
Output overcurrent protection: 0 -6.2A adjustable, default 6.2A
Output over power protection: 0-150W adjustable, default 125W
Over-temperature protection: 0-110°C adjustable, default 95°C
Timeout protection: 0 -100H adjustable, default off
Over capacity protection: 0~9999AH adjustable, default off
Super energy protection: 0~9999KWH adjustable, default off
Package List:
DC Buck Boost Converter *1(Delivered according to the purchased model）
