Adjustable DC Regulated Power Supply Switchable Laboratory Lab Bench Power Source Stabilized Switch Power Supply Stabilizer
Description
| high-concerned chemical | None |
| voltage | Others |
| origin | Mainland China |
| current | Other |
| output voltage | DC 0-30V/60V/120V |
| output current | DC 0-3A/5A/10A |
| ac input voltage | 230V±10% 50Hz,115V±10% 60Hz |
| working temperature | 0℃ ~ 40℃,relative humidity <80%RH |
| storage temperature | -10℃ ~ 70℃,relative humidity <70%RH |
| accuracy | 0.5%+2digits |
| resolution:voltage | 0.01V, current 0.001A |
| fuse standard | 3A(AC 220V input), 5A(AC 110V input) |
| product size | 240*155*85mm |
| product weight | 1.2kg |
| choice | yes |

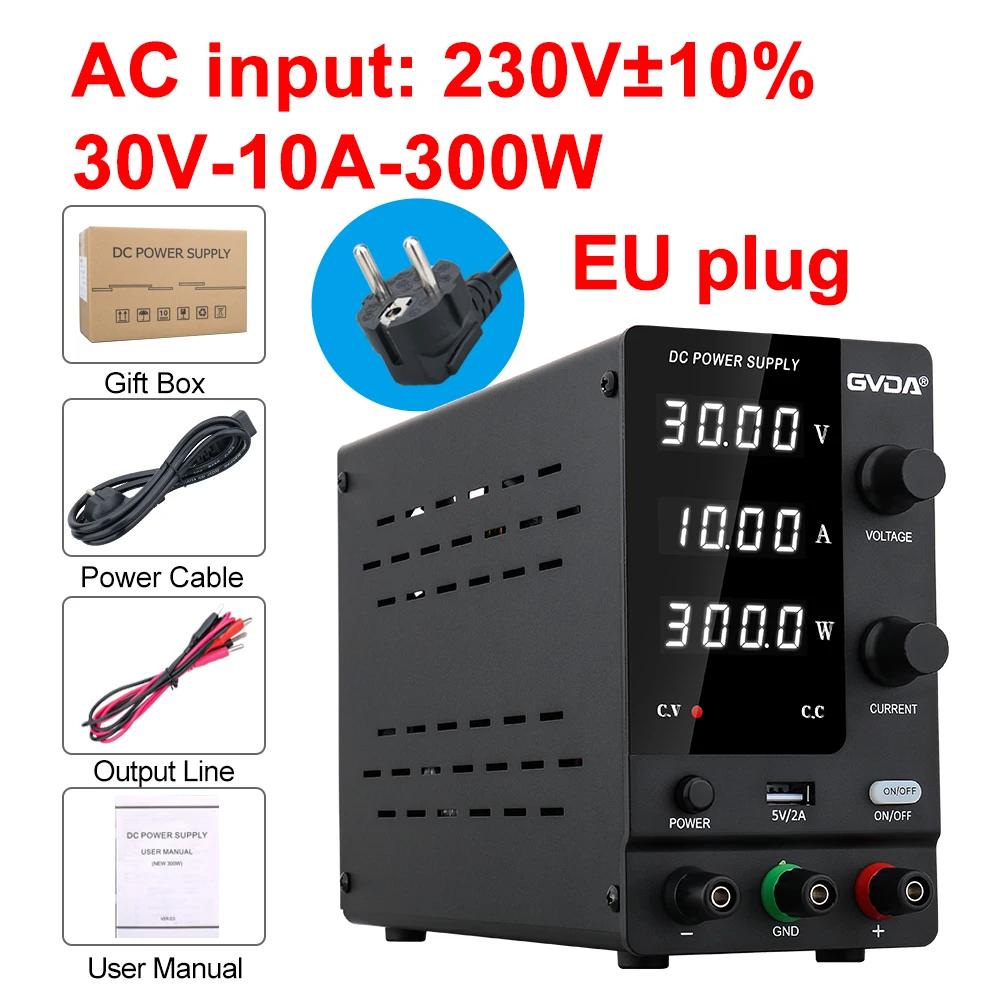

GVDA Adjustable DC Regulated Power Supply Switchable Laboratory Lab Bench Power Source Stabilized Switch Power Supply Voltage Regulator Stabilizer
This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine.
Product Features
1.High-precision LED digital display
2.Constant voltage and current
3.Simultaneous display of V/A/W
4.Overload protection
5.Voltage and current are continuously adjustable
6.Voltage and current can be preset
7.Temperature controlled fan,low noise
8.USB charging socket 5V2A
9.Applied in production line test, electrical maintenance, aging products, battery charging, laboratories scientific research and teaching and all other need DC regulated power supply.
Technical Details
1. Output voltage: DC 0-30V/60V/120V
2. Output current: DC 0-3A/5A/10A
3. AC input voltage: 230V±10% 50Hz,115V±10% 60Hz
4. Working temperature:0℃ ~ 40℃,relative humidity <80%RH
5. Storage temperature:-10℃ ~ 70℃,relative humidity <70%RH
6. Constant voltage state:
voltage stability:≤0.1% + 3mV
low voltage:0.2~0.3% + 3mV
load stability:≤0.5% + 3mV
ripple noise:≤30mVrms
7. Constant current state:
current stability:≤0.2% + 3mA
load stability:≤0.2% + 3mA
ripple noise:≤20mArms (valid value)
8. Accuracy:0.5%+2digits
9. Resolution:voltage 0.01V, current 0.001A
10.Fuse standard: 3A(AC 220V input), 5A(AC 110V input)
11.Product size: 240*155*85mm
12.Product weight: 1.2kg
13.Package weight: 1.7kg
Package contents
1*power supply
1*power cord
1*output load cord
1*manual
1*box
GVDA Adjustable DC Regulated Power Supply
High-precision LED digital display, Constant voltage and current,Simultaneous display of V/A/W,over load protection, voltage and current preset
Voltage, current and power can be display at the same time
Voltage and current are continuously adjustable
Temperature controlled fan. When the temperature is over 50 degree, the cooling fan starts work
USB charging socket 5V2A
