Specification:

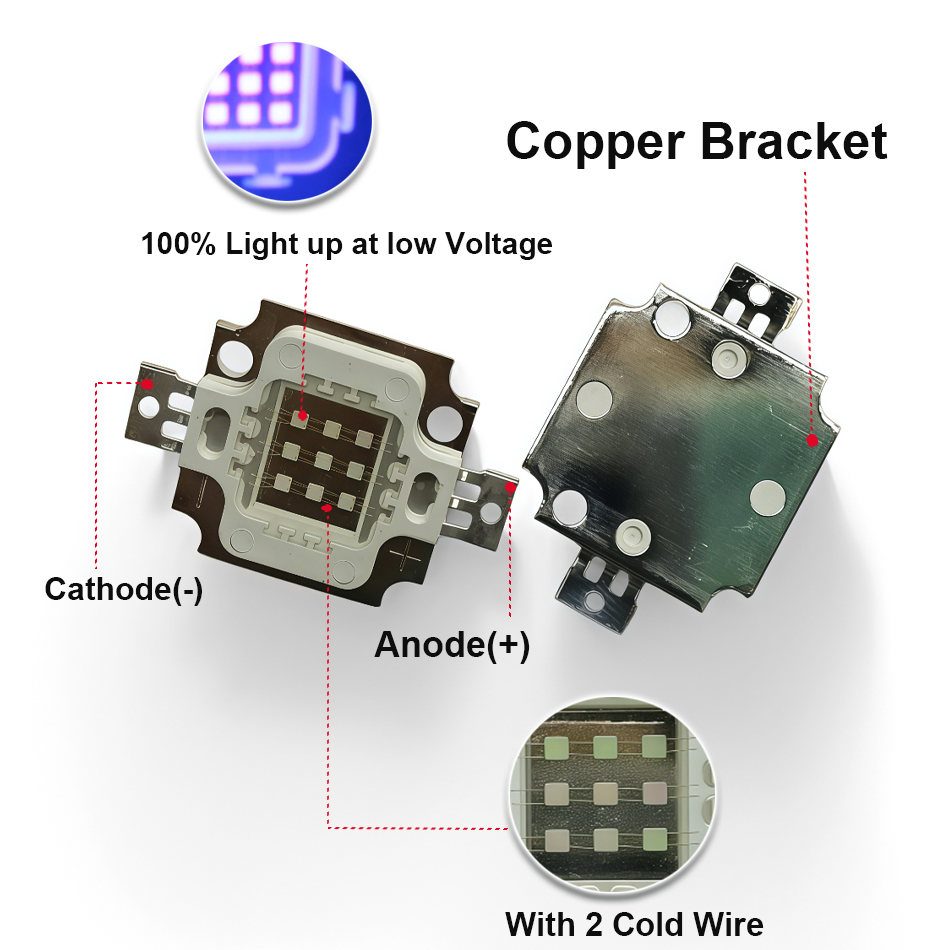

LED Emitter: 10W
DC Forward Voltage (VF) :9-12 V DC
DC Forward Currect (IF) : 900-1050mA

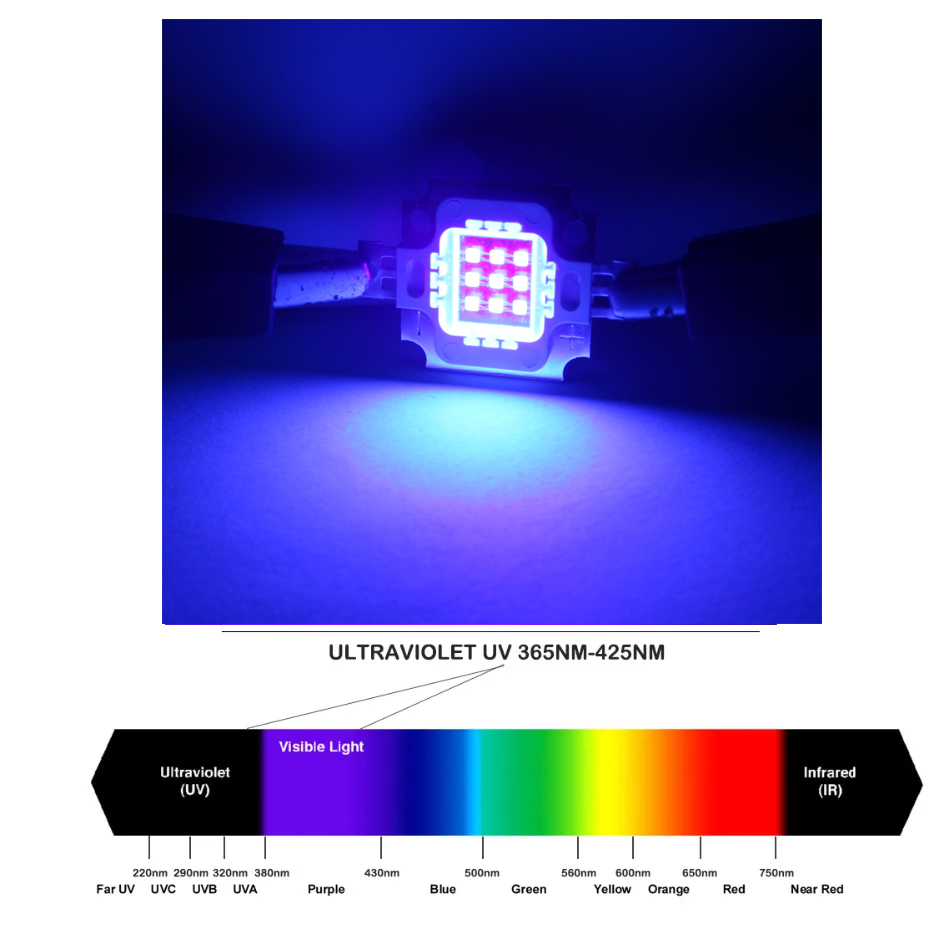

Wavelength : 365nm-370nm; 375nm-380nm; 380nm-385nm; 385-390nm 395nm-400nm; 400nm-410nm;410-420nm
Beam Angle: 120-140 degrees
Life Span Time : > 50,000 hours
Features:
Can disinfect
currency detector
skin testing and photochemical reaction
light curing,
ore appraisal
stage decoration
drive midge
Black light lamp suitable for fish pond , To trap insects feed the fish
The advantages of UV led?
Answer:UV - leds combine long life, sharp line spectra, impact resistant, environmental protection (lead-free mercury welding), adjustable power (through the current regulation), instantaneous open and close etc.And no infrared radiation (applicable to heat-sensitive material),In vacuum and low temperature conditions can also be used,And in uv curing , light catalyst And so on various areas play a role .
UV Light mainly can be applied to
LED Emitter: 10W
DC Forward Voltage (VF) :9-12 V DC
DC Forward Currect (IF) : 900-1050mA
Wavelength : 365nm-370nm; 375nm-380nm; 380nm-385nm; 385-390nm 395nm-400nm; 400nm-410nm;410-420nm
Beam Angle: 120-140 degrees
Life Span Time : > 50,000 hours
Features:
Can disinfect
currency detector
skin testing and photochemical reaction
light curing,
ore appraisal
stage decoration
drive midge
Black light lamp suitable for fish pond , To trap insects feed the fish
The advantages of UV led?
Answer:UV - leds combine long life, sharp line spectra, impact resistant, environmental protection (lead-free mercury welding), adjustable power (through the current regulation), instantaneous open and close etc.And no infrared radiation (applicable to heat-sensitive material),In vacuum and low temperature conditions can also be used,And in uv curing , light catalyst And so on various areas play a role .
UV Light mainly can be applied to
1,UV Glue curing,Ink curing,
2,air-condition and Auto cycle system leak check,
3,Monetary security appraisal(RMB,USD,HKD,EUR,GBP),
4,Cooperate with police work,
5,Special gas and oil and gas pipeline leakage inspection,
6,Seek novelty treasure and find ore and field search tool,
7,Special material fluorescence reflection,
8,Antique appraisal.

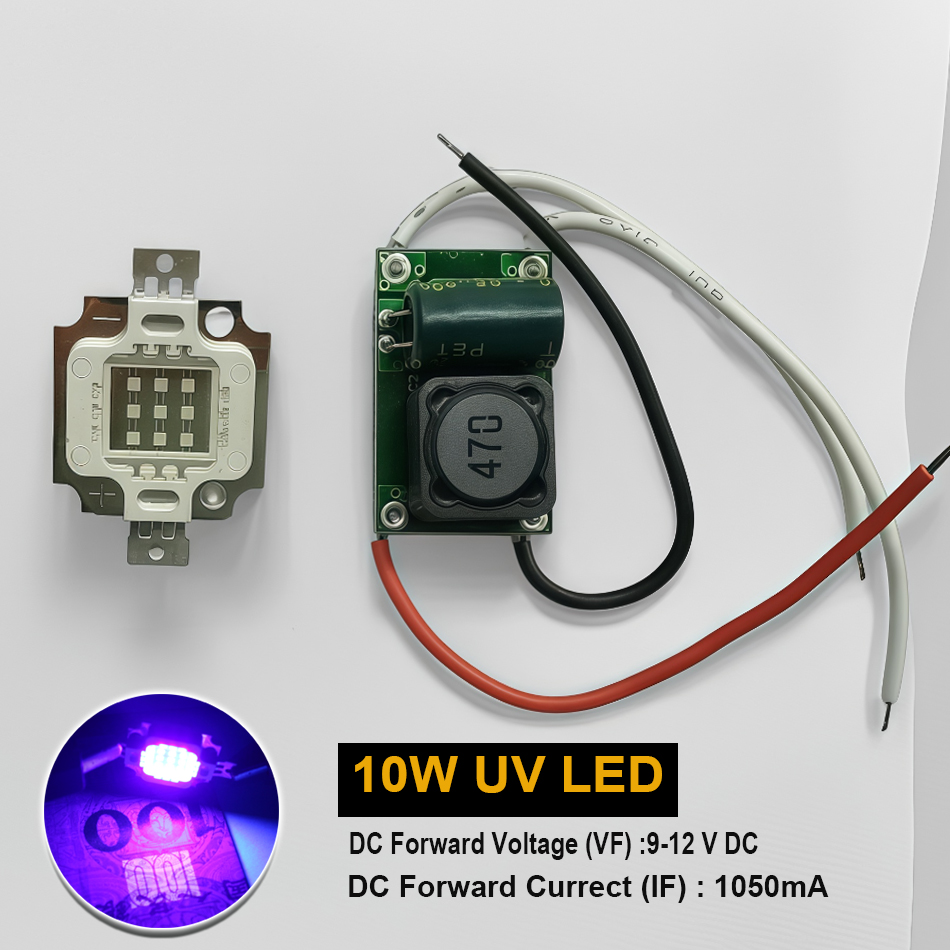

10W Driver
Driving power: 10w
model: 3 series 3 in parallel
Input Voltage: 12-24V
Output Voltage: 9-12V
Current:900mA
Efficiency > 88%
Power Factor >0.98
Operating Temperature: -20~80
Size (L * W * H): 41 mm * 21mm * 16 mm
Driving power: 10w
model: 3 series 3 in parallel
Input Voltage: 12-24V
Output Voltage: 9-12V
Current:900mA
Efficiency > 88%
Power Factor >0.98
Operating Temperature: -20~80
Size (L * W * H): 41 mm * 21mm * 16 mm
Package:
1pcs led lamp 1pcs 10w driver
