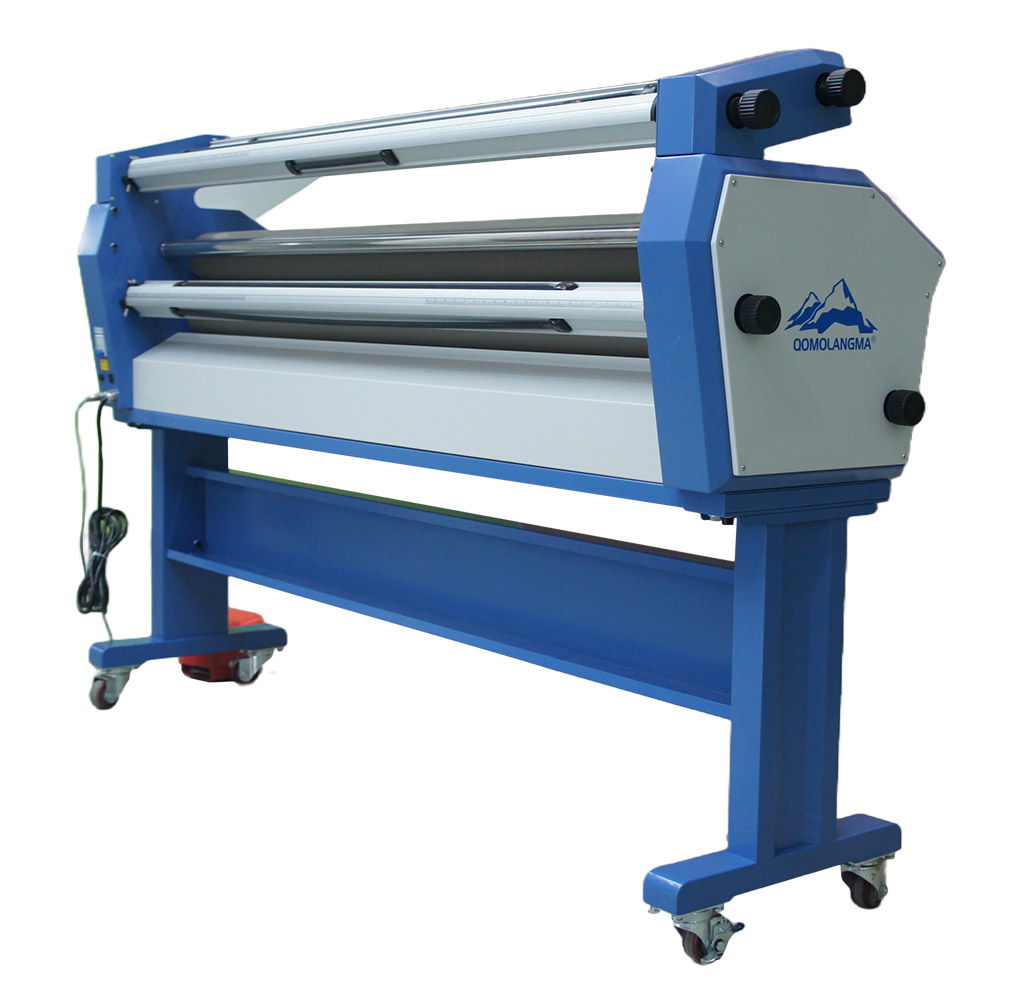

Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
US Stock, 3 Years Warranty!
Showroom in CA, USA.
24H Technical Support，Free Engineer Technical Traning!
No extra fee cost , No customs handling Troubles !!!

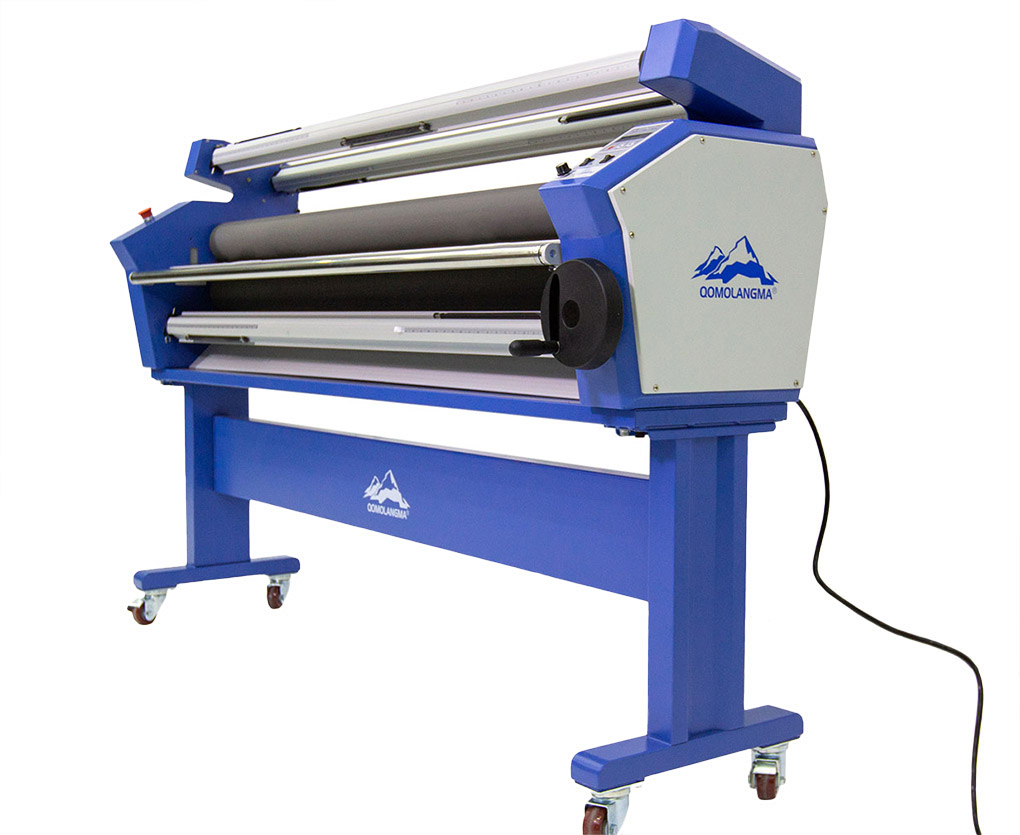

Qomolangma 55in full-auto wide format roll to roll top heat assist laminator and mounting machine. No wrinkle, no silvering, no slidding!
Equipped with heat on the top roller to activate the adhesive on your pressure sensitive lamination film, you can rest assured that you will achieve the perfect finish every time.
3 years warranty!!
WA series designed for wide format laminating or mounting application use. Entry level Full-auto roll to roll model with metal sheet construction.
The machine will be equipped with four knives
Used for:
A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre - masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Cold roll laminators are the perfect option for someone looking to enter the wide format graphics market. Equipped with all of the features needed to produce most applications, Qomolangma cold roll laminator promises quality, performance and safety – at an affordable price.
• Great for mounting prints to boards
• Over laminating digital prints
• Applying application tapes, applying double side adhesives and vinyl
Features:
• Good color reducibility and light transmittance, free of bubbles and snowflake point!

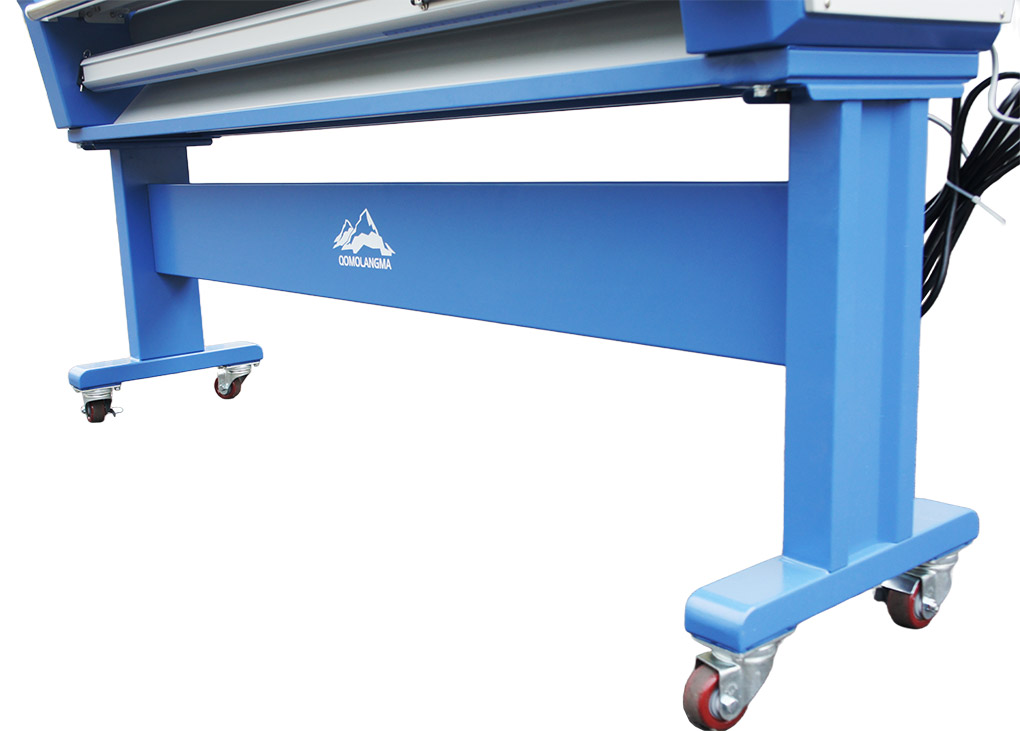

• Free heavy duty floor stand with caster wheels
• Laminates graphics up to 55in wide
• Drop in type interchangeable 3 inches aluminum shaft
• Manual nip adjustment up to 1.38 inch for handling of most substrates
• 102mm (4in) bigger rollers for best quality laminating control
• Safety eyes for increased operator safety

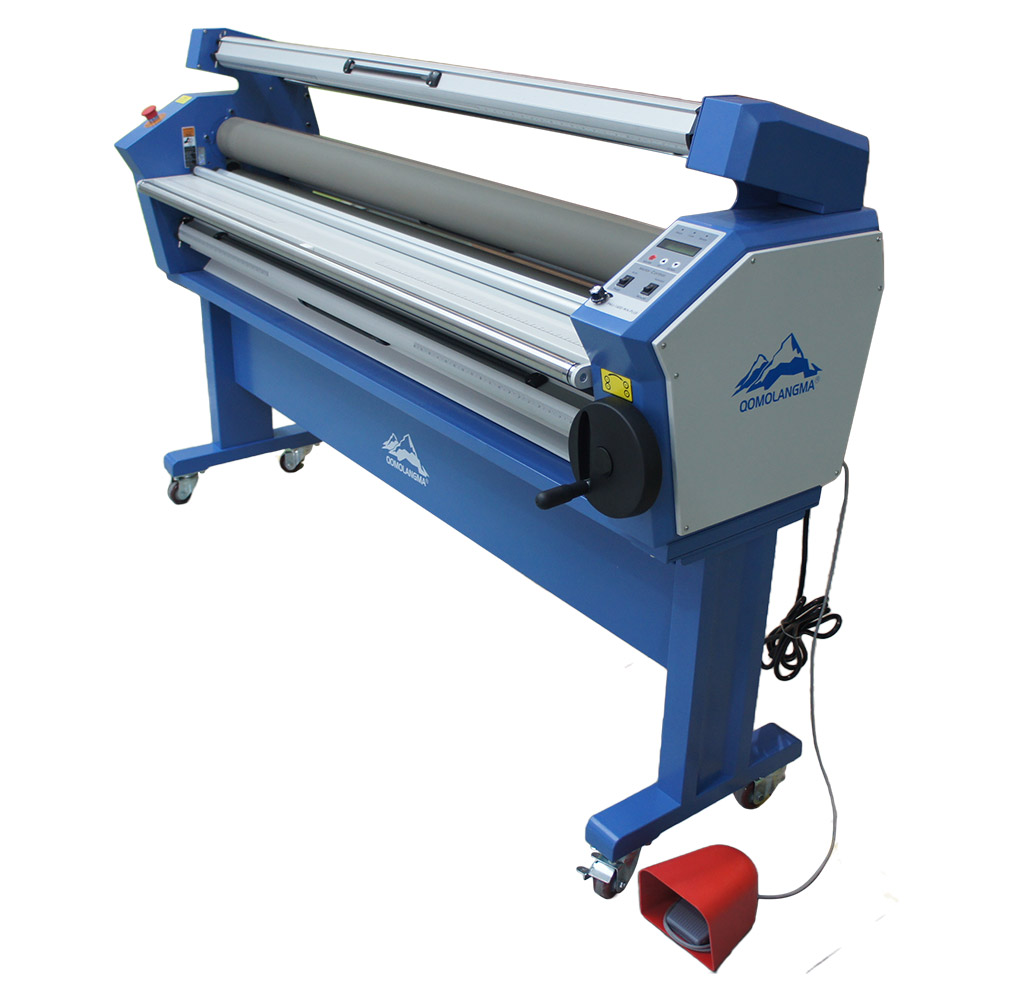

• Foot switch for hands free operation
• Removable front worktable for easy film setup
• Adopt new - style aluminum alloy supporting roller.
• One side hand crank lift up system

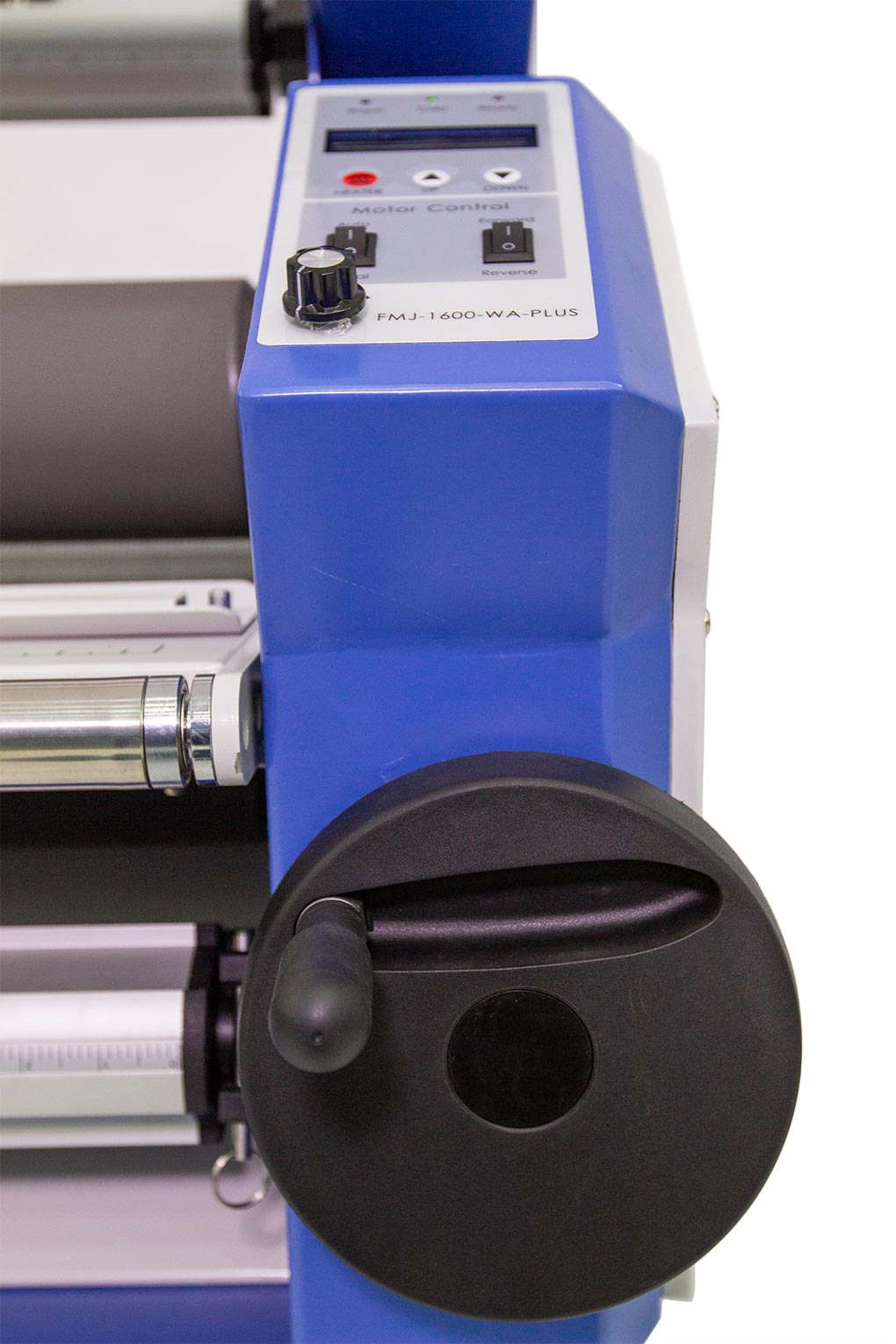

• Button type control panel
• Variable speed control
• Forward and reverse direction control

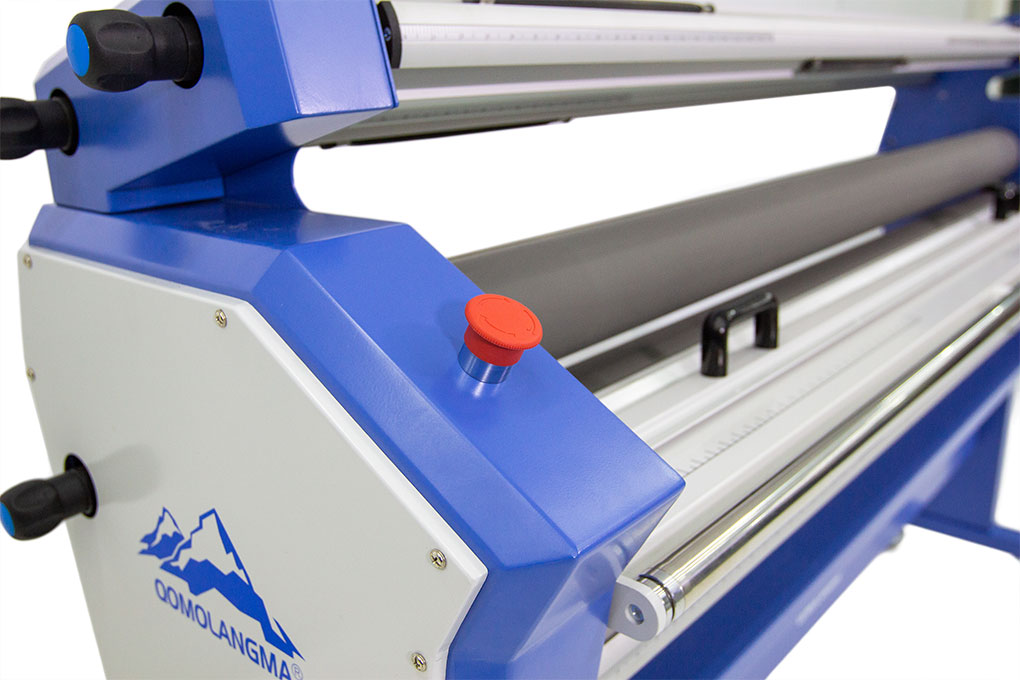

• E-stop and photocell installed for safety
• Both auto and foot pedal switch mode
• Removable pressure plate

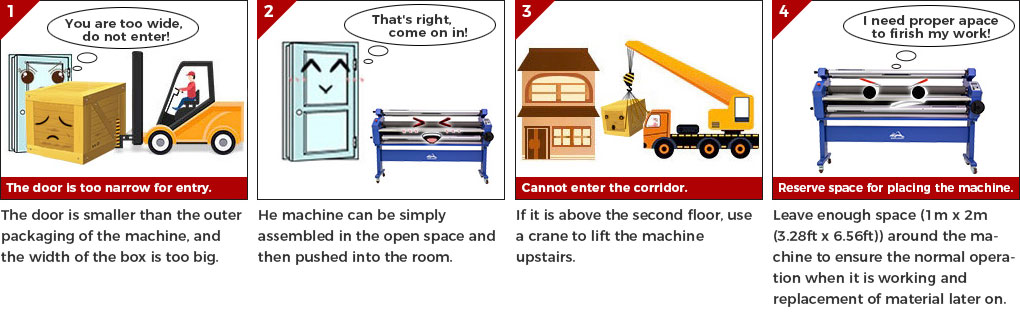

• Stand assembled at customer site
Specification:
Roller maximum load capacity: 250 kg (551.16lbs)
| FMJ-1600-WA-PLUS |
| Max. Working Width |
1600mm (63in) |
| Variable Working Speed |
0 - 6m / min (19.685ft / min) |
| Max. Nip Opening |
35mm (1.38in) |
| Roller Diameter |
102mm (4in) |
| Top Roller Material |
Silicon rubber |
| Bottom Roller Material |
Natural rubber |
| Drive Motor |
90W |
| Power Consumption |
1400W |
| Power Requirement |
AC110V / 60Hz, 16A
|
| Maximum Internal Diameter of Film Core |
3 inches |
| Diameter Rolls of Media |
Roll of laminates: 180mm (7.1in)
|
| Roll of prints: 150mm (5.9in) |
| Forward / Reverse |
Yes |
| Foot Pedal |
Yes |
| Auto Rewind Liner Pickup |
Yes |
| After Laminating Pickup |
Yes |
| Emergency Stops |
Yes |
| Machine Size |
2020mm x 550mm x 1250mm (79.5in x 21.65in x 49.2in) |
| Net Weight |
204kg (448.8lbs) |
| Shipping Dimensions |
2105mm x 605mm x 900mm (83in x 23.8in x 35.4in) |
| Gross Weight |
258kg (568.8lbs) |
| Maximum heating temperature |
40℃ (104F) |
Usage:

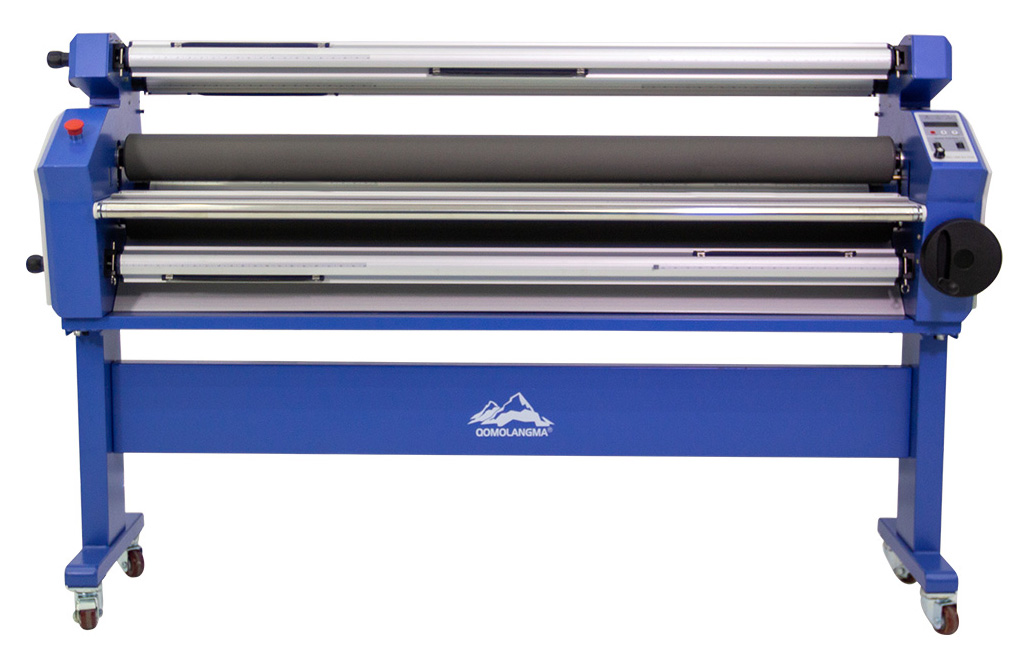

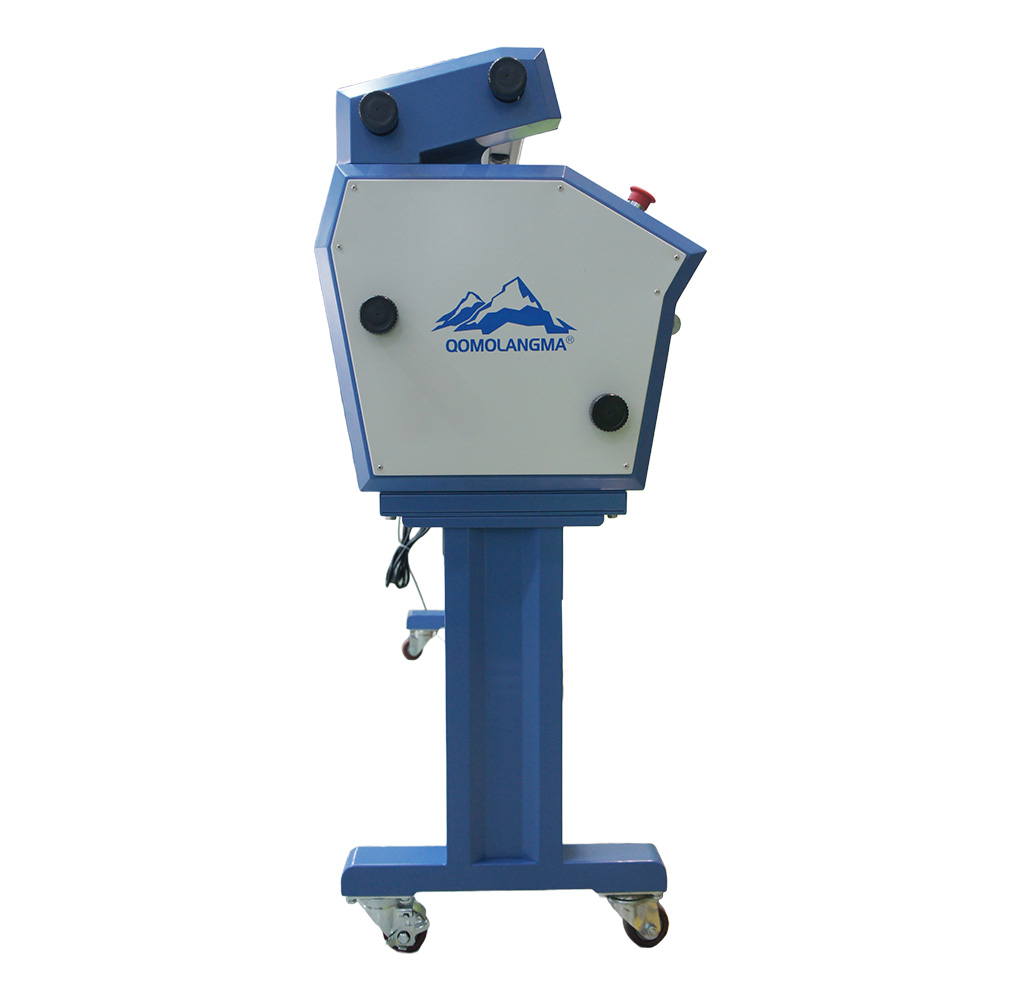

Detail Pictures:

Note: please contact customer service to purchase the cutter in the picture below

Application:
Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
