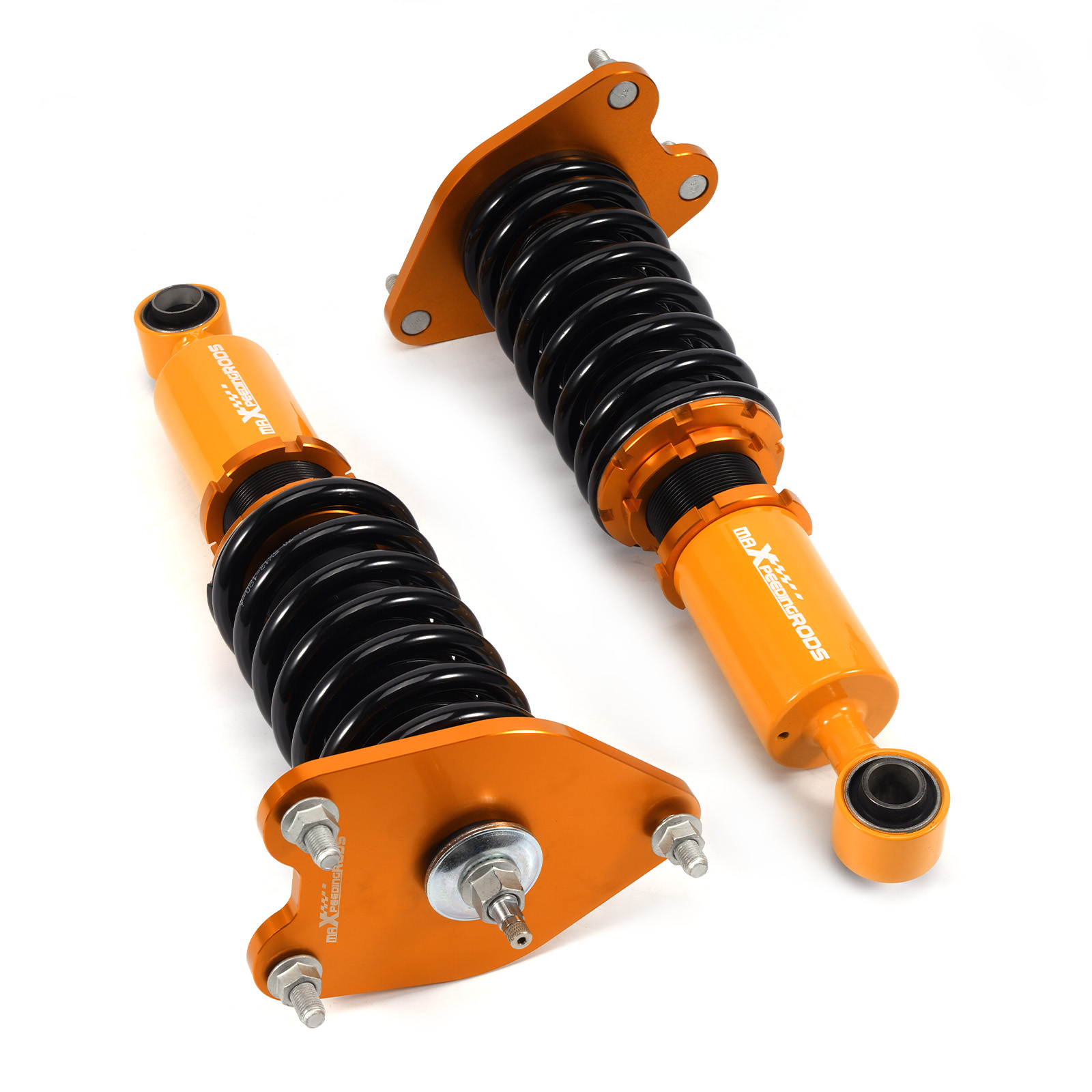

Coilovers 24 Step Damper Shock Suspension Kit For Mitsubishi Eclipse 2006-2012

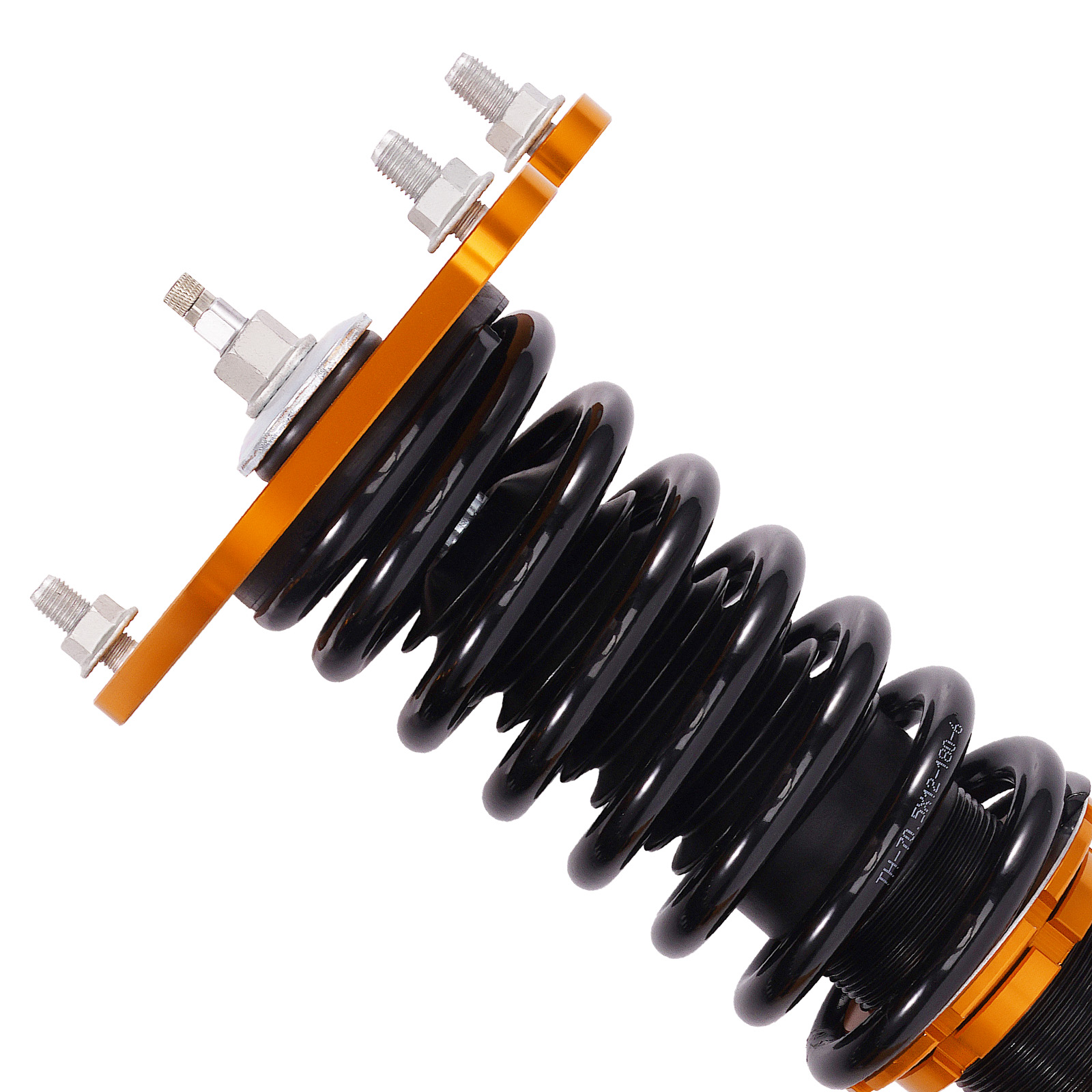

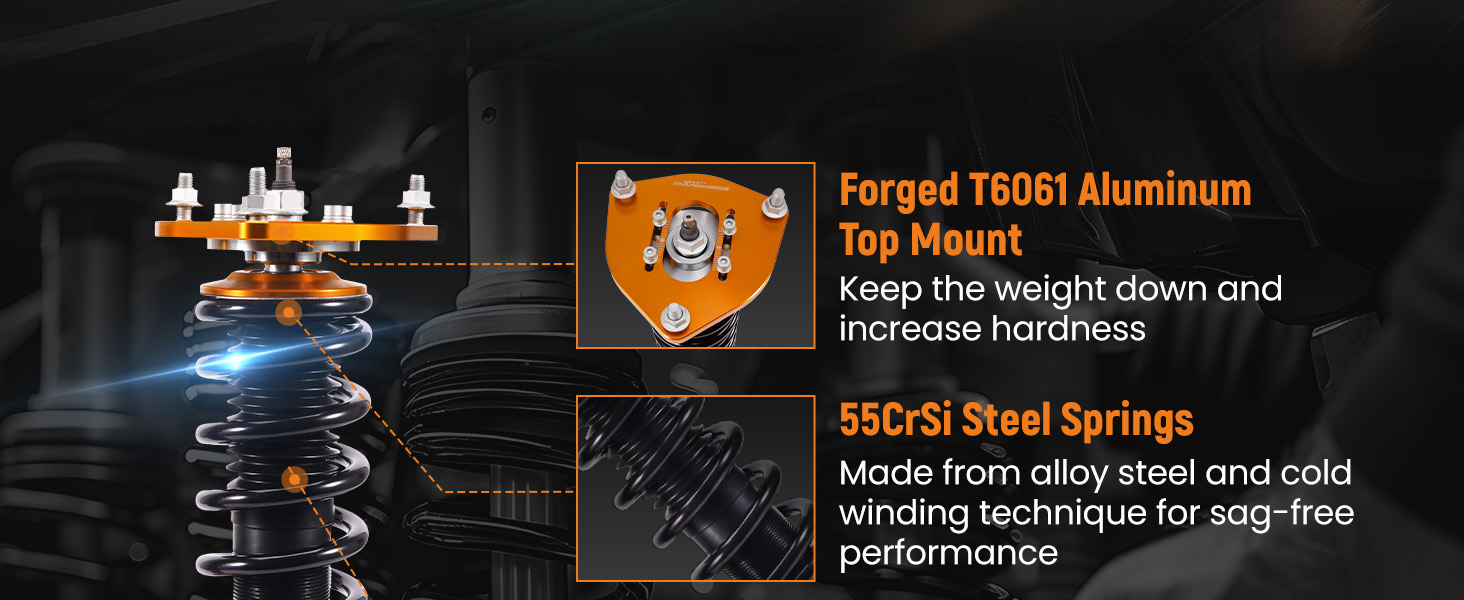

Aluminum Top mounts with Pillow ball

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver.

55mm Large Diameter Damper Body

Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

Drops From 1 to 3 Inch From Factory Ride Height

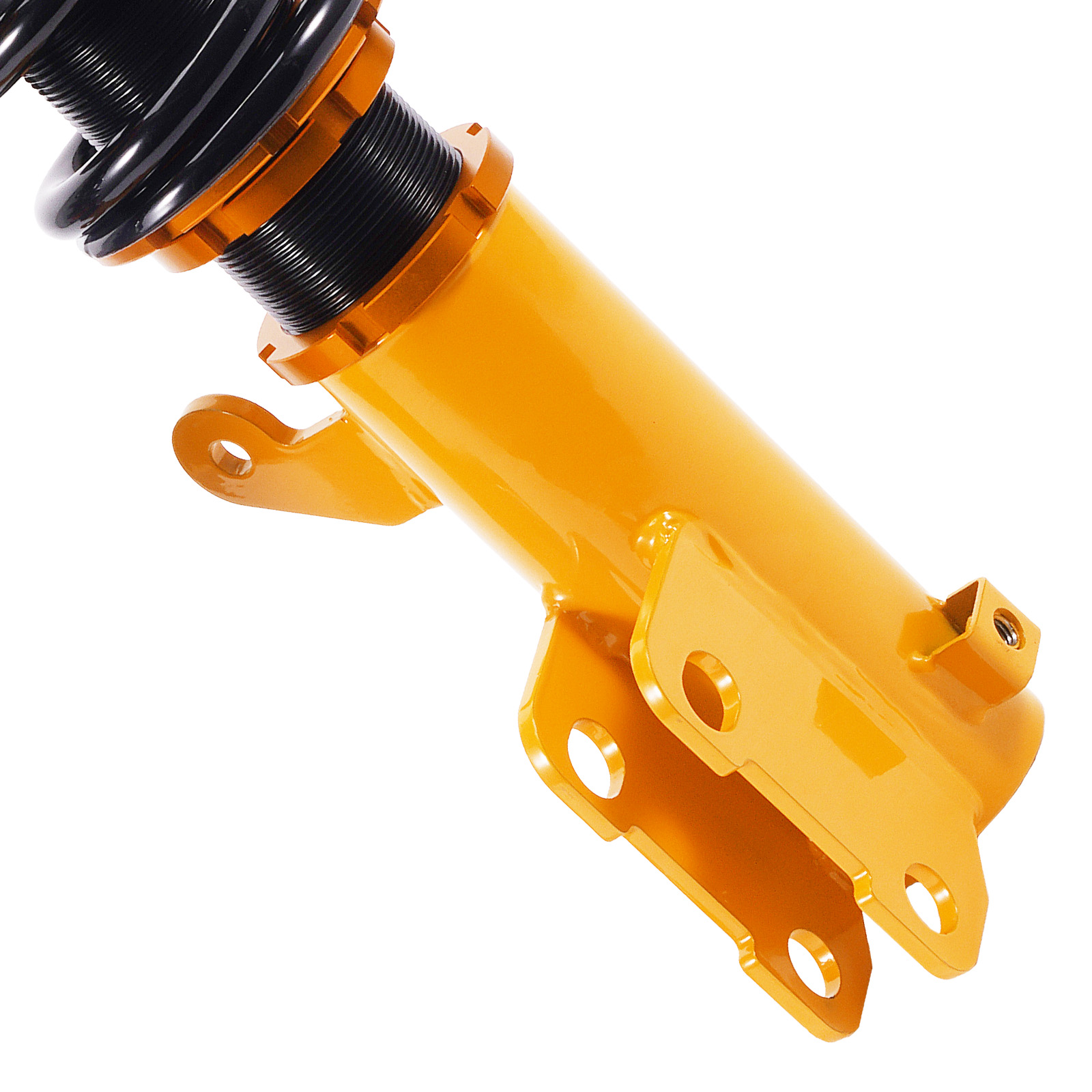

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

High Rigidity 55CrSi Steel Cold-bent Coil Springs

Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Height adjustable Yes
Damper adjustable Yes
Front Spring length 200 mm
Rear Spring length 180 mm
Front spring length 7 kg/mm(392lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Front Damper Body Diameter Φ55mm (2.17")
Rear Damper Body Diameter Φ55mm (2.17")
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

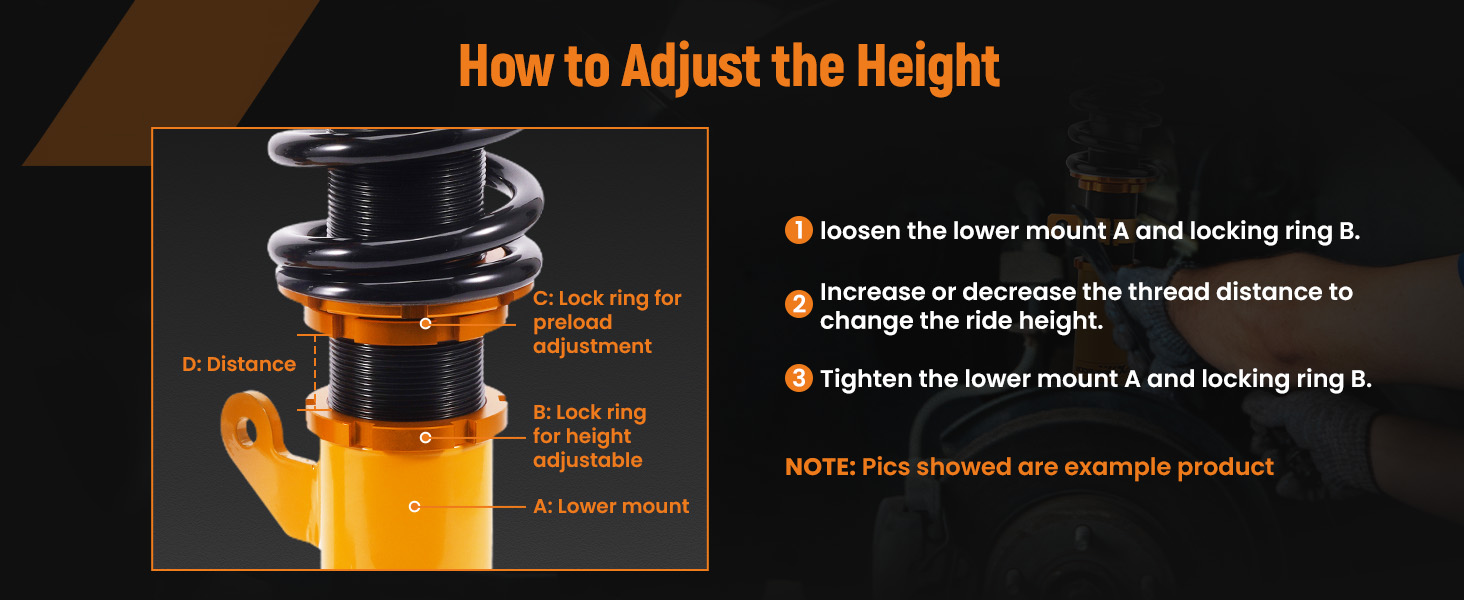

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

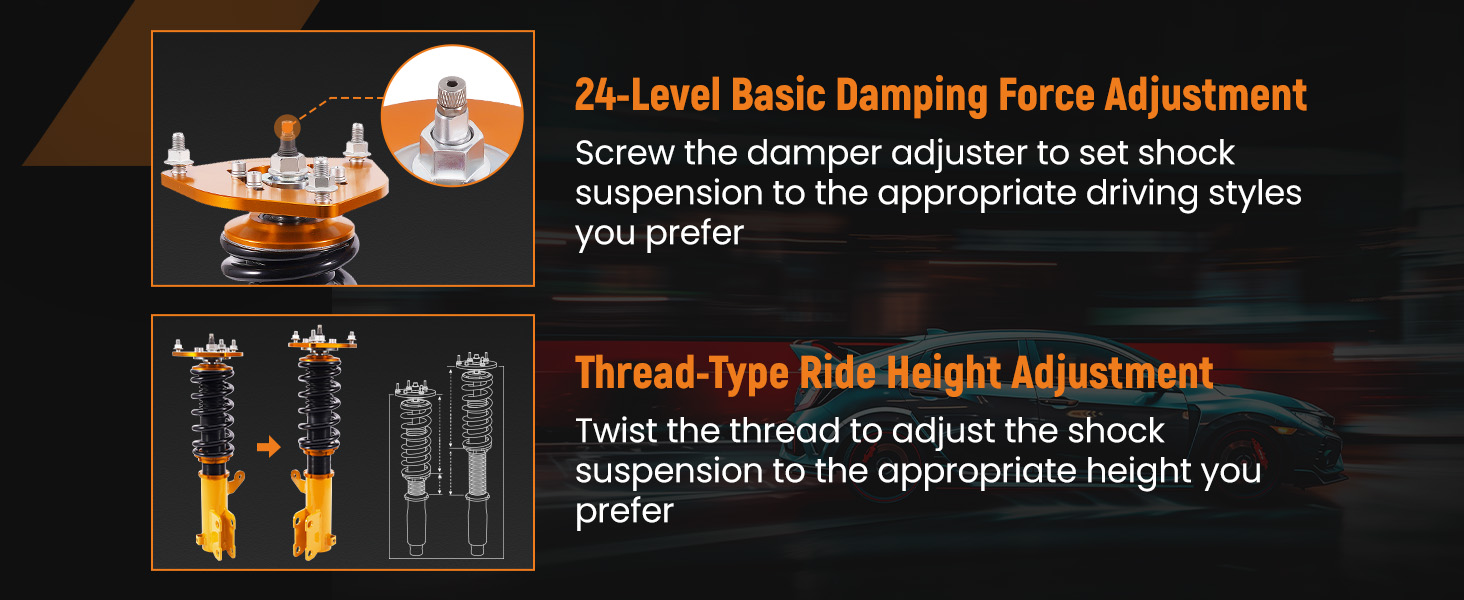

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.


Application


For Mitsubishi Eclipse IV 2006–2012  (DK2A/DK4A)
For Mitsubishi Galant (DJ) 2004-2012


Specification

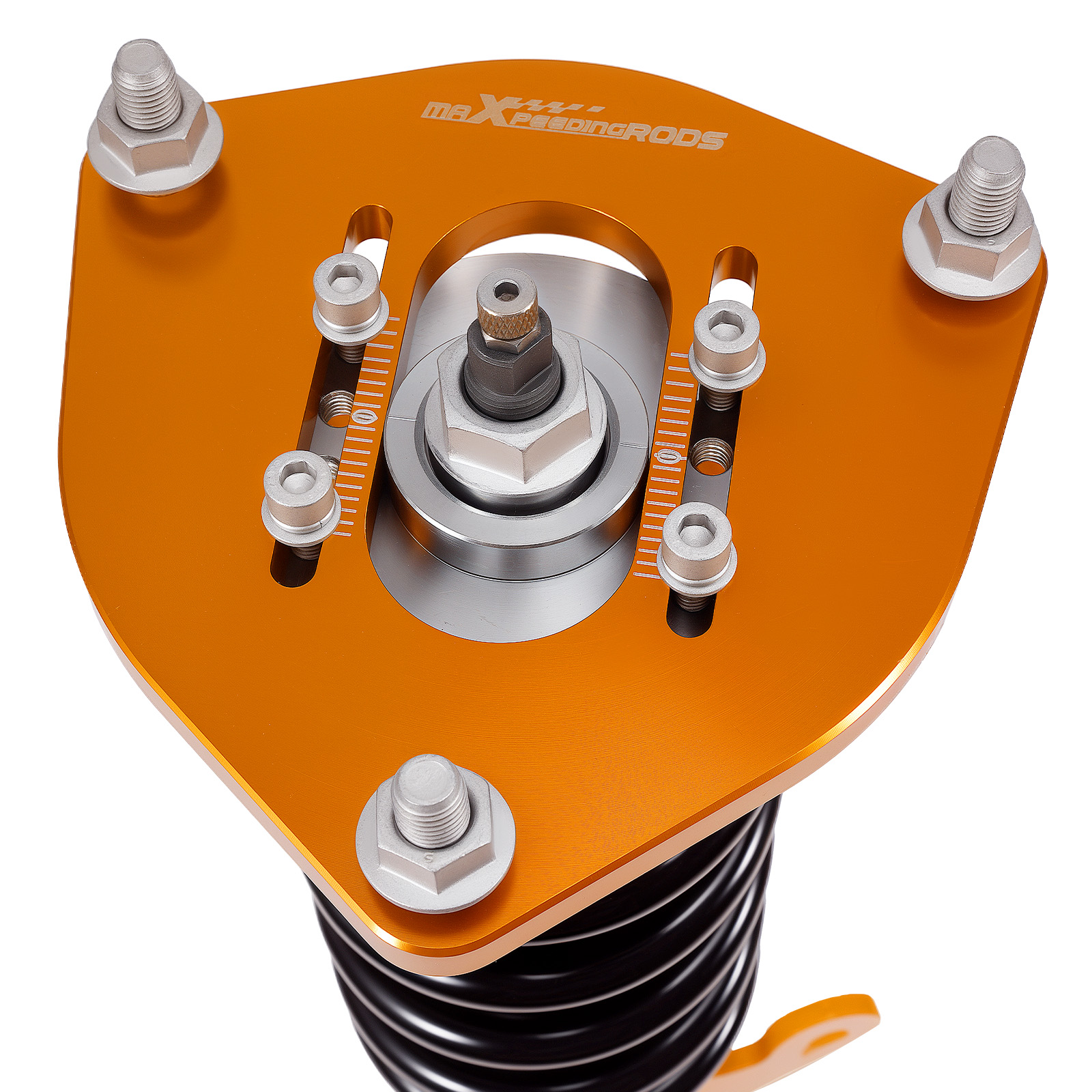

- Front top mount: Pillow ball with camber plate
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available, front only
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 7 kg/mm(392lbs/in)
- Spring Rate Rear: 6 kg/mm(336lbs/in)

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 200 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners
1x Allen wrench


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

✅ 100% BRAND NEW | 1 YEAR LIMITED WARRANTY ✅ Full Length Adjustable Ride Height For Custom Stance Without Suspension Compromise ✅ 24 Levels Damping Force Adjustable For Precise Comfort And Performance Tuning ✅ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response ✅ 55mm Large Diameter Damper Body Delivers Superior Stability And Control ✅ 55CrSi Cold-Bent Steel Springs Provide Max Strength And Long-Term Durability ✅ T-6061 Billet Aluminum Construction With High-Durability Thrust Seats & Reinforced Rubber Bushings ✅ Perfect for Daily Commuting and Weekend Street Performance
