Lowering Shock for Ford Ranger 2WD 1989-1997 Rear 4-5.5 Twin Tube Drop



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Type：Lowering Shock

Compatible Height：Rear 4"-5.5"

Material：High Tensile Strength Carbon Steel

Finish：Powder coated

Bushing material: Rubber

Nitrogen charged：yes

Dust cover equipped: yes

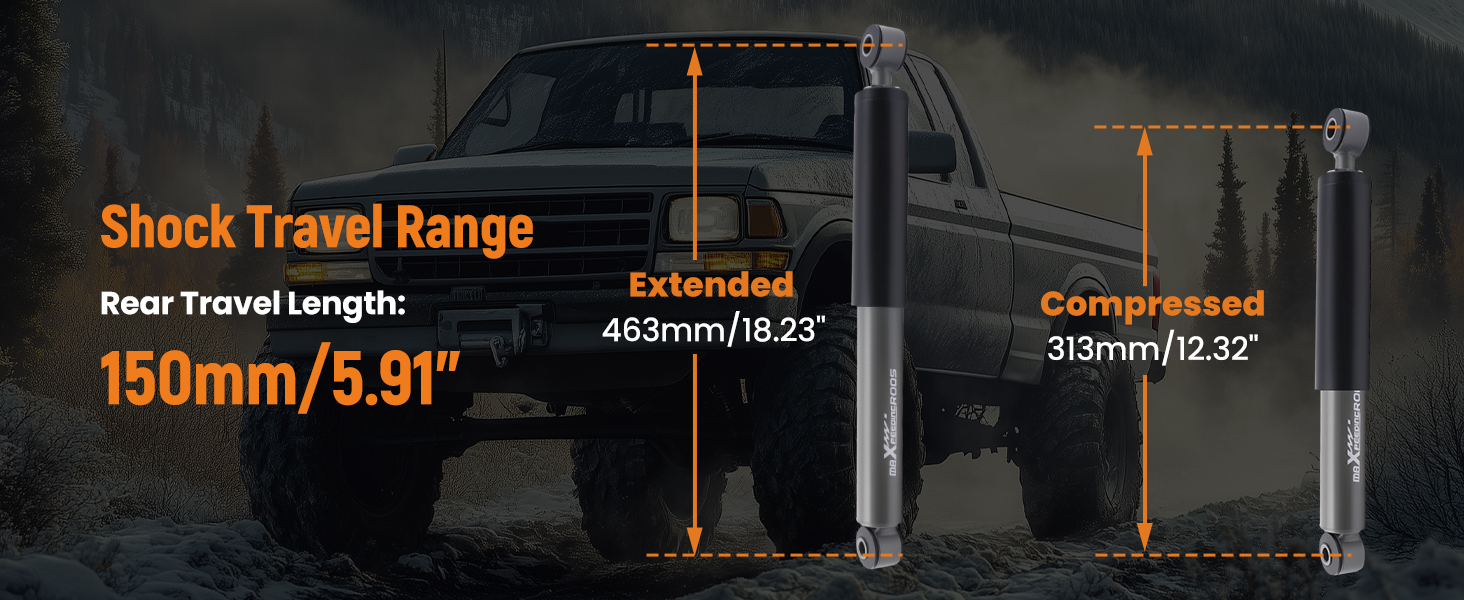

Travel：150mm/5.91"

Extended length:463mm/18.23"

Collapsed length: 313mm/12.32"

Shock Structure

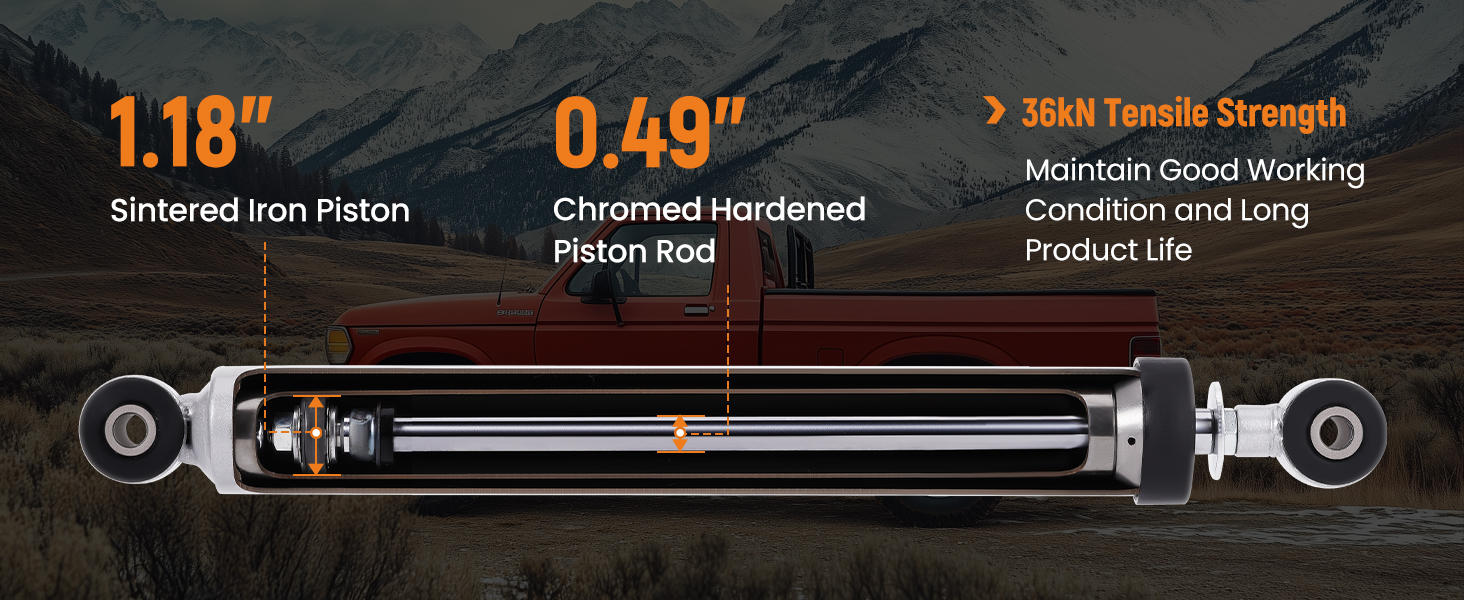

  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"

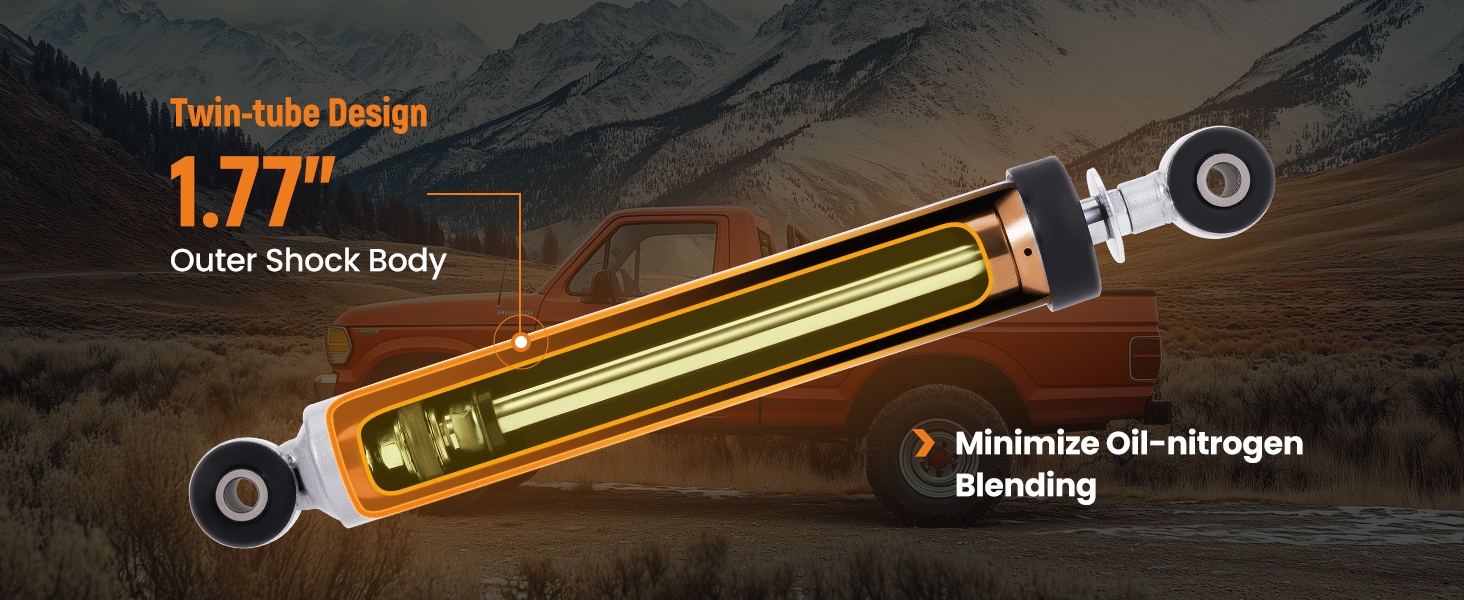

  • Outer cylinder diameter: 45mm/1.77"
Application

for Ford Ranger 2WD 1989 - 1997

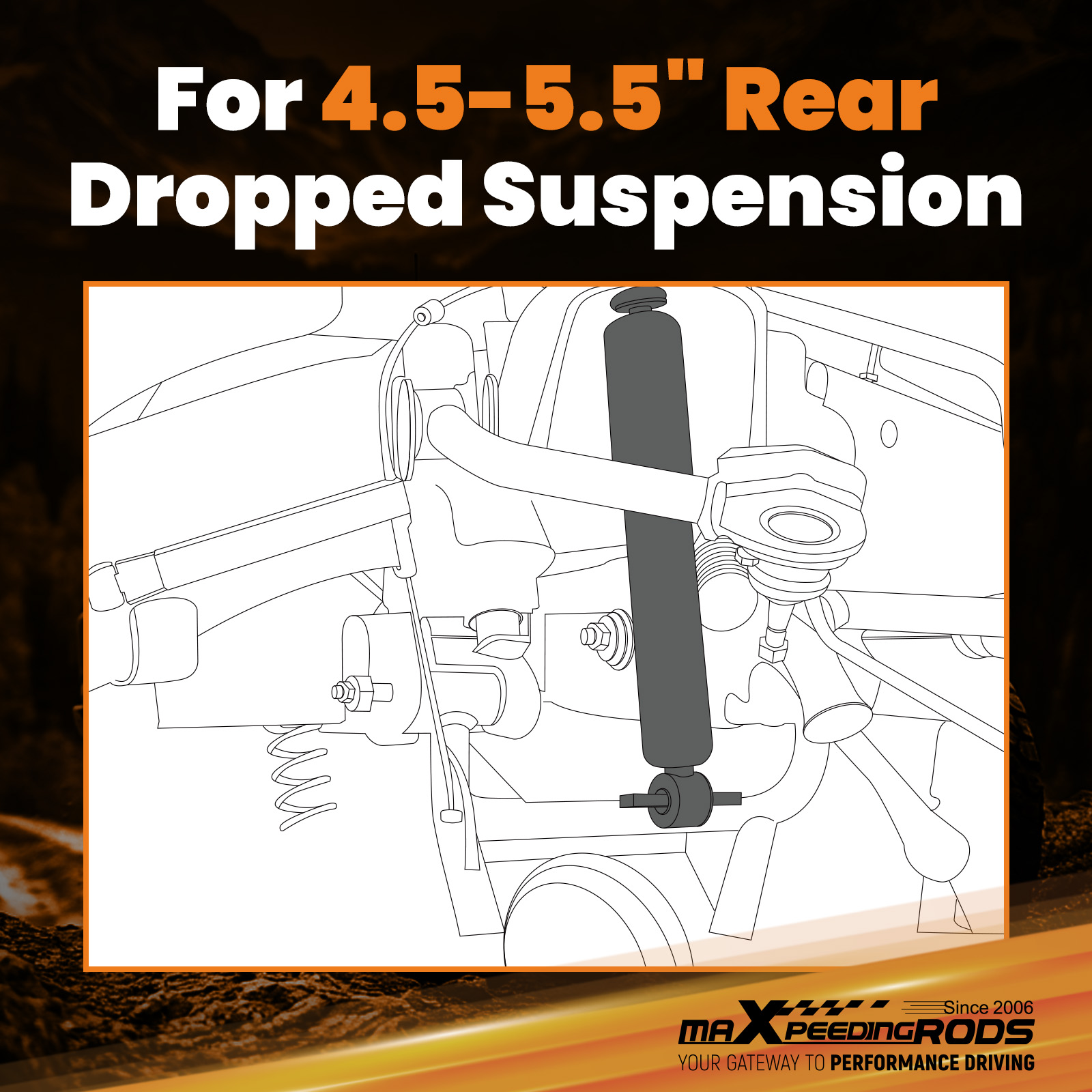

NOTE：ONLY fits models equipped with 4"-5.5" of suspension lowering

G1 Shock

Feature

High-pressure nitrogen charged twin-tube shock absorber with high durability.

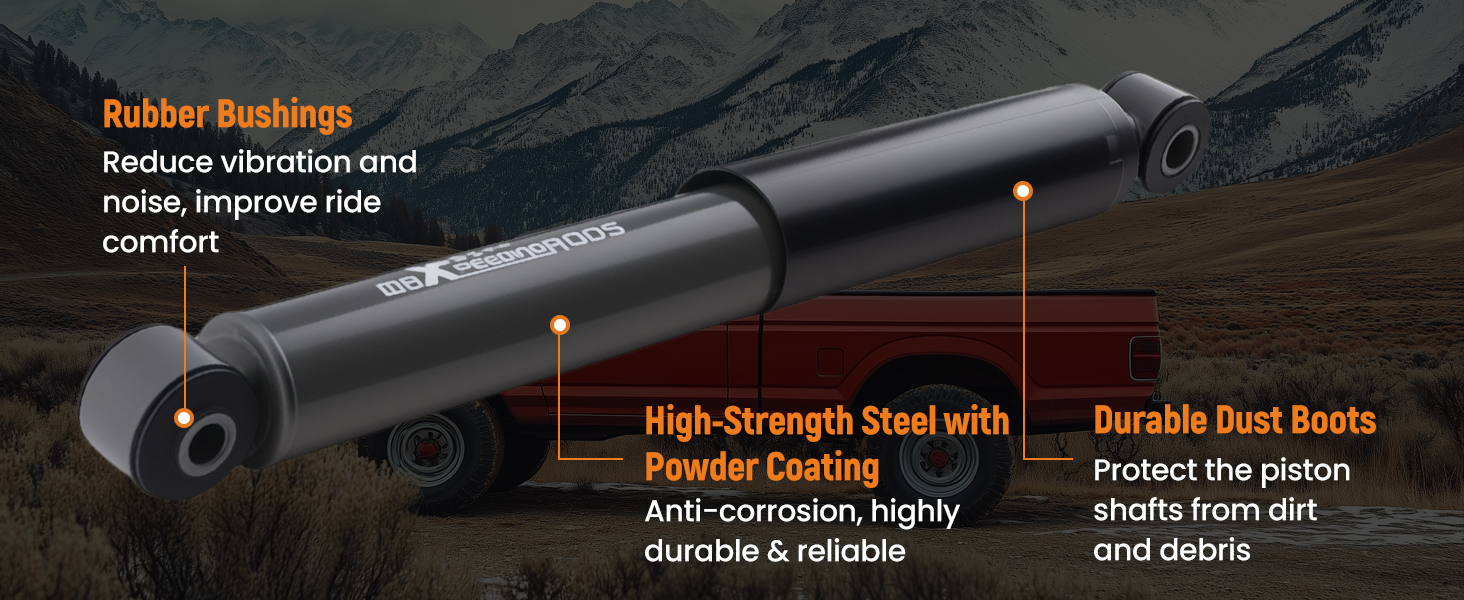

Rubber bushings for better absorption.

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

45mm body diameter for better heat dissipation

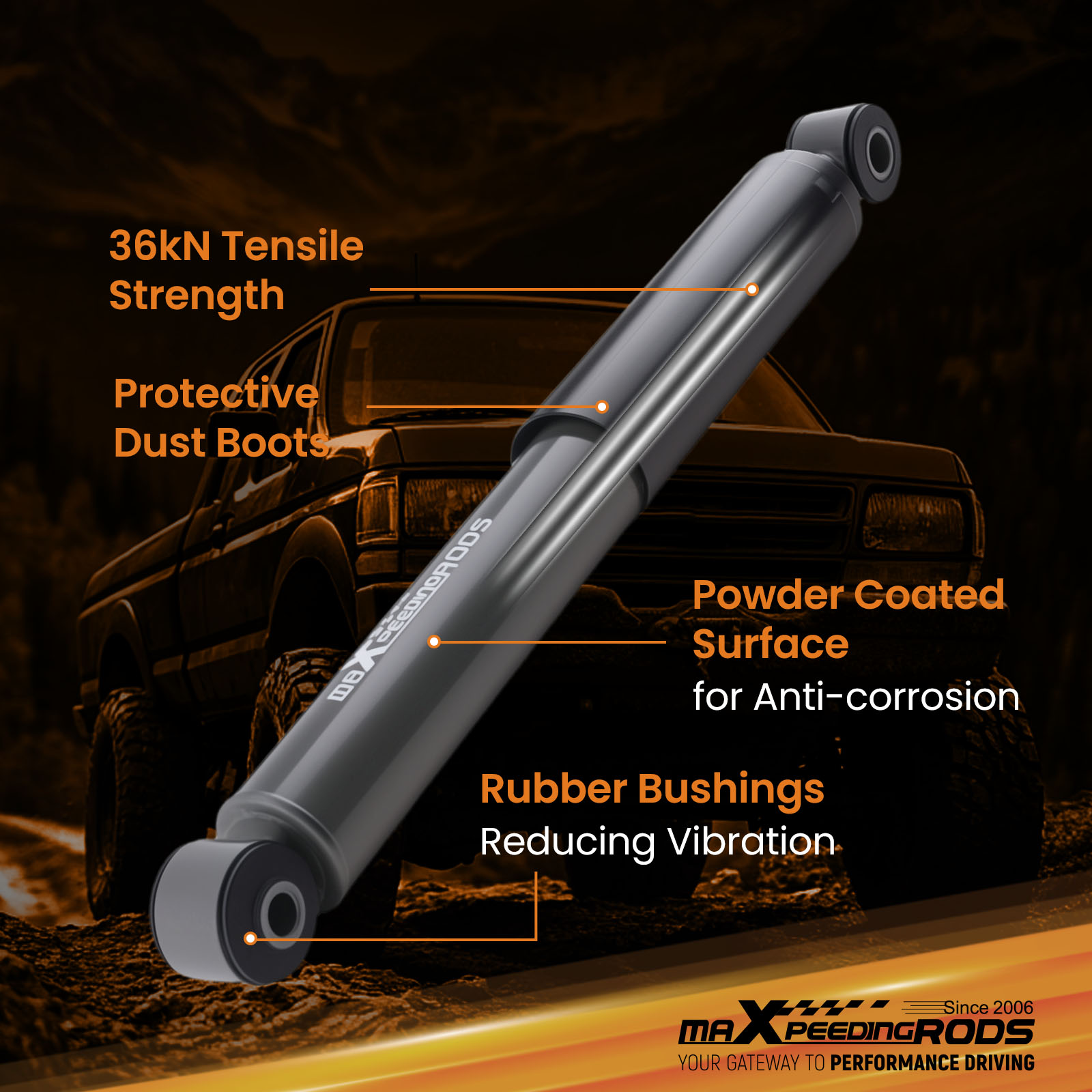

36KN Tensile Strength.

Dust cover included prevent the shaft rod and oil seal from damaging.

Precision Welding.

Easy bolt-on installation.

Power coated surface provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.
