The Option Audio AIR-D6 is a micro-format 6-channel Class D amplifier delivering 6 × 95W RMS at 4 ohms or 6 × 150W RMS at 2 ohms (300W RMS bridged), part of the Option Audio AIR compact amplifier range.

Key specifications

• Channels: 6, Class D
• RMS power: 6 × 95W (4 ohms) / 6 × 150W (2 ohms)
• Bridged RMS power (4 ohms): 300W
• High-pass and low-pass filters: 40Hz–400Hz
• Frequency response: 20Hz–20kHz
• Minimum impedance: 2 ohms
• Inputs: high-level with auto turn-on
• Dimensions (W × H × D): 105.7 × 41.7 × 258mm
• Recommended cable: 10mm²

Also in the AIR range: the AIR-D1 mono subwoofer amplifier and the AIR-D4 4-channel amplifier.

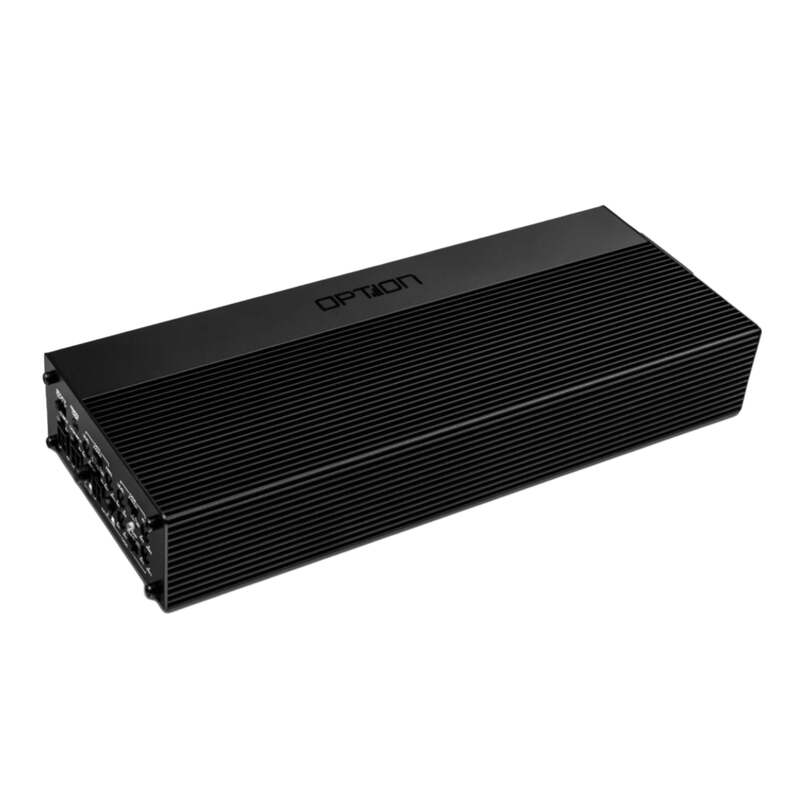

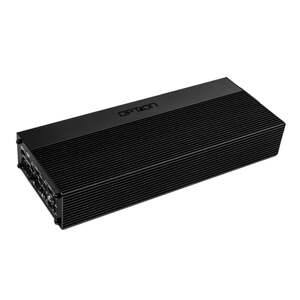

Option Audio AIR-D6 6-channel amplifier

Maximum power for the entire system: Six channels rated at 6 × 95W/150W RMS (4/2 ohms) let you run a front system, rear speakers and a subwoofer from a single unit.

Ultra-compact micro design: Despite its output, the AIR-D6 is extremely small. The space-saving housing fits behind the dashboard, in the glove compartment or under a seat.

OEM integration: High-level inputs with auto turn-on mean the AIR-D6 works directly with factory head units that have no RCA outputs. It detects the audio signal automatically and powers on without a separate remote cable.

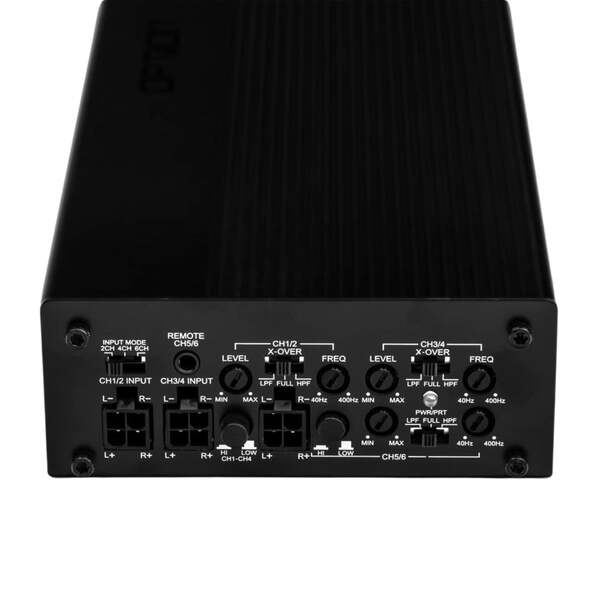

Flexible configuration: Run all six channels for a full speaker setup, or bridge channels to deliver 300W RMS at 4 ohms for demanding components or a subwoofer. Integrated high-pass and low-pass filters (40Hz–400Hz) allow precise frequency separation.

Efficient Class D technology: The digital circuit delivers high efficiency with minimal heat generation. 2-ohm stability allows a wide range of speaker combinations.

• Class-D power amplifier: Yes
• Operating voltage: 10-16V
• RMS power (4 ohms): 95 watts
• RMS power (2 ohms): 150 watts
• RMS power bridged (4 ohms): 300 watts
• RMS power bridged (2 ohms): not possible
• Frequency response: 20Hz-20kHz
• High-pass filter: 40Hz-400Hz
• Low-pass filter: 40Hz-400Hz
• Total harmonic distortion (THD): <0.1%
• Minimum loudspeaker impedance: 2 ohms
• Signal-to-noise ratio (A-weighted): >90 dB
• Security: 60A
• Dimensions (W x H x D): 105.7mm x 41.7mm x 258mm
• Cable cross-section (recommended): 10 mm²

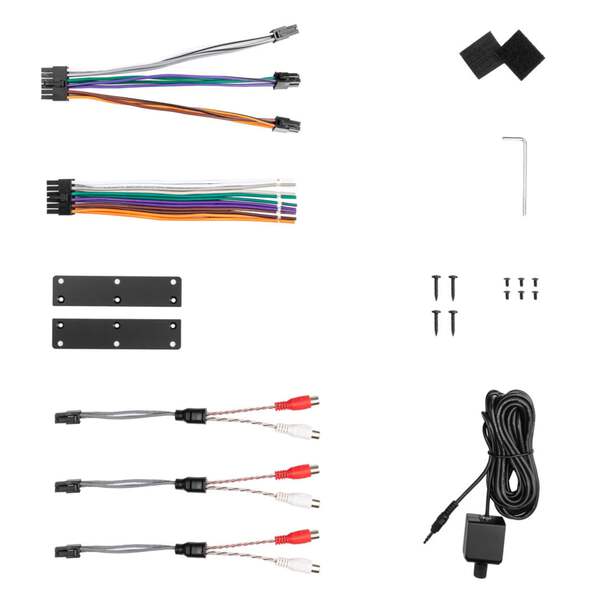

• OPTION AIR-D6 6-channel amplifier
• Subwoofer level remote control including Velcro strap for flexible mounting
• 3x Plug & Play adapters for input signal to RCA
• 1x Plug & Play adapter for output signal to Molex
• 1x Plug & Play adapter for output signal to loose ends
• Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
• Allen key
