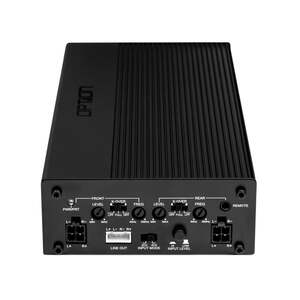

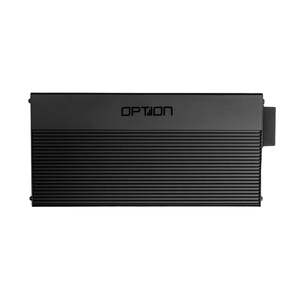

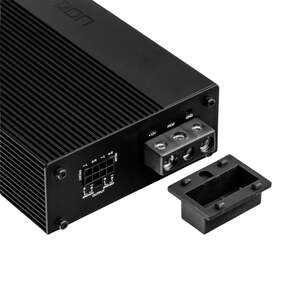

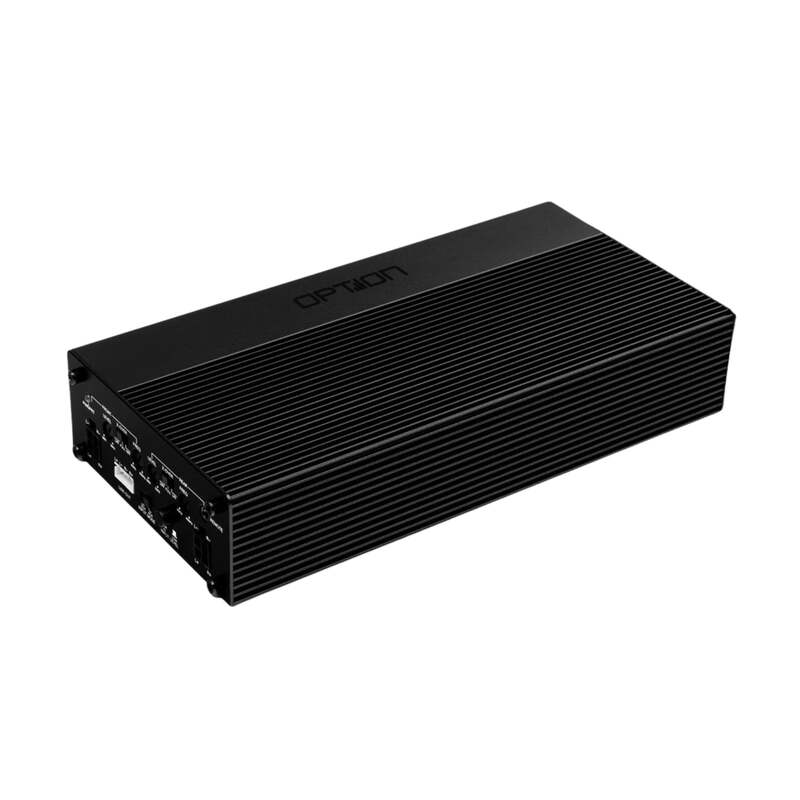

Option Audio AIR-D4 Amp 4 Channel Class D Compact Amplifier 330w RMS
Product Description
The Option Audio AIR-D4 is a 4-channel Class D micro-format car amplifier delivering 330W RMS bridged, with high-level inputs and auto turn-on. It is part of the Option Audio AIR amplifier range.
Also in the range: AIR-D1 mono subwoofer amplifier and AIR-D6 6-channel amplifier.
Key specifications
- Channels: 4, Class D
- RMS power (4 ohms): 100W
- RMS power (2 ohms): 165W
- RMS power bridged (4 ohms): 330W total
- Frequency response: 20Hz–20kHz
- High-pass and low-pass filters: 40Hz–400Hz
- Minimum impedance: 2 ohms
- Inputs: high-level with auto turn-on
- Dimensions (W x H x D): 105.7 x 41.7 x 208mm
- Recommended cable: 10mm²
Option Audio AIR-D4 4-Channel Amplifier
Compact power upgrade: The AIR-D4 is a 4-channel Class D amplifier that delivers significantly more dynamics and volume than running speakers directly from a factory head unit.
Ultra-compact dimensions: At just 105.7 x 41.7 x 208mm, the AIR-D4 fits behind a dashboard, in a glovebox, or under a seat — ideal for modern vehicles with limited installation space.
Plug-and-play with factory systems: Built-in high-level inputs and auto turn-on mean no separate remote cable is needed. The amplifier detects the speaker signal directly, making it straightforward to integrate with an original radio.
Flexible 4-channel configuration: Power front and rear speakers simultaneously, or bridge two channels to run a front system alongside a subwoofer.
Class D efficiency: The Class D circuit keeps heat generation and power consumption low, maintaining stable sound quality without stressing the vehicle's electrical system.
Specifications
- Class-D power amplifier: Yes
- Operating voltage: 10-16V
- RMS power (4 ohms): 100 watts
- RMS power (2 ohms): 165 watts
- RMS power bridged (4 ohms): 330 watts total
- RMS power bridged (2 ohms): not possible
- Frequency response: 20Hz-20kHz
- High-pass filter: 40Hz-400Hz
- Low-pass filter: 40Hz-400Hz
- Total harmonic distortion (THD): <0.1%
- Minimum loudspeaker impedance: 2 ohms
- Signal-to-noise ratio (A-weighted): >90 dB
- Security: 60A
- Dimensions (W x H x D): 105.7mm x 41.7mm x 208mm
- Cable cross-section (recommended): 10mm²

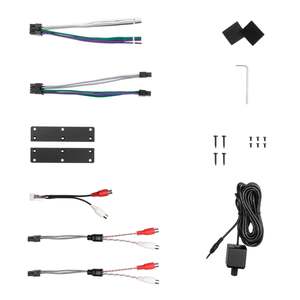

What's In The Box
- OPTION AIR-D4 4-channel amplifier
- Subwoofer level remote control including Velcro strap for flexible mounting
- 2x Plug & Play adapters for input signal to RCA
- 1x Plug & Play adapter for output signal to Molex
- 1x Plug & Play adapter for output signal to loose ends
- 1x Plug & Play Adapter Line Out for connecting an additional power amplifier/active subwoofer
- Mounting/fastening plates including 6 screws (for mounting on the amplifier) and 4 screws (for mounting in the vehicle)
- Allen key
