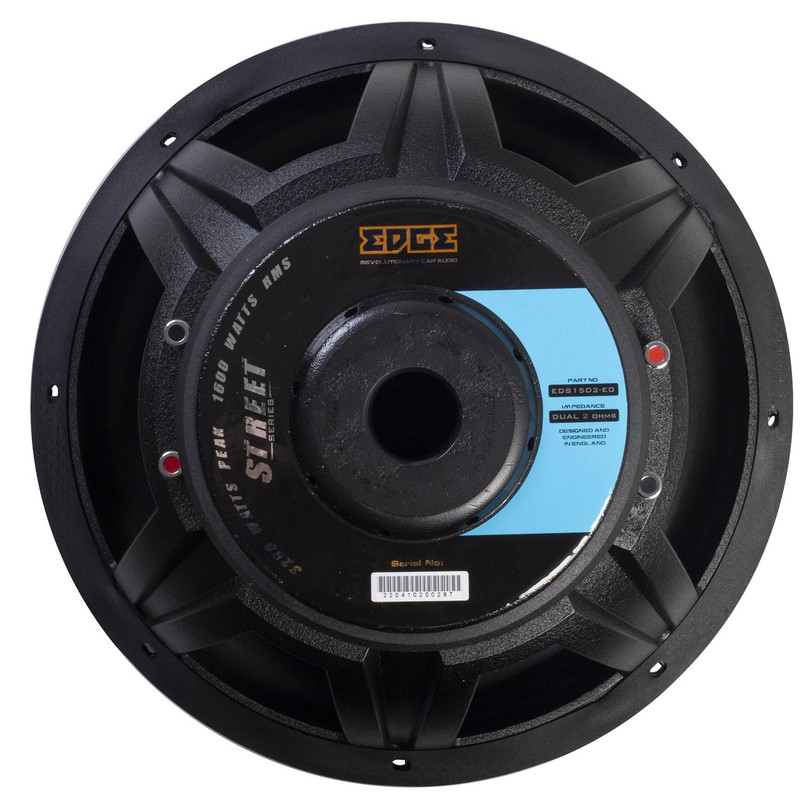

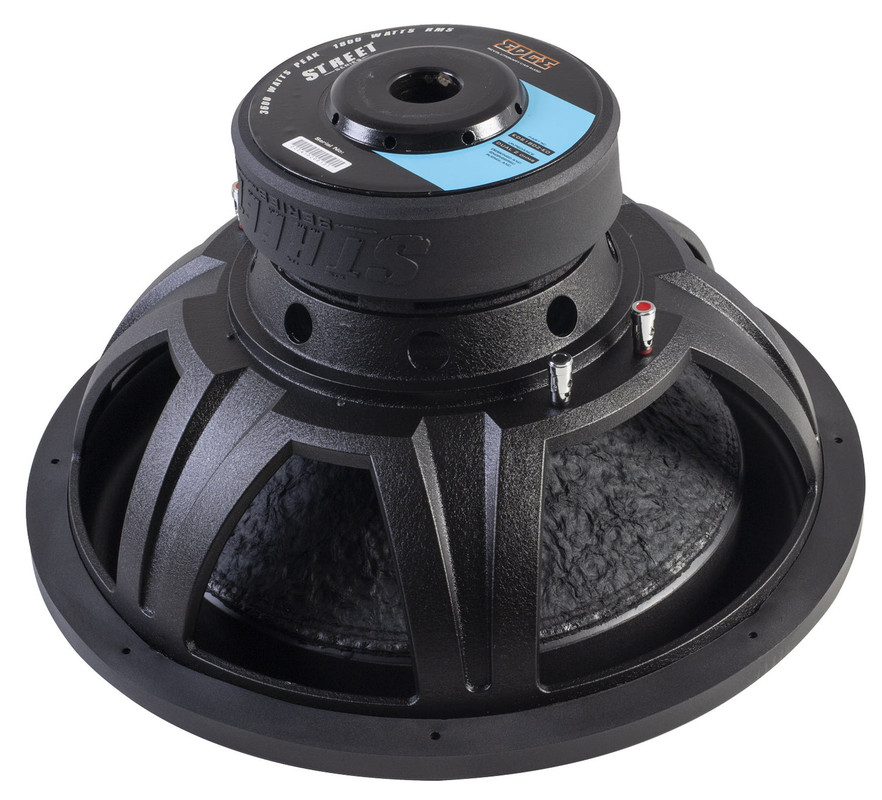

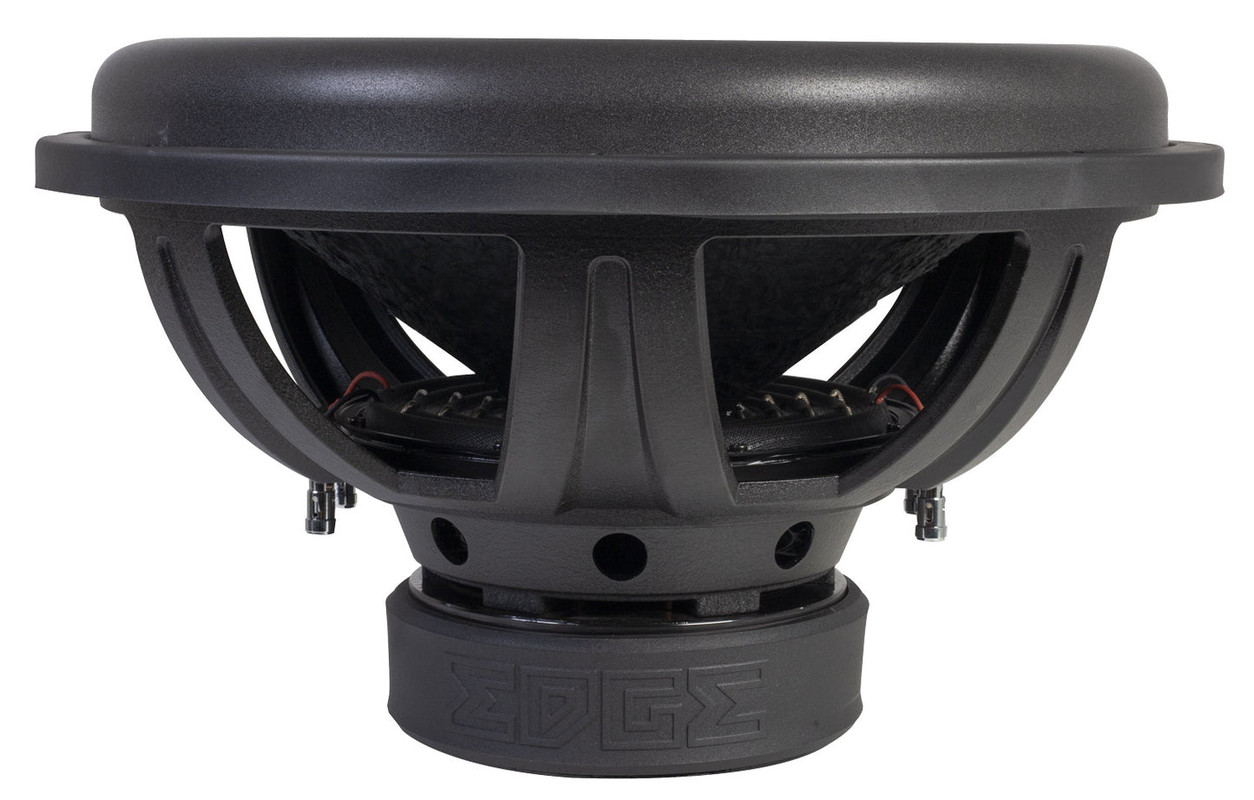

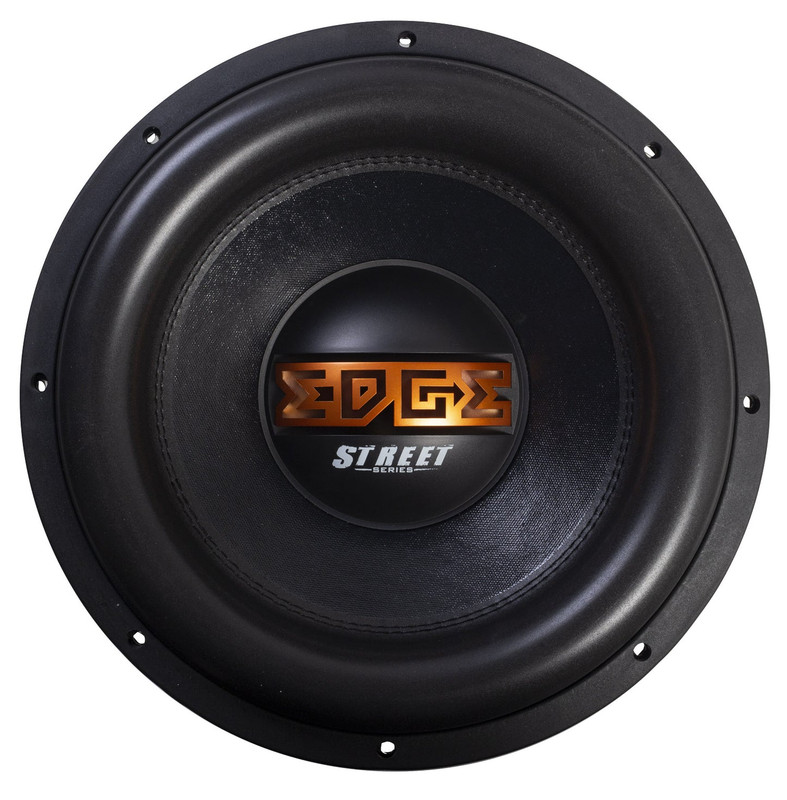

Edge EDS15D2 Street Series 15in Subwoofer Copper Voice Coil Dual 2 Ohm 1600W RMS
Edge EDS15D2 Street Series 15in Subwoofer Copper Voice Coil Dual 2 Ohm 1600W RMS
Price:
£310.49
Using polycotton spiders, non-pressed paper cones and stitched tinsel leads, we are able to create a high quality product that produces accurate loud bass.
All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.
For anyone looking for hard hitting street bass look no further than our Street series subs.
Features
- Non pressed paper cone
- Wide roll foam surround
- Black polycotton spiders
- Dual Y35 Ferrite magnets
- 3 inch Black Aluminium voice coil
Specification
- Model: EDS15D2-E0
- Cone: Non pressed paper
- Surround: Big roll foam - stitched
- Dustcap: Part IMPP
- Voice Coil: 45mm Copper winding
- Spider: 2pcs Black PC
- Gasket: Rubber
- Top Plate: 12mm Black anodized
- T-Yoke: 10mm bumped
- Terminal / Wire: Terminal
- Impedance: Dual 2 Ohms
- RMS Power: 1600 watts
- Peak Power: 3200 watts

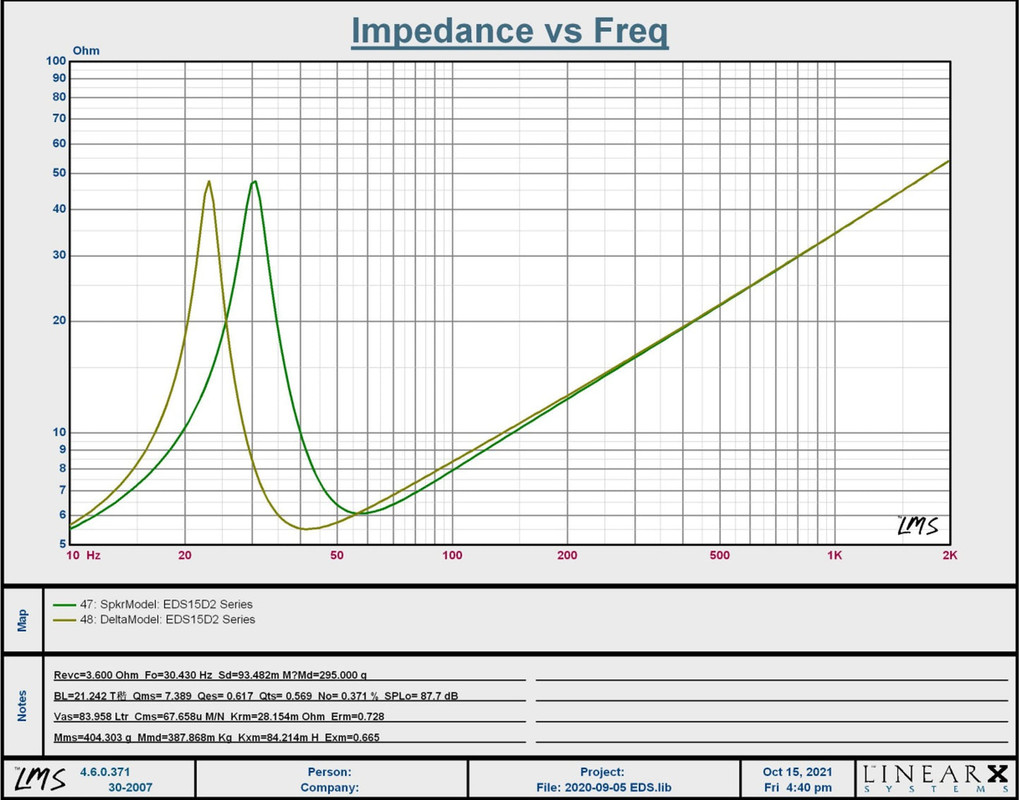

TS Parameters
- Equivalent Volume - Vas: 84L
- Free Air Resonance - Fs: 30.4Hz
- Mechanical Factor - Qms: 7.389
- Electrical Factor - Qes: 0.617
- Total Factor - Qts: 0.569
- Moving Mass - Mms: 404.303g
- Compliance - Cms: 67.658μ M/N
- BI Factor - BI: 21.242 T
- Voice Coil Inductance - Le: 2.7 mH
- Diaphragm Area - Sd: 754CM2
- DC Resistance - Re: 3.6 Ω
- SPL: 87dB
- Magnet Size: 190mm x 20mm 2pcs
- Magnet Weight: 150oz
- Overall Diameter: 360mm
- Mounting Depth: 206mm
| Manufacturer Part Number | EDS15D2 |
| Brand | EDGE |
| Size | 15 in |
| Placement on Vehicle | Boot |
| Impedance | Dual 2 Ohms |
| Peak Power | 3200 W |
| RMS Power | 1600 W |
| Cone Material | Non pressed paper cone |
| Surround Material | Big roll foam - stitched |
| Dustcap | Part IMPP |
| Voice Coil Former | Copper winding |
| Spider | 2pcs Black PC |
| Gasket | Rubber |
| Top Plate | 12 mm Black anodised |
| T-Yoke | 10 mm bumped |
| Terminal / Wire | Terminal |
| Equivalent Volume | 84 L |
| Free Air Resonance | 30.4Hz |
| Mechanical Factor | 7.389 |
| Electrical Factor | 0.617 |
| Total Factor | 0.569 |
| Moving Mass | 404.303g |
| Compliance | 67.658µ M/N |
| BI Factor | 21.242 T |
| Voice Coil Inductance | 2.7 mH |
| Diaphragm Area | 754 cm2 |
| DC Resistance | 3.6Â O |
| SPL | 87 dB |
| Magnet Size | 190 mm x 20 mm 2pcs |
| Magnet Weight | 150oz |
| Overall Diameter | 360 mm |
| Mounting Depth | 206 mm |
| Magnetic Material | Y35 Ferrite magnet |
| EAN | 5060661893828 |
| Colour | Black |
| Country/Region of Manufacture | United Kingdom |
