Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 TimingFull Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 TimingFull Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 TimingFull Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing
Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing
TITLE :

Full Engine Rebuild Kit for GMC Terrain Chevy Captiva Sport 2.4L 12-2016 Timing

DESCRIPTION



Note

*Please follow the steps below to confirm that the product is suitable for your vehicle.
*If you are not sure, please contact us, Please have your vehicle VIN number, year, and car model ready when contacting us.
*The VIN code is a 17-digit number composed of letters and numbers. It is usually behind the car's windshield or on the car's nameplate.
*No Instruction Included, professional installation is highly recommended.





Size:
Pistons dimensions:
Cylinder Bore Ø [mm]: 88 mm
Length [mm]: 49.25 mm
Compression Height [mm]: 27.75 mm
Bolt length [mm]: 58 mm
Bolt Ø [mm]: 20 mm



Rings Details:
Top ring 88 * 1.20 mm
2nd ring 88 * 1.50 mm
Oil ring 88 * 2.50 mm





Application

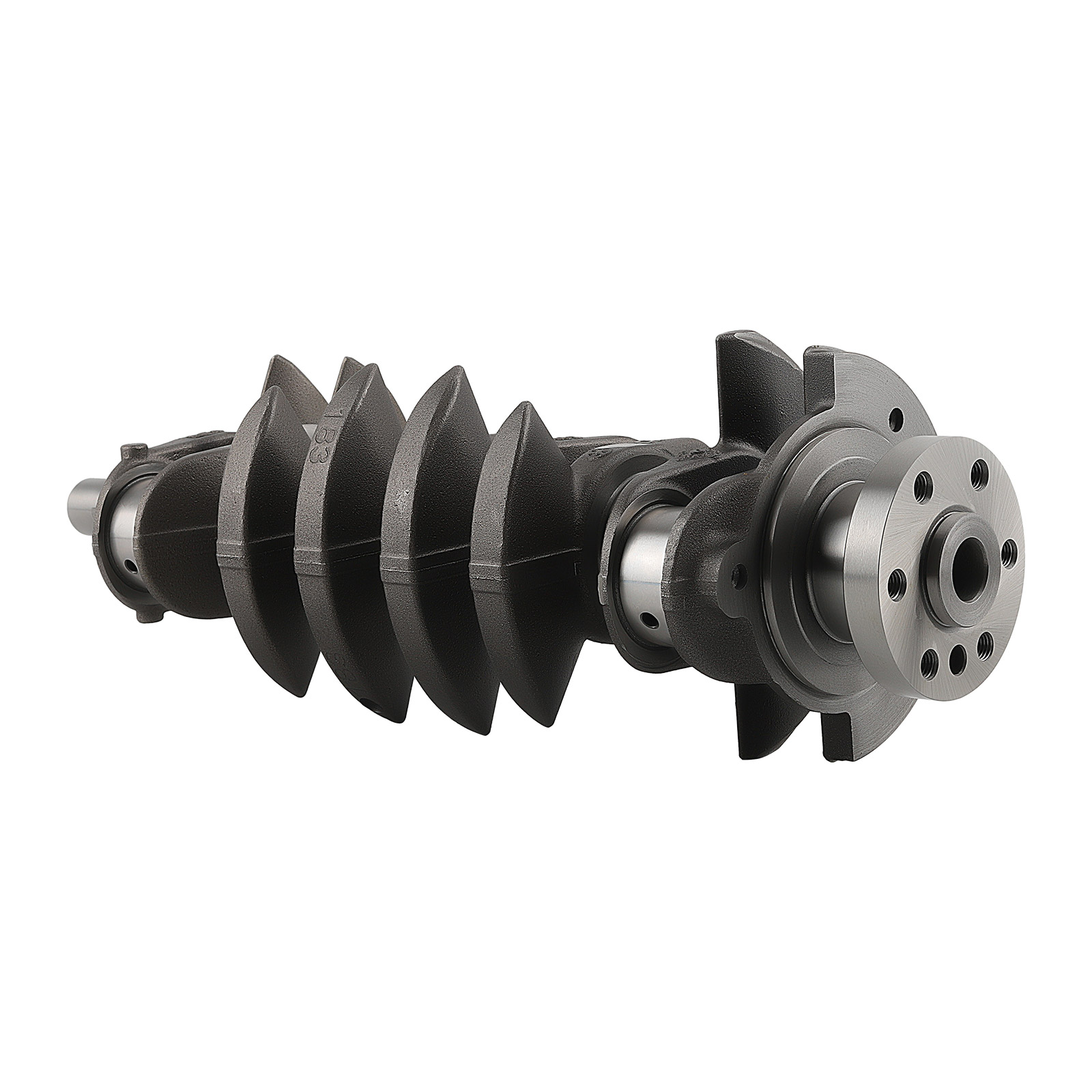

Crankshaft Fitment:

For Chevrolet Captiva Sport 2012-2015 2.4L
For Chevrolet Equinox 2011 2.4L
For Chevrolet Equinox 2012-2016 2.4L, California emissions, opt NU5
For Chevrolet Equinox 2012-2016 2.4L, Federal emissions (opt NT7)
For Chevrolet Equinox 2017 2.4L
For Chevrolet Impala 2014 VIN 1 (4th digit, New Style), 2.4L (VIN R, 8th digit, opt), California emissions, opt NU1
For Chevrolet Impala 2014 VIN 1 (4th digit, New Style), 2.4L (VIN R, 8th digit, opt), Federal emissions (opt NT7)
For Buick Lacrosse 2011-2012 2.4L, w/o California emissions
For Buick Lacrosse 2013-14 2.4L, California emissions, opt NU1
For Buick Lacrosse 2013-2014 2.4L, Federal emissions (opt NT7)
For Buick Lacrosse 2015-2016 2.4L
For Chevrolet Malibu 2013-2014 2.4L, California emissions, opt NU1
For Chevrolet Malibu 2013-2014 2.4L, Federal emissions (opt NT7)
For Chevrolet Orlando 2012-2014
For Buick Regal 2011 2.4L, w/opt AUA (mid-year change), w/o California emissions
For Buick Regal 2012 2.4L
For Buick Regal 2013-2014 2.4L, Canada emissions
For Buick Regal 2013-2014 2.4L, Federal emissions
For Buick Regal 2015-2017 2.4L
For GMC Terrian 2011 2.4L
For GMC Terrian 2012-2016 2.4L, California emissions, opt NU5
For GMC Terrian 2012-2017 2.4L, Federal emissions (opt NT7)
For Buick Verano 2012-2017 2.4L



Connecting Rods Fitment:

For Buick Allure 2010-2015 2.4L
For Buick LaCrosse 2010-2016 4 Cyl 2.4L
For Buick Regal 2011-2017
For Buick Verano 2012-2017 4 Cyl 2.4L
For Chevrolet Captiva Sport 2012-2015 4 Cyl 2.4L
For Chevrolet Cobalt 2006-2010 4 Cyl 2.2L, 4 Cyl 2.4L
For Chevrolet Equinox 2010-2017 4 Cyl 2.4L
For Chevrolet HHR 2006-2011 4 Cyl 2.2L Flex, 4 Cyl 2.4L
For Chevrolet Impala 2014  4 Cyl 2.4L
For Chevrolet Malibu 2008-2014 4 Cyl 2.4L
For Chevrolet Orlando 2012-2014 4 Cyl 2.4L
For GMC Terrain 2010-2017 4 Cyl 2.4L
For Pontiac G5 2007-2010
For Pontiac G6 2006-2010 4 Cyl 2.4L
For Pontiac Pursuit 2006
For Pontiac Solstice 2006-201 04 Cyl 2.4L
For Saturn Aura 2007-2009 4 Cyl 2.4L
For Saturn Ion 2006-2007
For Saturn Sky 2007-2010
For Saturn Vue 2007-2010



Main Rod Bearings Fitment:
For    BUICK LACROSSE 2.4L    2010-2011
For    BUICK LACROSSE 2.4L    2012-2016
For    BUICK REGAL 2.0L    2011-2013
For    BUICK REGAL 2.4L    2011
For    BUICK REGAL 2.4L    2012-2016
For    BUICK REGAL 2.4L    2012-2017
For    BUICK VERANO 2.0L    2013-2016
For    BUICK VERANO 2.4L    2012-2017
For    CHEVROLET CAVALIER 2.2L    2003-2004
For    CHEVROLET CAVALIER 2.2L    2002-2005
For    CHEVROLET CLASSIC 2.2L    2004-2005
For    CHEVROLET COBALT 2.0L    2005-2007
For    CHEVROLET COBALT 2.0L    2008-2010
For    CHEVROLET COBALT 2.2L    2005-2010
For    CHEVROLET COBALT 2.4L    2006-2008
For    CHEVROLET EQUINOX 2.4L    2010-2017
For    CHEVROLET EQUINOX 2.4L    2012-2017
For    CHEVROLET HHR 2.0L    2008-2010
For    CHEVROLET HHR 2.2L    2006-2008
For    CHEVROLET HHR 2.2L    2009-2011
For    CHEVROLET HHR 2.4L    2006-2008
For    CHEVROLET HHR 2.4L    2009-2011
For    CHEVROLET IMPALA 2.4L    2014
For    CHEVROLET MALIBU 2.2L    2004-2008
For    CHEVROLET MALIBU 2.4L    2008-2012
For    CHEVROLET MALIBU 2.4L    2008-2014
For    GMC TERRAIN 2.4L    2010-2017
For    GMC TERRAIN 2.4L    2012-2017
For    OLDSMOBILE ALERO 2.2L    2002-2004
For    PONTIAC G5 2.2L    2007-2009
For    PONTIAC G5 2.4L    2007-2008
For    PONTIAC G6 2.4L    2006-2010
For    PONTIAC GRAND AM 2.2L    2002-2005
For    PONTIAC SOLSTICE 2.0L    2007-2009
For    PONTIAC SOLSTICE 2.4L    2006-2009
For    PONTIAC SUNFIRE 2.2L    2002-2005
For    SAAB 44077 2.0L    2003-2011
For    SAAB 44079 2.0L    2011
For    SAAB 9-3X 2.0L    2010-2011
For    SATURN AURA 2.4L    2008-2009
For    SATURN AURA 2.4L    2007-2009
For    SATURN ION 2.0L    2004-2007
For    SATURN ION 2.2L    2003-2007
For    SATURN ION 2.4L    2006-2007
For    SATURN L100 2.2L    2001-2002
For    SATURN L200 2.2L    2001-2003
For    SATURN L300 2.2L    2004
For    SATURN LS 2.2L    2000
For    SATURN LS1 2.2L    2000
For    SATURN LW1 2.2L    2000
For    SATURN LW200 2.2L    2001-2003
For    SATURN SKY 2.0L    2007-2010
For    SATURN SKY 2.4L    2007-2010
For    SATURN VUE 2.2L    2002-2007
For    SATURN VUE 2.4L    2008-2010
For    SATURN VUE 2.4L    2007-2009



Pistons & Rings Kit Fitments:
For    BUICK LACROSSE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2010-2011
For    BUICK LACROSSE 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)    2012-2016
For    K REGAL 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2011 BUIC
For    BUICK REGAL 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)    2012-2016
For    BUICK REGAL 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2012-2017
For    BUICK VERANO 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2012-2017
For    CHEVROLET CAPTIVA SPORT 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2012-2015
For    CHEVROLET COBALT 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2006-2008
For    CHEVROLET EQUINOX 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2010-2017
For    CHEVROLET EQUINOX 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2012-2017
For    CHEVROLET HHR 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2006-2008
For    CHEVROLET HHR 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2009-2011
For    ROLET IMPALA 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)  2014
For    CHEVROLET MALIBU 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2008-2012
For    CHEVROLET MALIBU 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)    2008-2014
For    CHEVROLET MALIBU 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2010-2012
For    GMC TERRAIN 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2010-2017
For    GMC TERRAIN 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2012-2017
For    PONTIAC G5 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2007-2008
For    PONTIAC G6 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2006-2010
For    IAC G6 2.4L 2384CC 145CID L4 FLEX DOHC, (16 VALVE)    2010 PONT
For    PONTIAC SOLSTICE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2006-2009
For    SATURN AURA 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2008-2009
For    SATURN AURA 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)    2007-2009
For    SATURN ION 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2006-2007
For    SATURN SKY 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2007-2010
For    SATURN VUE 2.4L 2384CC 145CID L4 DOHC, (16 VALVE)    2008-2010
For    SATURN VUE 2.4L 2384CC 145CID L4 ELECTRIC/GAS DOHC, (16 VALVE)    2007-2009

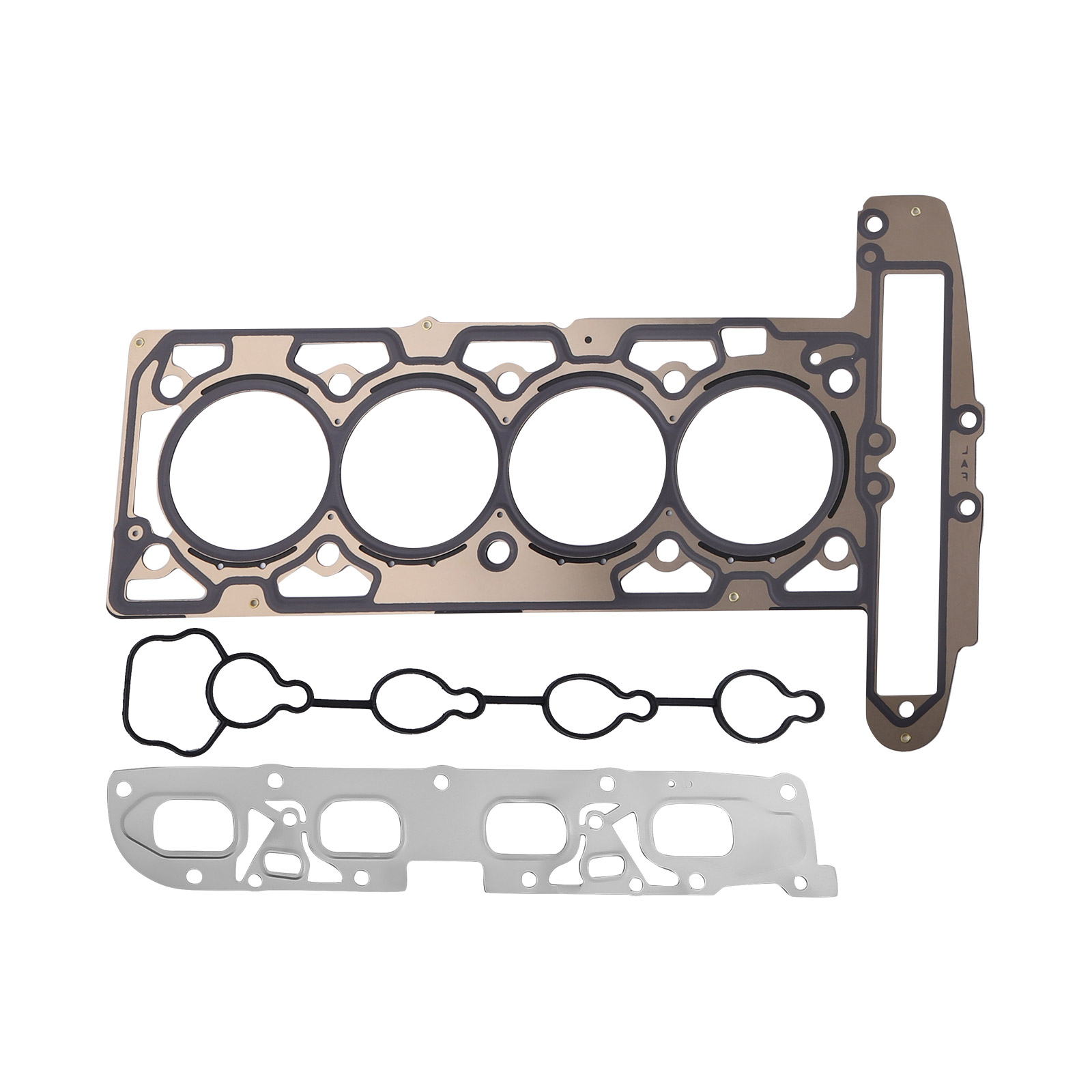

Head Gasket Set Fitment:
For Buick Allure 2010 2.4 L4 (2384cc.)
For Chevrolet Captiva Sport 2012-2015 2.4 L4 (2384cc.)
For Chevrolet Captiva Sport 2012 2.4 L4 (2405cc.)
For Chevrolet Equinox 2010-2012 2.4 L4 (2384cc.)
For Chevrolet Impala 2014 2.4 L4 (2384cc.)
For Buick LaCrosse 2010-2016 2.4 L4 (2384cc.)
For Chevrolet Orlando 2012-2013 2.4 L4 (2384cc.)
For Buick Regal 2011-2017 2.4 L4 (2384cc.)
For GMC Terrain 2010-2012 2.4 L4 (2384cc.)
For Buick Verano 2012-2017 2.4 L4 (2384cc.)







OE/Part number

-Crankshaft Oe#:

12578182, 12578164, 12623302



-Connecting Rods Oe#:

8217, 12598216, 12596088, 12611360, 12654958



-Pistons & Rings Set Oe#:

12578324 , 12578326 , 12593744
12593745 , 12603910 , 12608531
12609858 , 12616970 , 12621251
12631102 , 12631103 , 12631967
12643172 , 12646457 , 12657184
12659419 , 12665165 , 12784490
19180835 , 19180836 , 89018112
S224-3959,  GA9034



-Main & Rod Bearing Oe#:

21018819, 21018825, 12591093



-Head Gasket Bolt Valve Set:

HS54874 HS26517PT ES72196HS26466PT1HGS339



-Timing Chain Kit Part Number:

94201S,9-4201S,94201SX,9-4201SX,94202S,9-4202S,C6209S

24461834,24461834,12608580,12646783,13104978,12621505

12628348, 12646784,12655421,12679100,12628347,12578518







Specification

Condition：New
Type: Engine Rebuild Kit
Fitment Type: Direct Replacement

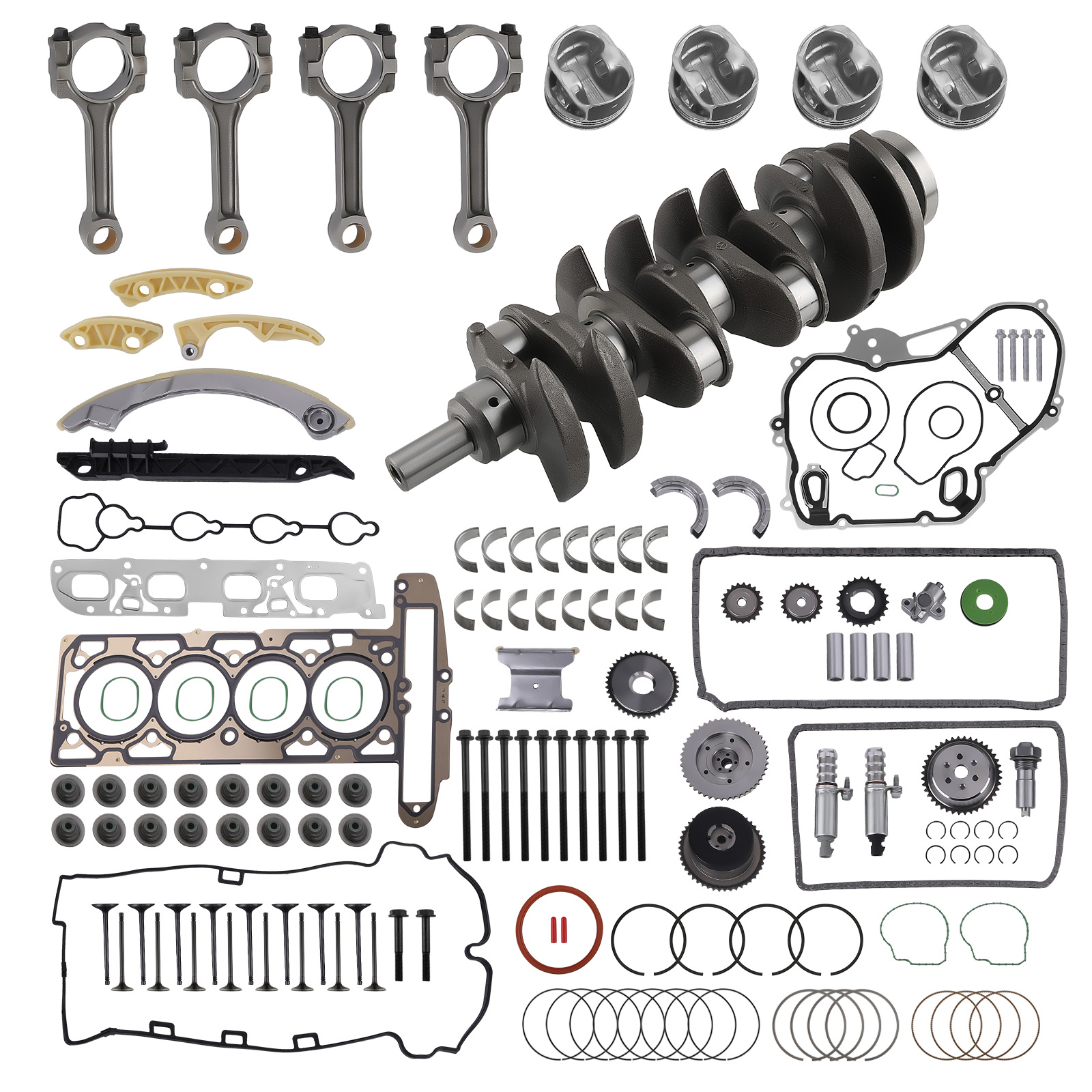

Package Includes:

1x Crankshaft

4x Connecting Rods

1 Set x Main & Rod Bearing Set (For STD Size)

1 Set x Pistons & Rings Kit

1 Set x Gasket Seal Kits

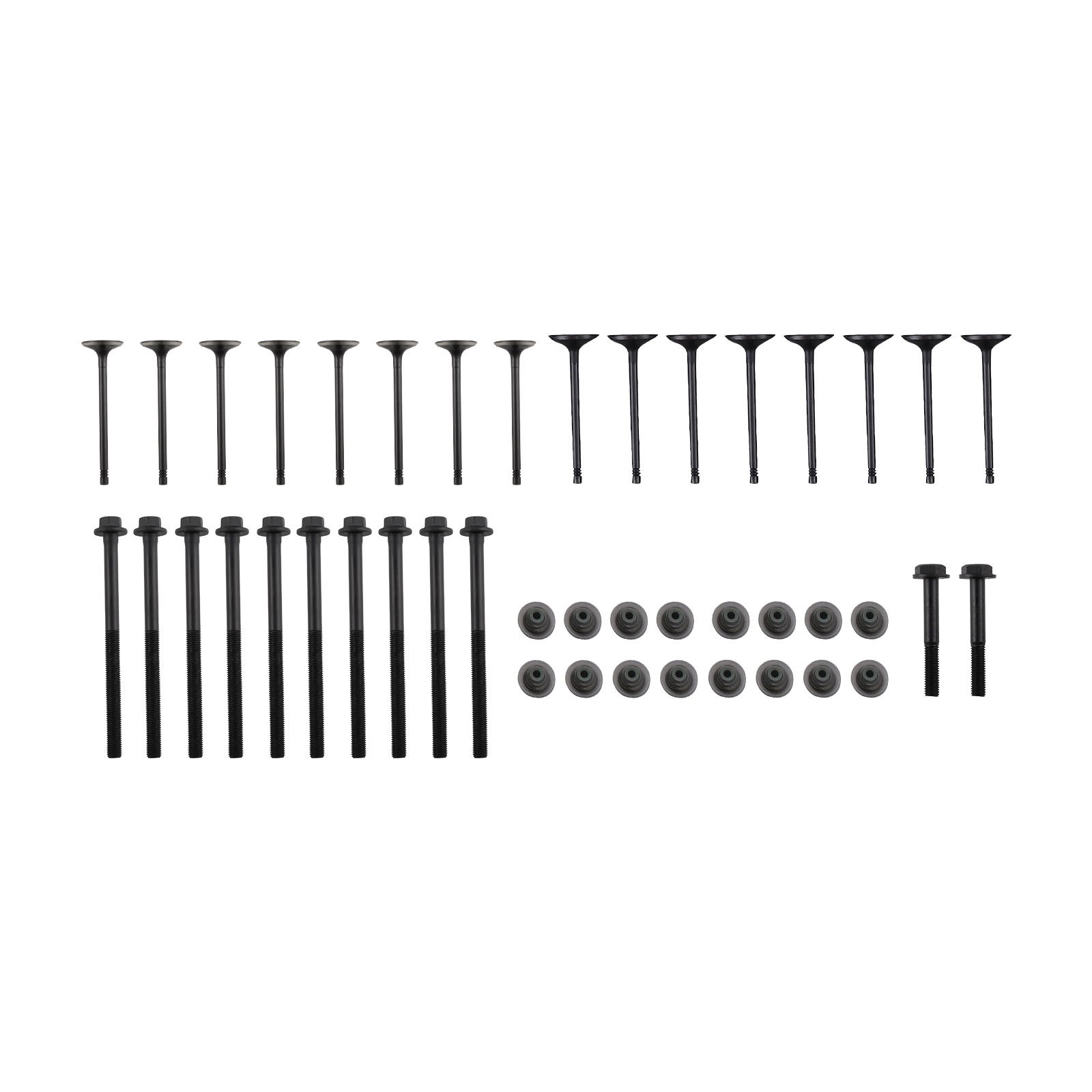

10x Head Bolt

16x Intake & Exhaust Valve



1 Set x Timing Chain Kit：
1 Timing Chain (148 Links)
1 Tensioner
2 VVT Camshaft Gears (Intake & Exhaust)
1 Exhaust Camshaft Position Actuator
1 Intake Variable Valve Timing Solenoids
1 Exhaust Variable Valve Timing Solenoids
1 Crank Sprocket (23 Teeth)
1 Guide Rail (Tensioner Guide )
1 Guide Rail (Left For Cam Chain)
1 Guide Rail (Upper For Cam Chain)
1 Timing Chain Balance Shaft (134 Links)
1 Balance Shaft Tensioner
1 Crank Sprocket (Inner - 42 Teeth)
1 Balance Shaft Sprocket (Intake Side)
1 Balance Shaft Sprocket (Exhaust Side)
1 Guide Rail Balance Shaft (Upper)
1 Guide Rail Balance Shaft (Left)
1 Guide Rail Balance Shaft (Right)

2 VVT Engine Variable Timing Solenoid





Feature

*Brand New
*Built to strict quality control standards
*High quality Metal and constructed for Anti-rust and Anti-corrosion
*High quality and durable for stable performance and long time use.
*Direct replacement
*Highest level
*Superior quality parts
*Made of premium material and with delicate workmanship
*Good for ensuring the normal performance of your car









SHIPPING

US Domestic Shipping Notice - All items will be dispatched within 24hrs(Mon-Fri)

Our carrier collects all the parcels at 4:30am PDT, any payment paid after 5:00am PDT will be shipped the next day at 4:30am PDT.


If you paid Before Apr. 1st at 4:30am After Apr. 1st at 4:30am
Item Shipped On Apr. 1st at 5:00am Apr. 2nd at 5:00am
Est.Delivery Time Apr. 5th - Apr. 7th Apr. 6th - Apr. 8th

Tracking number will be updated in 24 hours after shipment, If our estimated delivery time and eBay's are contradictory,

please refer to the standard delivery time of ours.

Estimated Delivery Time

From To Service Est.Delivery Time
US US UPS or Fedex Ground 3-5 Business days
Outside of US DHL FedEx 4-7 Business days

Shipping rate

If our ebay item listing doesn't show the shipping cost to your place.Please contact us to calculate the shipping fee for you.

International Shipment


For international shipment, we do not cover any import taxes or duties. Import tax is charged by the government, not us. Our item price and shipping cost do not include any import tax which will be charged by the shipping company when you got the parcel. Please be noted that is not the extra shipping fee.



NO hidden charge!!!

WARRANTY

Free 2 Year Warranty:

All Autopartpart products have 2 year warranty (unless otherwise stated).In the very unlikely event that you have a problem with our product, please contact us via eBay messages.

Easy Return:

If you are unhappy with your purchase for any reason, you can return it to us in an un-used condition in the original packaging within 30 days of purchase and we'll give you a refund or exchange. The refund/Exchange will not include postage/eBay costs. Please note you MUST contact us to obtain a Return Authorization Number before returning any part. Any parcel without the Return Authorization Number will be rejected.

If your item is faulty or was incorrect, you must contact our sales representative before returning the parcel and we will endeavour to solve the problem effectively. Video or picture is required to show the item condition before we issue the Return Authorization Number.

Important notice:

1. Any returned item(s) without Return authorization number will be rejected.

2. Please return your item(s) in original packaging and ensure that all packages are securely wrapped.

3. We will not accept responsibility for loss or damage of goods during transit, please ensure that the insurance cover option is taken where possible.

4. Upon receipt, all products will be inspected at our discretion in 3-5 business days. Then, the updated result will be informed. If you have made a mistake on purchase and wish to cancel the order before it is dispatched please contact us by ebay message as quickly as possible.

Note:

All parcel will be collected by carrier at 8:00am on Monday to Friday.

F A Q


Will this fit my car?

We have used the eBay compatibility list as a guide for buyers to use, but the eBay data system is not accurate and incomplete sometimes. Please make sure you have read through the whole listing and paid attention to “note” and “notice”. If there is any uncertain, please use the eBay message to check with our sales first.


How much does delivery cost and how long will it take?

You can check the delivery cost in the listing “Shipping and payments” section by selecting your country and entering your zip code. If it is not specified, please provide us your shipping address and zip code via eBay message. For US domestic shipping, the delivery time is around 2-5 business days. The international shipment delivery time is around 5-10 business days.


What payment methods do you accept?

We currently only accept payment via PayPal. You can also use PayPal as a guest and pay using a debit or credit card.


When will my order be dispatched?

We will arrange the shipment in 1 business day after the payment is cleared. The tracking number will be updated on eBay in 24 hours after the shipment. Please notice that there is no shipment during weekend and holidays.


Can I amend my order?

Sorry no. Once the payment is cleared, we cannot amend any item(s), quantities, or add or remove items. We are also unable to change the delivery address. Therefore, please double check all the order information before making payment.


What do I do if I have not received my order?

Please simply contact us via eBay messages, and then, we will get back to you as soon as possible with the update. Usually, we will follow up every shipment till customers get their order.


What do I do if my product is faulty?

Please simply contact us via eBay messages, and then, we will get back to you as soon as possible. It will speed up the process if you could provide us some pictures or video to illustrate the issue details.

OTHER ITEMS YOU MIGHT ALSO LIKE
