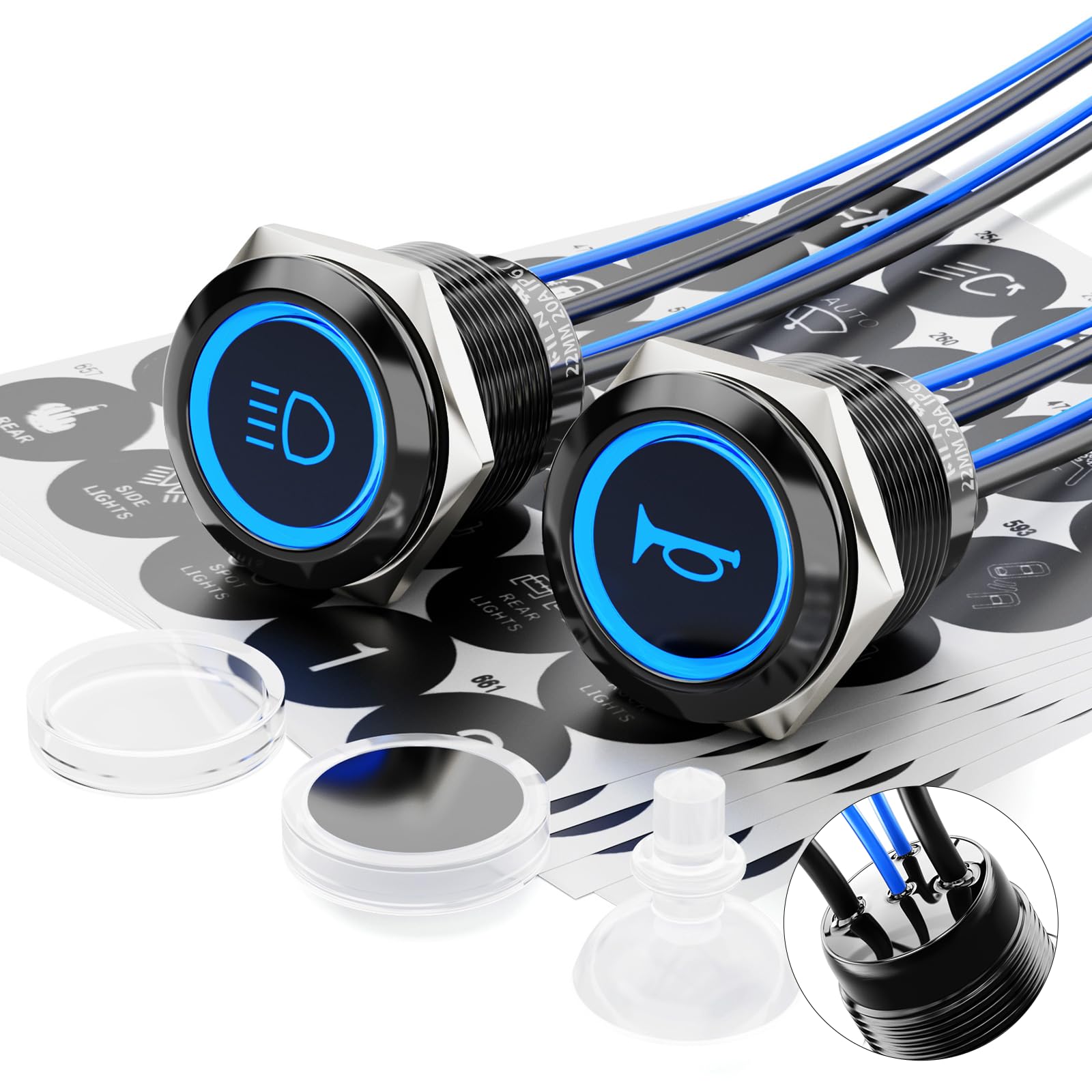

2PCS 22mm Latching Push Button Switch,20A on Off Switch 12v-24v IP67 Waterproof Marine Switches for Car, Boat, Motorcycle, DIY Enthusiasts(Blue, 185 Symbols, Black Shell)

📋 Overview

This 22mm latching push button switch set delivers reliable performance with a 20A current capacity and operates on 5V-24V systems. Featuring IP67 waterproof rating with epoxy resin potted tail, these switches are built to withstand harsh marine and automotive environments. Each switch includes a Blue LED indicator powered by a built-in metal film resistor that provides current-limiting functionality for stable, long-lasting illumination while also serving to stabilize signals in external circuits. The switches offer impressive durability with an electrical life of 100,000 cycles at 220V/10A or 30,000 cycles at 220V/20A, and a mechanical life of 200,000 cycles. Pre-wired with 15cm leads, installation is straightforward: connect the black power lines between the power supply positive terminal and device positive terminal, then connect the colored lines between the power supply negative terminal and device positive terminal, completing the circuit by connecting the device negative to power supply negative. The black shell design complements various applications including automotive dashboards, motorcycle controls, boat panels, household appliances, industrial equipment, and automated machinery. Each package contains 2 push button switches complete with mounting nuts, waterproof rings, and a detailed wiring guide for convenient installation.

💡 Features

• [Parameter]: Pushbutton switch 22mm Voltage: 5V-24V Current: 20A Waterproof rating: IP67 Tail epoxy resin potting waterproof. Wire length: 15cm Electrical life: 100,000 cycles (at 220V/10A), 30,000 cycles (at 220V/20A); mechanical life: 200,000 cycles.
• [How to use] Equipped with 185 symbols, if you need to replace the symbols, you can directly remove the internal suction cup (need to be wet), the cover that holds the symbols to replace the symbols. At the same time, you need to open the 22mm mounting hole, insert the push button switch, the head has a thread, can be screwed into the installation, two for the switch wire (black), the other two for the light wire
• [Features] 185 symbols for every scenario you need: dual flashers, turn signals, one-touch start switch, 20A high current, zinc-aluminium alloy black-plated housing material, epoxy-polyester sealing (visible at the bottom), fully enclosed, IP67 rated (cannot be pressed into water). Don't worry about water vapour in the cover, the button is also waterproof and airtight
• [Applications] Wide compatibility: can be used to adjust the dashboards of cars, motorbikes and boats, also can be used for household appliances, industrial dashboards, automated machinery, test equipment.
• [Package] 2 Pieces Buttons + 2 Transparent Covers + 2+ Black Surface Ring Covers + 185P Symbol Sticker + 1 Instruction Booklet + 2 Nuts + 2 Waterproof Rings + 2 Suction Cups (Very Important !!!)
