Stainless steel railing · Ø 42.4 mm

Stainless steel floor flange & cover rosette for pipe Ø 42.4 mm

AISI 304 stainless steel, ground · 2 variants to choose from

✓ AISI 304 stainless steel ✓ Sanded ✓ For pipe Ø 42.4 mm

⚙

AISI 304 stainless steel

✨

Sanded

☂

Rustproof & weatherproof

🔗

2 variants

Stainless steel base flange and cover rosette Ø 42.4 mm

High quality Stainless steel components (AISI 304) for the ground connection of round ones Railing and handrail tubes Ø 42.4 mm. Choose the appropriate one above variant.

Variant 1: Ground flange / post holder for screwing on
Variant 2: Cover rosette to conceal the floor connection
stainless steel AISI 304, ground – rust-proof & weather-resistant
Suitable for round tube Ø 42.4 × 2mm

Variant 1 – floor flange

Post holder for screwing on · with dimension drawing

Variant 1 · 1945.242

Base plate Ø100mm
Plate thickness5mm
Pipe intakeØ 42.4 mm (42.4x2)
Total height55mm
drilling3 x Ø 9 mm (hole circle Ø 70 mm)

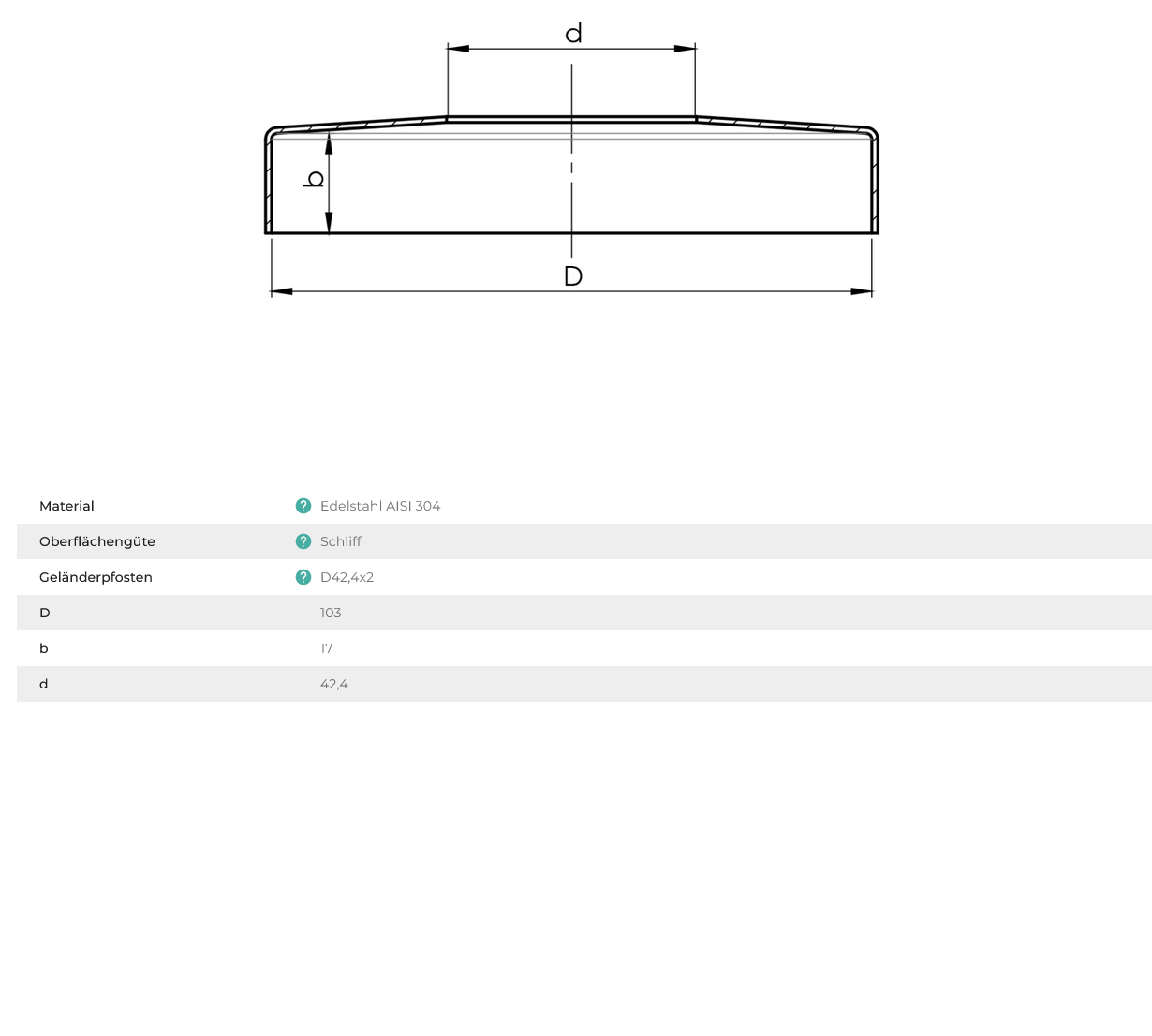

Variant 2 – cover rosette

Covers the floor connection · with dimension drawing

Variant 2 · Ø approx. 103mm

Outside Øapprox. 103mm
Inner Ø (for pipe)42.4mm
Height17mm
materialAISI 304 stainless steel, ground

Technical data

Both variants at a glance

material	Stainless steel AISI 304 (V2A)
surface	ground
For pipe/post	Ø 42.4 x 2 mm (round)
Variant 1 - floor flange	Plate Ø 100 mm, height 55 mm, 3x Ø9
Variant 2 - cover rosette	Ø approx. 103 mm, inside Ø 42.4 mm, height 17 mm
Application	Stainless steel railing, handrail, stairs
