Adjustable Coilover Suspension Lowering Kits For Lexus 2001-2005 IS300

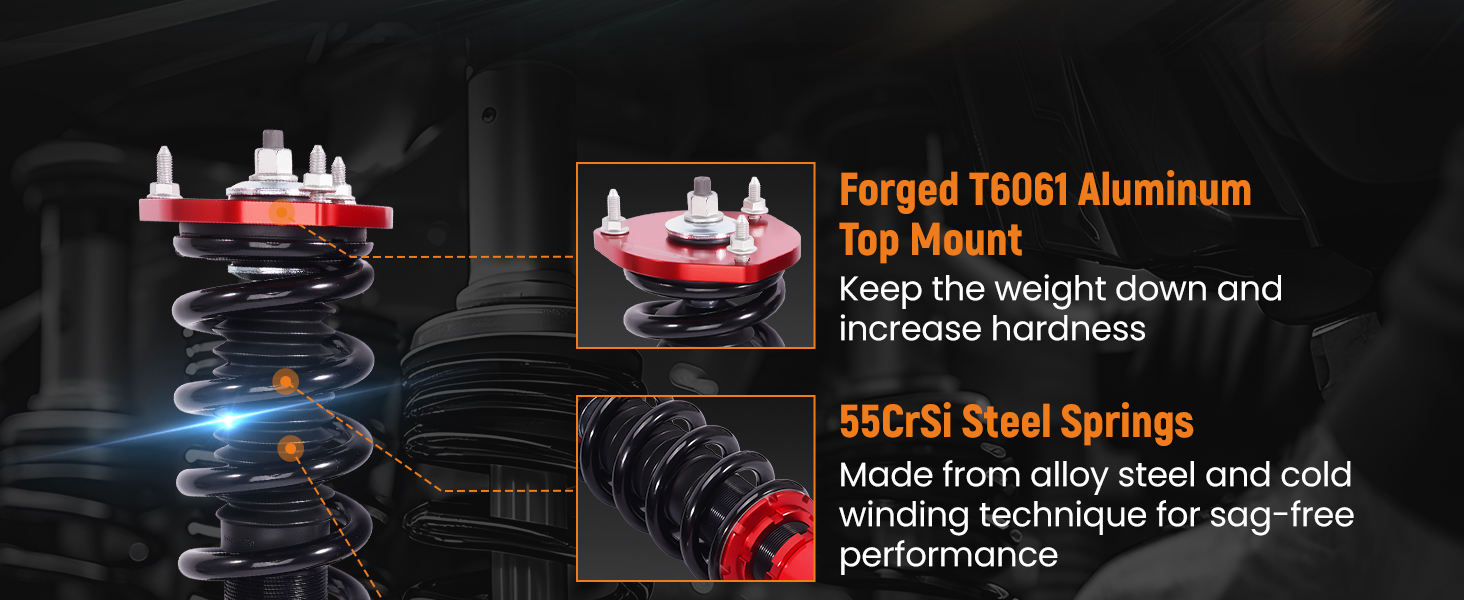

Aluminum Top Mount

Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Matt Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

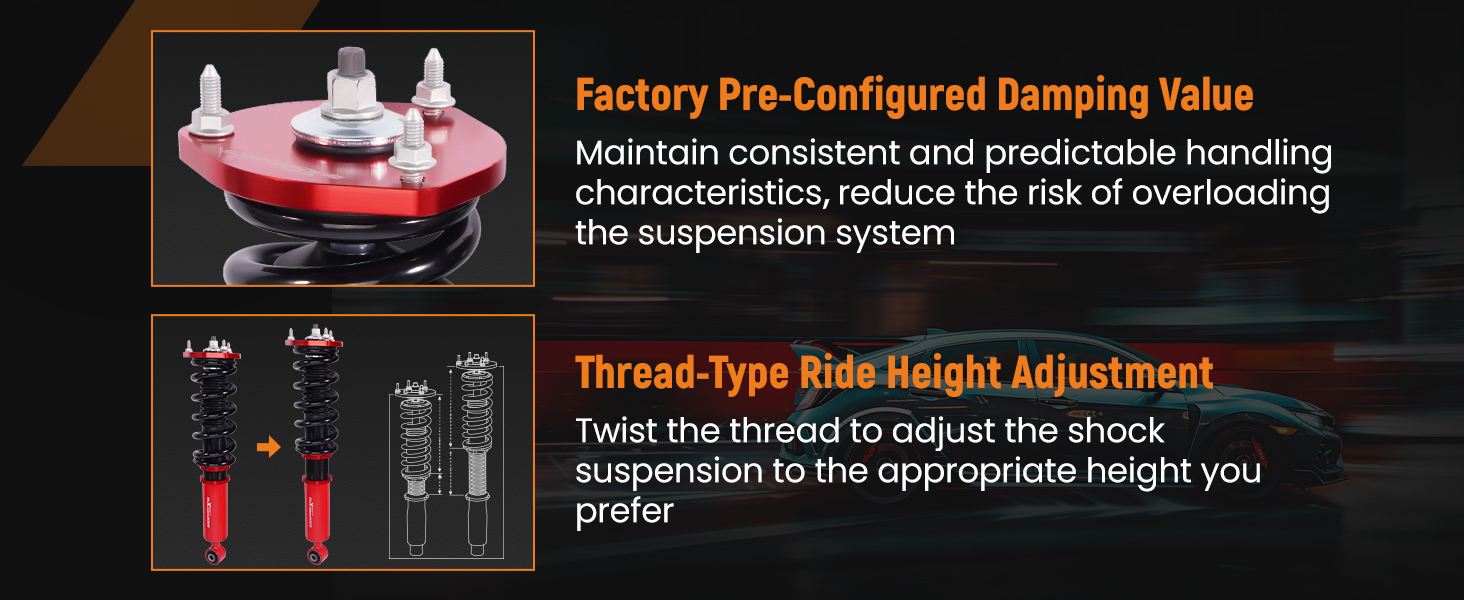

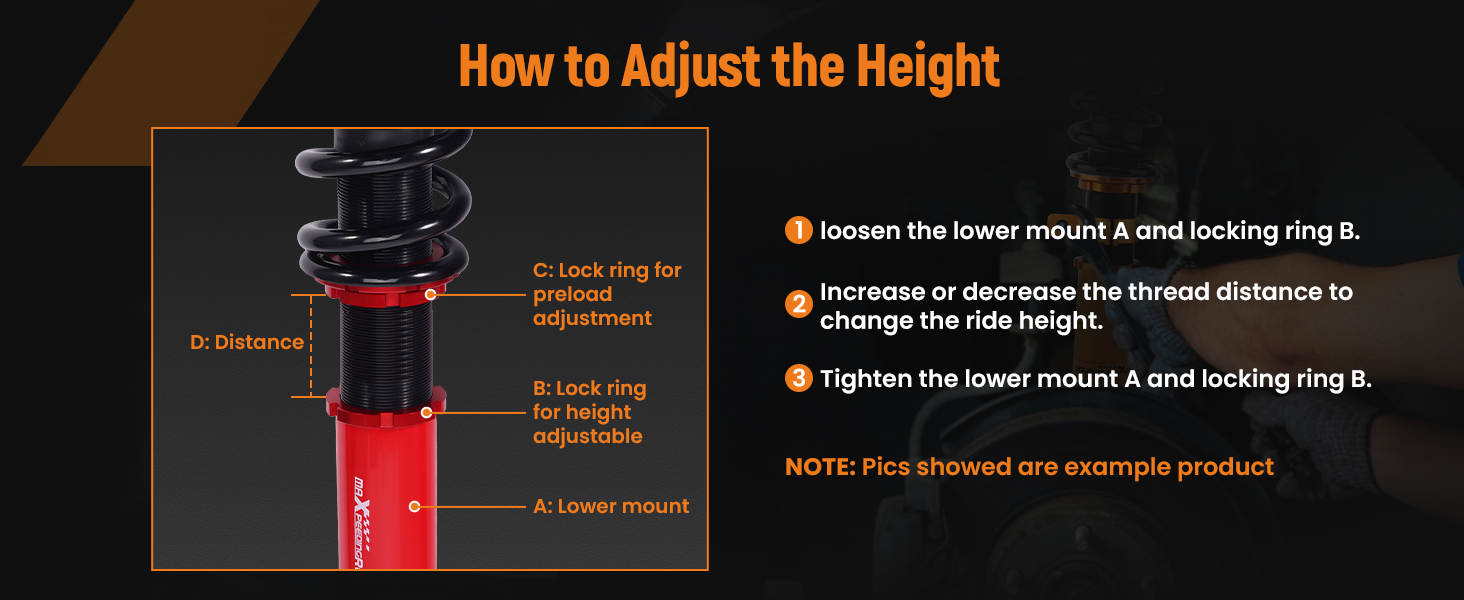

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

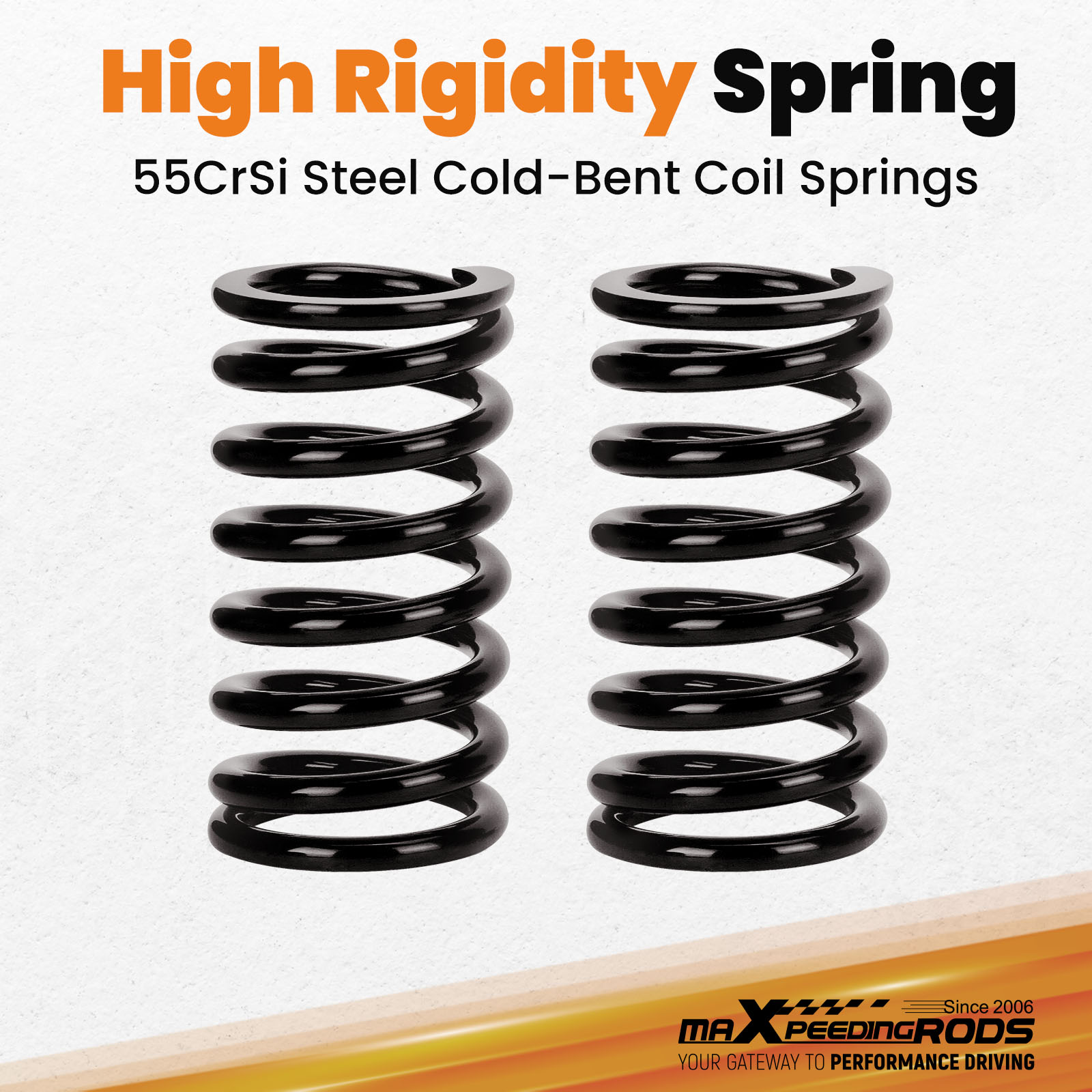

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Height adjustable Yes, Lowering 1-3 inch
Damping adjustable No
Front Spring length 230 mm
Rear Spring length 230 mm
Front spring length 12 kg/mm (672 lbs/in)
Rear spring length 10 kg/mm (560 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 2 Years

Features

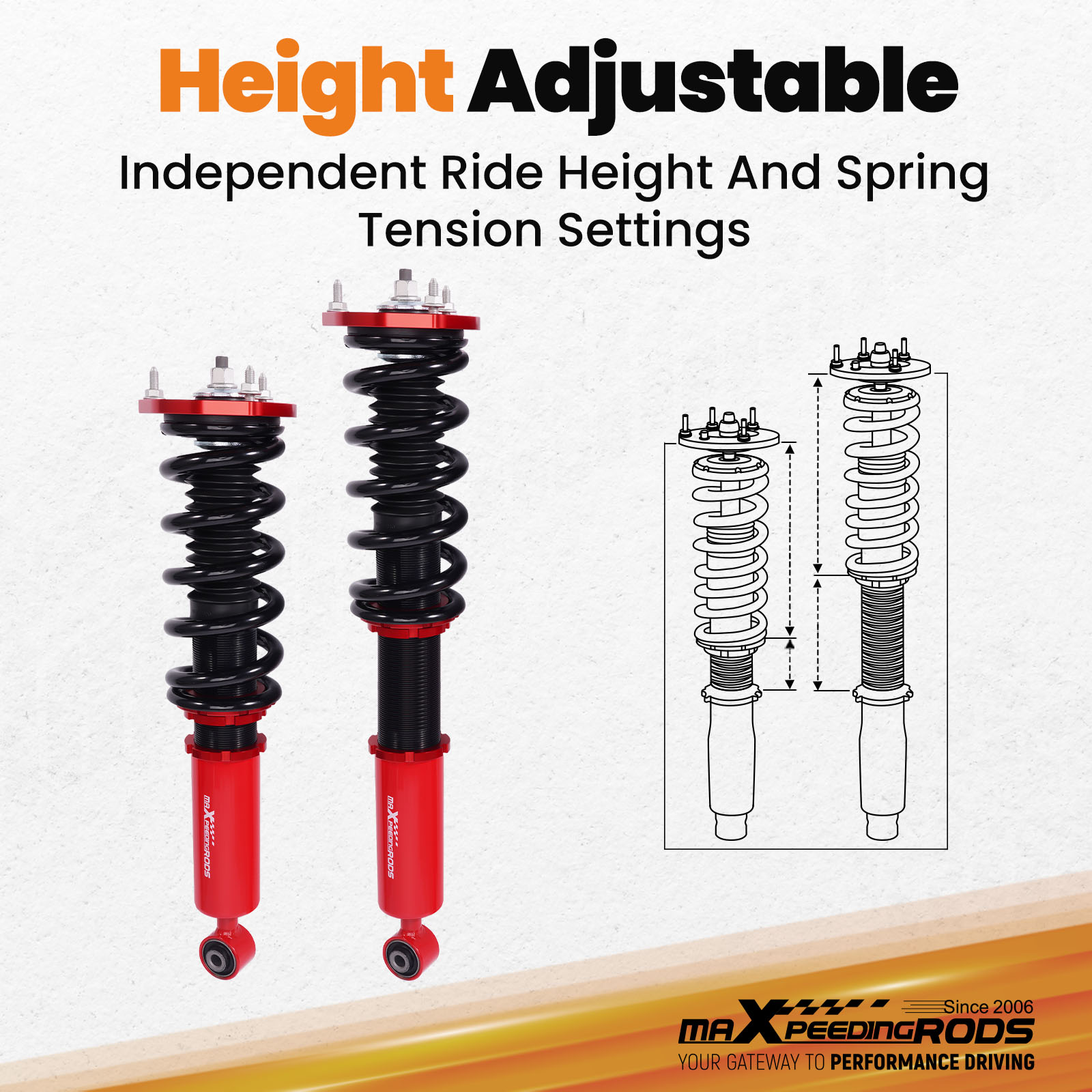

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
High Rigidity 55CrSi Steel Cold-bent Coil Springs

Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction

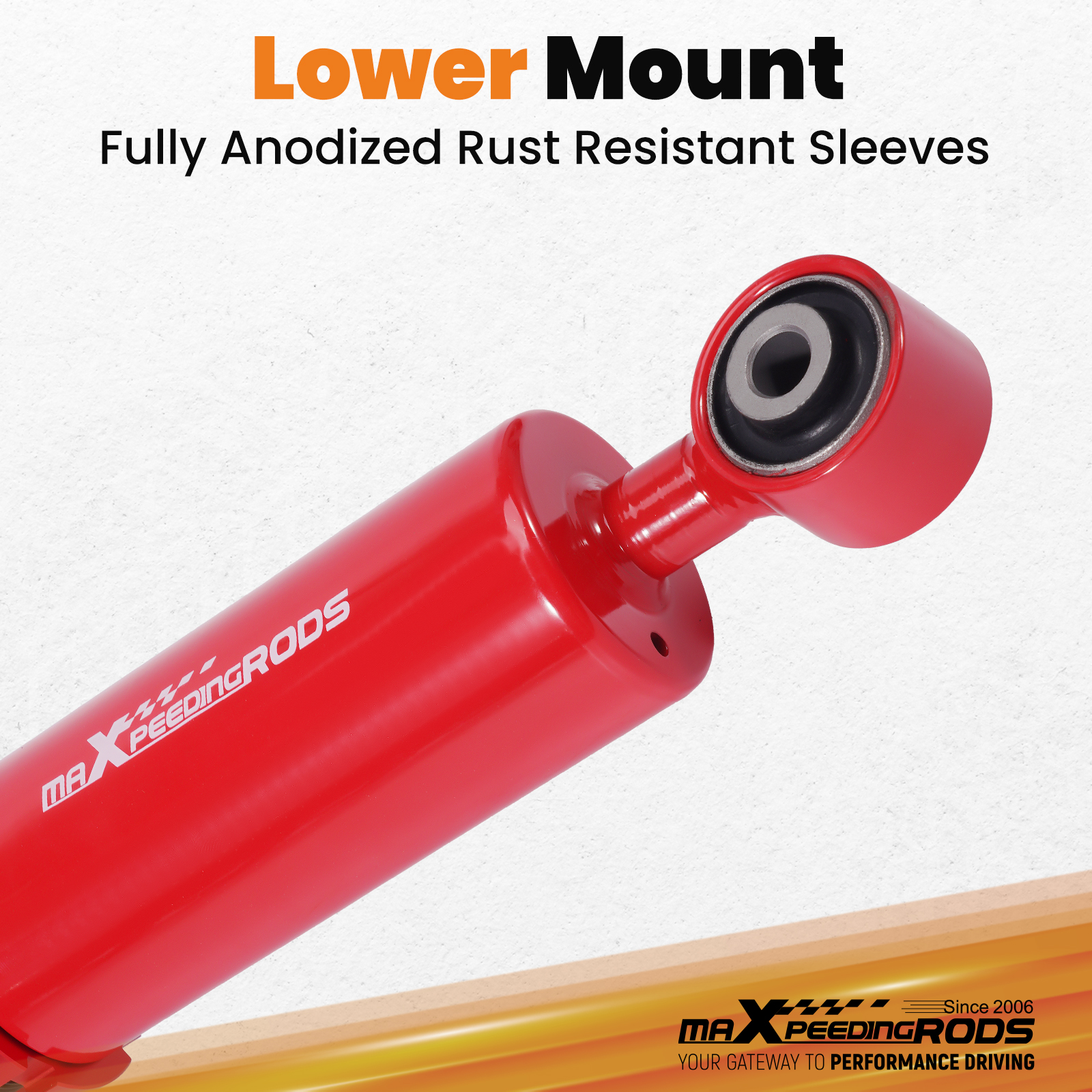

Weight Saving Aluminum Components And Carbon Steel Lower Mount Brackets

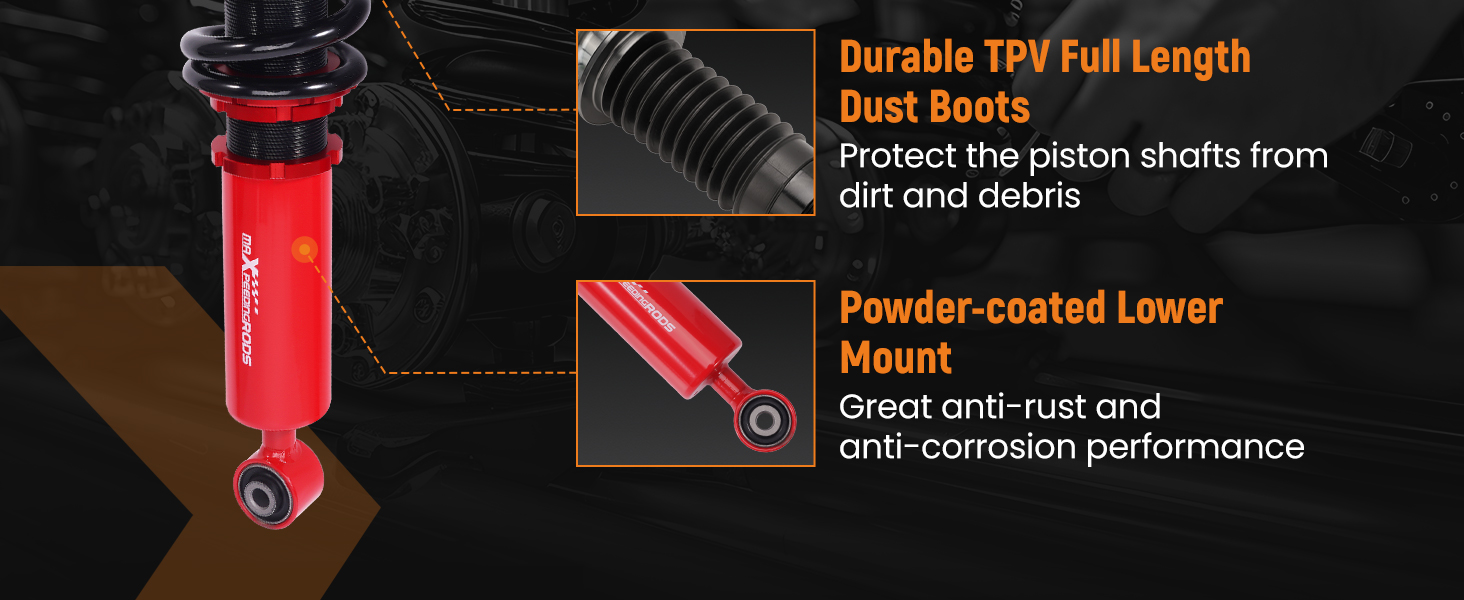

Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Application


For TOYOTA ALTEZZA AS200 1998-2005 GXE10
For TOYOTA ALTEZZA RS200 1998-2005 SXE10
For LEXUS IS300 2000-2005 （INCL SPORTS CROSS (5DR) ）
For LEXUS IS 200 1999 - 2005 GXE10（INCL SPORTS CROSS (5DR) ）
For TOYOTA MARK II 2000-2004 JPN JZX110 GRANDE IR-V, GRANDE G-TB
For TOYOTA MARK II BLIT 2002-2007 JPN JZX110W 2.5IR-V, 2.5IR-S


Specifications

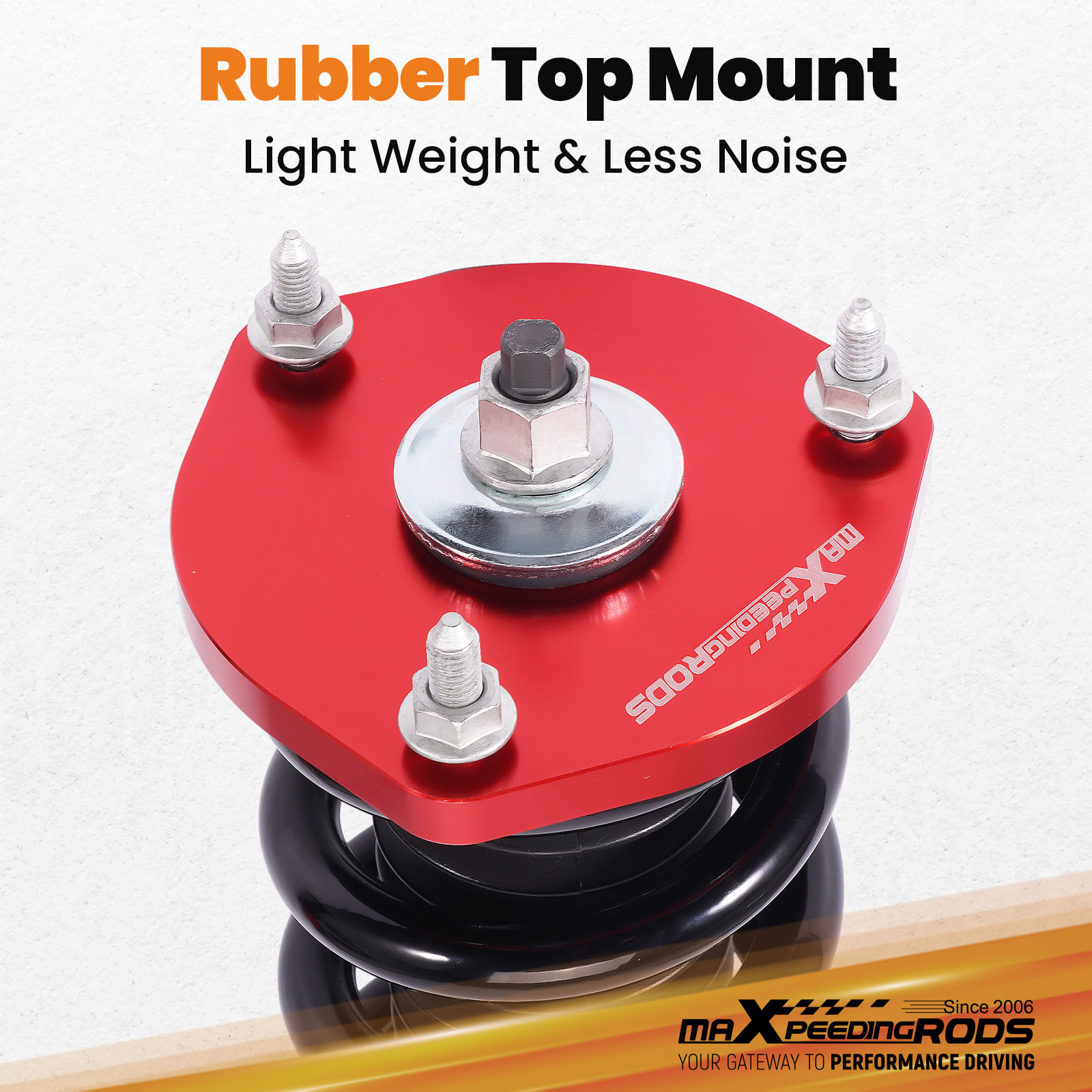

- Top mount: Front and rear rubber
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 12 kg/mm (672 lbs/in)
- Spring rate Rear: 10 kg/mm (560 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring


Package Including


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
