Coilovers 24 Level Damping Suspension Fit HONDA ACCORD 2003-2007 Lowering Kit

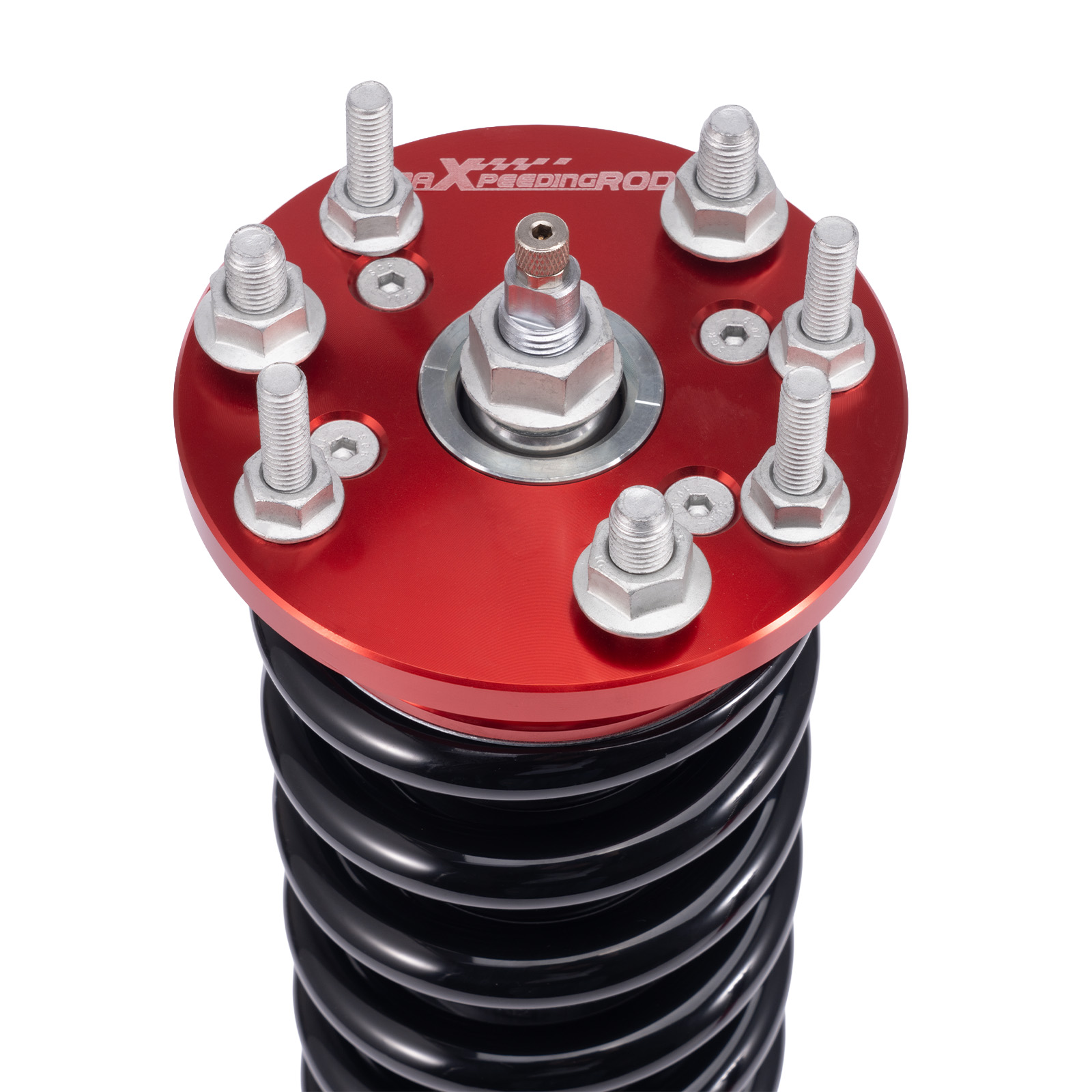

T-6061 Billet Aluminum Top Mount

Pillow Ball Mount Provides More Precise Feel From Suspension And Steering

55mm Large Diameter Damper Body

Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

Drops From 1 to 3 Inch From Factory Ride Height

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

High Rigidity 55CrSi Steel Cold-bent Coil Springs

 - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Adjustable damper Yes, 24 levels rebound damping adjustable
Adjustable height Yes, Lowering 1-3 inch
Front Spring length 230mm
Rear Spring length 230mm
Front spring length 10kg/mm(560 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Front Damper Body Diameter Φ55mm (2.17")
Rear Damper Body Diameter Φ55mm (2.17")
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

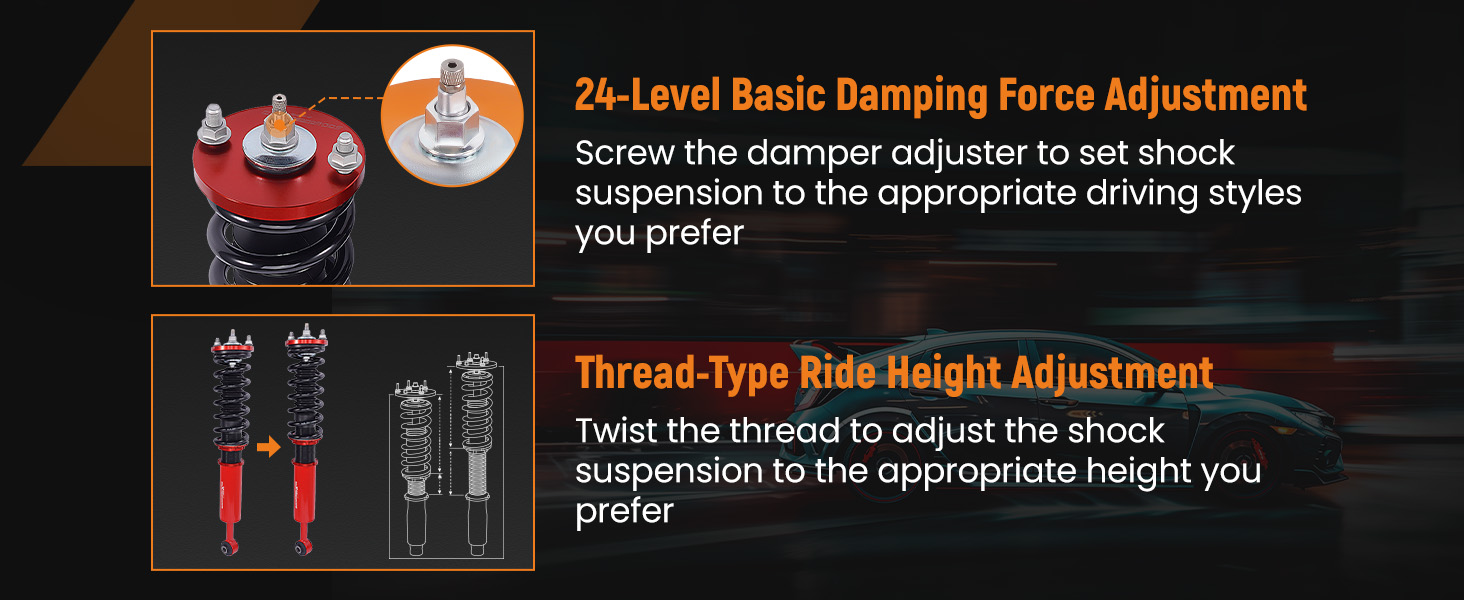

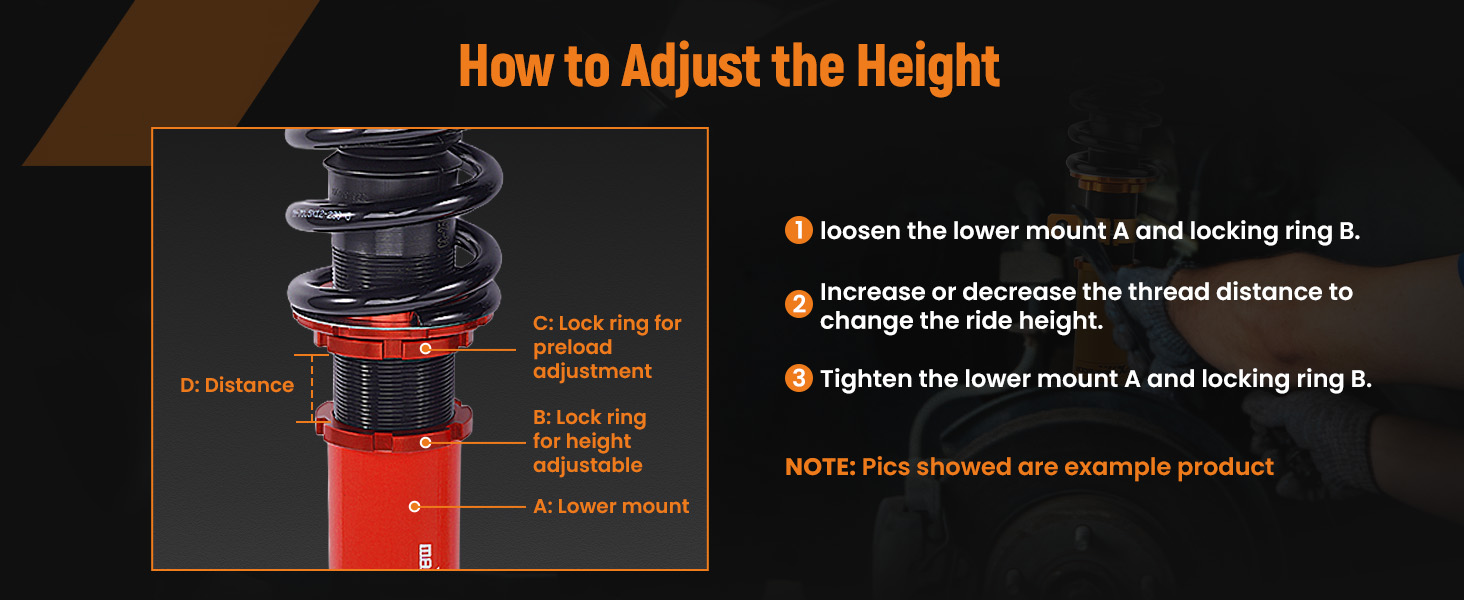

- Independent ride height adjustable: Easily adjust the height of your ride! This coilover also allows for height and preload adjustments. This means you can reach optimal suspension tuning while maintaining a stable, comfortable ride at all times.

- Full Length Adjustable Type: Allows ride height adjustment without affecting suspension stroke, maintaining comfort while customizing height.

- 24 Levels Damping Force Adjustable: Provides an extensive range of adjustability, making it easy to customize for various purposes and achieve desired ride comfort.

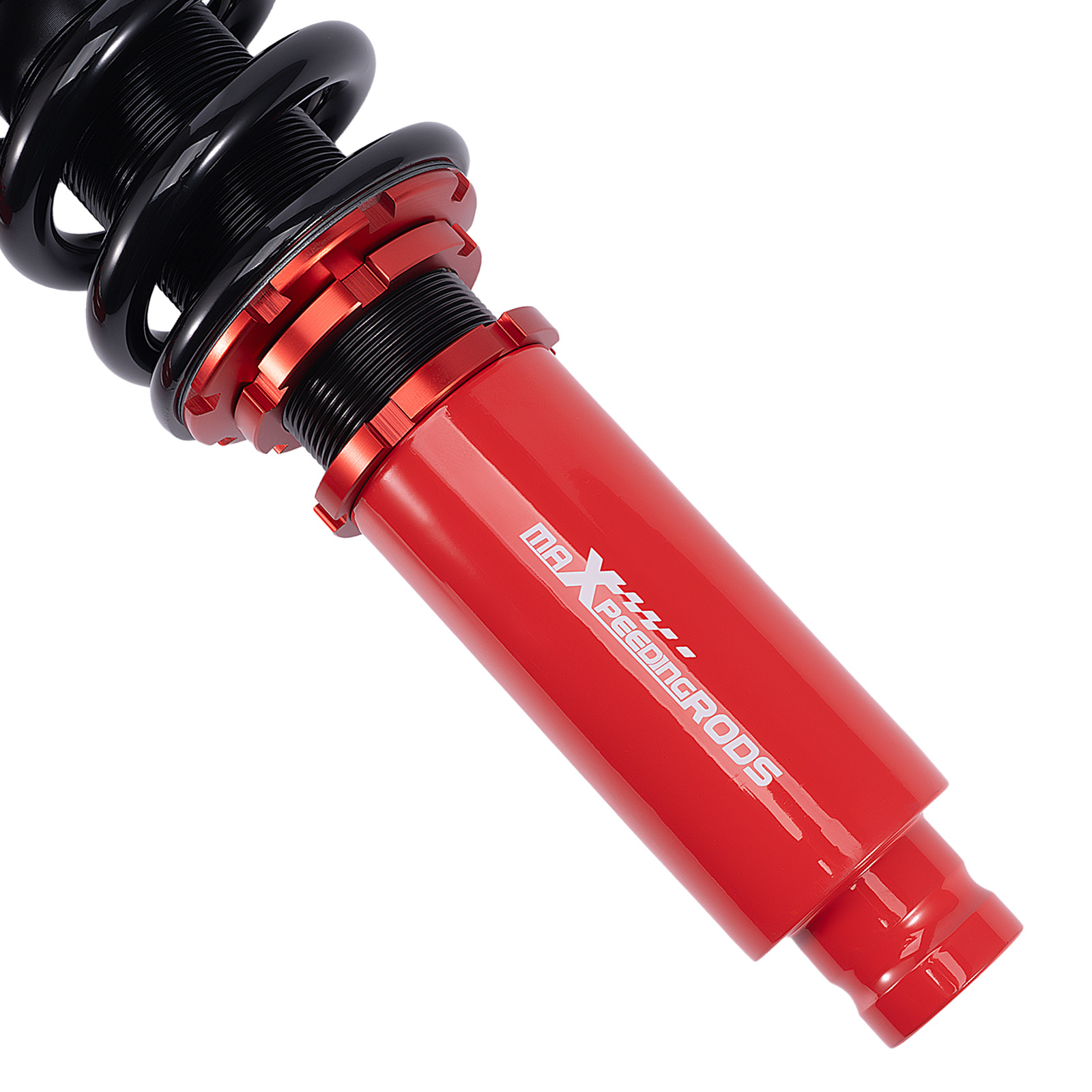

- 55mm Large Diameter Damper Body: Features high oil capacity for superior heat dissipation, consistent damping performance, and extended service life under demanding conditions.

- High Durability Bearing and Thrust Seat: Utilizes top-quality components for durability and noise reduction, ensuring long-lasting performance and silent operation.

- Reinforced Rubber Bushing Upper Mount: Specifically designed for each vehicle, enhances silence and comfort. Adjustable camber angle for certain strut mechanism suspension cars.

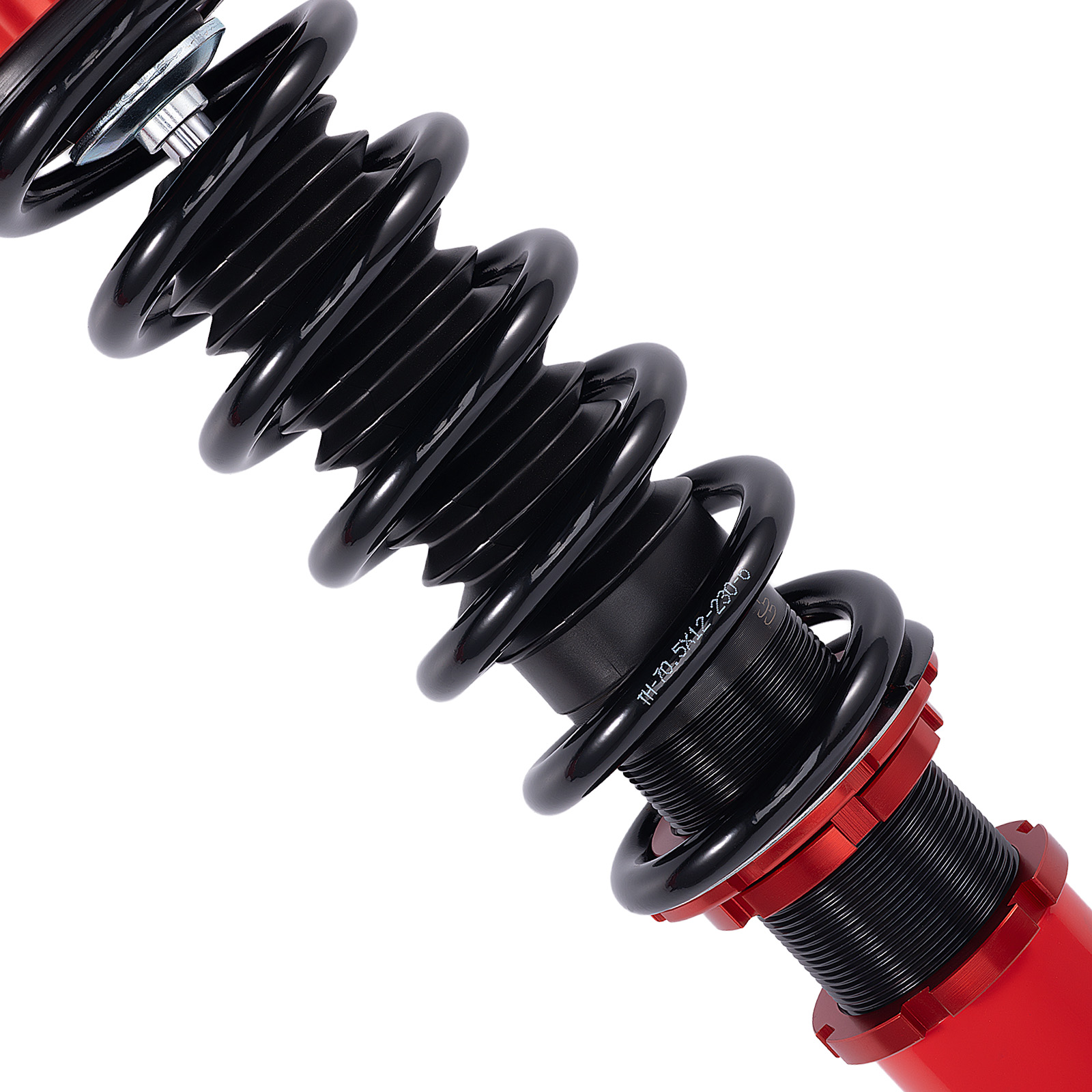

- 55CrSi Steel Cold-bent Spring: Features extreme lightweight and high durability with world-class tensile strength, reducing metal fatigue and enhancing performance.

- Balanced Comfort & Performance: Strikes a harmonious blend between sporty handling dynamics and daily drivability.


Application


For Honda Accord VII 4-door sedan CM4/CM5/CM6 2003-2007
For Honda Accord VII 2-door coupe CM7/CM8 2003-2007

For Honda Acura TL/TL Type-S 2004-2008
For Honda Inspire 2003-2007 (Japan market only)

Specificaions


- Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 10 kg/mm (560 lbs/in)
- Spring Rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm

- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ55mm (2.17")
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring


Product included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

✅ 100% BRAND NEW | 1 YEAR LIMITED WARRANTY ✅ Full Length Adjustable Ride Height For Custom Stance Without Suspension Compromise ✅ 24 Levels Damping Force Adjustable For Precise Comfort And Performance Tuning ✅ Precision Pillow Ball Upper Mounts With Smooth Bearings For Stable Steering Response ✅ 55mm Large Diameter Damper Body Delivers Superior Stability And Control ✅ 55CrSi Cold-Bent Steel Springs Provide Max Strength And Long-Term Durability ✅ T-6061 Billet Aluminum Construction With High-Durability Thrust Seats & Reinforced Rubber Bushings ✅ Perfect for Daily Commuting and Weekend Street Performance
