Q8R7CXXR12E Red Recessed 8mm 12VDC LED Panel Indicator IP67 APEM

Q8R7CXXR12E Red Recessed 8mm 12VDC LED Panel Indicator IP67 APEM

£
8.39

Ask a question

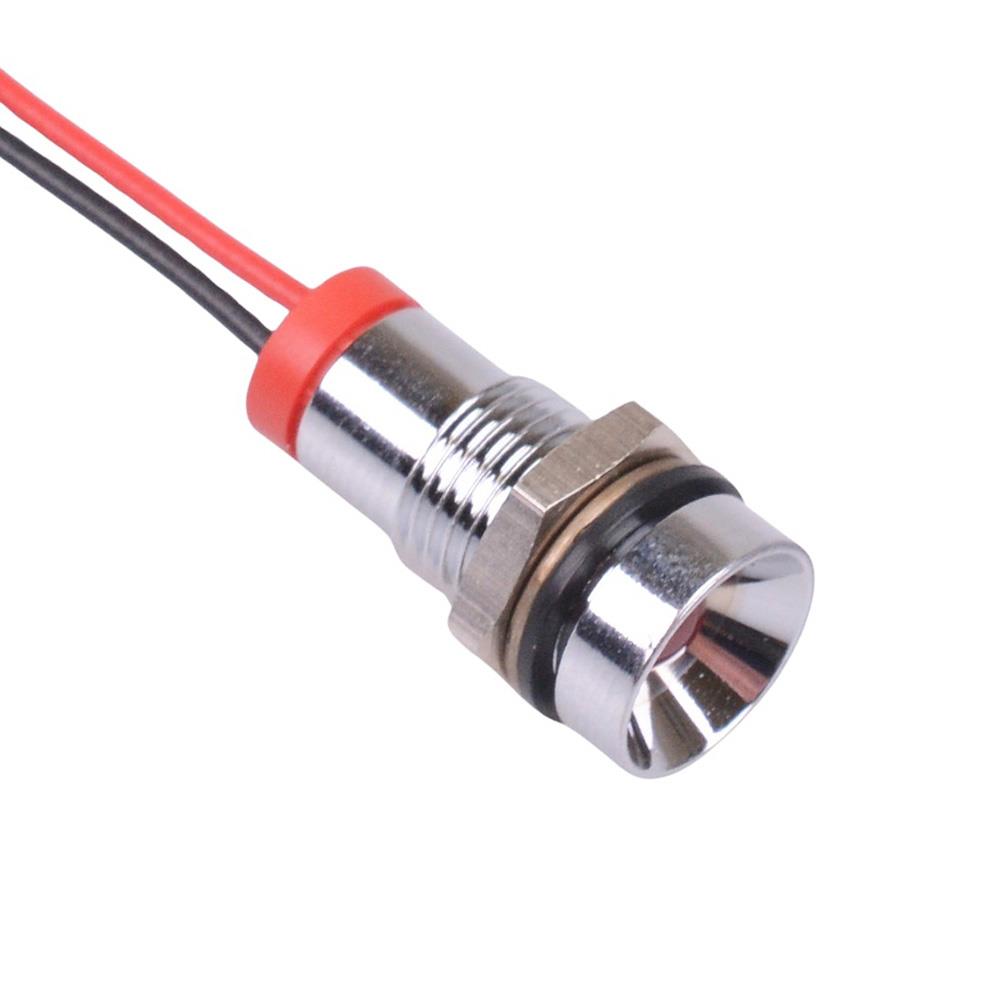

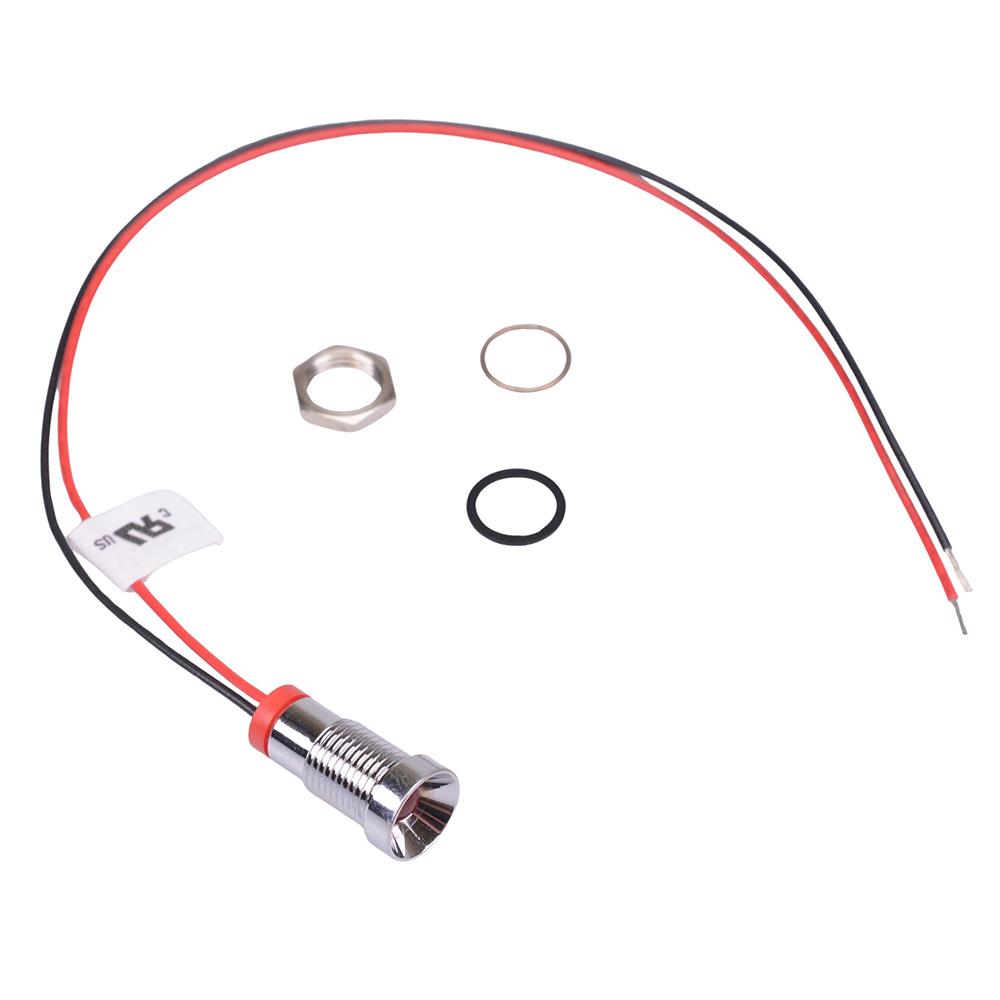

The Q8R7CXXR12E is a red panel mount LED indicator from the APEM Q8 series, featuring a 8mm cut-out and sealed to IP67. The indicator features a recessed chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.

  • Colour: red
  • Panel cut-out: 8mm
  • Voltage rating: 12VDC
  • Current rating: 20mA
  • Panel thickness: 7mm max
  • Brightness: 80mcd
  • Operating voltage: 10.8 to 13.2VDC
  • Bezel material: chrome plated brass
  • Protection level: IP67
  • Terminal type: 200mm wires
  • Length: 18.5mm
  • Diameter: 9.4mm
  • UL, REACH and RoHS certified

    •
