Q6F3CXXG02 Green Flush 6mm 2.1VDC LED Panel Indicator APEM

Q6F3CXXG02 Green Flush 6mm 2.1VDC LED Panel Indicator APEM

£
6.29

Ask a question

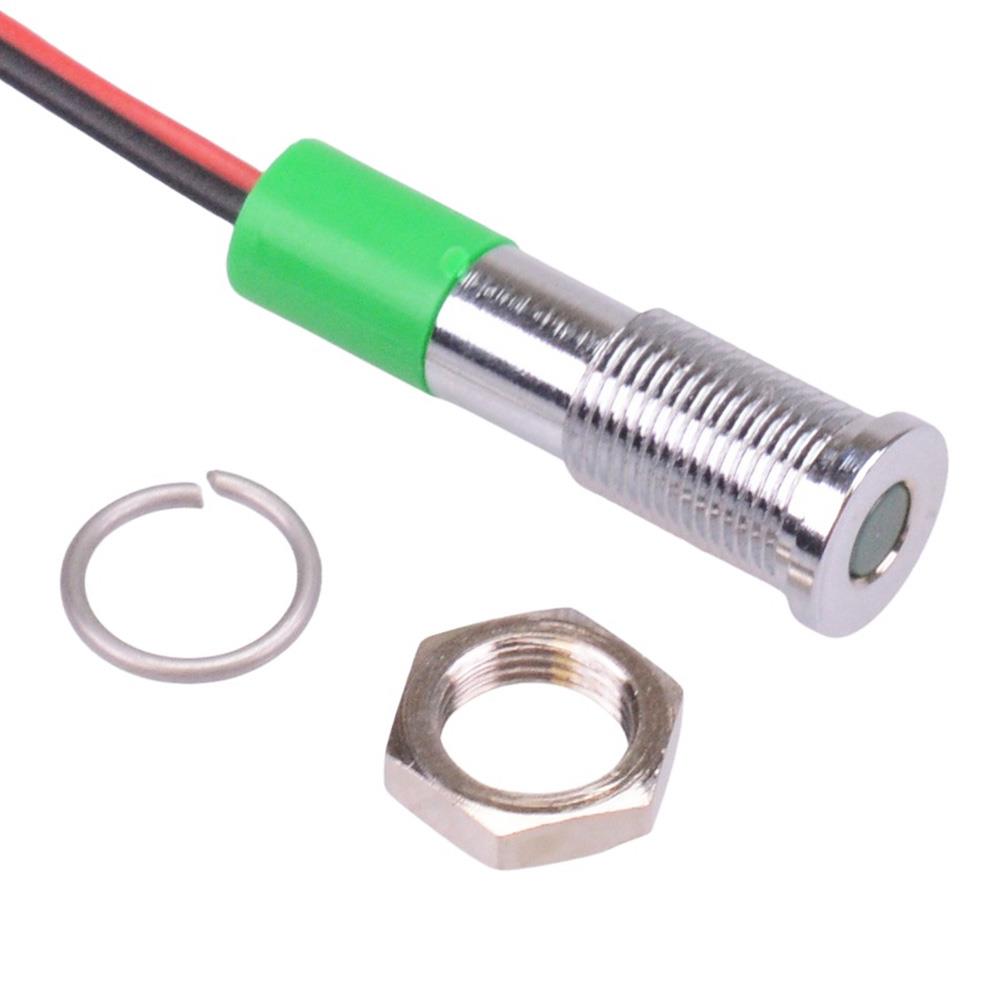

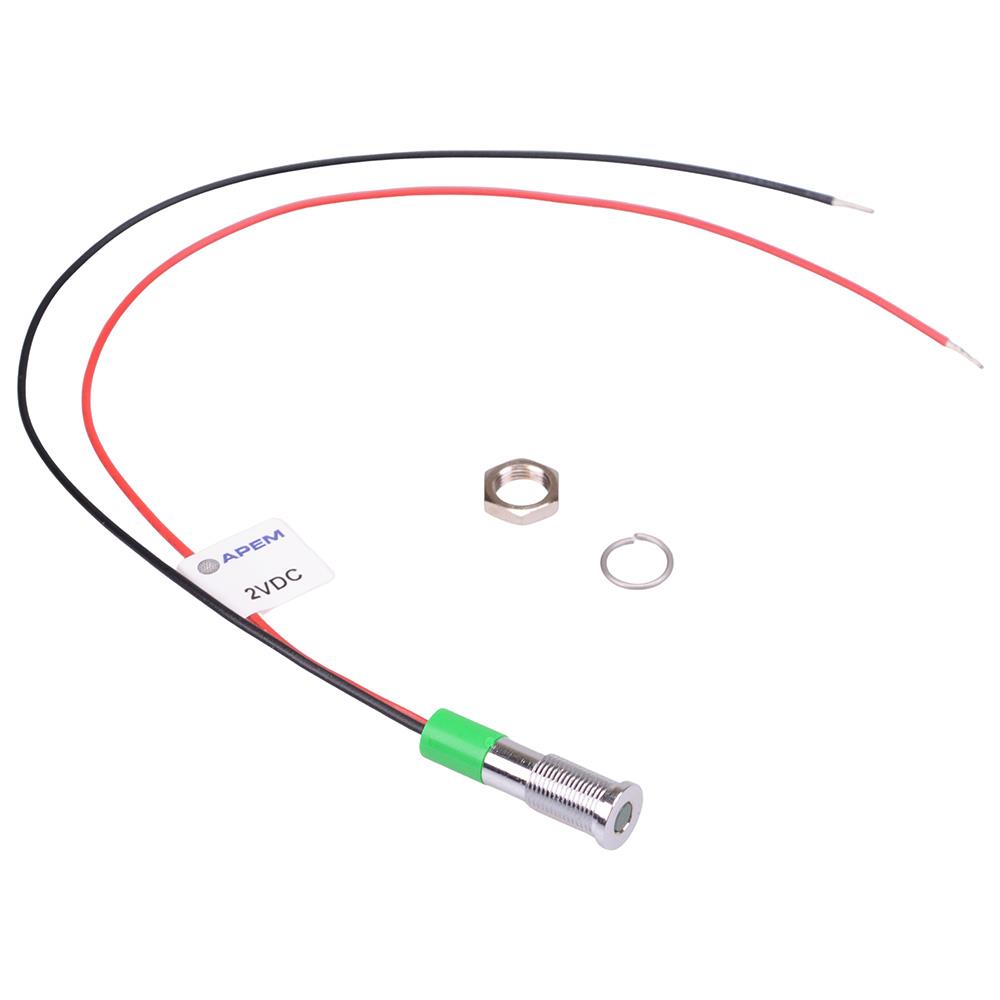

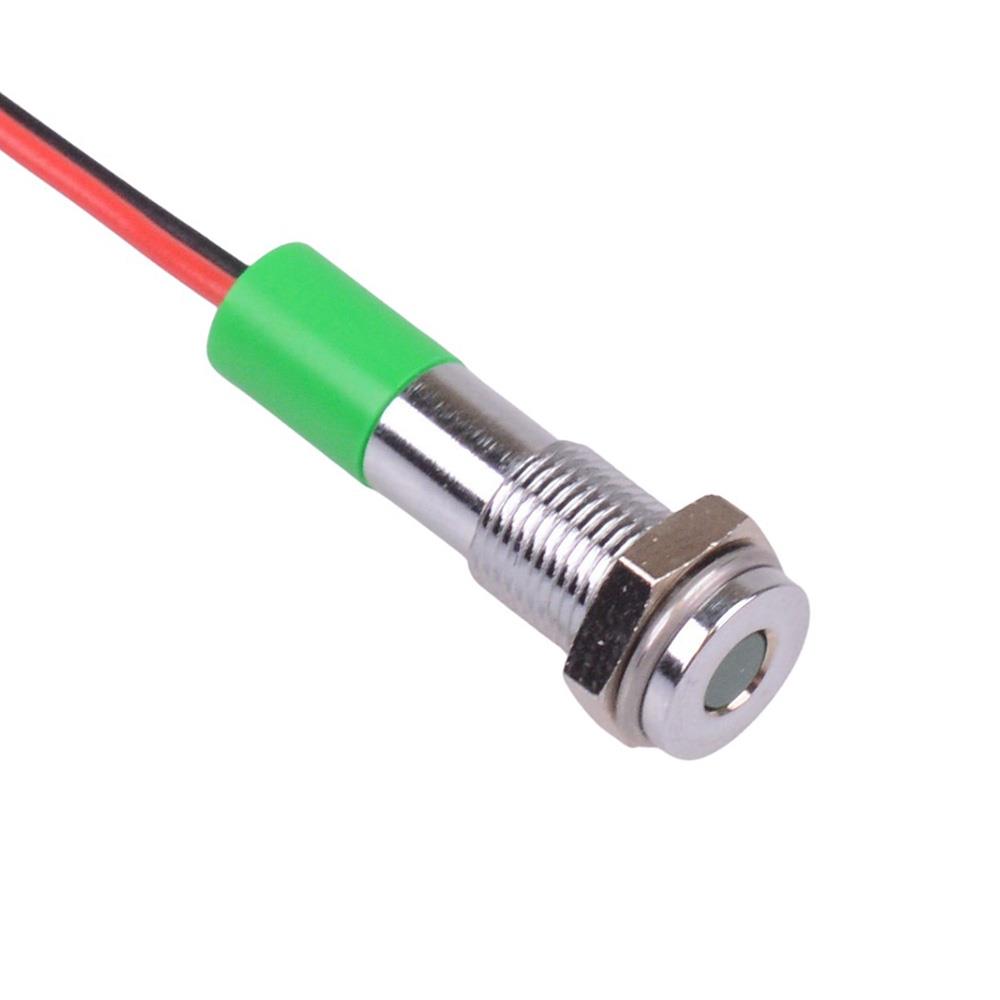

The Q6F3CXXG02 is a green panel mount LED indicator from the APEM Q6 series, featuring a 6mm cut-out. The indicator features a flush chrome bezel and 200mm tail wires. The panel indicator is UL certified and suitable for the most demanding of applications.

  • Colour: green
  • Panel cut-out: 6mm
  • Voltage rating: 2.1VDC
  • Current rating: 20mA
  • Panel thickness: 7mm max
  • Brightness: 45mcd
  • Operating voltage: 1.8 to 3.3VDC
  • Bezel material: chrome plated brass
  • Terminal type: 200mm wires
  • Length: 22mm
  • Diameter: 6.9mm
  • UL, REACH and RoHS certified

    •
