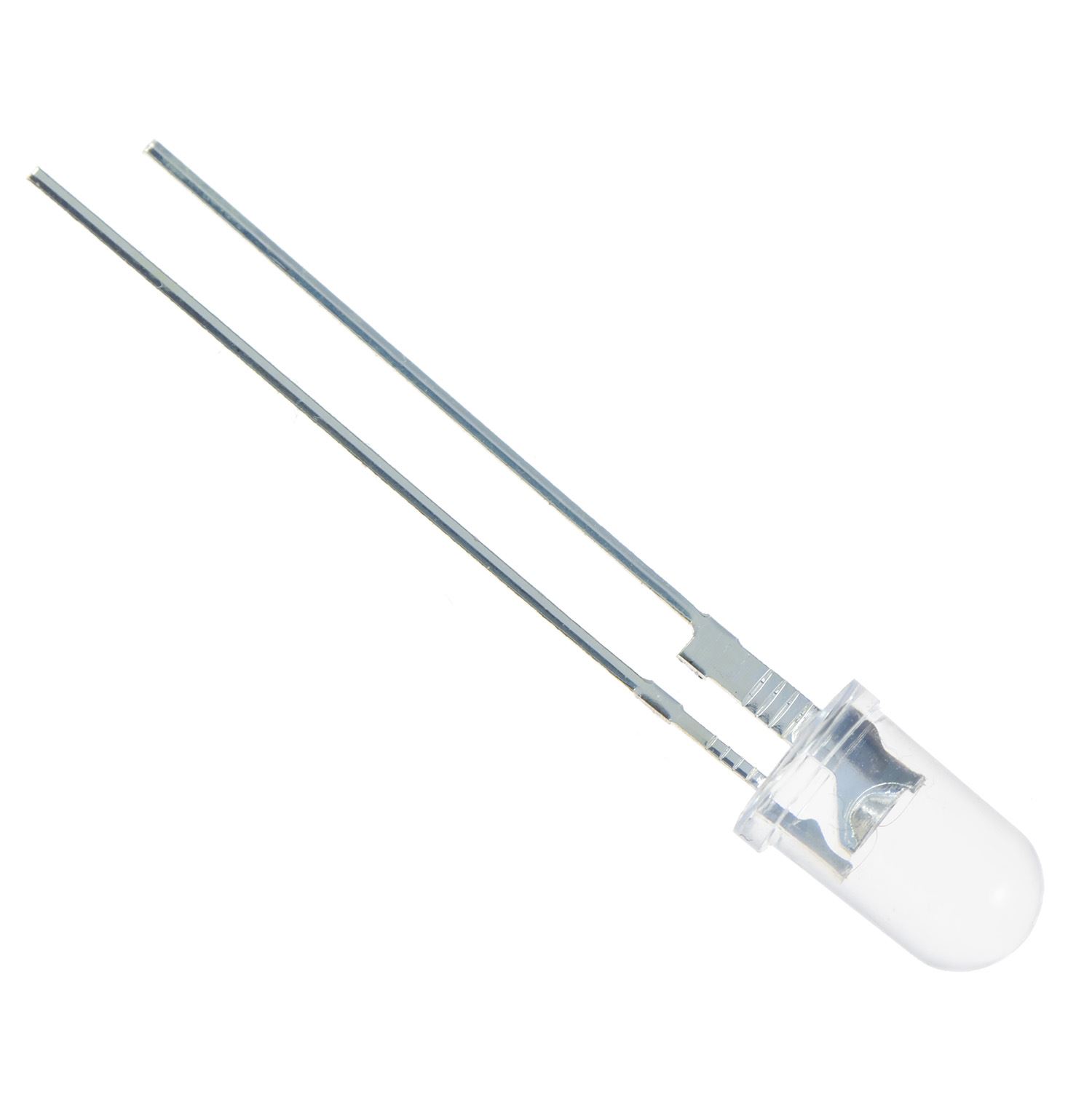

High Intensity Deluxe 5mm LED Clear Lens - Ultra Bright
£
0.99 - 20.99
High intensity LEDs with a waterclear lens and 5mm package. The LEDs feature a blade shape cathode which acts as a heat sink to dissipate heat at high current levels. Suitable for a wide range of applications where a high luminous intensity is required.
Range of colours available Waterclear lens 5mm diameter LED Long lifespan Superior weather resistance UV resistant epoxy Suitable for PCB or panel mounting applications Excellent energy efficieny and reliability
Technical Information
| Wavelength | Green=525nm, Blue=470nm, Red=624nm, Yellow=590nm |
| Brightness | White=75,000mcd, Warm White=35,000mcd, Green=100,000mcd, Blue=30,000mcd, Red=55,000mcd, Yellow=55,000mcd |
| Viewing Angle | 15° |
| Forward Current | White, Warm White, Green, Blue = 50mA Red, Yellow = 70mA |
| Forward Voltage | White, Warm White, Green, Blue = 3.3V Red, Yellow = 2.3V |
