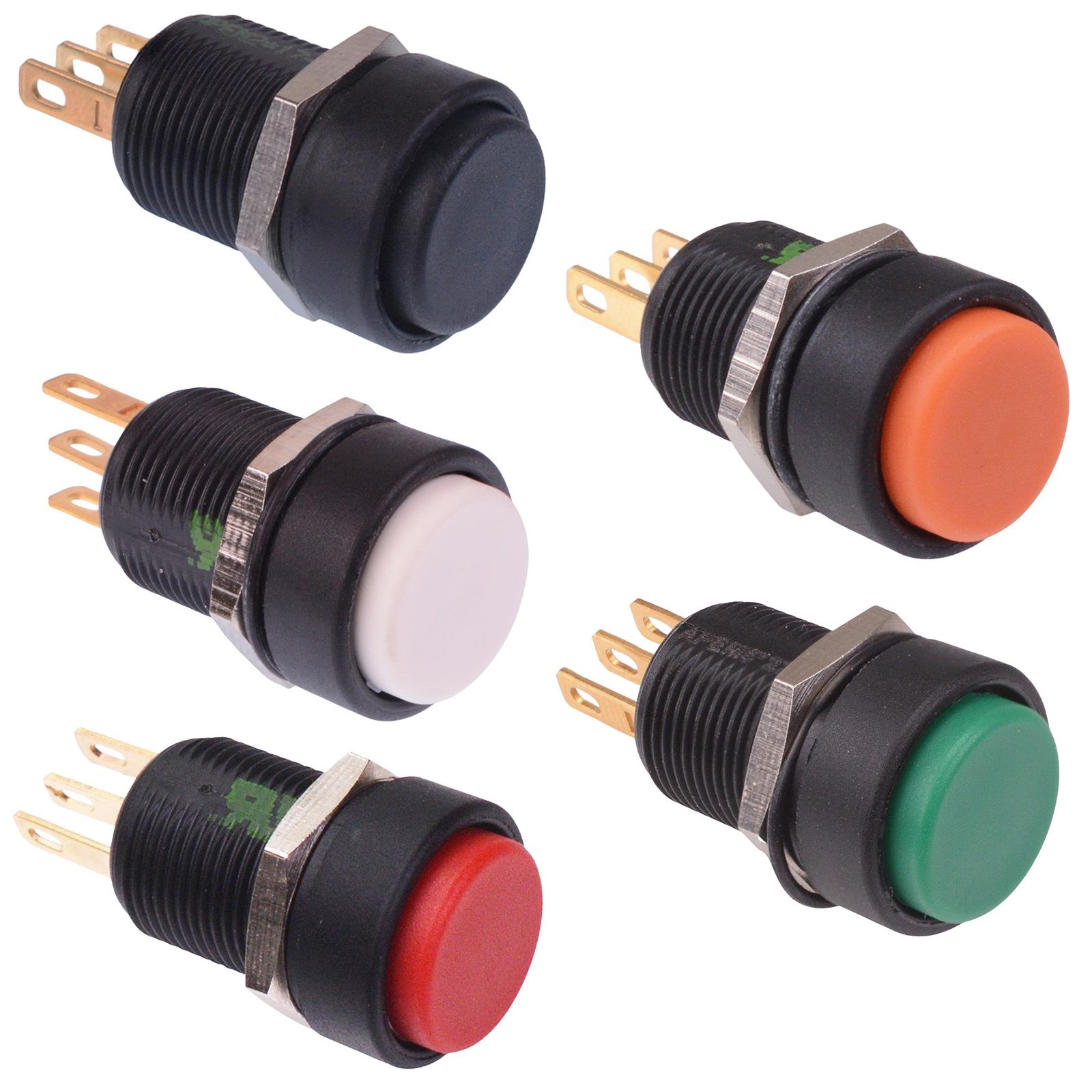

IM Series APEM Momentary 12mm Push Button Switch SPDT Waterproof IP67

IM Series APEM Momentary 12mm Push Button Switch SPDT Waterproof IP67

£
18.39 - 19.49

Ask a question

The IM series are a high quality momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features solder lug terminals and SPDT contacts, suitable for a wide range of applications requiring a high performance switch.

  • Momentary operation
  • Snap action: tactile feedback with audible click
  • SPDT NO/NC contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Quick connect terminals
  • Rating: 3A 28VDC
  • Panel thickness: 1.5-10mm
  • Back of panel space requirement: 20mm minimum
  • Dimensions: 25.1 x 17.5mm (length x diameter)
