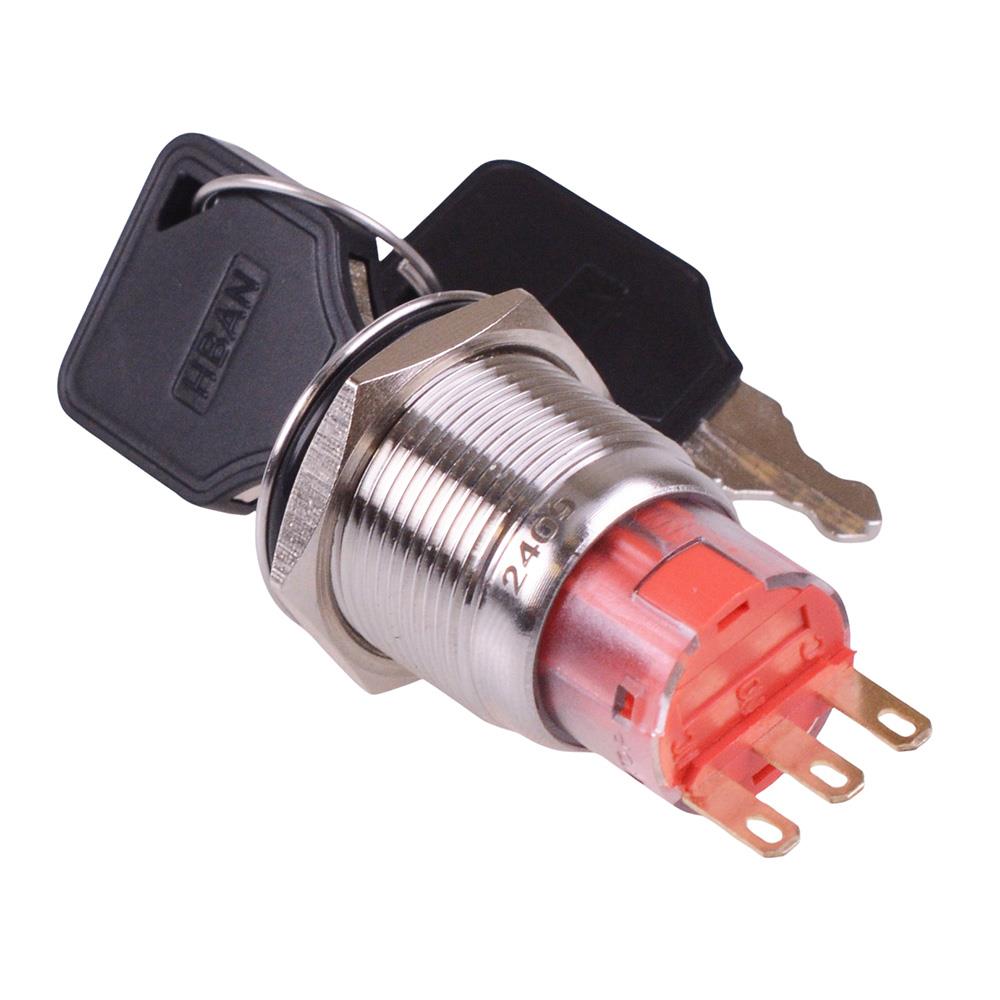

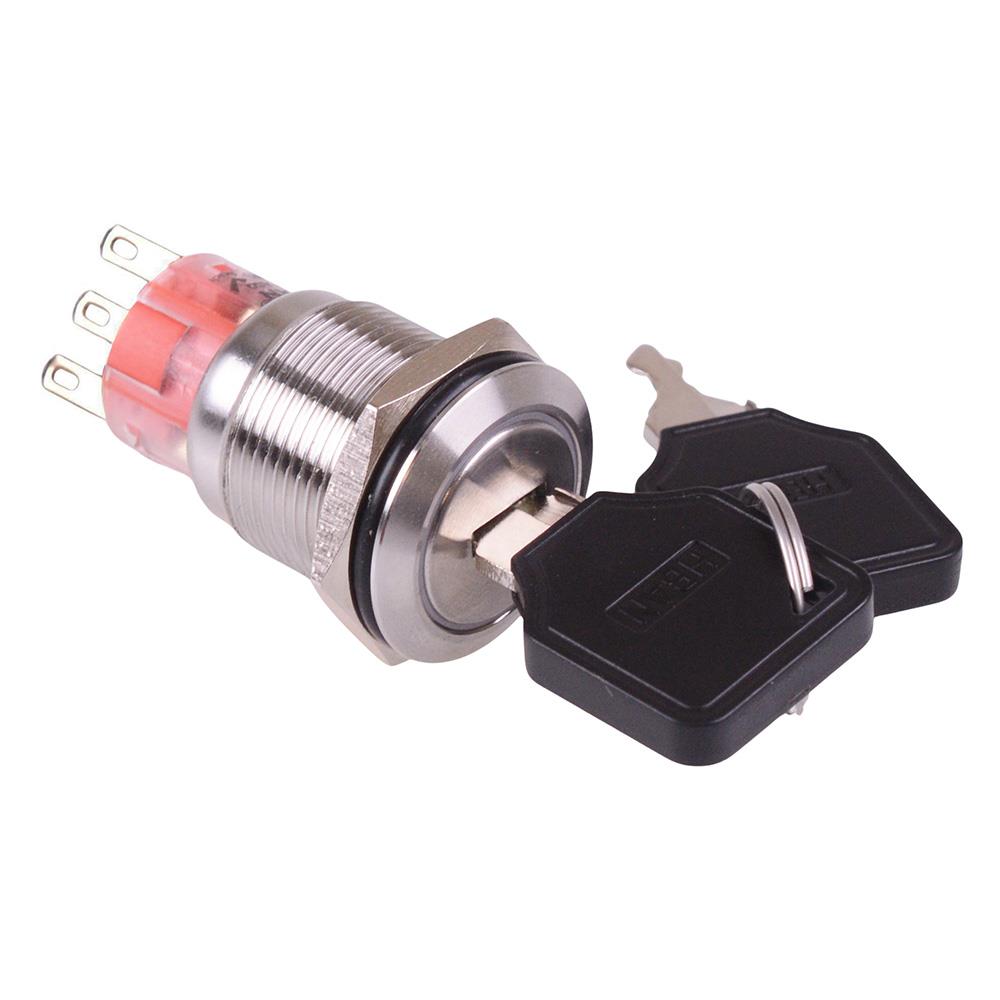

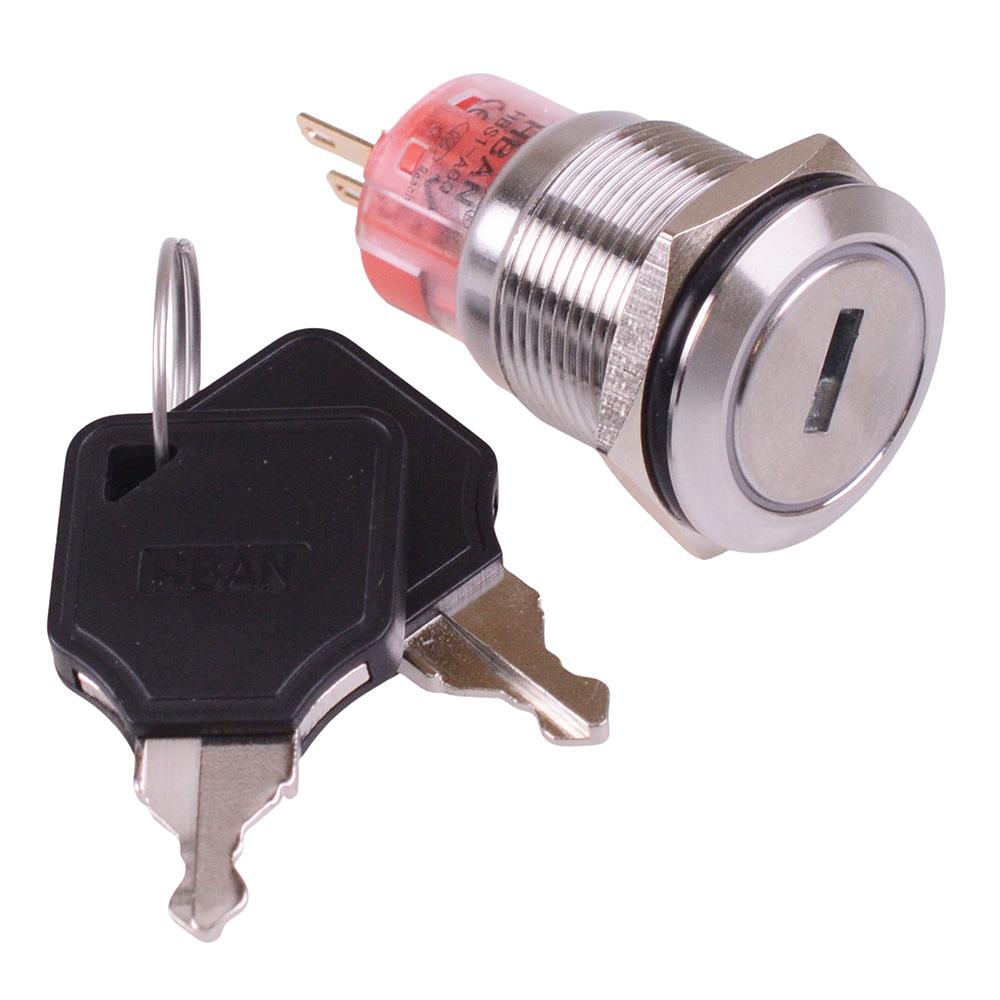

2 Position Latching 19mm Stainless Steel Key Switch IP40 NO/NC

2 position latching key switch featuring a stainless steel body and 19mm panel cut-out. The switch featurres NO/NC contacts and quick connect terminals, suitable for a wide range of applications.

2 position latching operation

NO/NC contacts

Common keys

Stainless steel body

Panel cut-out: 19mm

Panel thickness: 11mm max

2.8x0.5mm quick connect / solder terminals

Rating: 5A 250V

Dimensions: 38.8 x 21.8mm (height x diameter)
