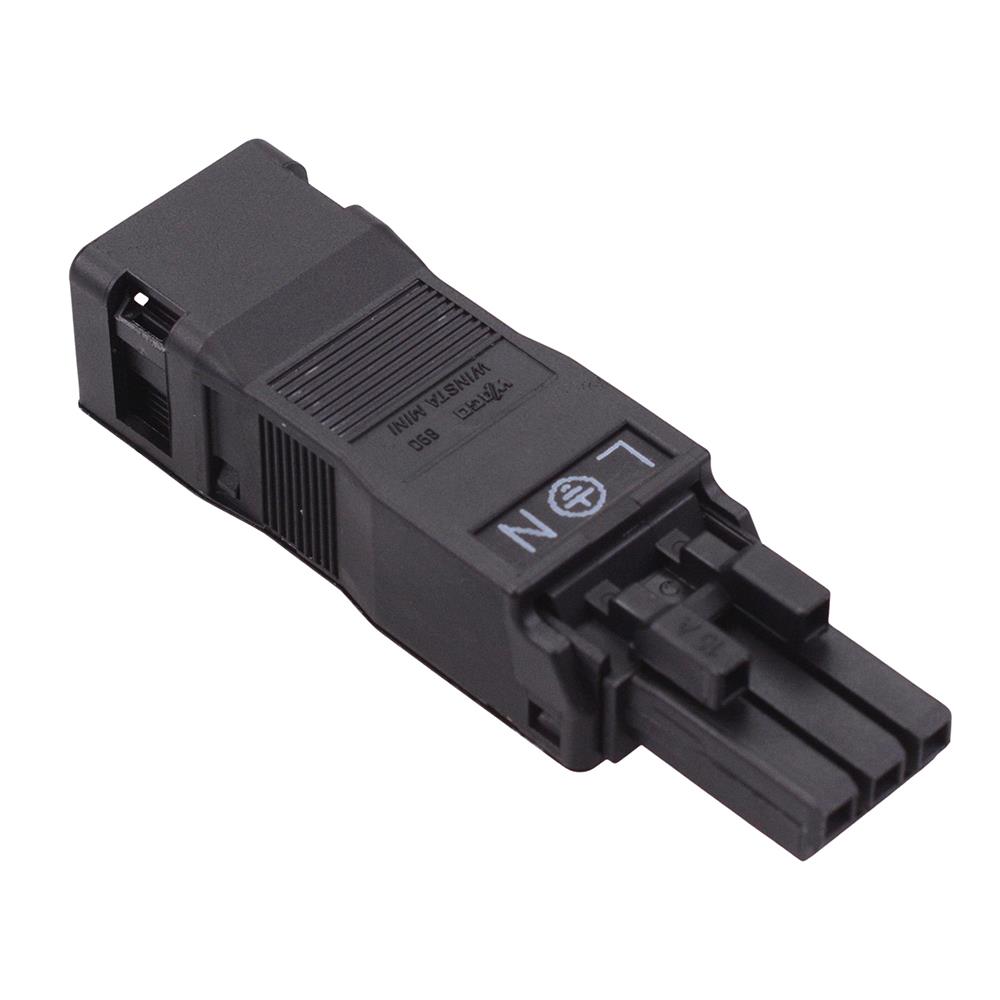

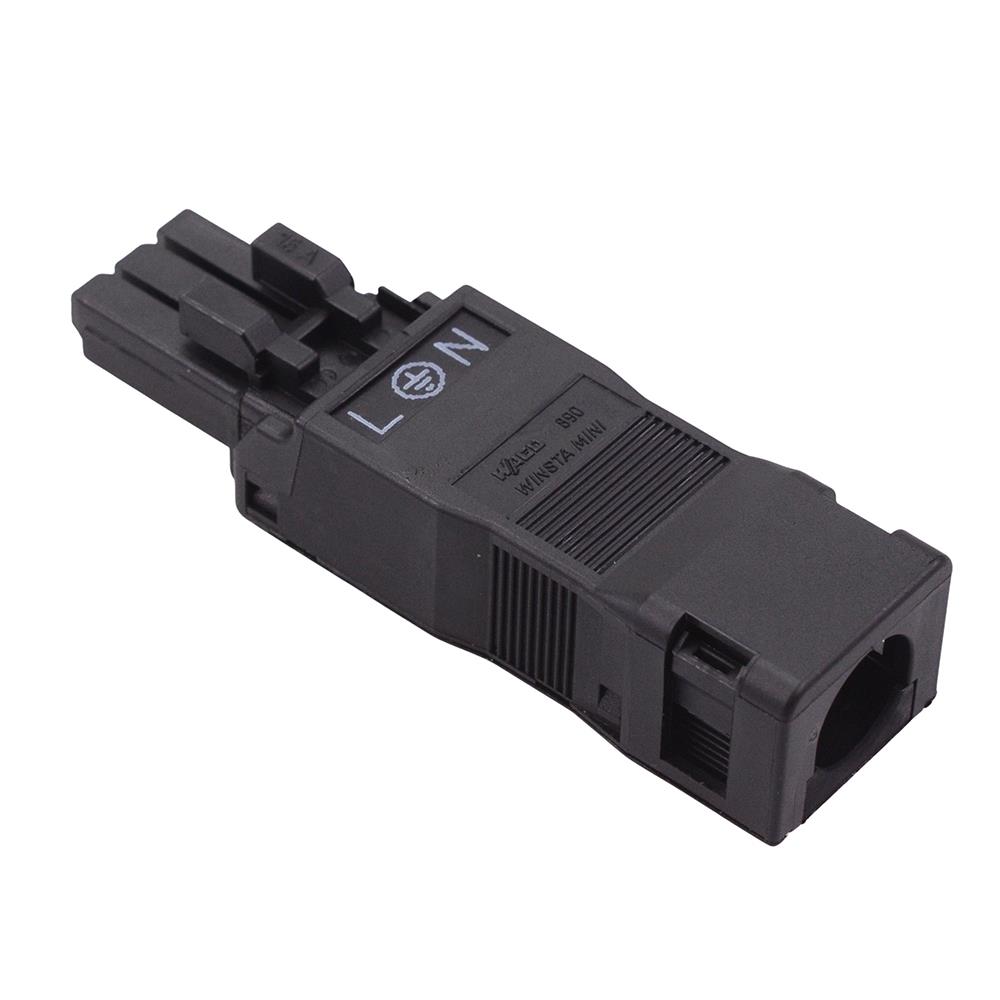

890-103 WAGO 3 Pole WINSTA MINI Socket Connector Strain Relief 16A
£
6.99
The 890-103 is a 3 pole socket with strain relief from the WAGO WINSTA MINI series of connectors. The socket features A coding and is compatible with solid and stranded conductors up to 1.5mm². The connectors utilise Push-in CAGE CLAMP® technology providing a secure connection to the wire and fast installation. The current rating is 16A making it suitable for a wide range of applications including lighting, control cabinets and PCBs.
3 poles Push-in CAGE CLAMP® technology Coding: A Current rating: 16A Nominal voltage: 250V Rated surge voltage: 4kV Wire size: 0.25-1.5mm² 22-16AWG Wire strip length: 9mm Pin spacing: 4.4mm Width: 17.9mm Height: 14mm Depth: 63.6mm
