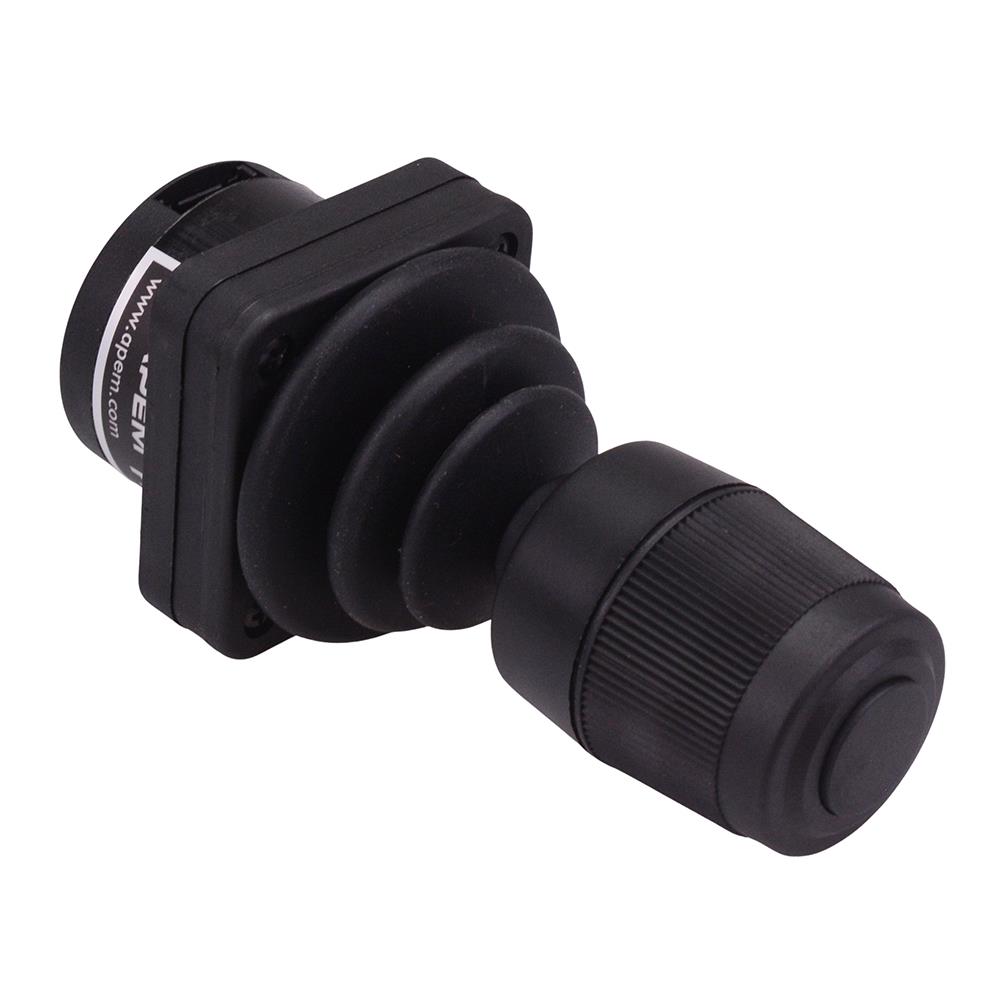

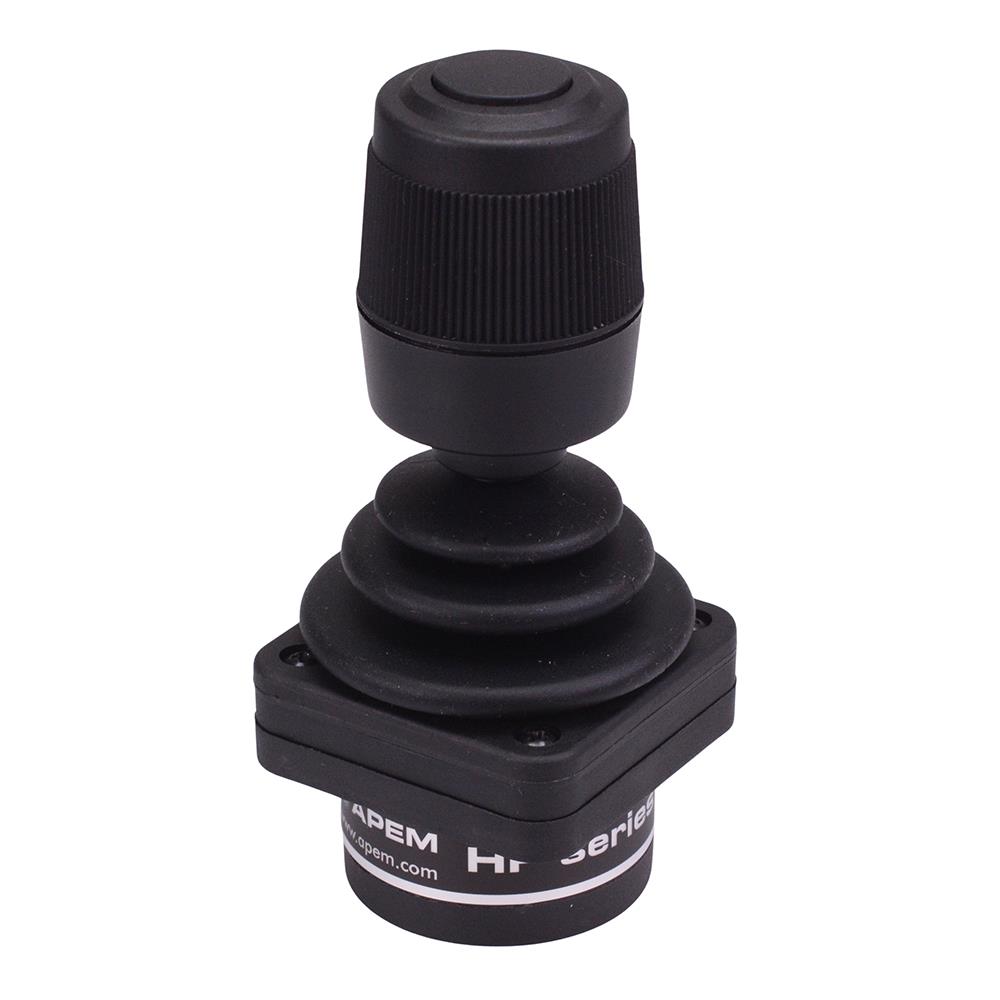

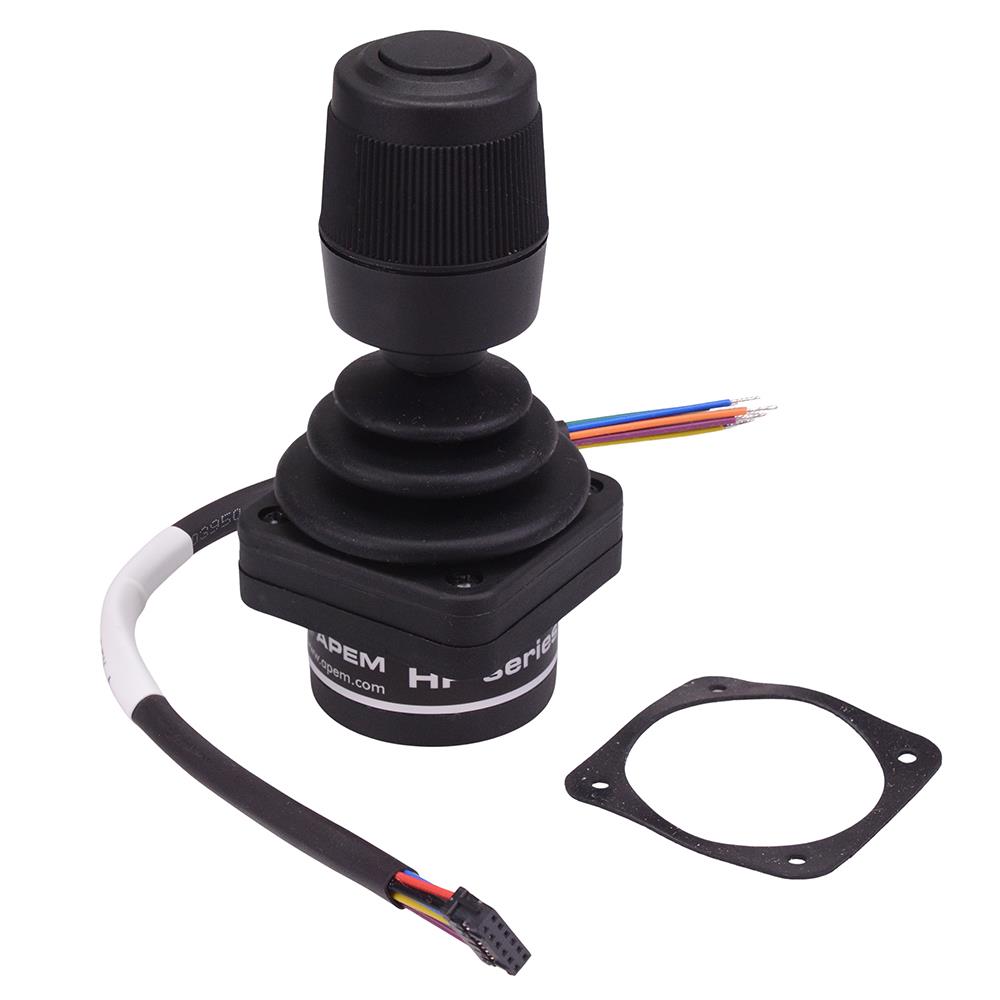

HF44S12A APEM 3 Axis + Pushbutton Fingertip Hall Effect Joystick 0.25V to 4.75V

The HF44S12A joystick is designed for precision fingertip operations, requiring proportional control and long trouble-free life. Featuring 3 axis and a push button, non-contacting hall effect technology and rated for 5 million lifecycles. The HF series features a compacy low profile design, requiring a low operating force, suitable for demanding applications requiring enduring precision and performance.

3 axis and 1 push button

IP67 sealing above panel

5 million expected lifecycles

Square limiter plate

Drop-in mounting

Supply voltage: 8-35VDC

Output: 0.25V to 4.75V

Panel cut-out: 41.28mm

Mounting hole pitch: 35.56 x 35.56mm

Dimensions: 48.26 x 48.26 x 112.0mm (length x width x height)
