1212A3 APEM On-(Off) Green Momentary Push Button Switch SPST-NC 8A

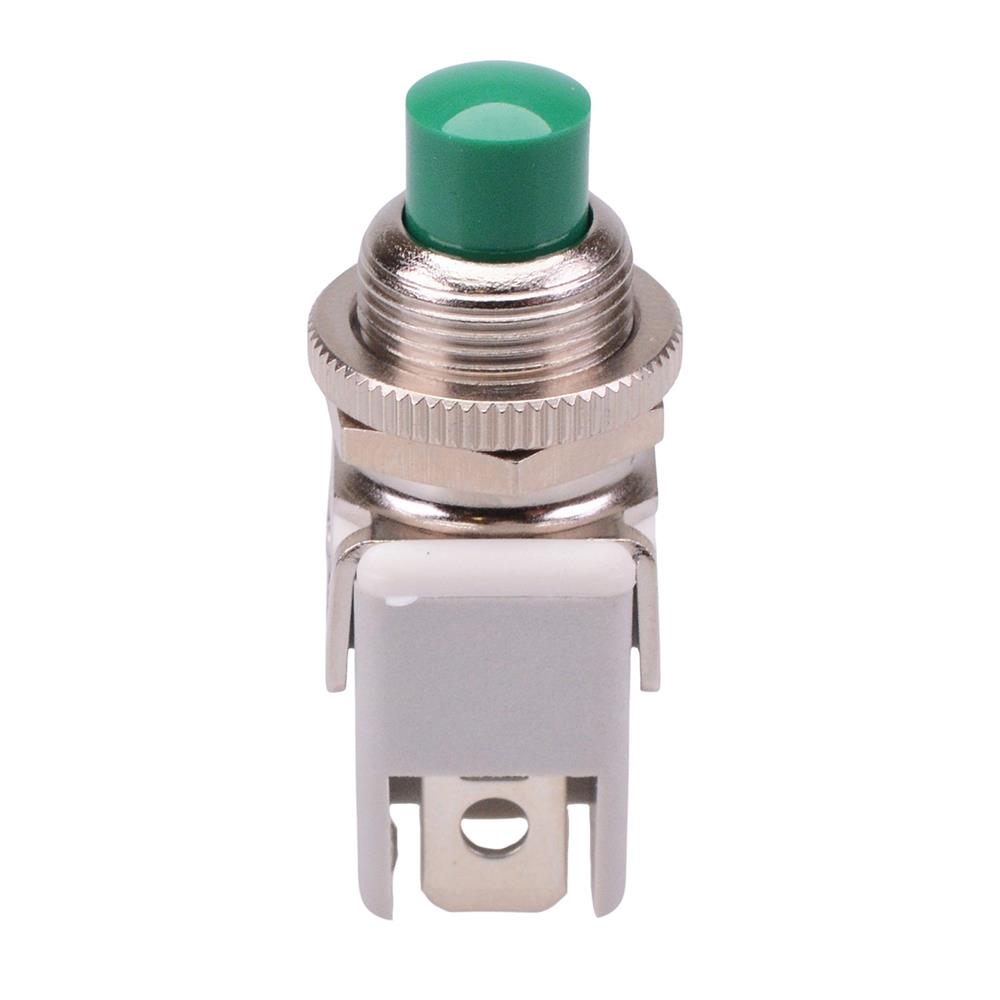

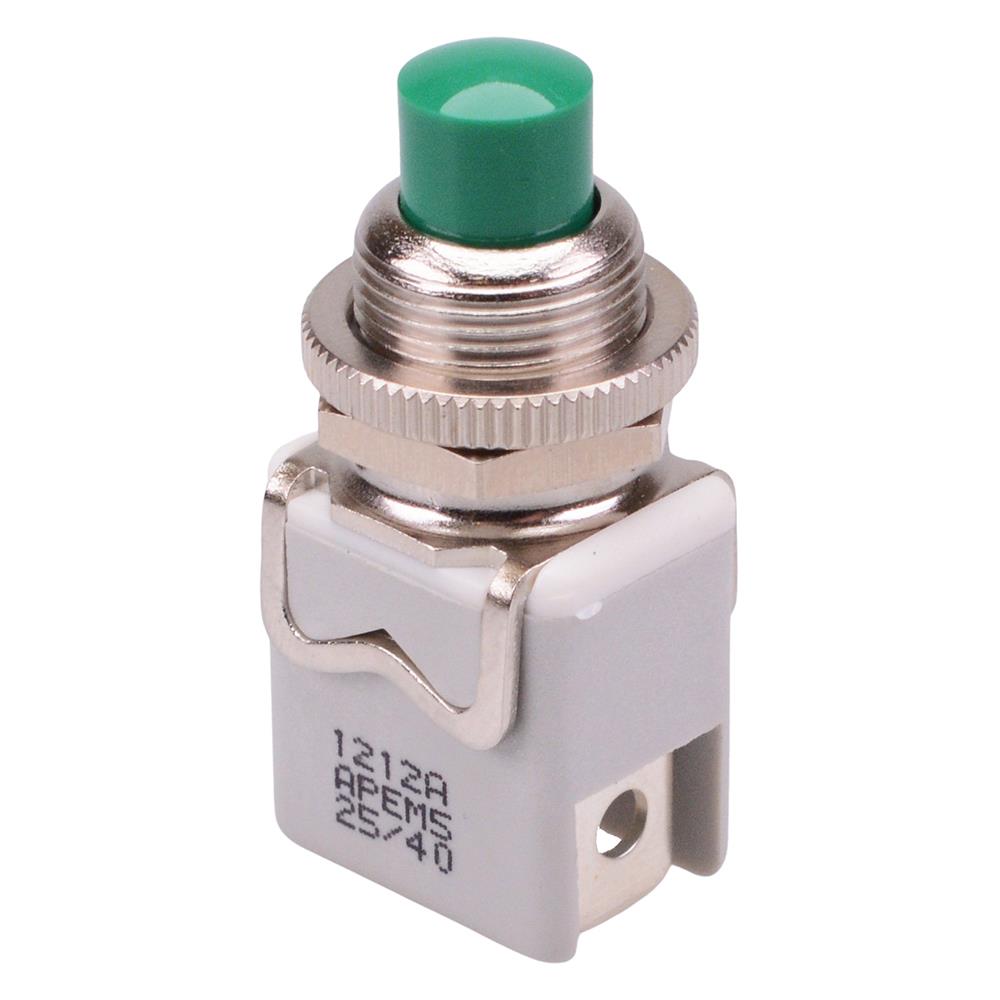

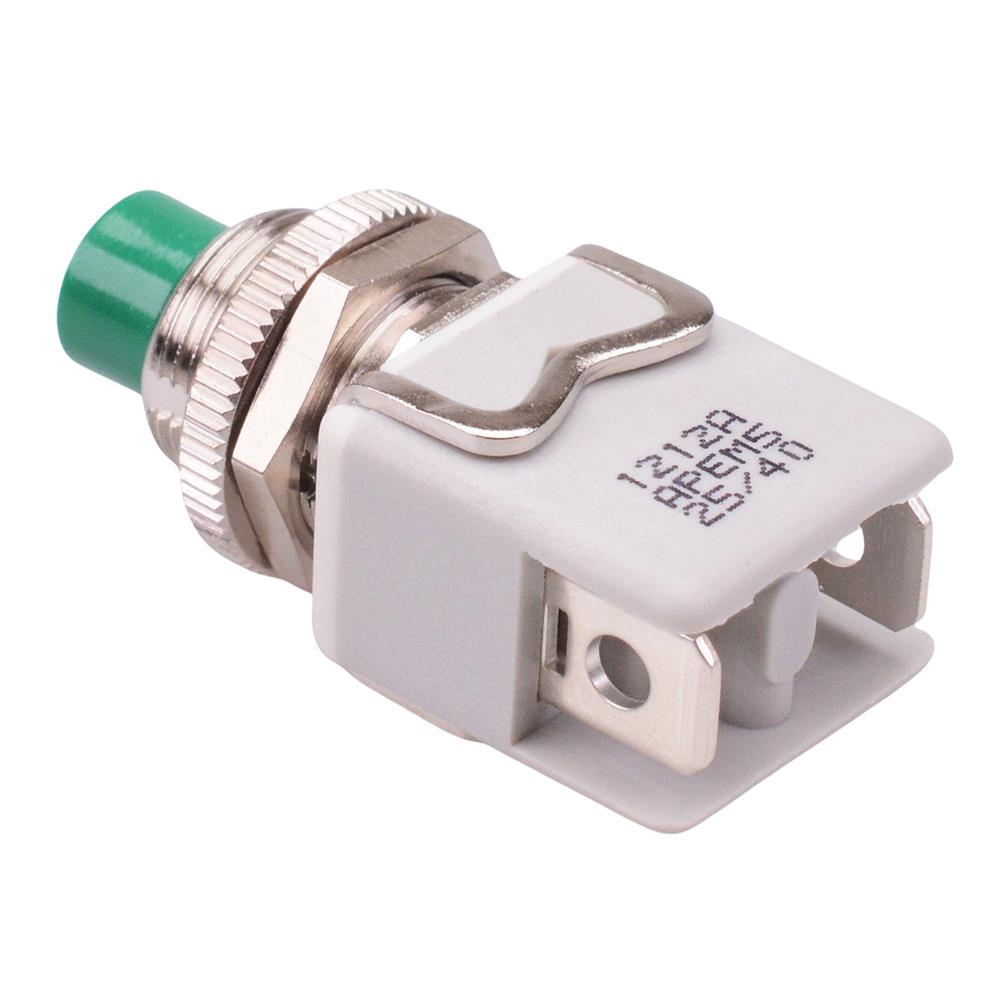

The 1212A3 is a momentary push button switch manufactured by APEM, with a round green plunger and normally closed contacts. The switch features 6.35mm quick connect terminals and 12mm threaded bushing, suitable for a wide range of applications.

SPST-NC contacts

12mm threaded bushing

Solder lug / quick connect terminals

Max panel thickness: 5mm

Panel cut-out: 12.2mm

Silver terminals

Rating: 4A 250VAC, 8A 125VAC, 4A 24VDC, 8A 12VDC
