Features

1. Enhanced Nitrogen Reservoir Design
 The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.

2. Dual-Mode Adjustability
 A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.

3. Oversized Damping Architecture
 The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.

4. Advanced Surface Engineering
 High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminum maintains structural integrity while achieving weight reduction.

5. Dual Compression/Rebound Damping Adjustment
 The X3 Series features synchronized compression and rebound damping tuning capabilities, with terrain-specific recommendations provided for optimal setting combinations across diverse operating conditions (e.g., high-speed gravel, rock crawling, paved-road cruising).

Application

For FORD Ranger 2019-2023

Specification

- Height adjustable: lift 0-1.5 inches
- Body Outer Diameter (mm)：65*250
- Body Inner Diameter (mm)：57*250
- Body Material:45# steel
- Top Mount:EYELET BUSHING
- Bottom Mount:EYELET BUSHING
- Compressed Length (mm):162
- Extended Length (mm):162
- Reservoir Outer Dimensions:Φ52×150
- Reservoir Inner Dimensions:Φ44×150

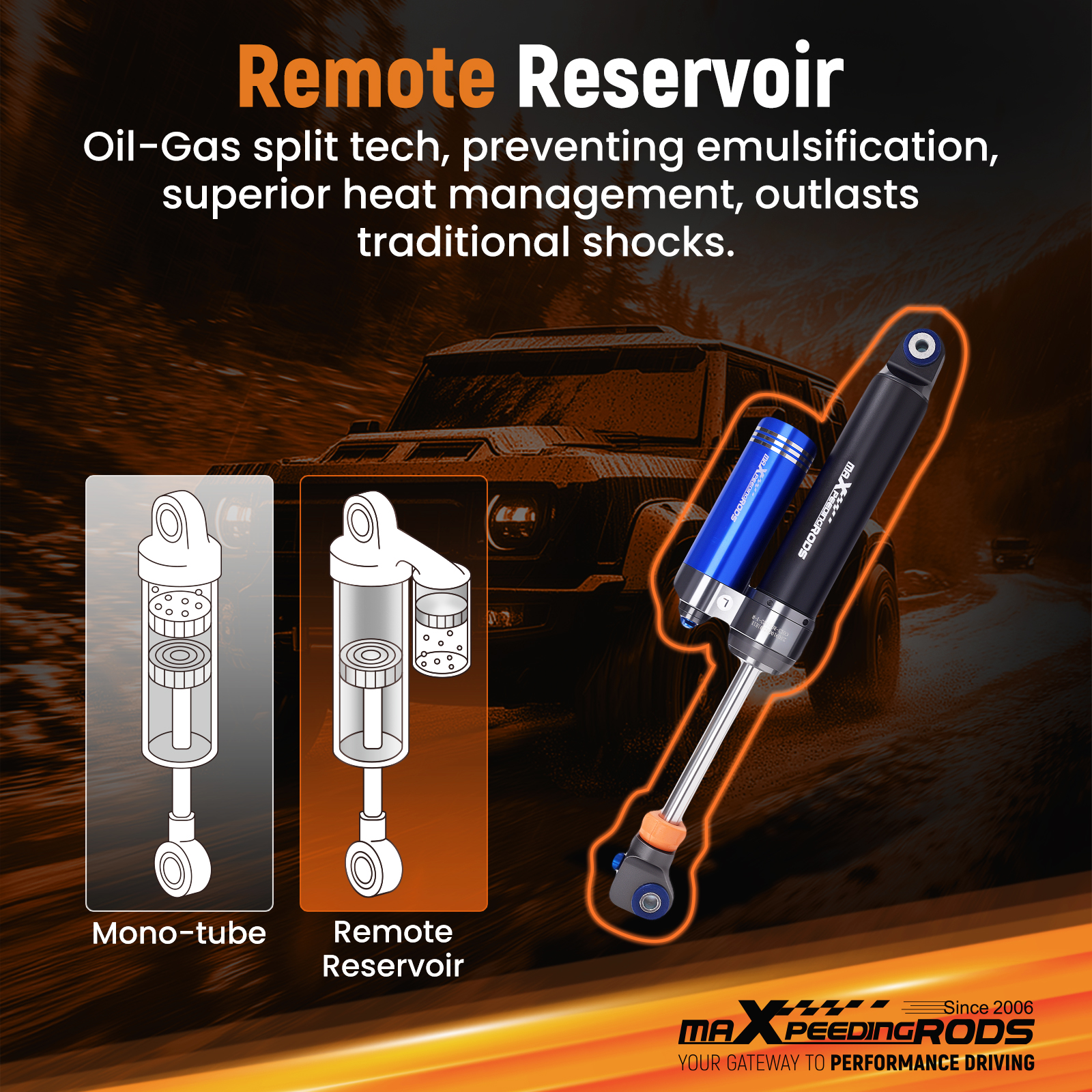

- Reservoir Type:Piggyback
- Shaft Size (mm):306
- Travel (mm): 162
- Type:SHOCK

Package included

Rear shocks*2
Instructions*1
