Application for:

For In-finiti QX56 2008-2010 [4WD]
For Nissan Armada 2008-2011 [4WD; Plug In ABS Style]
For Nissan Armada 2012 [4WD; Built Before 11/2011]

Replace OEM Number:

515125, WE61127, BR9303494, SP500703, BR930829, 538-50259, 538-50260, 40202ZR40B, 40202ZR00B

541004, BR930625, SP500702, WA541004, 29541004, SK541004, 43202-7S000, 432027S000
096509615096515096

Specifications:

515125:
ABS Sensor Cord Included: Yes
Anti Lock Braking System: Yes
Anti Lock Braking System Type: Sensor
Bolt Circle Diameter (IN): 5.5
Bolt Circle Diameter (MM): 139.7
Brake Pilot Diameter (IN): 3.54
Brake Pilot Diameter (MM): 90
Connector Quantity: 1
Driven Or Non-Driven Type Hub Assembly: Driven
Flange Bolt Hole Quantity: 3
Flange Bolt Size (MM): M14 x 1.5
Flange Bolts Included: No
Flange Diameter (IN): 6.73
Flange Diameter (MM): 171
Flange Offset (IN): 1.79
Flange Offset (MM): 45.4
Flange Shape: Triangle
Hub Pilot Diameter (IN): 3.5
Hub Pilot Diameter (MM): 89
Spline Quantity: 29
Wheel Pilot Diameter (IN): 3.06
Wheel Pilot Diameter (MM): 77.7
Wheel Stud Quantity: 6
Wheel Stud Size (MM): M12 x 1.25
Wheel Studs Included: Yes
Generation: 3
Height (Inch): 4.7
Height (MM): 119.38
Length (Inch): 6.5
Length (MM): 165.1
Width (inch): 6
Width (MM): 152.4

541004:

Position: Rear Left or Right

Lugs: 6 Bolt

ABS Type: Sensor Wire

Flange: 4-Bolt Square

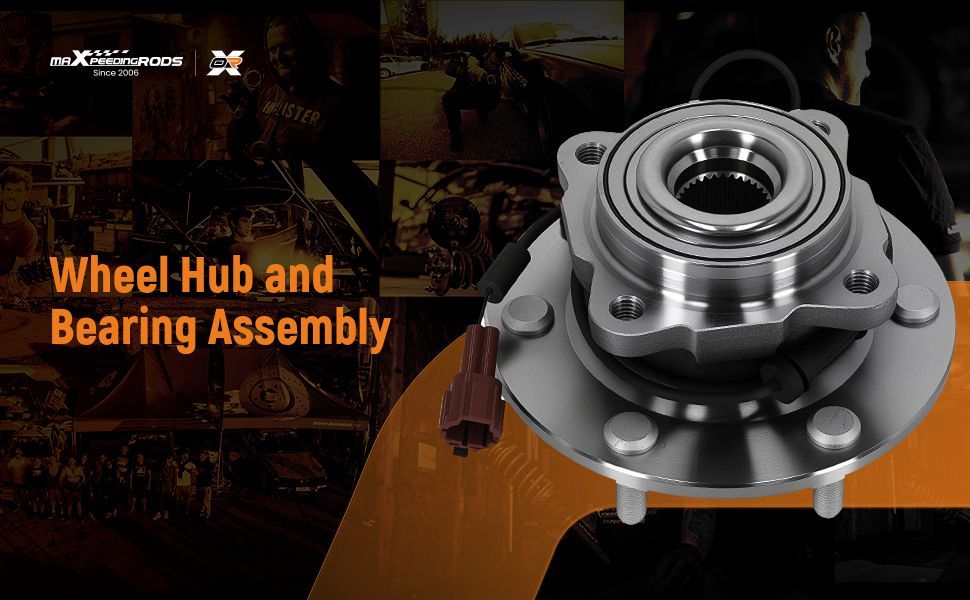

Type: Wheel Hub & Bearing Assembly

Feature:

1. Meet or exceed specifications keep your vehicle moving safely and smoothly(100% tested)

2. High quality materials to deliver optimal performance and durability.

3. Stylish design that complements the look of your vehicle and adds a touch of fashion and flair.

4. Enhanced performance, optimize your vehicle's performance and engineered for improved handling, agility, and overall ride quality

5. Easy installation, whether by yourself or use professional

Package included:

2x Front Wheel Bearing & Hub Set - 515125

2x Rear Wheel Bearing & Hub Set - 541004

Note:

Installing on 2WD models will cause hub failure!
Before placing the order, please check your car Fitment Filter System
