🟦 PRODUCT OVERVIEW

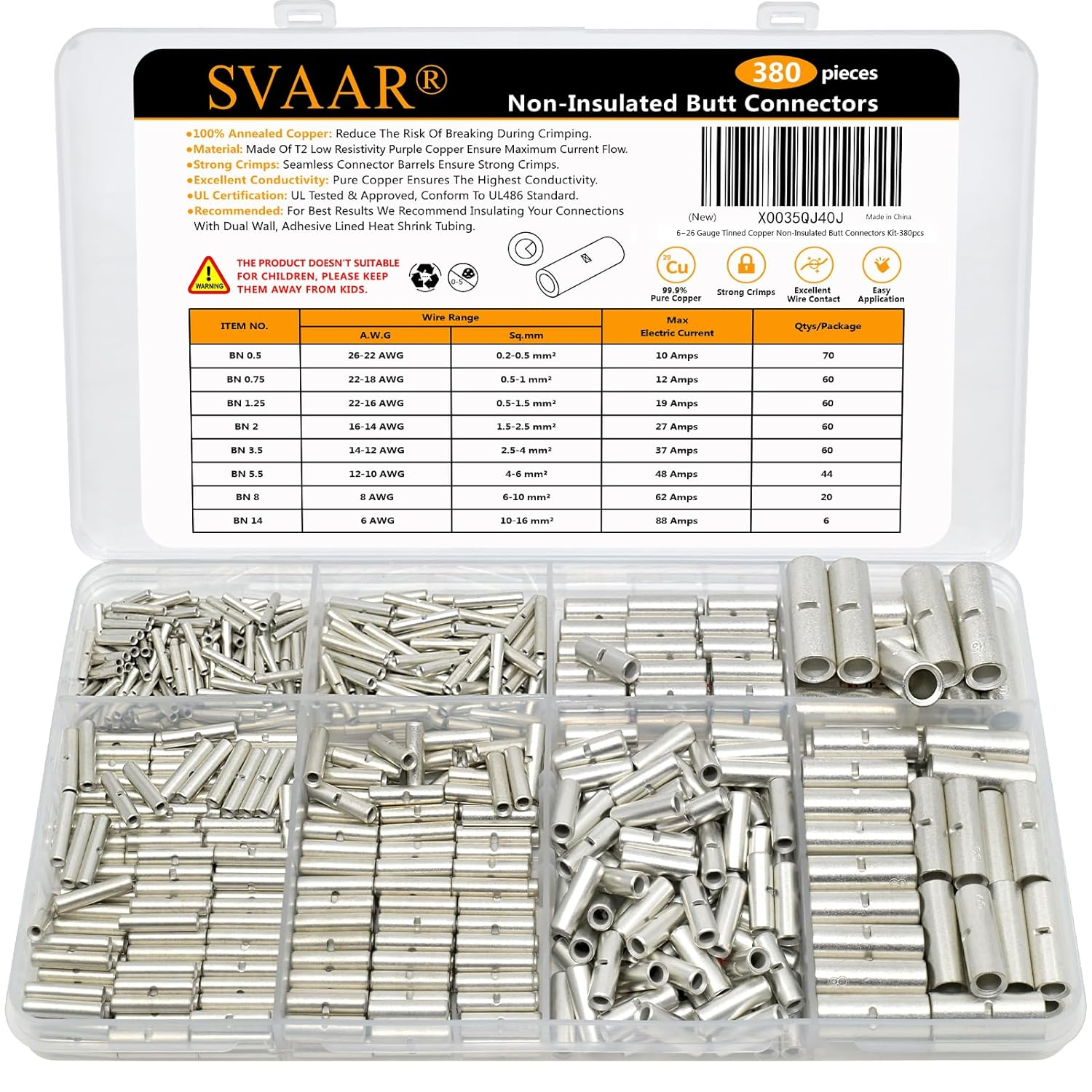

This 380-piece non-insulated butt connector kit covers wire gauges from 26 to 6 AWG, making it one of the widest gauge range assortments available in a single pack. Each connector is manufactured from C11000 electrolytic grade copper with a matte tin plating and a seamless tubular barrel construction, conforming to UL486 standards. Rated at 600V and designed for solid or stranded copper wire. Compatible with marine, automotive, and general electrical wiring applications.

⚠️ Important: Not rated for use with aluminium conductors. Always match the connector size to the wire gauge before crimping. Some cable manufacturers oversize their cable gauge — check the actual wire diameter against the connector dimensions before purchasing.

⭐ KEY FEATURES & BENEFITS

• C11000 electrolytic copper construction — 99.9% high-conductivity purple copper for efficient electrical performance
• Matte tin plating — Tin coating protects the copper barrel from oxidation and corrosion, particularly suited for marine and humid environments
• 100% annealed copper — Annealing process reduces material hardness and internal tension for improved crimp performance and reduced risk of cracking during crimping
• Seamless tubular barrel — One-piece seamless barrel construction prevents splitting during crimping and maintains structural integrity under high-amperage loads
• Conforms to UL486 standard — Meets UL486 electrical connector safety and performance requirements
• 600V rated — Suitable for standard residential and automotive voltage applications
• Chamfered barrel ends — Bevelled entry points on both ends allow fast, easy wire insertion from either direction
• Built-in wire stop — Internal stop positions the wire correctly within the barrel before crimping
• 380-piece variety pack — Includes larger gauges (6 AWG and 8 AWG) not commonly found in standard assortment packs
• Compatible with solid and stranded copper wire — Suitable for both wire construction types across the supported gauge range

🏠 MULTIPLE USES / APPLICATIONS

These butt connectors are suited for a range of wiring and electrical connection applications, including:

• Marine wiring — Tin coating provides corrosion protection in saltwater and high-humidity marine environments
• Automotive wiring — Suitable for vehicle wiring repairs, custom harness builds, and electrical upgrades
• Custom wire harness construction — Wide gauge range and chamfered entry support efficient harness assembly
• Electrical repairs — Suitable for splicing and repairing existing wiring in residential and light commercial applications
• High-amperage circuits — Seamless barrel and thick copper construction support high-current connections in larger gauge applications

📦 PRODUCT DETAILS / SPECIFICATIONS

• Total pieces: 380
• Material: C11000 electrolytic copper (99.9% purity)
• Plating: Matte tin
• Barrel type: Seamless tubular
• Voltage rating: 600V
• Standard: UL486 compliant
• Wire type compatibility: Solid and stranded copper (not rated for aluminium)
• Features: Chamfered ends, built-in wire stop

Gauge Breakdown:

💡 For best results, insulate completed connections with dual-wall adhesive-lined heat shrink tubing (sold separately)
