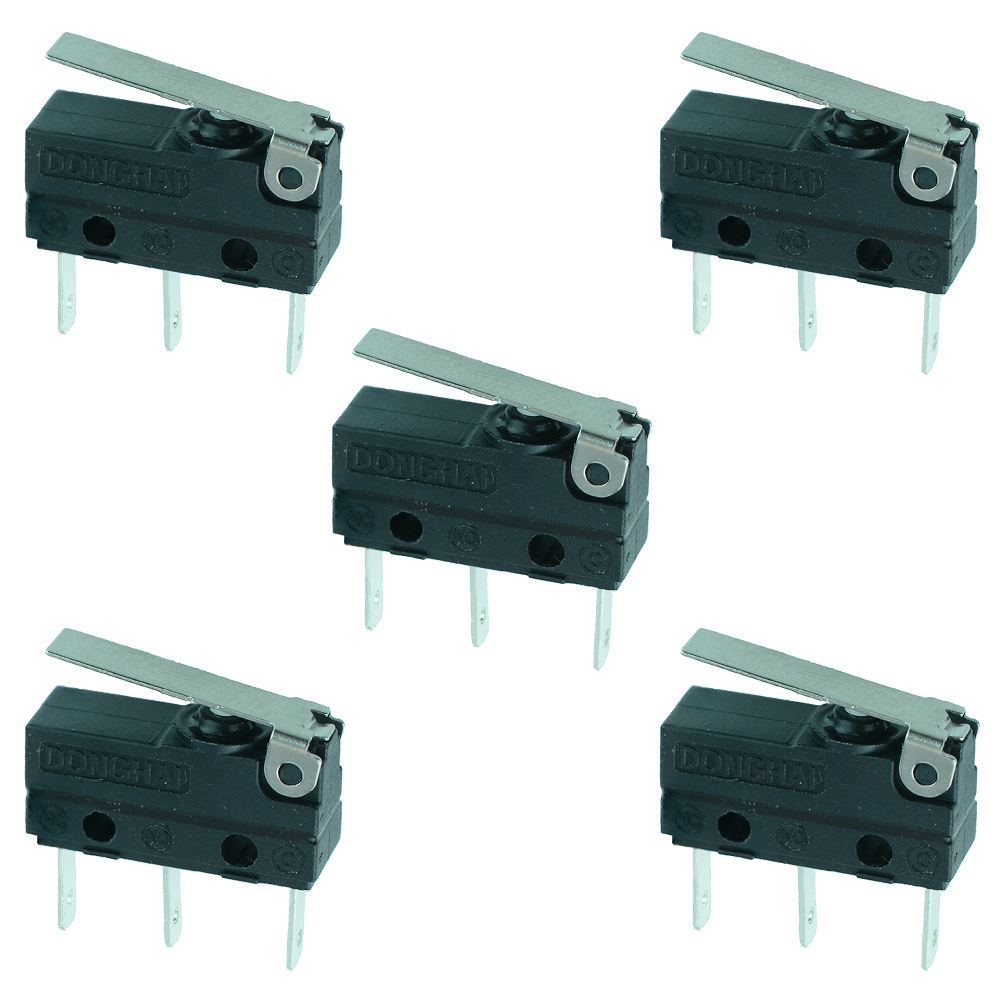

5 x 17mm Lever Waterproof Microswitch SPDT 3A Micro Switch

5 x 17mm Lever Waterproof Microswitch SPDT 3A Micro Switch

£
7.99

Ask a question
Miniature microswitch featuring a 17mm lever actuator, housed in a waterproof compact package capable of switching up to 3A. The switch features quick connect terminals and is suitable for domestic and industrial applications.

  • Pack size: 5
  • 17.7mm lever actuator
  • Rating: 3A 250VAC / 48VDC
  • NO / NC contacts
  • 2.8mm quick connect terminals
  • Operating force: 105gf max
  • Release force: 20gf min
  • Pre-travel: 4.3mm max
  • Over-travel 0.6mm min
  • Differential travel: 0.7mm max
  • Body dimensions: 19.9 x 6.4 x 9.3mm (Length x Width x Height)
