2-Way Speaker Splitter Switcher With Volume Control

2-Way Speaker Splitter Switcher With Volume Control║Hi-Fi Loudspeaker Audio Switch
This speaker controller box can be used as a speaker splitter or a speaker switcher. How you use it is all in your imagination.

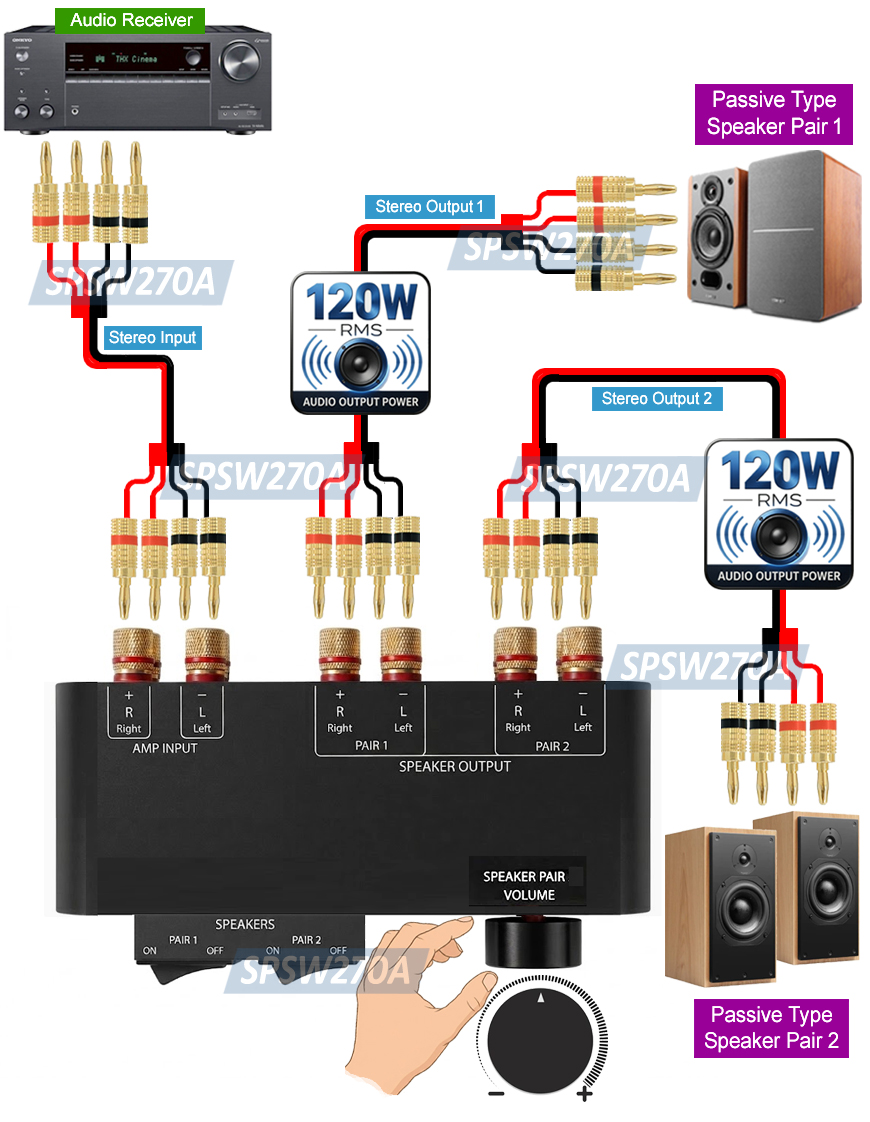

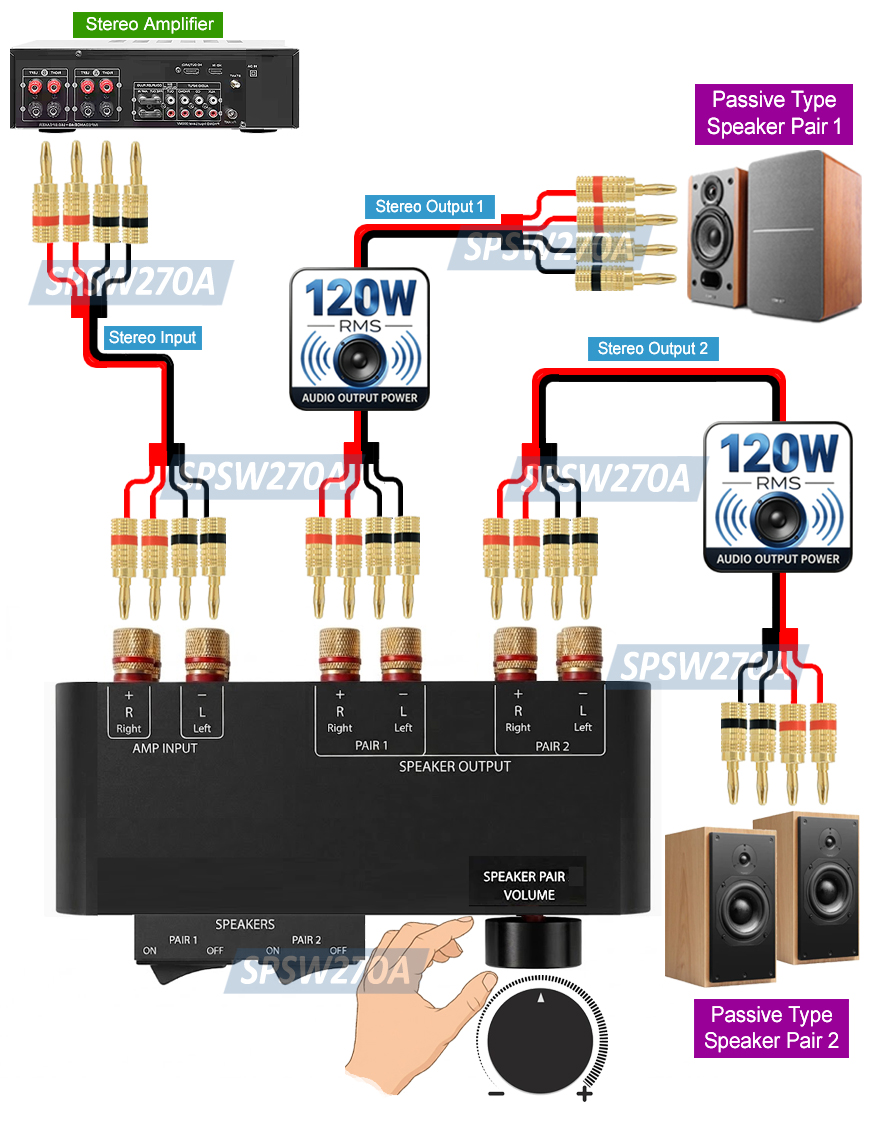

Designed to distribute loudspeaker output signals from a stereo amplifier or audio receiver to 2 pairs of loudspeakers for performance with external volume control function.

This speaker splitter switcher can switch the play between 2 speaker pairs or play from both speaker pairs simultaneously.

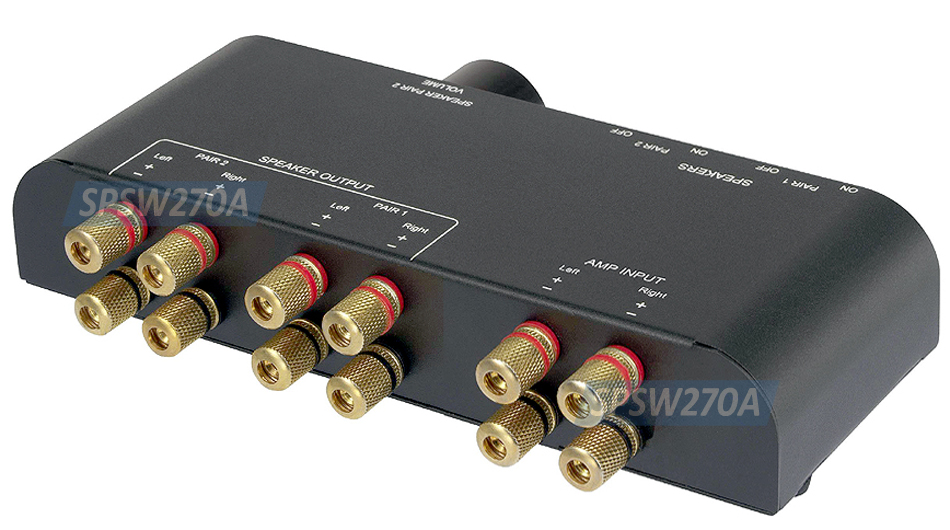

Elegant metal enclosure with 2 on/off rocker button for easy operation.

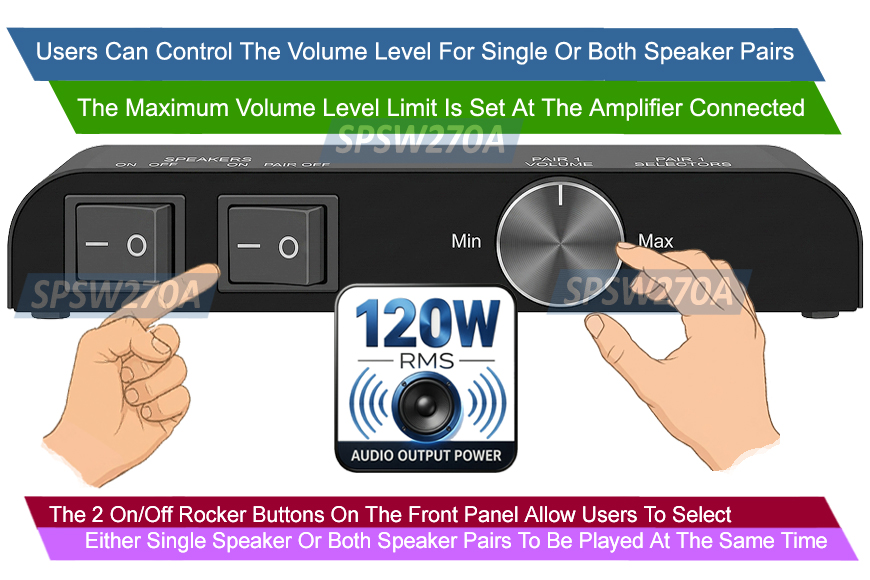

The 2 on/off rocker buttons on the front panel allow users to select either single speaker pair or both speaker pairs to be played at the same time.

This is a passive device so no power supply needed.

Speaker Zone Expansion
This speaker distribution controller helps your existing receiver or amplifier expanded to handle more speakers.

Some speakers may be favored for going with particular amplifier or receiver.

With the help from this speaker distribution system, your choice of speaker is only a push button away.

⚠[Important Compatibility Note]:

Amplifier Required: This passive type controller box must be connected directly to the speaker-level output of an audio amplifier or home theater receiver.

Inputs from the line-level output of a smartphone, mixer, or pre-amp could cause a nasty impedance mismatch.

Passive Speakers Only: This device is designed for standard hookup with passive type non-powered loudspeakers (connected via speaker wire) only. Active type powered speakers should be avoided to prevent short circuits.

1 In 2 Out Speaker Splitter
This speaker controller can be used a speaker zone controller. It allows users to play both speaker pairs connected at the same time.

Both pairs of speakers connected can be turned on / off individually by using the rocker buttons on the front panel.

2-Way Speaker Switcher
 Users can also play either speaker set individually at a time through toggling the rocker buttons on the front panel.

Choice of favorite speaker is only a push button away.



Volume Controller
This speaker switcher/splitter has its own volume control that allows users to control the drop of volume on any selected speaker pair or both speakers.

The amplifier that every thing is connected to will act as a master volume control and the max volume limit is set on the amplifier or receiver end.

Maximum 120W RMS Output
The switch has a max wattage rating of 60W RMS per channel so the maximum total output is 120W RMS rating.
