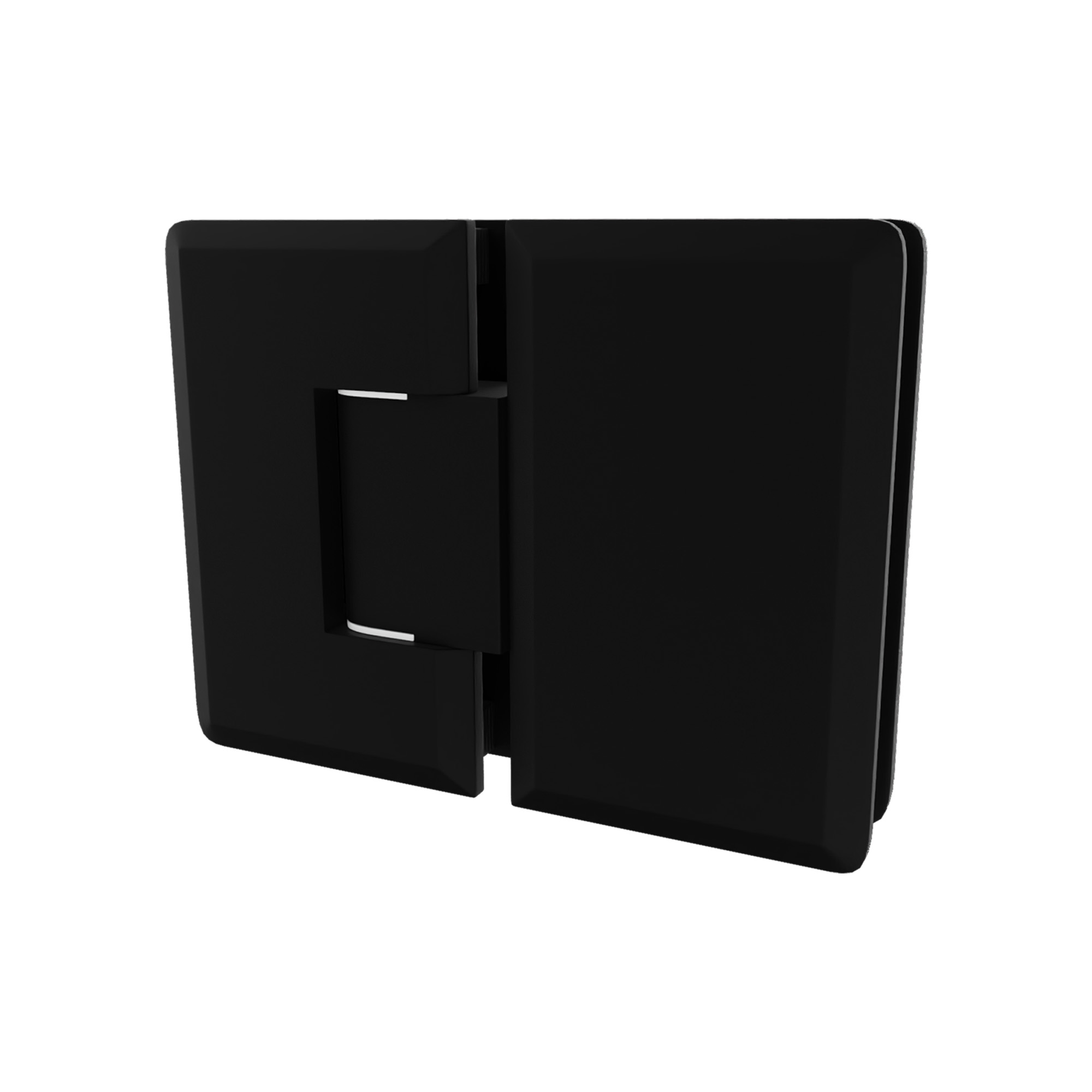

Brixwell P180MBL 180 Degree Glass-to-Glass Standard Hinge, Brass Material, 5/16" To 1/2" Glass Thickness, Matte Black Finish

FEATURES

  • Brass construction with matte black finish and glass to glass mounting supports straight panel alignment maintaining consistent hinge geometry
  • Designed for 180 Degree glass alignment with 90 Degree inward and 90 Degree outward swing for controlled door movement and daily operation.
  • Supports tempered glass thickness from 5/16" to 1/2" with beveled edge profile for accurate fit and clean visual transitions.
  • Self centering mechanism activates within 15 Degree of closed position to guide the door back to its resting alignment.
  • Dual degree pivot pin allows standard closing or optional 5 Degree inward adjustment using the pre machined reverse side.
  • Supports door widths up to 28" with two hinges and 32" with three hinges based on installation layout.
  • Includes gaskets and screws with care guidance for non abrasive cleaning and daily drying.

DESCRIPTION

The 180 Degree glass to glass standard hinge is designed for frameless glass door installations where straight alignment between two glass panels is required. Hinges are constructed of solid brass, and have stainless steel plunger tips, pins, and springs to ensure long service life and reliable door closure and finished in matte black for use in shower and interior glass door applications. The beveled edge profile supports clean glass contact points. It uses a glass to glass mounting configuration and supports a full 180 Degree glass to glass angle. The hinge is compatible with tempered safety glass ranging from 5/16" to 1/2" thickness. The hinge allows 90 Degree inward and 90 Degree outward swing movement for controlled door operation. A self centering closing action engages when the door reaches within 15 degree of the closed position. The hinge includes a dual degree pivot pin that is factory set for a normal closing position and can be reversed to shift the closing position 5 Degree inward using the pre machined opposite side. Custom pivot pins can be machined at angles up to 45 Degree. The hinge measures 3-1/2" height with a 2-3/16" width on both the door and sidelite portions. When two hinges are used, the maximum door width supported is 28" with a maximum weight of 80 lbs. When three hinges are used, the maximum door width supported is 32" with a maximum weight of 120 lbs. Supplied components include gaskets and screws. Tempered safety glass is recommended. Power tools should not be used during installation. Cleaning should be done using mild soap, warm water, and a soft cloth, followed by thorough drying. Replacement hardware includes wall plate replacement screws and cover plate replacement screws for maintenance or part replacement. Care: Wipe dry after use. Clean weekly with mild soap and warm water using a soft cloth. Do not use abrasive cleaners or scrubbing tools.

SPECS

Height3-1/2" (89mm)
FinishMatte Black
Mounting TypeGlass To Glass
MaterialBrass
Glass Thickness5/16" to 1/2" (8mm to 12mm)
Closing TypeSelf Centering Within 15 Degree Closed Position
IncludesGaskets and Screws
Edge ProfileBeveled
Hinge Swings95 Degree In and 90 Degree Out
AdjustableNo
Self-CenteringYes
5 Degree Pre-SetNo
Maximum Door Weight - 2 Hinges85 lbs.
Maximum Door Width - 2 Hinges28" (711mm)
Maximum Door Width - 3 Hinges32" (813mm)
Glass To Glass Angle180 Degree
Maximum Door Weight with 3 Hinges125 lbs.
Width (Sidelite and Door Portion)2-3/16" (56mm)
